Shoulder
| C01-Shoulder_head | |
|---|---|
| Latest version download | pib-stls/C-Arm/C01-Shoulder_head.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | pib-stls/C-Arm/C01-Shoulder_head.stl at main · pib-rocks/pib-stls · GitHub |
| Suggested layer height | 0.25mm |
| Suggested infill percentage | 20%-30% |
| Supports | None |
| Number of this part for one arm Pib | 1 |
| Number of this part for two arm Pib | 2 |
| Mass – (Mass with supports) | 50.6g |
| Suggested orientation |   |
| After printing processing | None |

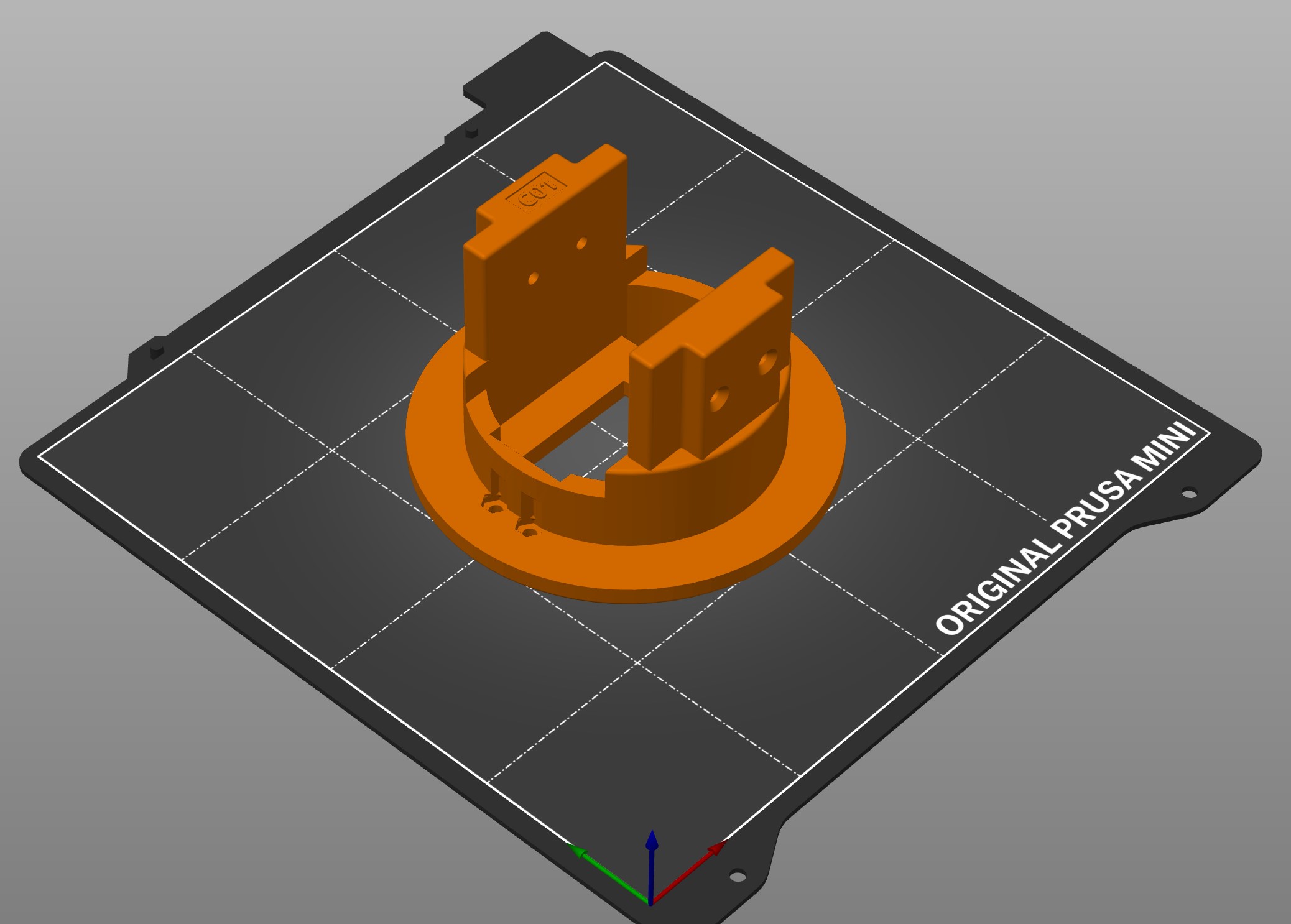

| C02-Shoulder_base | |
|---|---|
| Latest version download | pib-stls/C-Arm/C02-Shoulder_base.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | pib-stls/C-Arm/C02-Shoulder_base.stl at main · pib-rocks/pib-stls · GitHub |
| Suggested layer height | 0.25mm |
| Suggested infill percentage | 20%-30% |
| Supports | None |
| Number of this part for one arm Pib | 1 |
| Number of this part for two arm Pib | 2 |
| Mass – (Mass with supports) | 124.5g |
| Suggested orientation |  |
| After printing processing | None |
| C03-Shoulder_rotator_right | |
|---|---|
| Latest version download | pib-stls/C-Arm/C03-Shoulder_rotator.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | pib-stls/C-Arm/C03-Shoulder_rotator.stl at main · pib-rocks/pib-stls · GitHub |
| Suggested layer height | 0.25mm |
| Suggested infill percentage | 20%-30% |
| Supports | None |
| Number of this part for one arm Pib | 1 |
| Number of this part for two arm Pib | 2 |
| Mass – (Mass with supports) | 24.5g |
| Suggested orientation |  |
| After printing processing | None |
| C04-Shoulder_rotator_left | |
|---|---|
| Latest version download | pib-stls/C-Arm/C04-Shoulder_rotator_2.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | pib-stls/C-Arm/C04-Shoulder_rotator_2.stl at main · pib-rocks/pib-stls · GitHub |
| Suggested layer height | 0.25mm |
| Suggested infill percentage | 20%-30% |
| Supports | None |
| Number of this part for one arm Pib | 1 |
| Number of this part for two arm Pib | 2 |
| Mass – (Mass with supports) | 24.5g |
| Suggested orientation |  |
| After printing processing | None |
| C05-Shoulder_arm_inner_connector_left | |
|---|---|
| Latest version download | pib-stls/C-Arm/C05-Shoulder_arm_inner_connector.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | pib-stls/C-Arm/C05-Shoulder_arm_inner_connector.stl at main · pib-rocks/pib-stls · GitHub |
| Suggested layer height | 0.25mm |
| Suggested infill percentage | 20%-30% |
| Supports | None |
| Number of this part for one arm Pib | 1 |
| Number of this part for two arm Pib | 2 |
| Mass – (Mass with supports) | 33.7g |
| Suggested orientation |  |
| After printing processing | None |
| C30-Shoulder_arm_inner_connector_right | |
|---|---|
| Latest version download | pib-stls/C-Arm/C30-Shoulder_arm_inner_connector2.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | pib-stls/C-Arm/C30-Shoulder_arm_inner_connector2.stl at main · pib-rocks/pib-stls · GitHub |
| Suggested layer height | 0.25mm |
| Suggested infill percentage | 20%-30% |
| Supports | None |
| Number of this part for one arm Pib | 1 |
| Number of this part for two arm Pib | 2 |
| Mass – (Mass with supports) | 33.7g |
| Suggested orientation |  |
| After printing processing | None |
| C09-Central_rotator_connector | |
|---|---|
| Latest version download | pib-stls/C-Arm/C09-Central_rotator_connector.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | pib-stls/C-Arm/C09-Central_rotator_connector.stl at main · pib-rocks/pib-stls · GitHub |
| Suggested layer height | 0.25mm |
| Suggested infill percentage | 20%-30% |
| Supports | None |
| Number of this part for one arm Pib | 1 (in shoulder and additional one in elbow) |
| Number of this part for two arm Pib | 2 |
| Mass – (Mass with supports) | 25g |
| Suggested orientation |  |
| After printing processing | None |
| C26-Central_rotator_motor_scaffold_short | |
|---|---|
| Latest version download | pib-stls/C-Arm/C26-Central_rotator_motor_scaffold_short.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | pib-stls/C-Arm/C26-Central_rotator_motor_scaffold_short.stl at main · pib-rocks/pib-stls · GitHub |
| Suggested layer height | 0.25mm |
| Suggested infill percentage | 20%-30% |
| Supports | None |
| Number of this part for one arm Pib | 1 |
| Number of this part for two arm Pib | 2 |
| Mass – (Mass with supports) | 10.5g |
| Suggested orientation |  |
| After printing processing | None |
| C29-Shoulder_horizontal_mount | |
|---|---|
| Latest version download | pib-stls/C-Arm/C29-Shoulder_horizontal_mount.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | pib-stls/C-Arm/C29-Shoulder_horizontal_mount.stl at main · pib-rocks/pib-stls · GitHub |
| Suggested layer height | 0.25mm |
| Suggested infill percentage | 20%-30% |
| Supports | None |
| Number of this part for one arm Pib | 1 |
| Number of this part for two arm Pib | 2 |
| Mass – (Mass with supports) | 35.3g |
| Suggested orientation |  |
| After printing processing | None |
| C08-Central_rotator_bracket | |
|---|---|
| Latest version download | pib-stls/C-Arm/C08-Central_rotator_bracket.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | pib-stls/C-Arm/C08-Central_rotator_bracket.stl at main · pib-rocks/pib-stls · GitHub |
| Suggested layer height | 0.25mm |
| Suggested infill percentage | 20%-30% |
| Supports | None |
| Number of this part for one arm Pib | 2 (in shoulder and additional 2 in elbow) |
| Number of this part for two arm Pib | 4 |
| Mass – (Mass with supports) | 17.4g |
| Suggested orientation |  |
| After printing processing | Break print helpers Gently move small plastic parts highlighted until breaking  |
| C15-Central_rotator_motor_connector | |
|---|---|
| Latest version download | pib-stls/C-Arm/C15-Central_rotator_motor_connector.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | pib-stls/C-Arm/C15-Central_rotator_motor_connector.stl at main · pib-rocks/pib-stls · GitHub |
| Suggested layer height | 0.25mm |
| Suggested infill percentage | 20%-30% |
| Supports | None |
| Number of this part for one arm Pib | 1 (in shoulder and additional one in elbow) |
| Number of this part for two arm Pib | 2 |
| Mass – (Mass with supports) | 15g |
| Suggested orientation |  |
| After printing processing | None |
| C27-Arm_shell_lateral_major | |
|---|---|
| Latest version download | pib-stls/C-Arm/C27-Arm_shell_lateral_major.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | pib-stls/C-Arm/C27-Arm_shell_lateral_major.stl at main · pib-rocks/pib-stls · GitHub |
| Suggested layer height | 0.25mm |
| Suggested infill percentage | 20%-30% |
| Supports | None |
| Number of this part for one arm Pib | 1 |
| Number of this part for two arm Pib | 2 |
| Mass – (Mass with supports) | 56g |
| Suggested orientation |  |
| After printing processing | None |
| C28-Arm_shell_lateral_minor | |
|---|---|
| Latest version download | pib-stls/C-Arm/C28-Arm_shell_lateral_minor.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | pib-stls/C-Arm/C28-Arm_shell_lateral_minor.stl at main · pib-rocks/pib-stls · GitHub |
| Suggested layer height | 0.25mm |
| Suggested infill percentage | 20%-30% |
| Supports | None |
| Number of this part for one arm Pib | 1 |
| Number of this part for two arm Pib | 2 |
| Mass – (Mass with supports) | 21g |
| Suggested orientation |  |
| After printing processing | None |
| C31-Wire_cover_upper_arm | |
|---|---|
| Latest version download | pib-stls/C-Arm/C31-Wire_cover_upper_arm.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | pib-stls/C-Arm/C31-Wire_cover_upper_arm.stl at main · pib-rocks/pib-stls · GitHub |
| Suggested layer height | 0.25mm |
| Suggested infill percentage | 20%-30% |
| Supports | None |
| Number of this part for one arm Pib | 1 (in elbow and additional one in shoulder) |
| Number of this part for two arm Pib | 2 |
| Mass – (Mass with supports) | 20g |

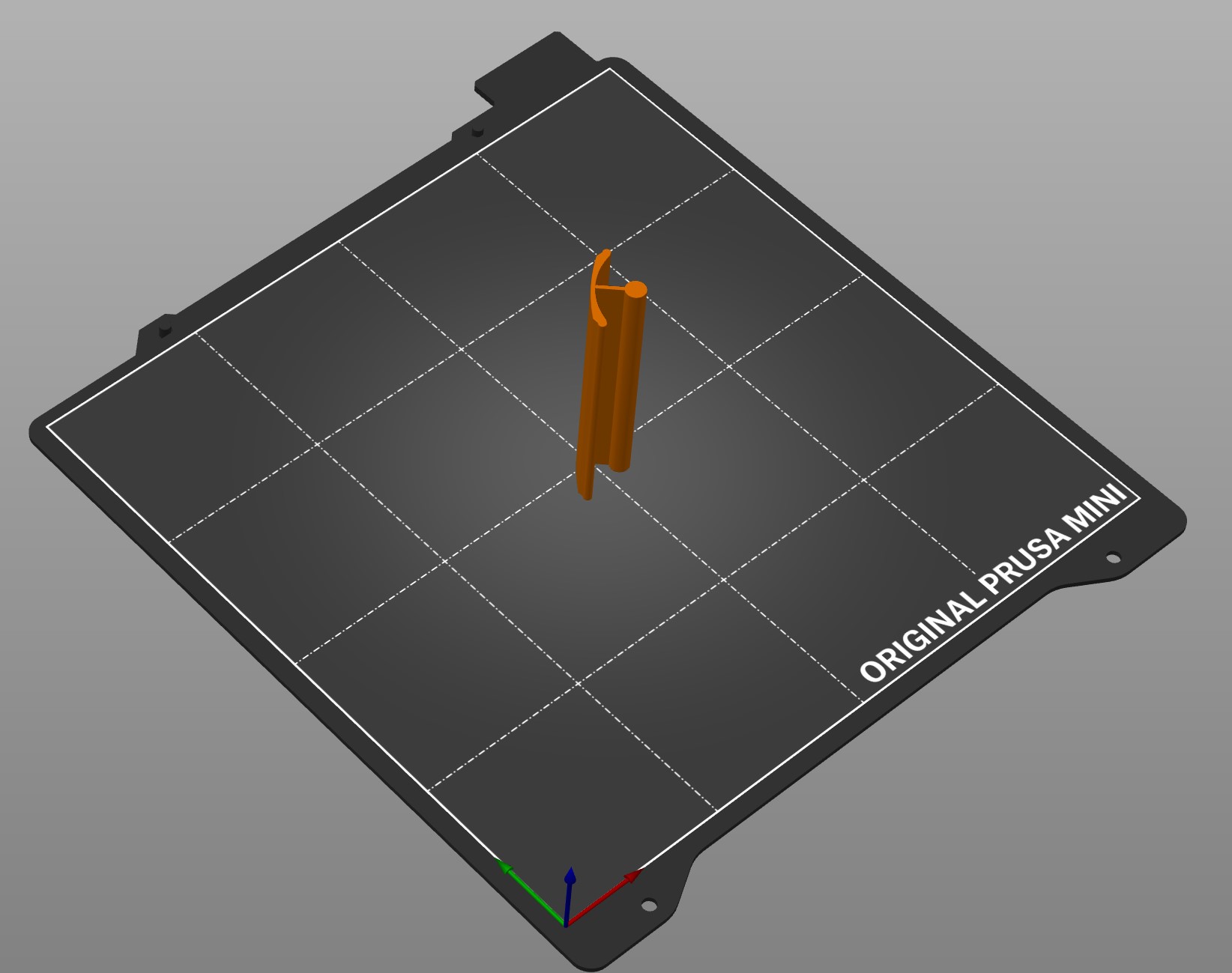

| Suggested orientation |  |
| After printing processing | None |
