Fingers and Thumb

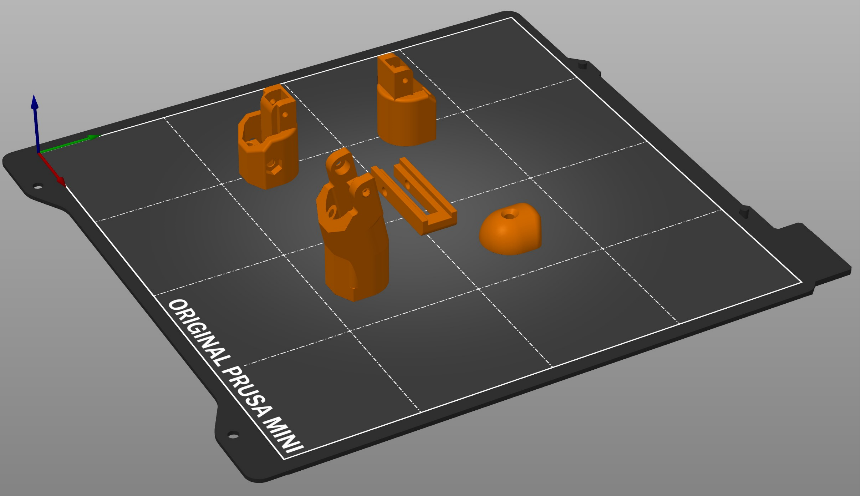

Pib fingers are designed to be assembled from 5 parts to ease printing and cancel the need for supports. Finger parts are relatively small and can be printed collectively on the same plate with the same configuration.
| D05-Finger_proximal_lower | |
|---|---|
| Latest version download | pib-stls/D-Hand_Fingers/D05-Finger_proximal_lower.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | |
| Suggested layer height | 0.2 mm |
| Suggested infill percentage | 20%-30% |
| Supports | None |
| Number of this part for one arm Pib | 4 |
| Number of this part for two arm Pib | 8 |

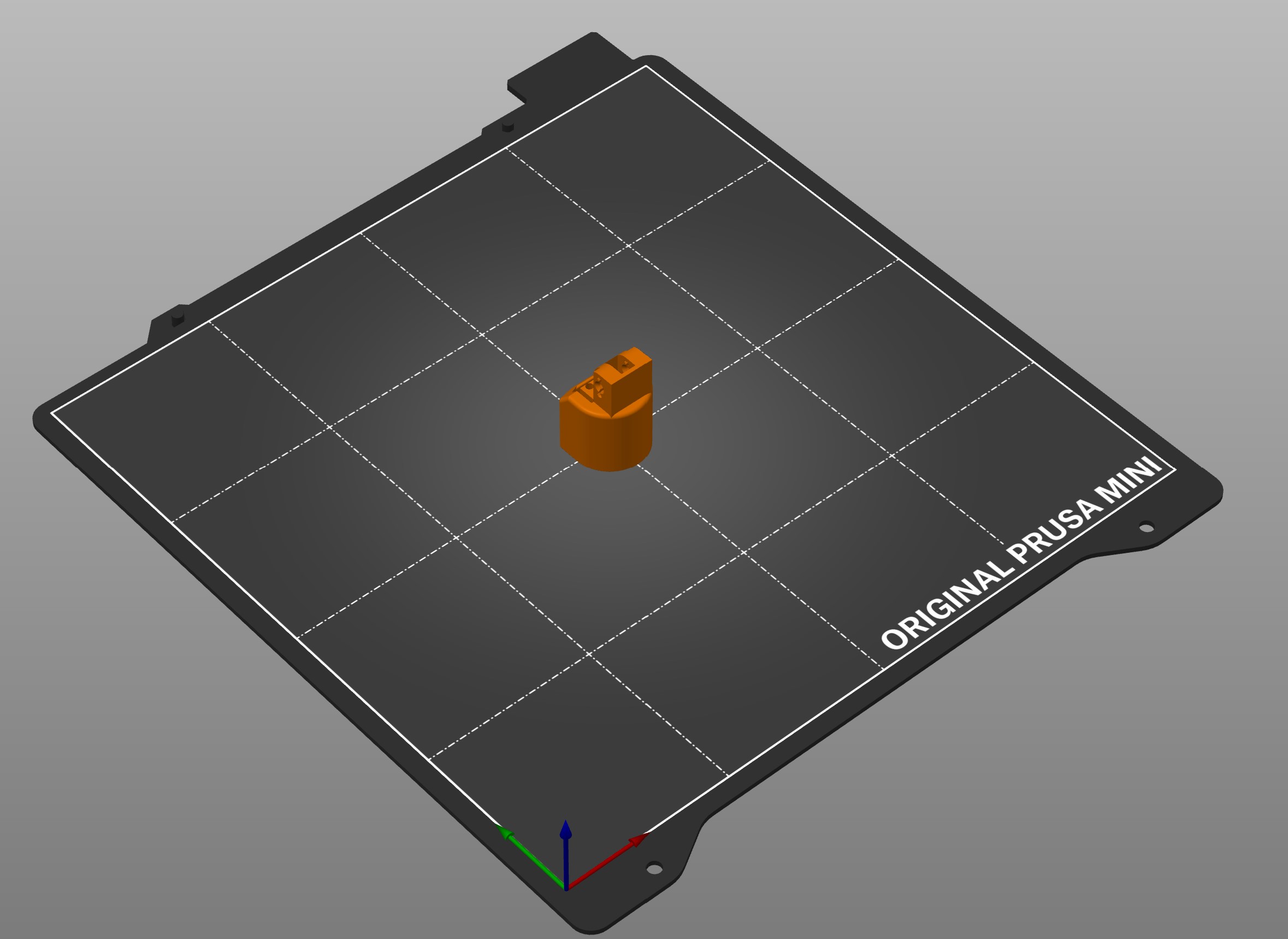

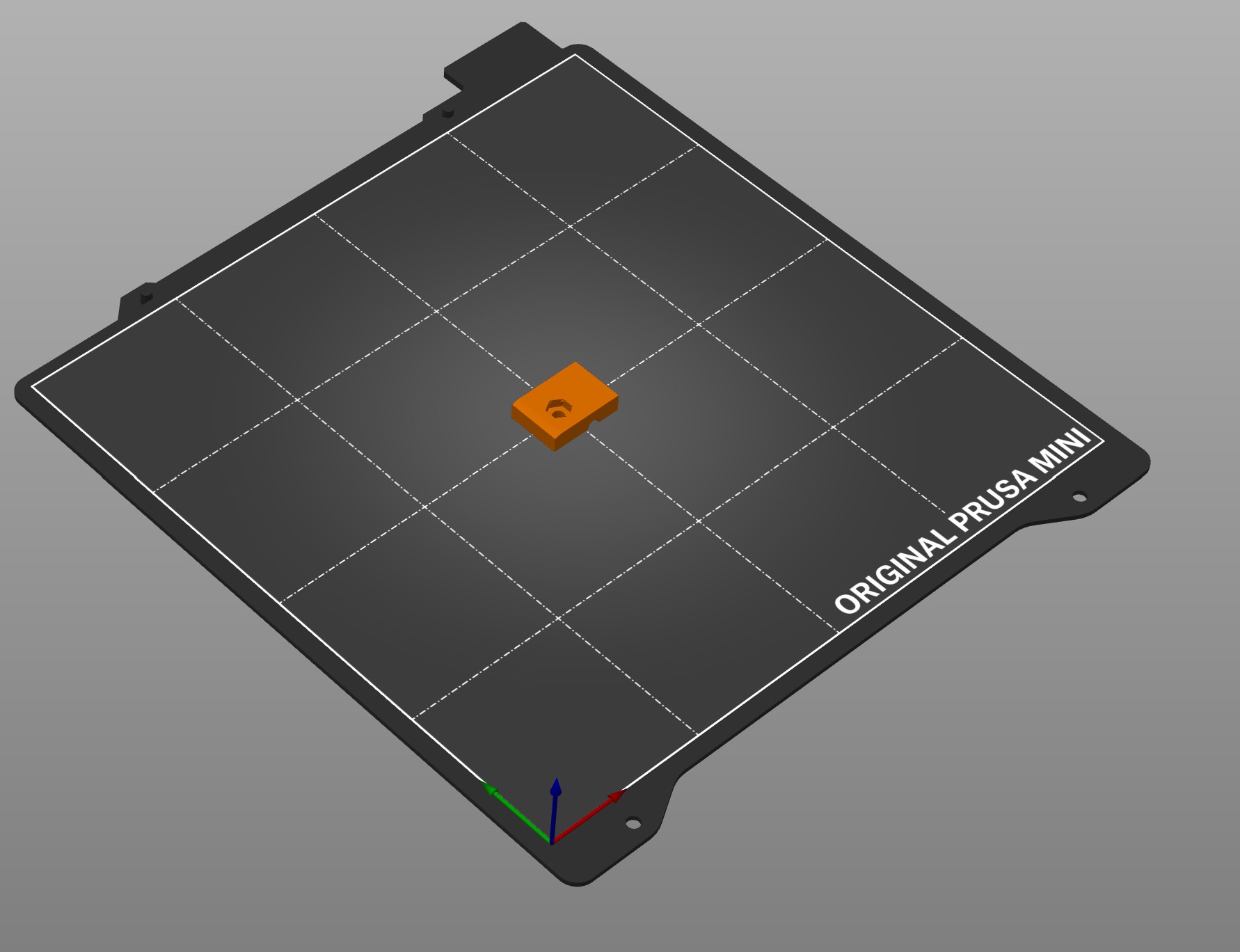

| Suggested orientation |   |
| After printing processing | None |
| D06-Finger_proximal_bracket | |
|---|---|
| Latest version download | pib-stls/D-Hand_Fingers/D06-Finger_proximal_bracket.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | |
| Suggested layer height | 0.2 mm |
| Suggested infill percentage | 20%-30% |
| Supports | None |
| Number of this part for one arm Pib | 4 |
| Number of this part for two arm Pib | 8 |

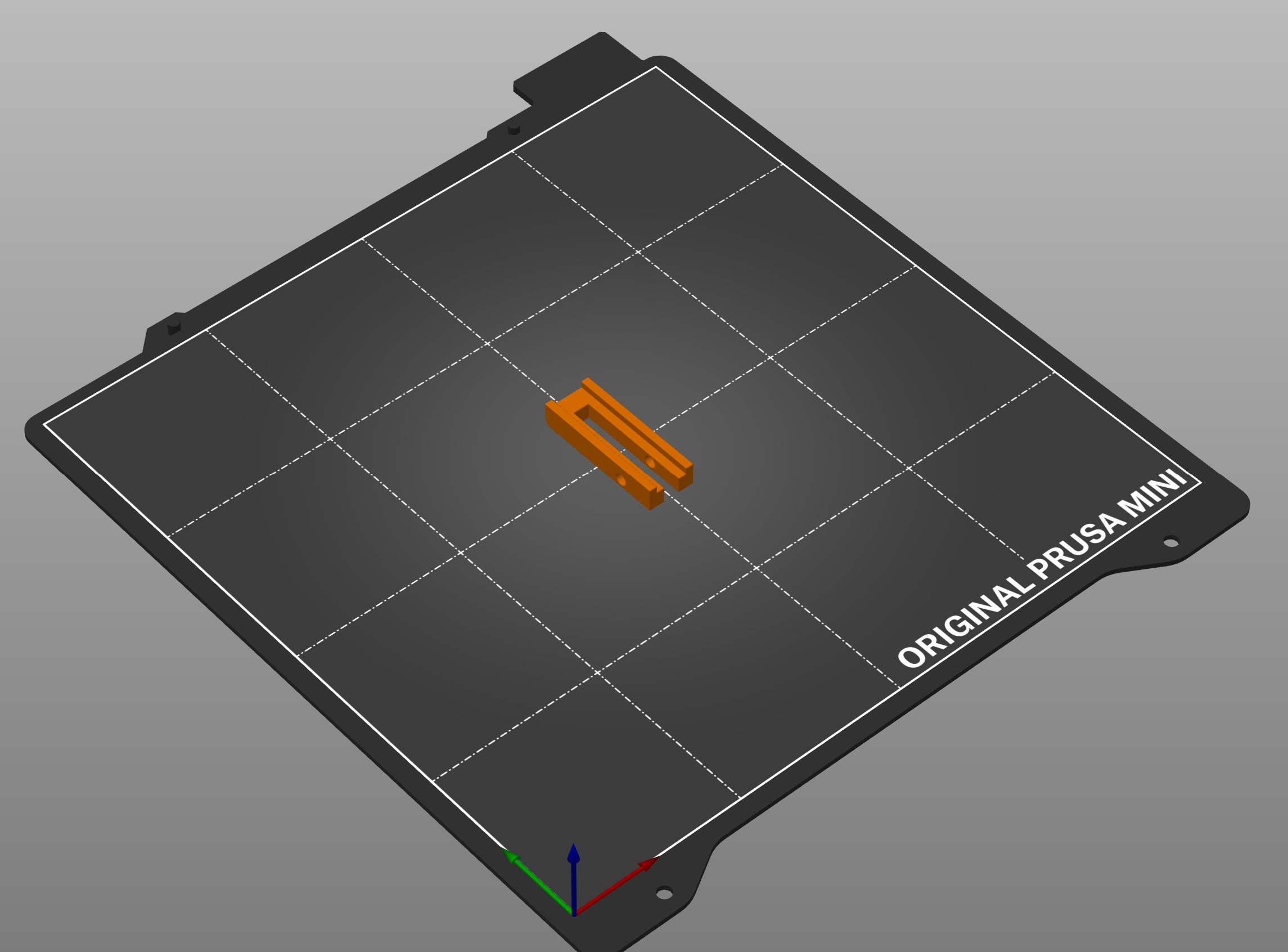

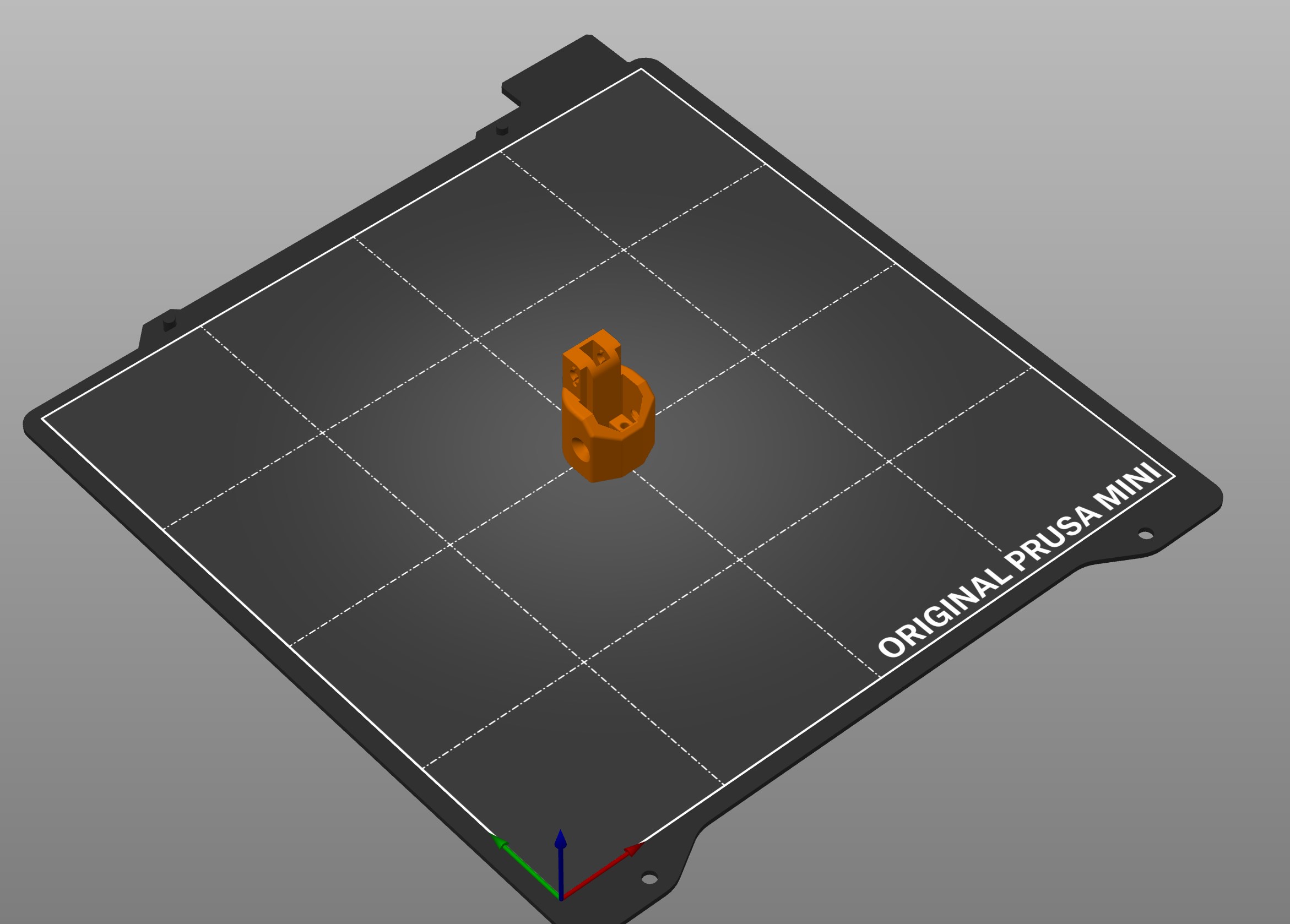

| Suggested orientation |  |
| After printing processing | None |
| D07-Finger_proximal_upper | |
|---|---|
| Latest version download | pib-stls/D-Hand_Fingers/D07-Finger_proximal_upper.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | |
| Suggested layer height | 0.2 mm |
| Suggested infill percentage | 20%-30% |
| Supports | None |
| Number of this part for one arm Pib | 4 |
| Number of this part for two arm Pib | 8 |

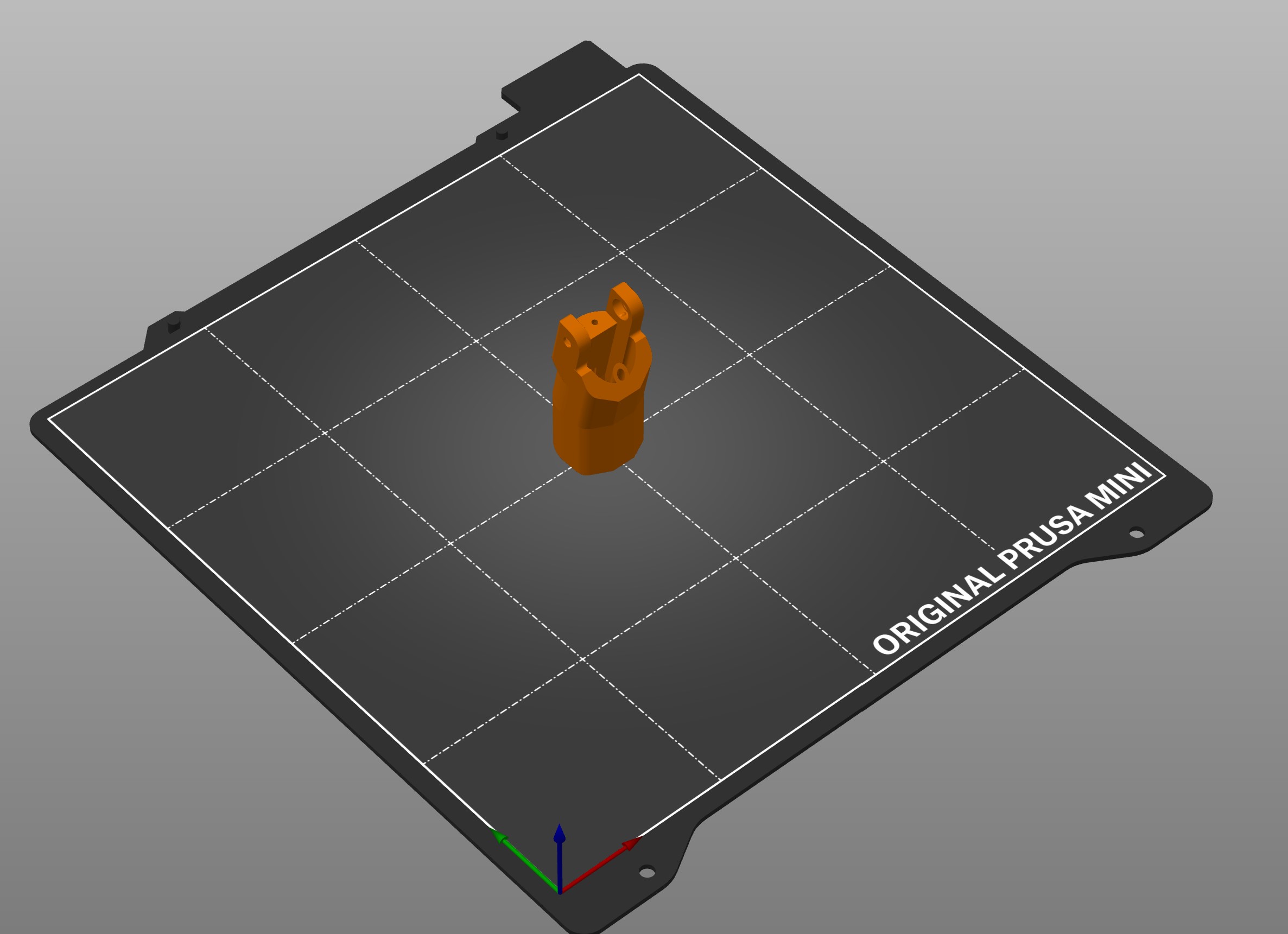

| Suggested orientation |  |
| After printing processing | None |
| D08-Finger_distal | |
|---|---|
| Latest version download | pib-stls/D-Hand_Fingers/D08-Finger_distal.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | |
| Suggested layer height | 0.2 mm |
| Suggested infill percentage | 20%-30% |
| Supports | None |
| Number of this part for one arm Pib | 4 |
| Number of this part for two arm Pib | 8 |

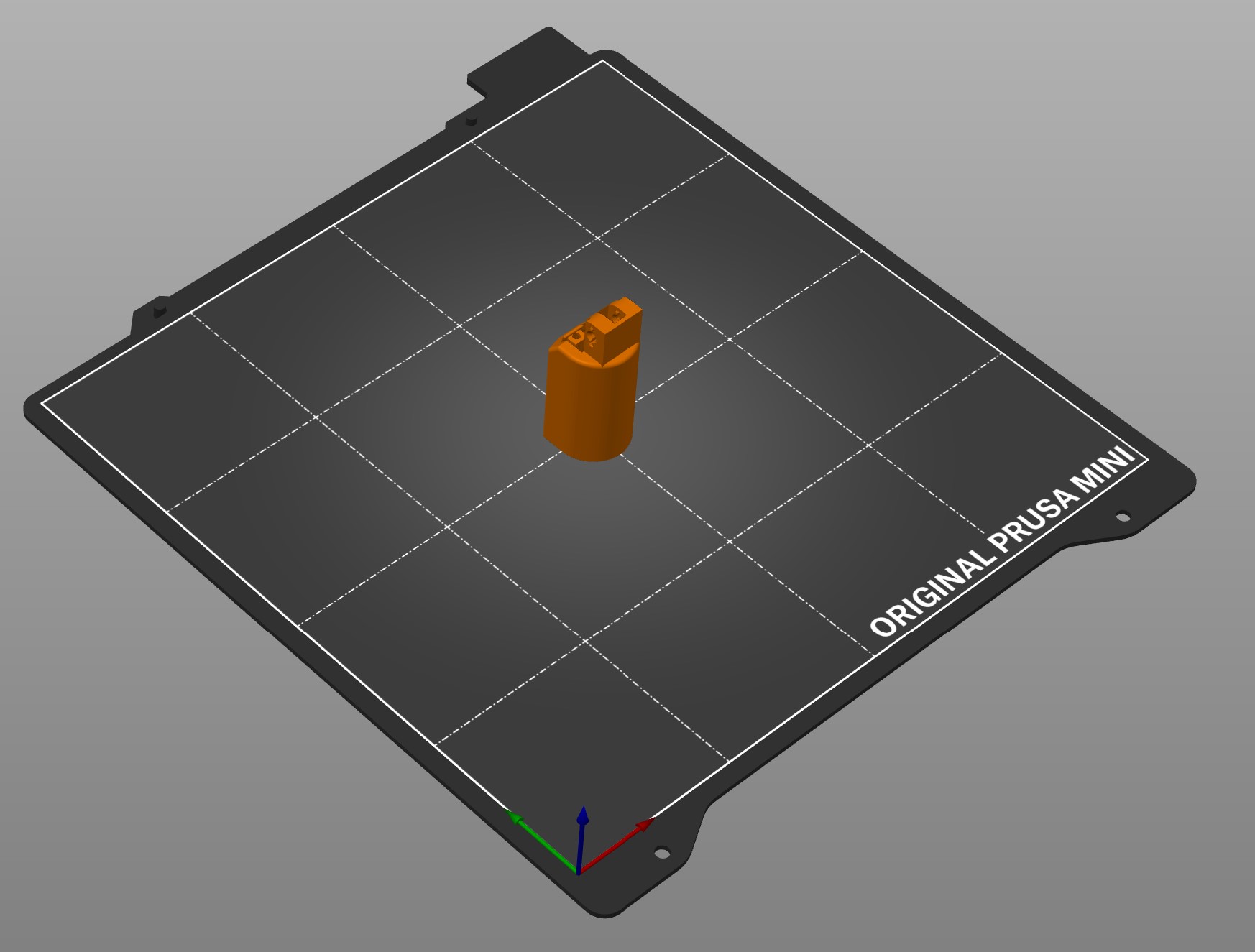

| Suggested orientation |  |
| After printing processing | None |
| D09-Finger_tip | |
|---|---|
| Latest version download | pib-stls/D-Hand_Fingers/D09-Finger_tip.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | |
| Suggested layer height | 0.2 mm |
| Suggested infill percentage | 20%-30% |
| Supports | Non |
| Number of this part for one arm Pib | 5 |
| Number of this part for two arm Pib | 10 |

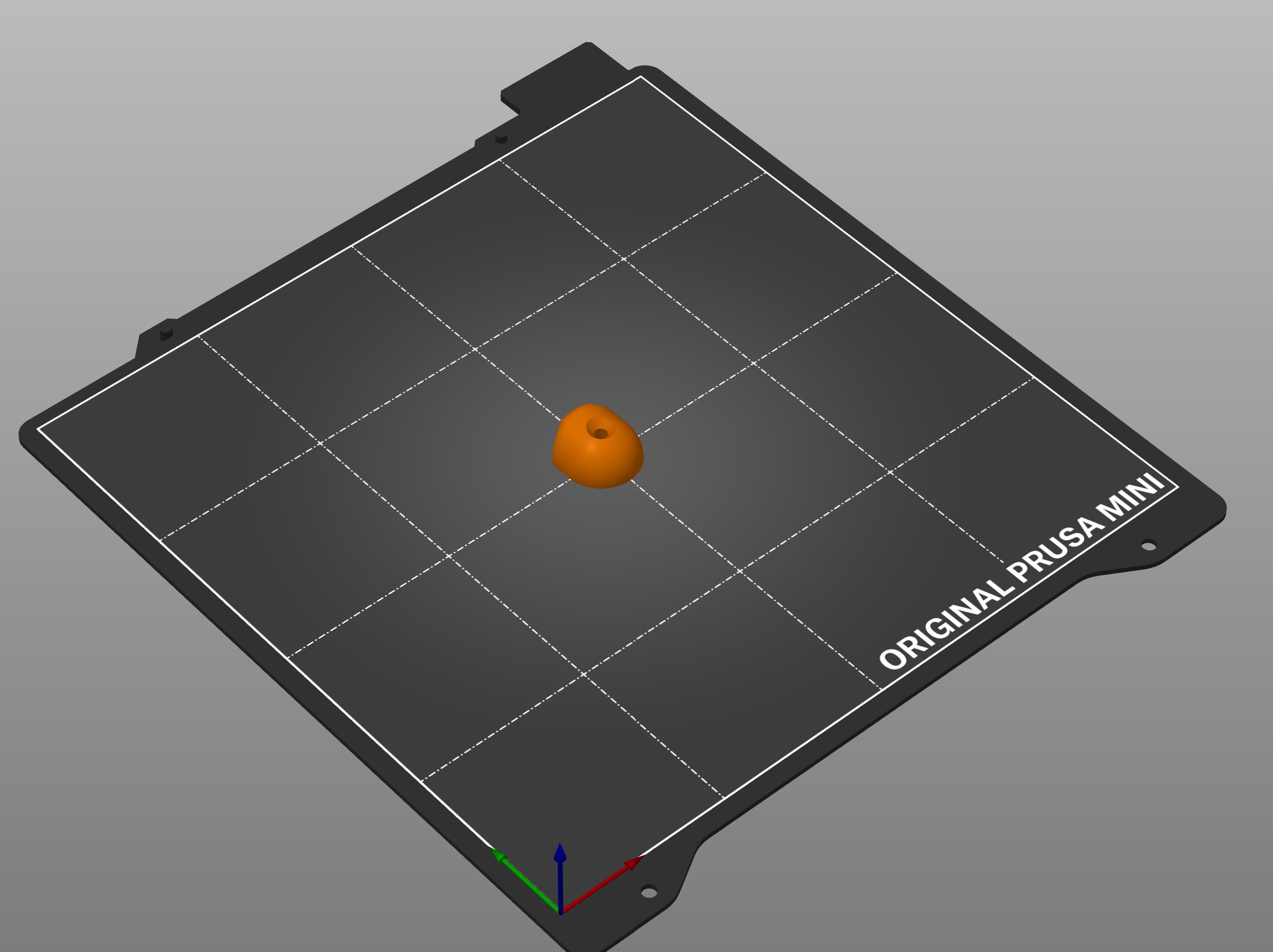

| Suggested orientation |  |
| After printing processing | None |
| D13-Thumb_rotator | |
|---|---|
| Latest version download | pib-stls/D-Hand_Fingers/D13-Thumb_rotator.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | |
| Suggested layer height | 0.2 mm |
| Suggested infill percentage | 20%-30% |
| Supports | None |
| Number of this part for one arm Pib | 1 |
| Number of this part for two arm Pib | 2 |

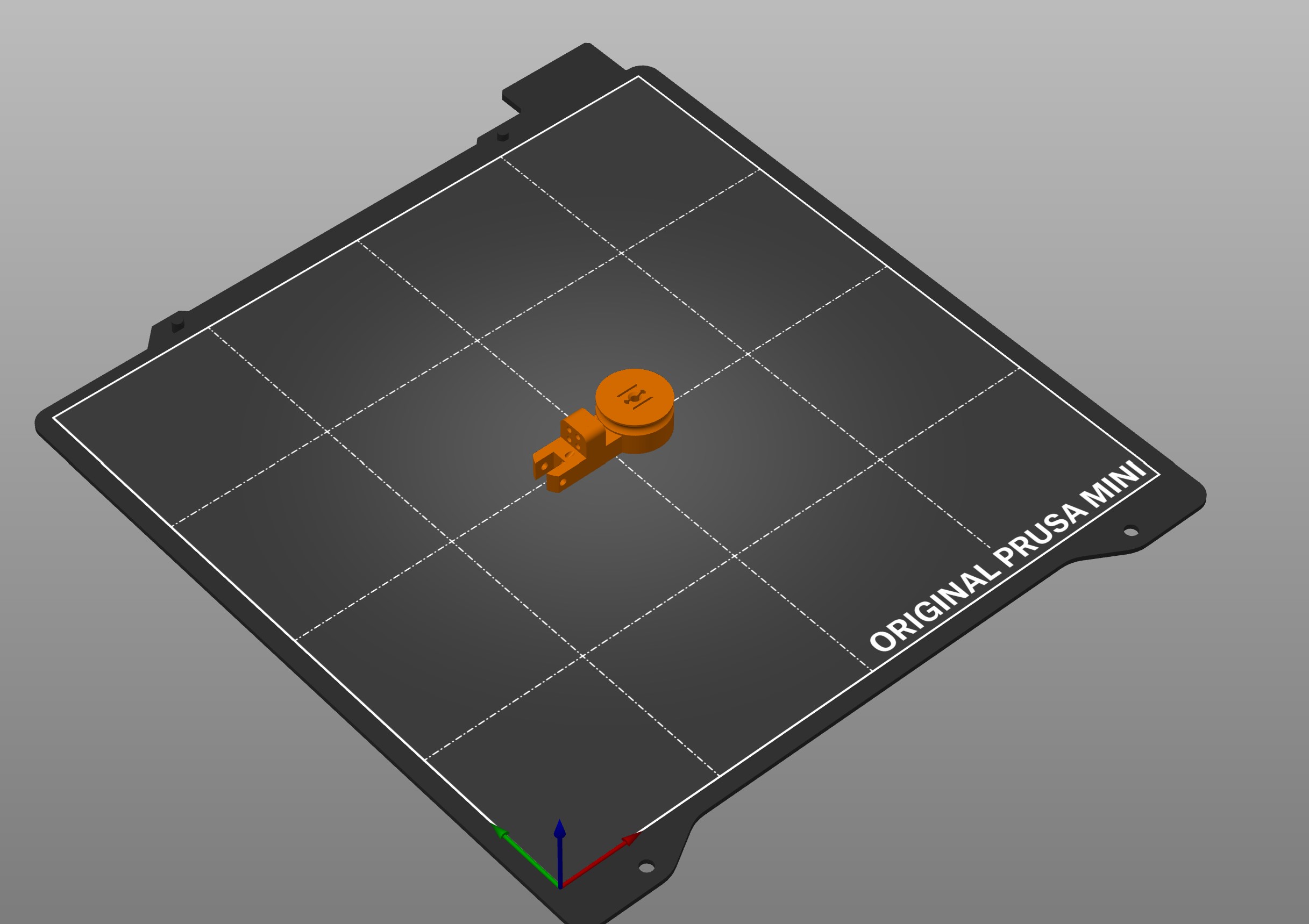

| Suggested orientation |  |
| After printing processing | None |
| D14-Thumb_right | |
|---|---|
| Latest version download | pib-stls/D-Hand_Fingers/D14-Thumb_right.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | |
| Suggested layer height | 0.2 mm |
| Suggested infill percentage | 20%-30% |
| Supports | On build plate only |
| Number of this part for one arm Pib | 1 |
| Number of this part for two arm Pib | 1 |
| Suggested orientation |  |
| After printing processing | Remove supports and clean holes from residual support |
| D15-Thumb_left | |
|---|---|
| Latest version download | pib-stls/D-Hand_Fingers/D15-Thumb_left.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | |
| Suggested layer height | 0.2 mm |
| Suggested infill percentage | 20%-30% |
| Supports | On build plate only |
| Number of this part for one arm Pib | 0 |
| Number of this part for two arm Pib | 1 |
| Suggested orientation |  |
| After printing processing | Remove supports and clean holes from residual support |
| D16-Thumb_proximal_upper | |
|---|---|
| Latest version download | pib-stls/D-Hand_Fingers/D16-Thumb_proximal_upper.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | |
| Suggested layer height | 0.2 mm |
| Suggested infill percentage | 20%-30% |
| Supports | None |
| Number of this part for one arm Pib | 1 |
| Number of this part for two arm Pib | 2 |
| Suggested orientation |  |
| After printing processing | None |
| D17-Tube_enclosure_left | |
|---|---|
| Latest version download | pib-stls/D-Hand_Fingers/D17-Tube_enclosure_left.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | |
| Suggested layer height | 0.2 mm |
| Suggested infill percentage | 20%-30% |
| Supports | None |
| Number of this part for one arm Pib | 1 |
| Number of this part for two arm Pib | 2 |
| Suggested orientation |  |
| After printing processing | None |
| D18-Tube_enclosure_right | |
|---|---|
| Latest version download | pib-stls/D-Hand_Fingers/D18-Tube_enclosure_right.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | |
| Suggested layer height | 0.2 mm |
| Suggested infill percentage | 20%-30% |
| Supports | None |
| Number of this part for one arm Pib | 1 |
| Number of this part for two arm Pib | 2 |
| Suggested orientation |  |
| After printing processing | None |
