Electronics base & internal parts

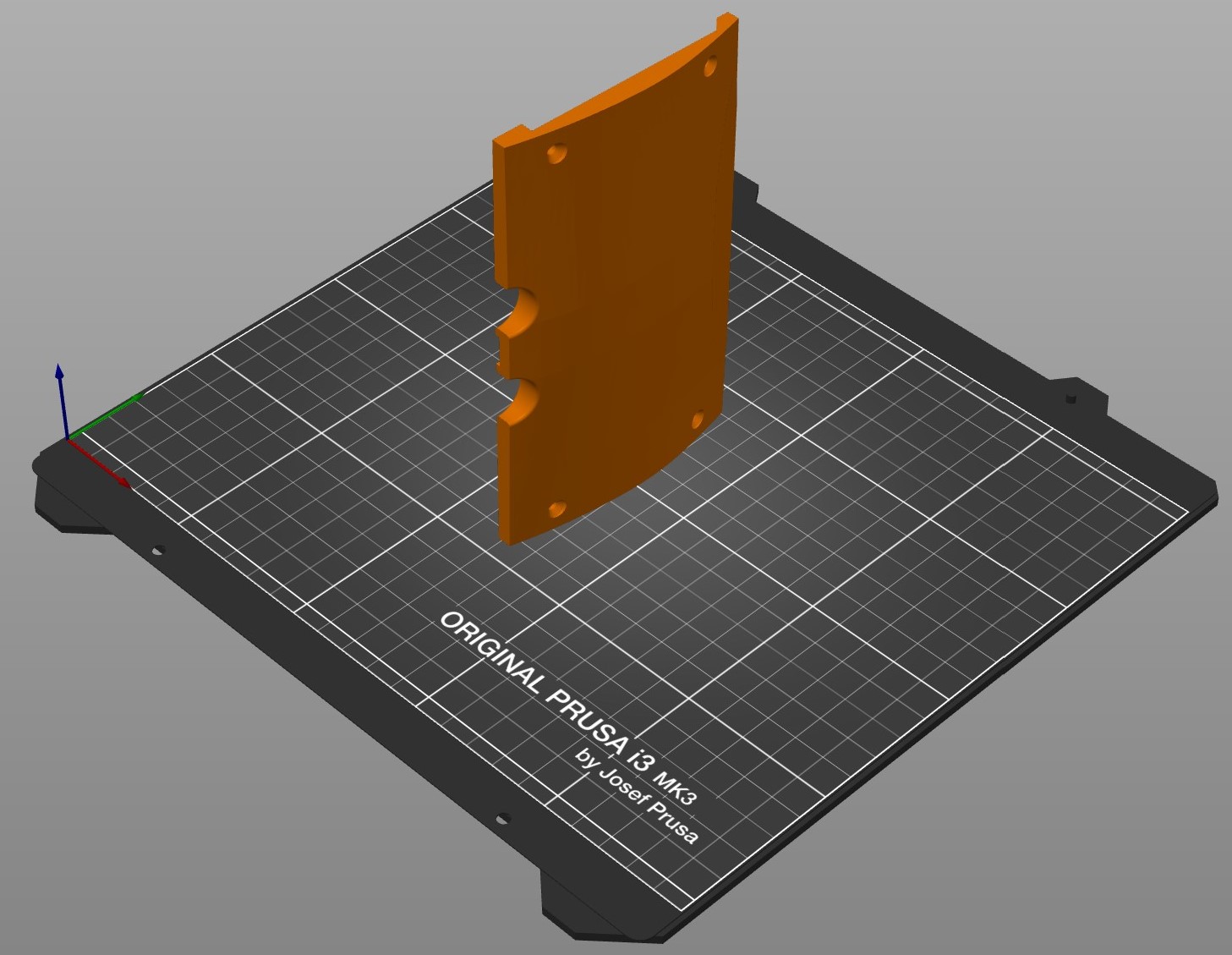

B08-Electronics_back
Latest version downloadpib-stls/B-Body/B08-Electronics_back.stl at main · pib-rocks/pib-stls · GitHub
Stable release downloadpib-stls/B-Body/B08-Electronics_back.stl at main · pib-rocks/pib-stls · GitHub
Suggested layer height0.25mm
Suggested infill percentage20%-30%
SupportsNone
Number of this part for one arm Pib1
Number of this part for two arm Pib1
Mass – (Mass with supports)67g
Suggested orientation
After printing processingRemove print helpers by wiggling the highlighted parts with gentle force until they are broken

Part before print helpers

Part after removing print helpers

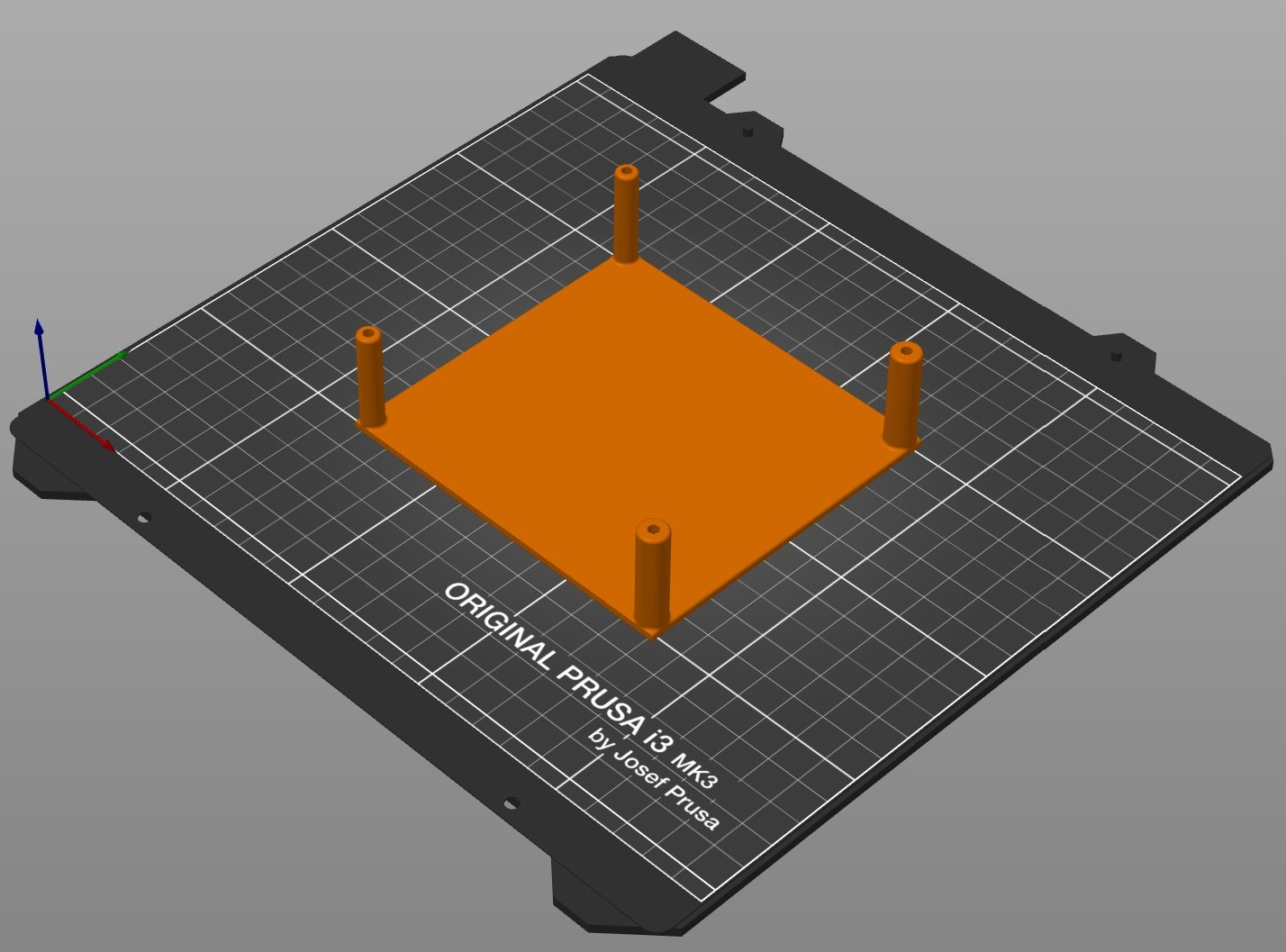

B11-Electronics_base_chest
Latest version downloadpib-stls/B-Body/B11-Electronics_base_chest.stl at main · pib-rocks/pib-stls · GitHub
Stable release downloadpib-stls/B-Body/B11-Electronics_base_chest.stl at main · pib-rocks/pib-stls · GitHub
Suggested layer height0.25mm
Suggested infill percentage20%-30%
SupportsNone
Number of this part for one arm Pib1
Number of this part for two arm Pib1
Mass – (Mass with supports)44g
Suggested orientation
After printing processingNone

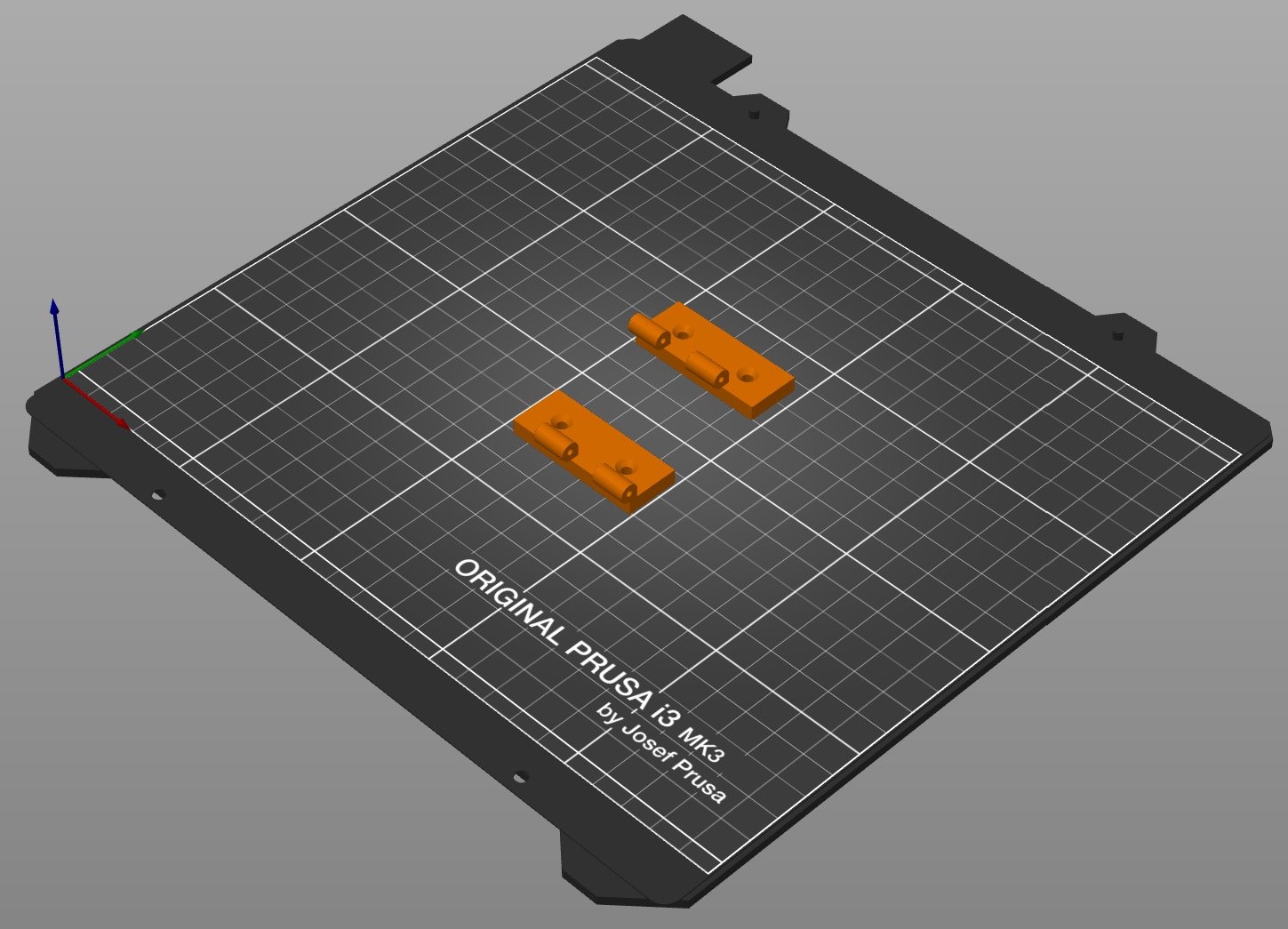

B12-Electronics_hinge
Latest version downloadpib-stls/B-Body/B12-Electronics_hinge.stl at main · pib-rocks/pib-stls · GitHub
Stable release downloadpib-stls/B-Body/B12-Electronics_hinge.stl at main · pib-rocks/pib-stls · GitHub
Suggested layer height0.25mm
Suggested infill percentage20%-30%
SupportsNone
Number of this part for one arm Pib3
Number of this part for two arm Pib3
Mass – (Mass with supports)2.2g
Suggested orientation
After printing processingNone

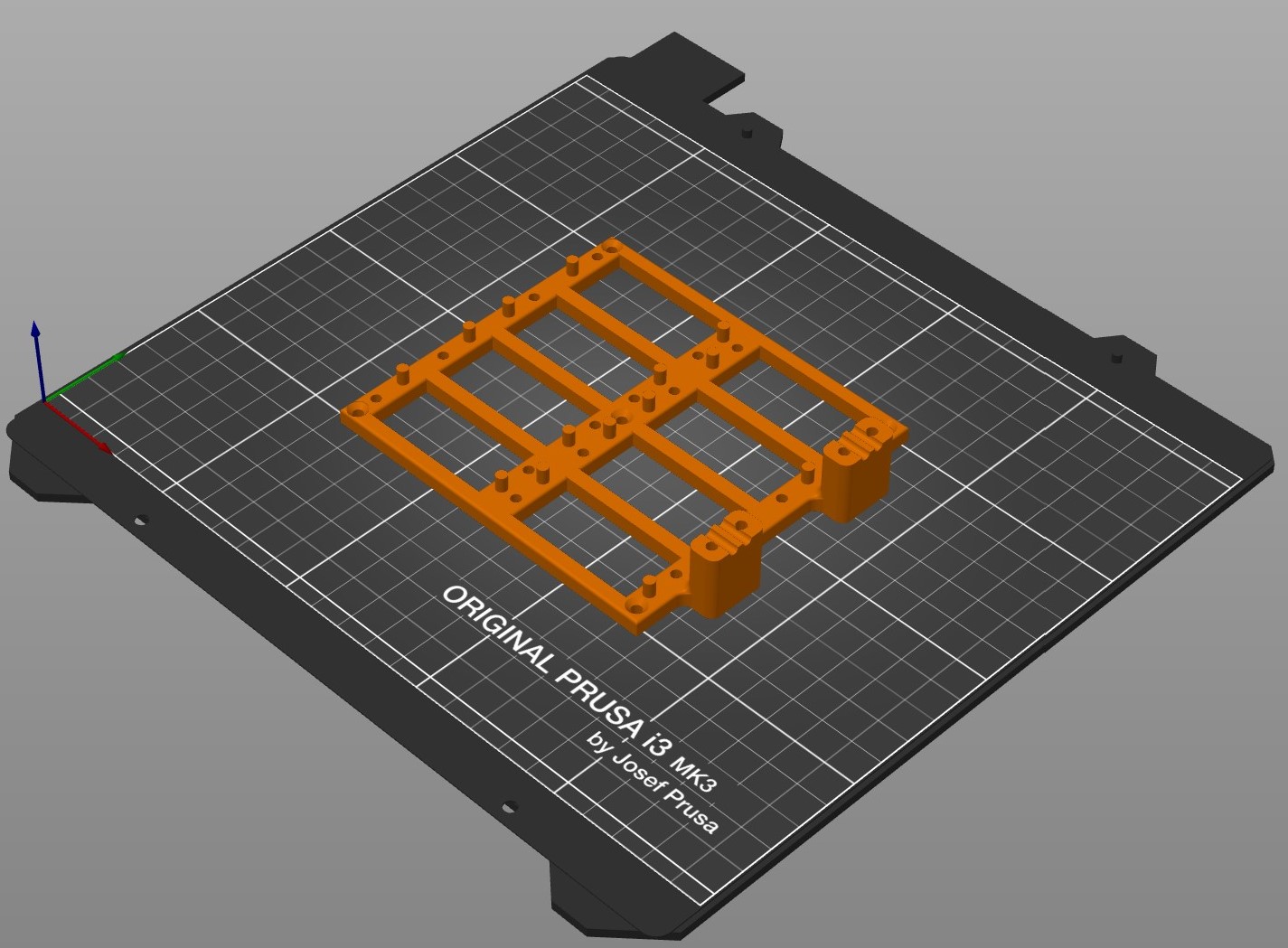

B13-Servo_scaffold
Latest version downloadpib-stls/B-Body/B13-Servo_scaffold.stl at main · pib-rocks/pib-stls · GitHub
Stable release downloadpib-stls/B-Body/B13-Servo_scaffold.stl at main · pib-rocks/pib-stls · GitHub
Suggested layer height0.25mm
Suggested infill percentage30%-40%
SupportsOn build plate only
Number of this part for one arm Pib1
Number of this part for two arm Pib2
Mass – (Mass with supports)37g
Suggested orientation
After printing processingClean supports

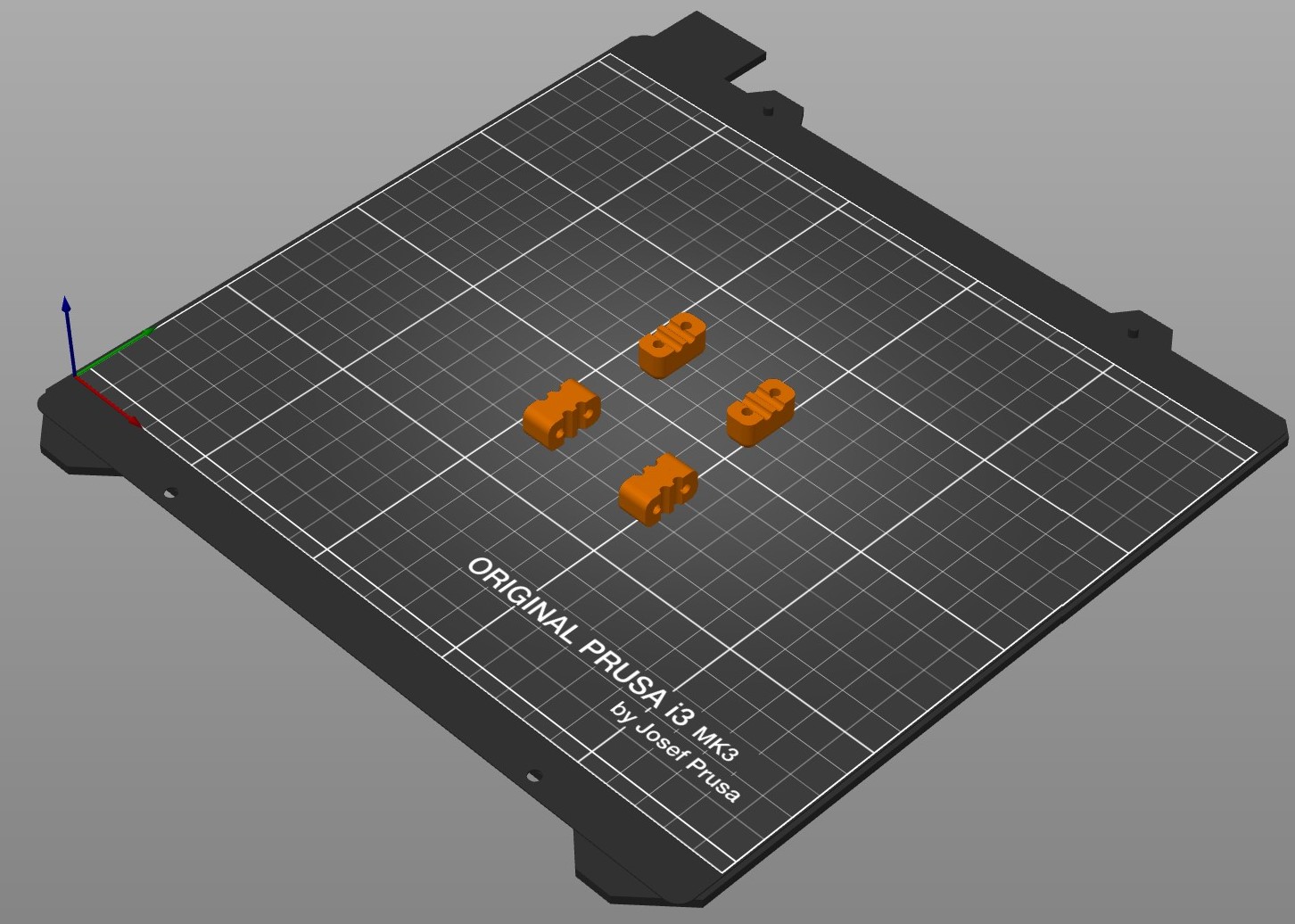

B14-Tube_holder
Latest version downloadpib-stls/B-Body/B14-Tube_holder.stl at main · pib-rocks/pib-stls · GitHub
Stable release downloadpib-stls/B-Body/B14-Tube_holder.stl at main · pib-rocks/pib-stls · GitHub
Suggested layer height0.25mm
Suggested infill percentage20%-30%
SupportsNone
Number of this part for one arm Pib2
Number of this part for two arm Pib4
Mass – (Mass with supports)1.8g
Suggested orientation
After printing processingNone
B15-Tube_holder_top
Latest version downloadpib-stls/B-Body/B15-Tube_holder_top.stl at main · pib-rocks/pib-stls · GitHub
Stable release downloadpib-stls/B-Body/B15-Tube_holder_top.stl at main · pib-rocks/pib-stls · GitHub
Suggested layer height0.25mm
Suggested infill percentage20%-30%
SupportsNone
Number of this part for one arm Pib2
Number of this part for two arm Pib4
Mass – (Mass with supports)1.7g
Suggested orientation
After printing processingNone
B16-Servo_scaffold_leg
Latest version downloadpib-stls/B-Body/B16-Servo_scaffold_leg.stl at main · pib-rocks/pib-stls · GitHub
Stable release downloadpib-stls/B-Body/B16-Servo_scaffold_leg.stl at main · pib-rocks/pib-stls · GitHub
Suggested layer height0.25mm
Suggested infill percentage20%-30%
SupportsNone
Number of this part for one arm Pib4
Number of this part for two arm Pib8
Mass – (Mass with supports)0.7g
Suggested orientation
After printing processingNone
B25-Wire_connector
Latest version downloadpib-stls/B-Body/B25-Wire_connector.stl at main · pib-rocks/pib-stls · GitHub
Stable release downloadpib-stls/B-Body/B25-Wire_connector.stl at main · pib-rocks/pib-stls · GitHub
Suggested layer height0.25mm
Suggested infill percentage20%-30%
SupportsNone
Number of this part for one arm Pib3
Number of this part for two arm Pib6
Mass – (Mass with supports)1.7g
Suggested orientation
After printing processingNone

B26-Wire_connector_pawl_clockwise
Latest version downloadpib-stls/B-Body/B26-Wire_connector_pawl_clockwise.stl at main · pib-rocks/pib-stls · GitHub
Stable release downloadpib-stls/B-Body/B26-Wire_connector_pawl_clockwise.stl at main · pib-rocks/pib-stls · GitHub
Suggested layer height0.25mm
Suggested infill percentage20%-30%
SupportsNone
Number of this part for one arm Pib3
Number of this part for two arm Pib6
Mass – (Mass with supports)1.5g
Suggested orientation
After printing processingNone
B27-Wire_connector_mount
Latest version downloadpib-stls/B-Body/B27-Wire_connector_mount.stl at main · pib-rocks/pib-stls · GitHub
Stable release downloadpib-stls/B-Body/B27-Wire_connector_mount.stl at main · pib-rocks/pib-stls · GitHub
Suggested layer height0.25mm
Suggested infill percentage20%-30%
SupportsNone
Number of this part for one arm Pib8
Number of this part for two arm Pib16
Mass – (Mass with supports)0.3g
Suggested orientation
After printing processingNone
B28-Wire_connector_anitclockwise
Latest version downloadpib-stls/B-Body/B28-Wire_connector_anitclockwise.stl at main · pib-rocks/pib-stls · GitHub
Stable release downloadpib-stls/B-Body/B28-Wire_connector_anitclockwise.stl at main · pib-rocks/pib-stls · GitHub
Suggested layer height0.25mm
Suggested infill percentage20%-30%
SupportsNone
Number of this part for one arm Pib4
Number of this part for two arm Pib8
Mass – (Mass with supports)1.7g
Suggested orientation
After printing processingNone
B29-Wire_connector_pawl_anticlockwise
Latest version downloadpib-stls/B-Body/B29-Wire_connector_pawl_anticlockwise.stl at main · pib-rocks/pib-stls · GitHub
Stable release downloadpib-stls/B-Body/B29-Wire_connector_pawl_anticlockwise.stl at main · pib-rocks/pib-stls · GitHub
Suggested layer height0.25mm
Suggested infill percentage20%-30%
SupportsNone
Number of this part for one arm Pib3
Number of this part for two arm Pib6
Mass – (Mass with supports)1.5g
Suggested orientation
After printing processingNone
B34-Wire_connector_pawl_anticlockwise_Elbow
Latest version downloadpib-stls/B-Body/B34-Wire_connector_pawl_anticlockwise_Elbow.stl at main · pib-rocks/pib-stls · GitHub
Stable release downloadpib-stls/B-Body/B34-Wire_connector_pawl_anticlockwise_Elbow.stl at main · pib-rocks/pib-stls · GitHub
Suggested layer height0.25mm
Suggested infill percentage20%-30%
SupportsNone
Number of this part for one arm Pib1
Number of this part for two arm Pib2
Mass – (Mass with supports)2.3g
Suggested orientation
After printing processingNone
B35-Wire_connector_base
Latest version downloadpib-stls/B-Body/B35-Wire_connector_base.stl at main · pib-rocks/pib-stls · GitHub
Stable release downloadpib-stls/B-Body/B35-Wire_connector_base.stl at main · pib-rocks/pib-stls · GitHub
Suggested layer height0.25mm
Suggested infill percentage20%-30%
SupportsNone
Number of this part for one arm Pib7
Number of this part for two arm Pib14
Mass – (Mass with supports)2.6g
Suggested orientation
After printing processingNone
