How To Print Your Robot

Elbow

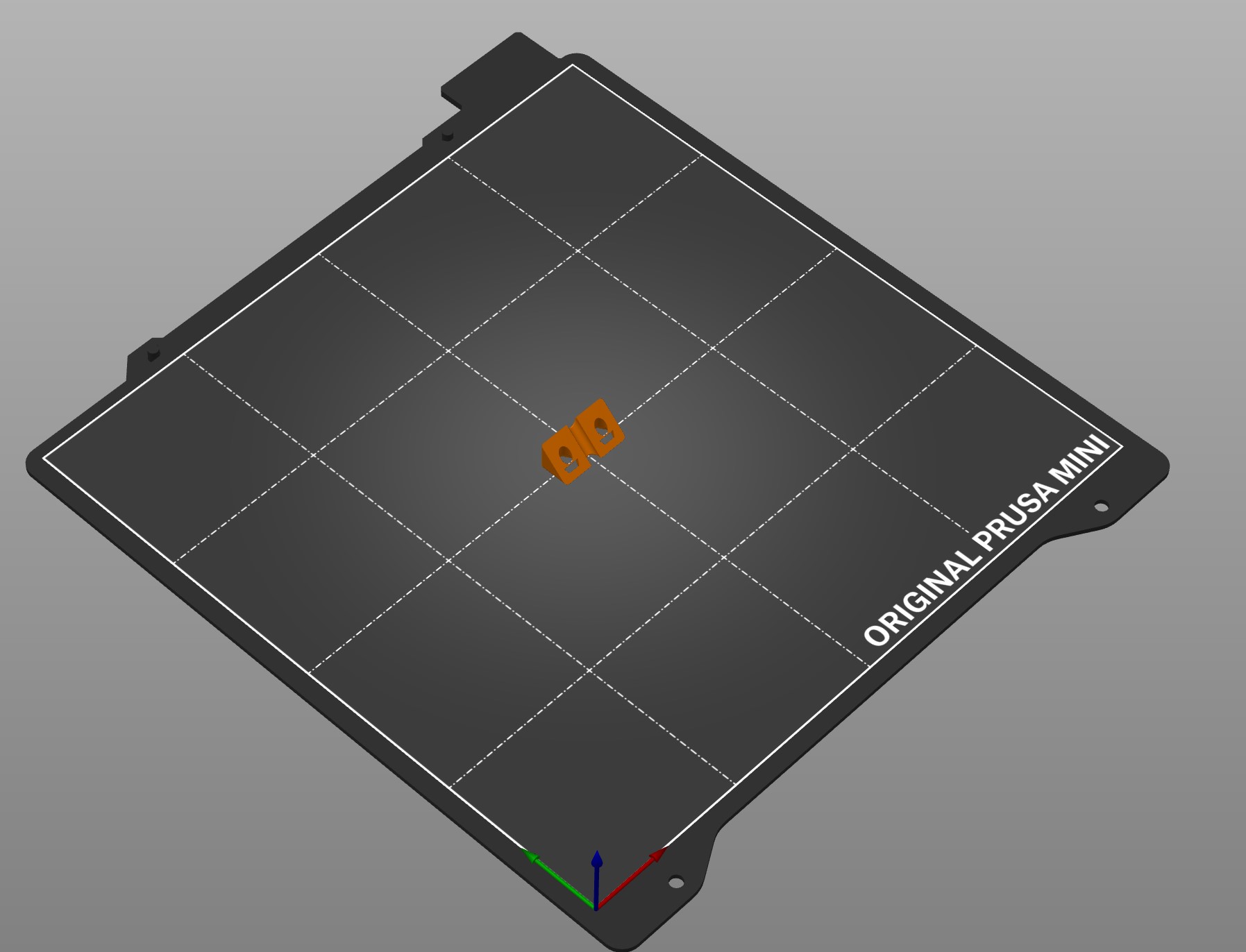

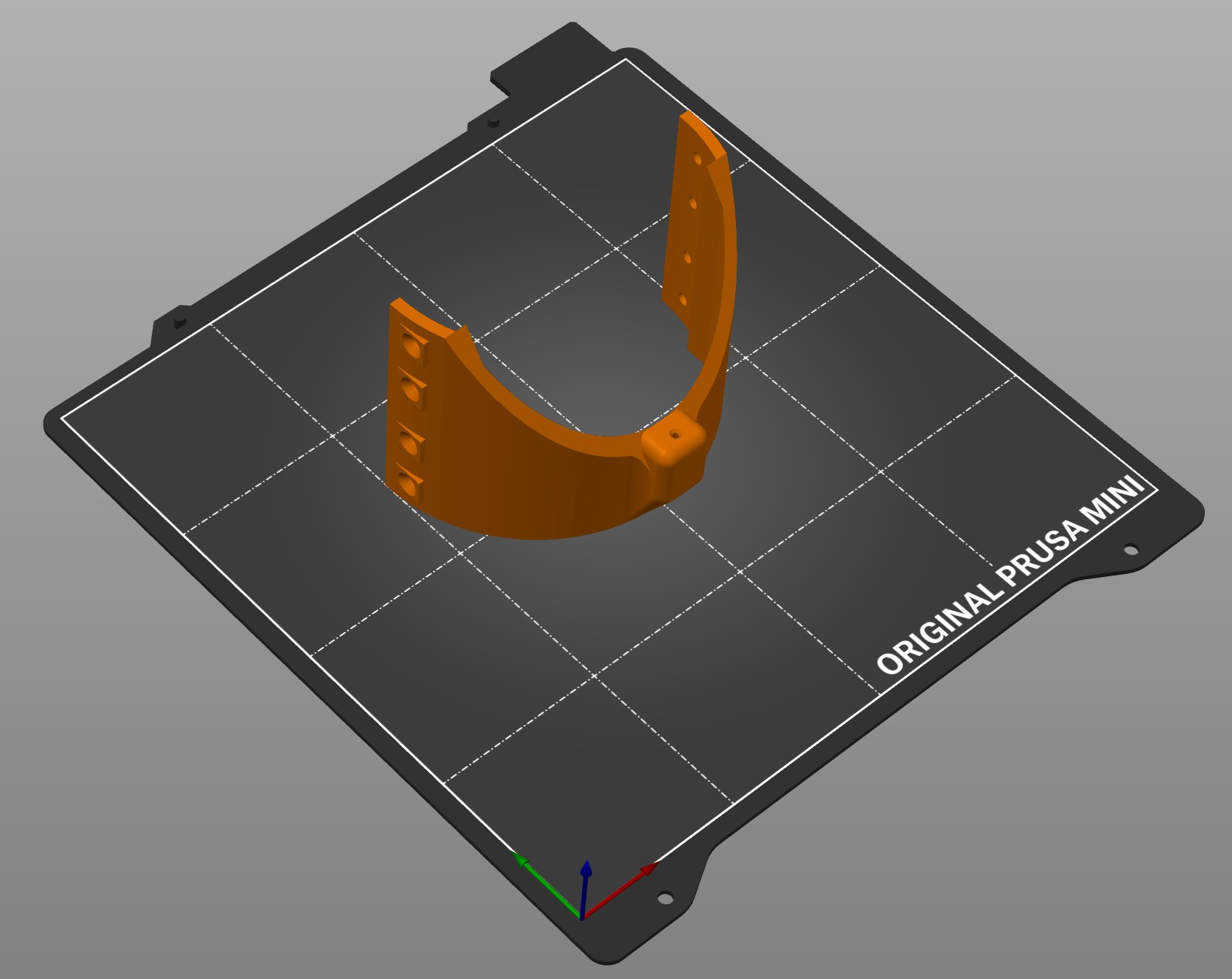

C08-Central_rotator_bracket
Latest version downloadpib-stls/C-Arm/C08-Central_rotator_bracket.stl at main · pib-rocks/pib-stls · GitHub
Stable release downloadpib-stls/C-Arm/C08-Central_rotator_bracket.stl at main · pib-rocks/pib-stls · GitHub
Suggested layer height0.25mm
Suggested infill percentage20%-30%
SupportsNone
Number of this part for one arm Pib2 (in elbow and 2 more in shoulder)
Number of this part for two arm Pib4
Mass – (Mass with supports)17.4g
Suggested orientation
After printing processingBreak print helpers

Gently move small plastic parts highlighted until breaking

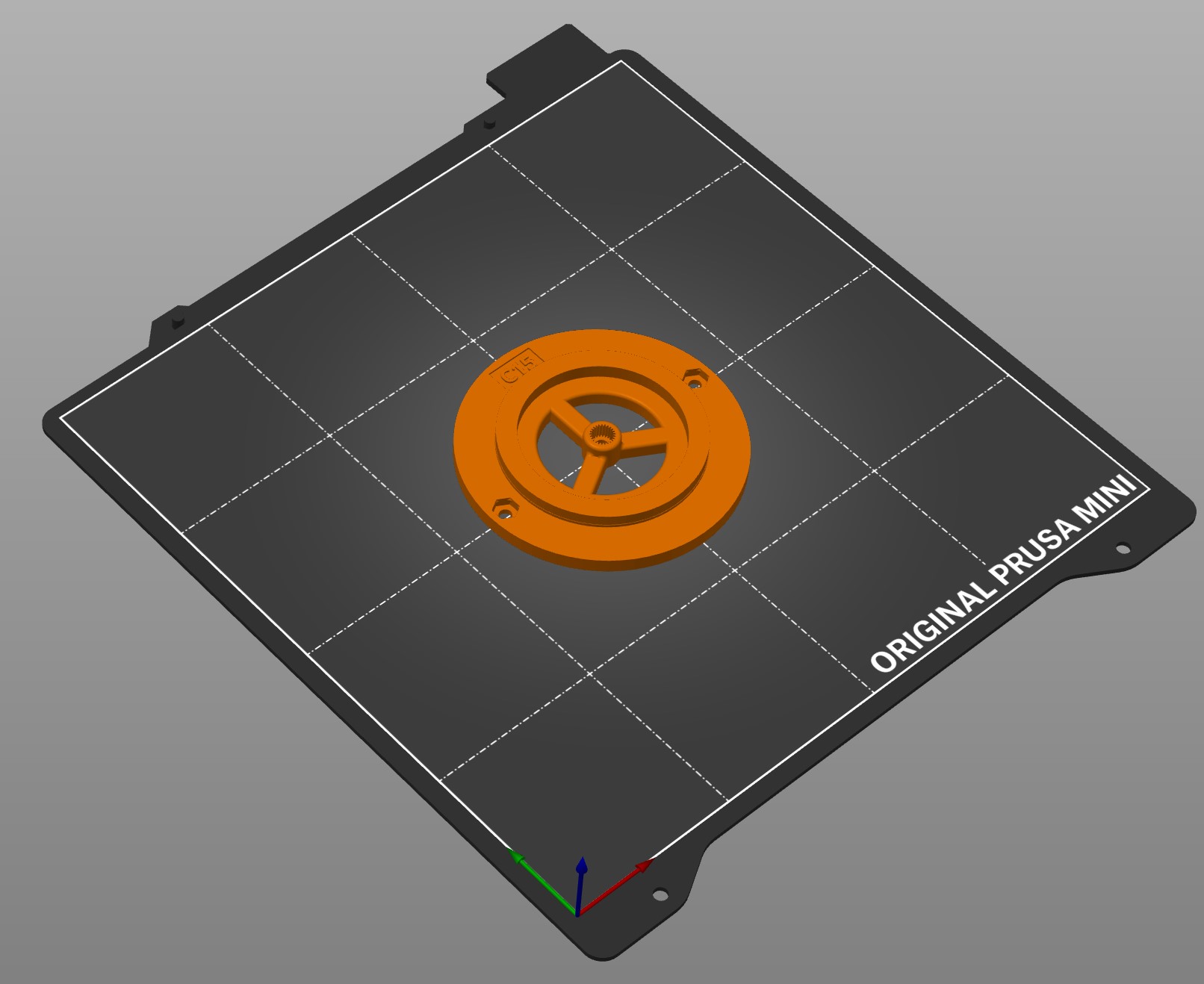

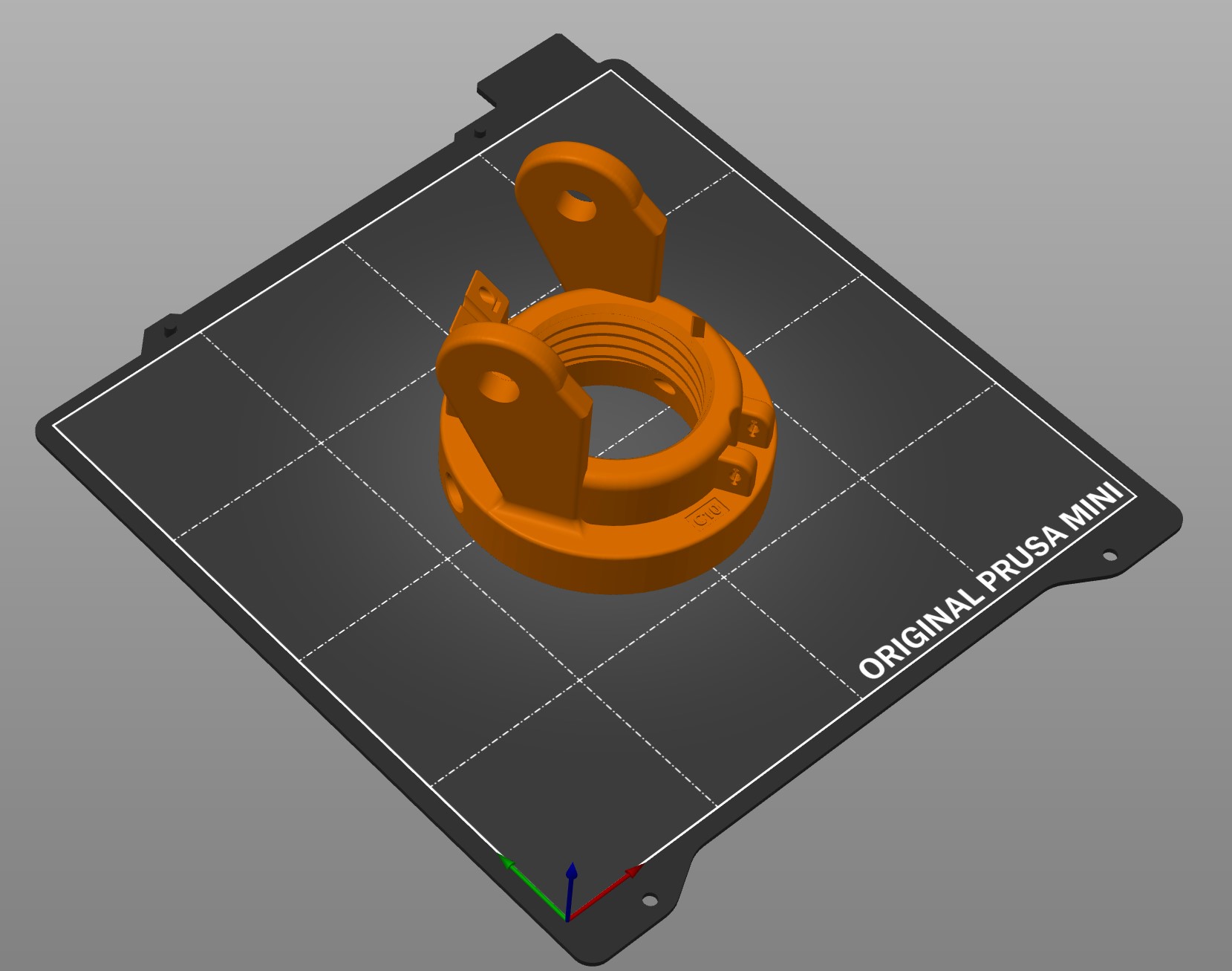

C09-Central_rotator_connector
Latest version downloadpib-stls/C-Arm/C09-Central_rotator_connector.stl at main · pib-rocks/pib-stls · GitHub
Stable release downloadpib-stls/C-Arm/C09-Central_rotator_connector.stl at main · pib-rocks/pib-stls · GitHub
Suggested layer height0.25mm
Suggested infill percentage20%-30%
SupportsNone
Number of this part for one arm Pib1 (in elbow and additional one in shoulder)
Number of this part for two arm Pib2
Mass – (Mass with supports)25g
Suggested orientation
After printing processingNone

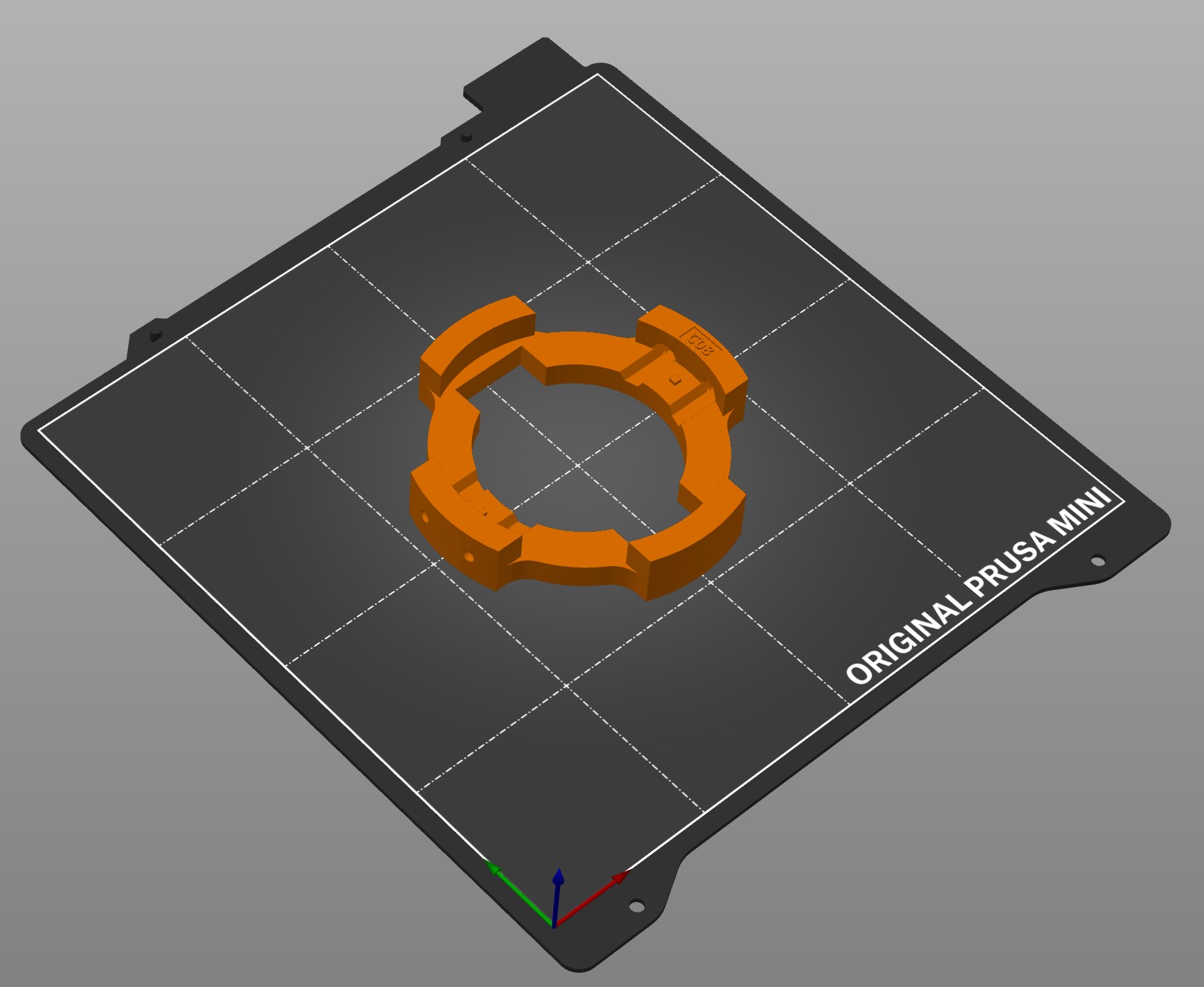

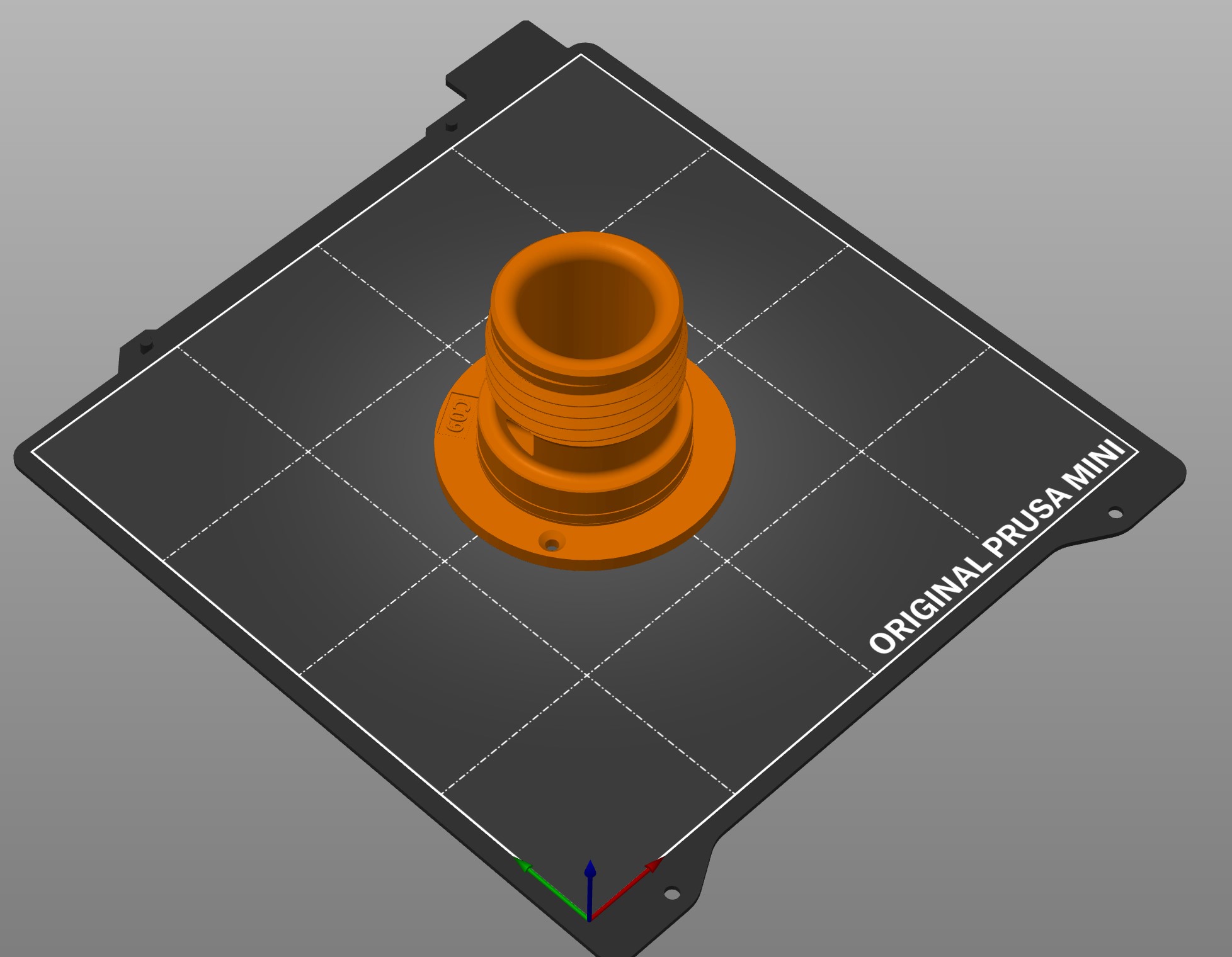

C15-Central_rotator_motor_connector
Latest version downloadpib-stls/C-Arm/C15-Central_rotator_motor_connector.stl at main · pib-rocks/pib-stls · GitHub
Stable release downloadpib-stls/C-Arm/C15-Central_rotator_motor_connector.stl at main · pib-rocks/pib-stls · GitHub
Suggested layer height0.25mm
Suggested infill percentage20%-30%
SupportsNone
Number of this part for one arm Pib1 (in elbow and additional one in shoulder)
Number of this part for two arm Pib2
Mass – (Mass with supports)15g
Suggested orientation
After printing processingNone

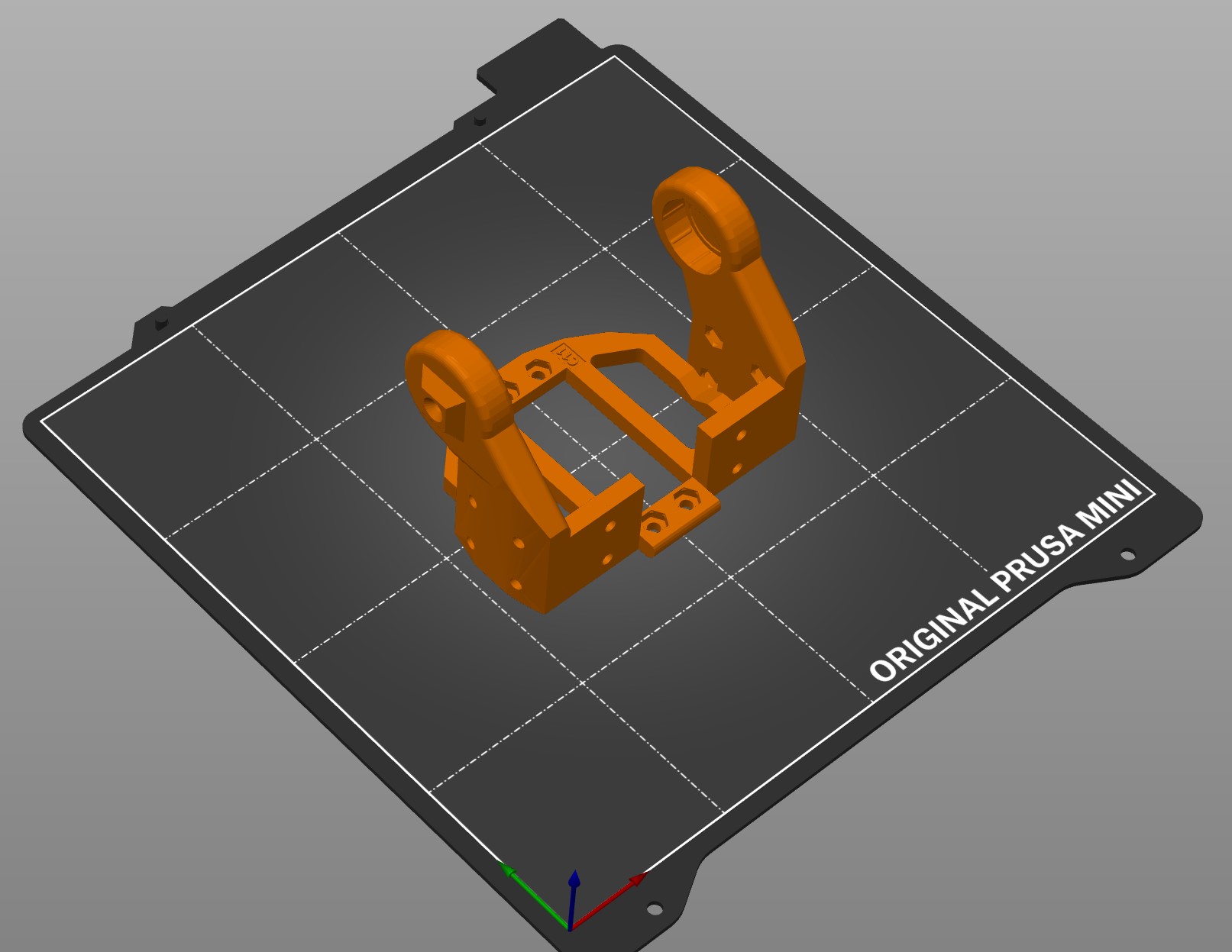

C10-Elbow
Latest version downloadpib-stls/C-Arm/C10-Elbow.stl at main · pib-rocks/pib-stls · GitHub
Stable release downloadpib-stls/C-Arm/C10-Elbow.stl at main · pib-rocks/pib-stls · GitHub
Suggested layer height0.25mm
Suggested infill percentage30%-40%
SupportsNone
Number of this part for one arm Pib1
Number of this part for two arm Pib2
Mass – (Mass with supports)81.4g
Suggested orientation
After printing processingNone

C11-Ellbow_servo_scaffold
Latest version downloadpib-stls/C-Arm/C11-Elbow_servo_scaffold.stl at main · pib-rocks/pib-stls · GitHub
Stable release downloadpib-stls/C-Arm/C11-Elbow_servo_scaffold.stl at main · pib-rocks/pib-stls · GitHub
Suggested layer height0.25mm
Suggested infill percentage20%-30%
SupportsNone
Number of this part for one arm Pib1
Number of this part for two arm Pib2
Mass – (Mass with supports)57.6g
Suggested orientation
After printing processingNone

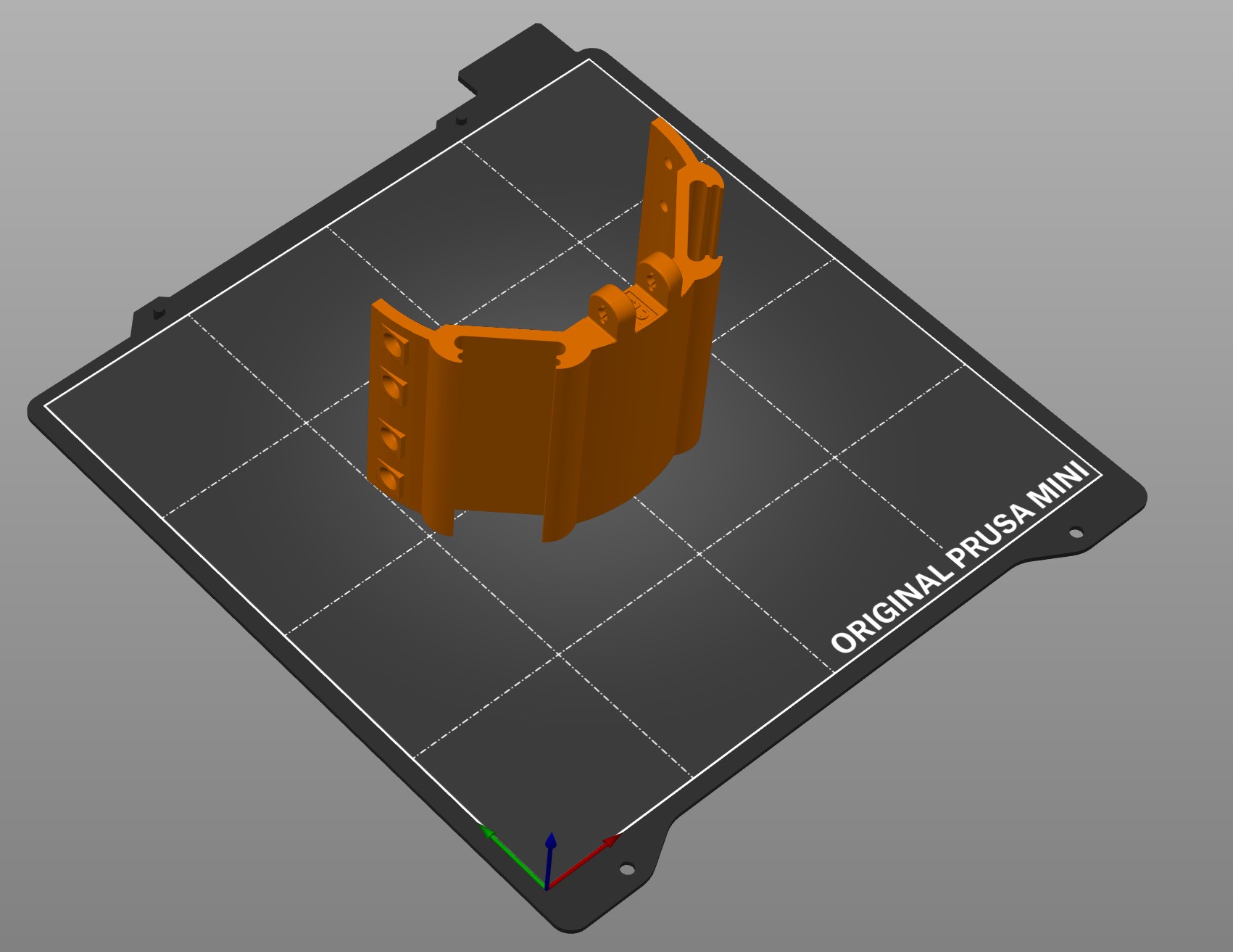

C13-Elbow_shell_lower_dorsal
Latest version downloadpib-stls/C-Arm/C13-Elbow_shell_lower_dorsal.stl at main · pib-rocks/pib-stls · GitHub
Stable release downloadpib-stls/C-Arm/C13-Elbow_shell_lower_dorsal.stl at main · pib-rocks/pib-stls · GitHub
Suggested layer height0.25mm
Suggested infill percentage20%-30%
SupportsNone
Number of this part for one arm Pib1
Number of this part for two arm Pib2
Mass – (Mass with supports)40g
Suggested orientation
After printing processingNone

C14-Elbow_shell_lower_medial
Latest version downloadpib-stls/C-Arm/C14-Elbow_shell_lower_medial.stl at main · pib-rocks/pib-stls · GitHub
Stable release downloadpib-stls/C-Arm/C14-Elbow_shell_lower_medial.stl at main · pib-rocks/pib-stls · GitHub
Suggested layer height0.25mm
Suggested infill percentage20%-30%
SupportsNone
Number of this part for one arm Pib1
Number of this part for two arm Pib2
Mass – (Mass with supports)20g
Suggested orientation
After printing processingNone

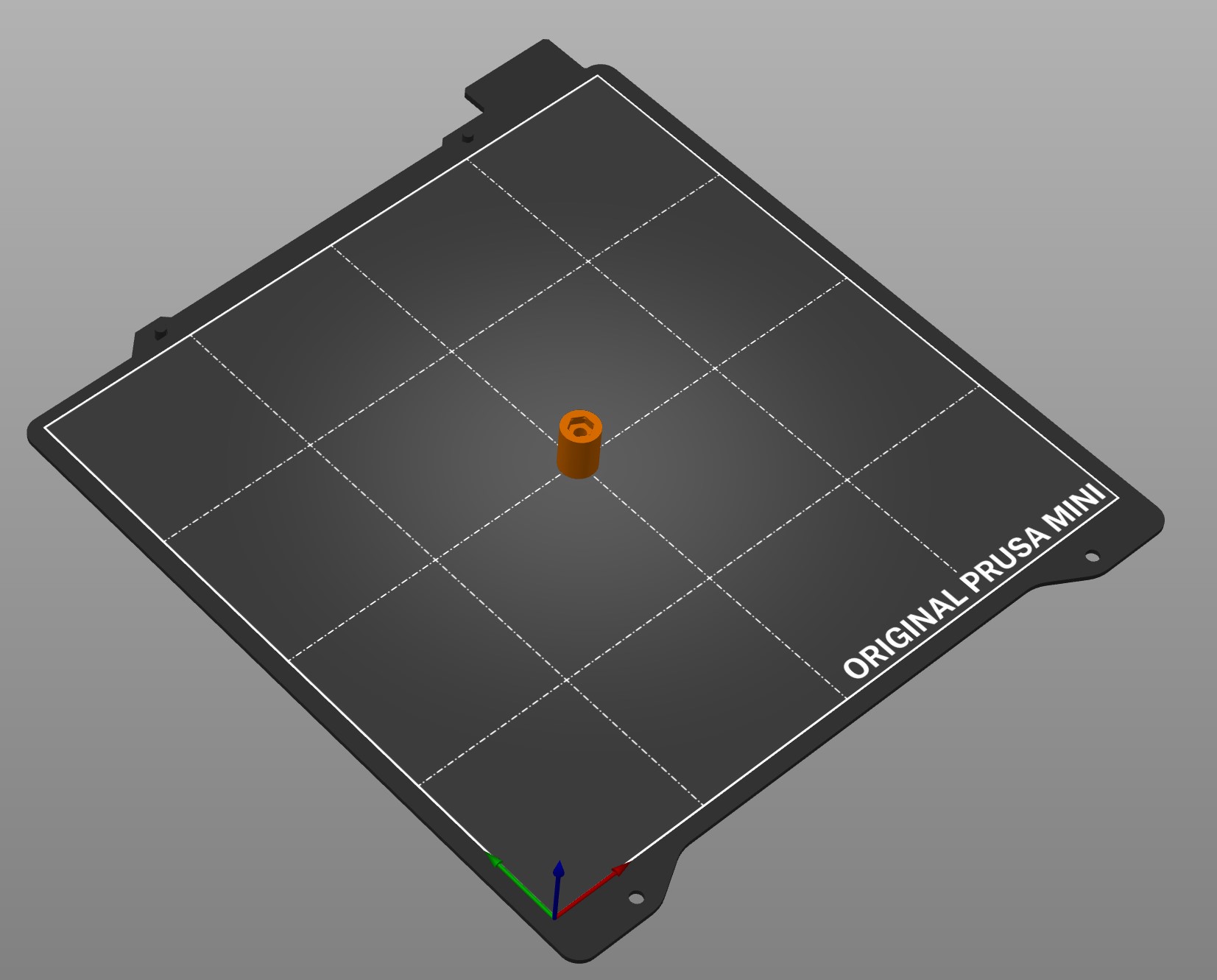

C16-Ellbow_joint_connector
Latest version downloadpib-stls/C-Arm/C16-Elbow_joint_connector.stl at main · pib-rocks/pib-stls · GitHub
Stable release downloadpib-stls/C-Arm/C16-Elbow_joint_connector.stl at main · pib-rocks/pib-stls · GitHub
Suggested layer height0.25mm
Suggested infill percentage20%-30%
SupportsNone
Number of this part for one arm Pib2
Number of this part for two arm Pib4
Mass – (Mass with supports)1.2g
Suggested orientation
After printing processingNone

C17-Elbow_motor_mount
Latest version downloadpib-stls/C-Arm/C17-Elbow_motor_mount.stl at main · pib-rocks/pib-stls · GitHub
Stable release downloadpib-stls/C-Arm/C17-Elbow_motor_mount.stl at main · pib-rocks/pib-stls · GitHub
Suggested layer height0.25mm
Suggested infill percentage30%-40%
SupportsNone
Number of this part for one arm Pib1
Number of this part for two arm Pib2
Mass – (Mass with supports)18g
Suggested orientation
After printing processingNone

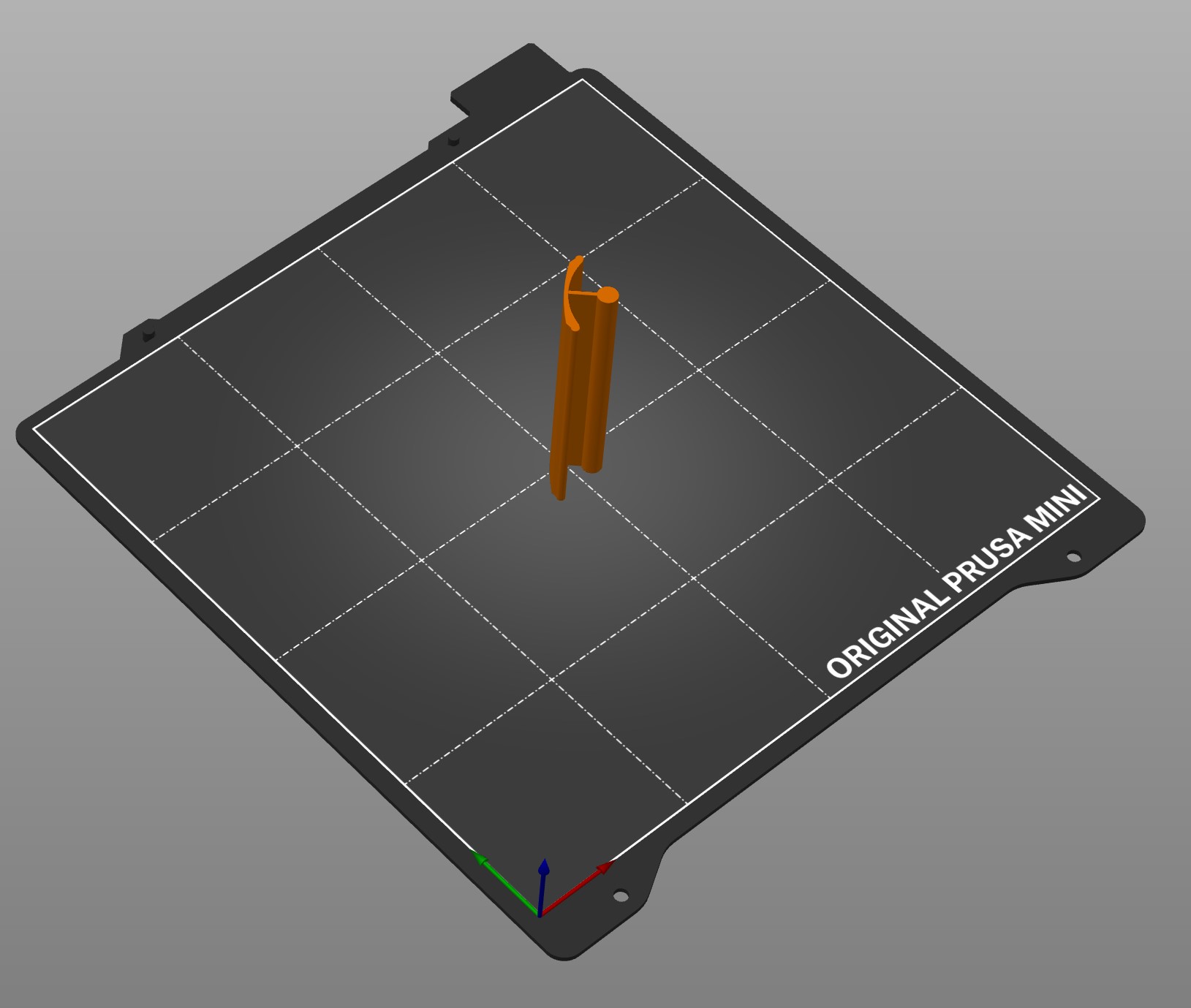

C31-Wire_cover_upper_arm
Latest version downloadpib-stls/C-Arm/C31-Wire_cover_upper_arm.stl at main · pib-rocks/pib-stls · GitHub
Stable release downloadpib-stls/C-Arm/C31-Wire_cover_upper_arm.stl at main · pib-rocks/pib-stls · GitHub
Suggested layer height0.25mm
Suggested infill percentage20%-30%
SupportsNone
Number of this part for one arm Pib1 (in elbow and additional one in shoulder)
Number of this part for two arm Pib2
Mass – (Mass with supports)20g
Suggested orientation
After printing processingNone
