Clavicles
We recommend you print clavicles in 2 parts: B01-Clavicle_left and B02-Clavicle_right, if you have a printer with an average or above size like Prusa MK3. If you have a smaller printer like Prusa mini you can print clavicles on 3 parts: B21-Clavicle_right, B22-Clavicle_middle, B23-Clavicle_left.

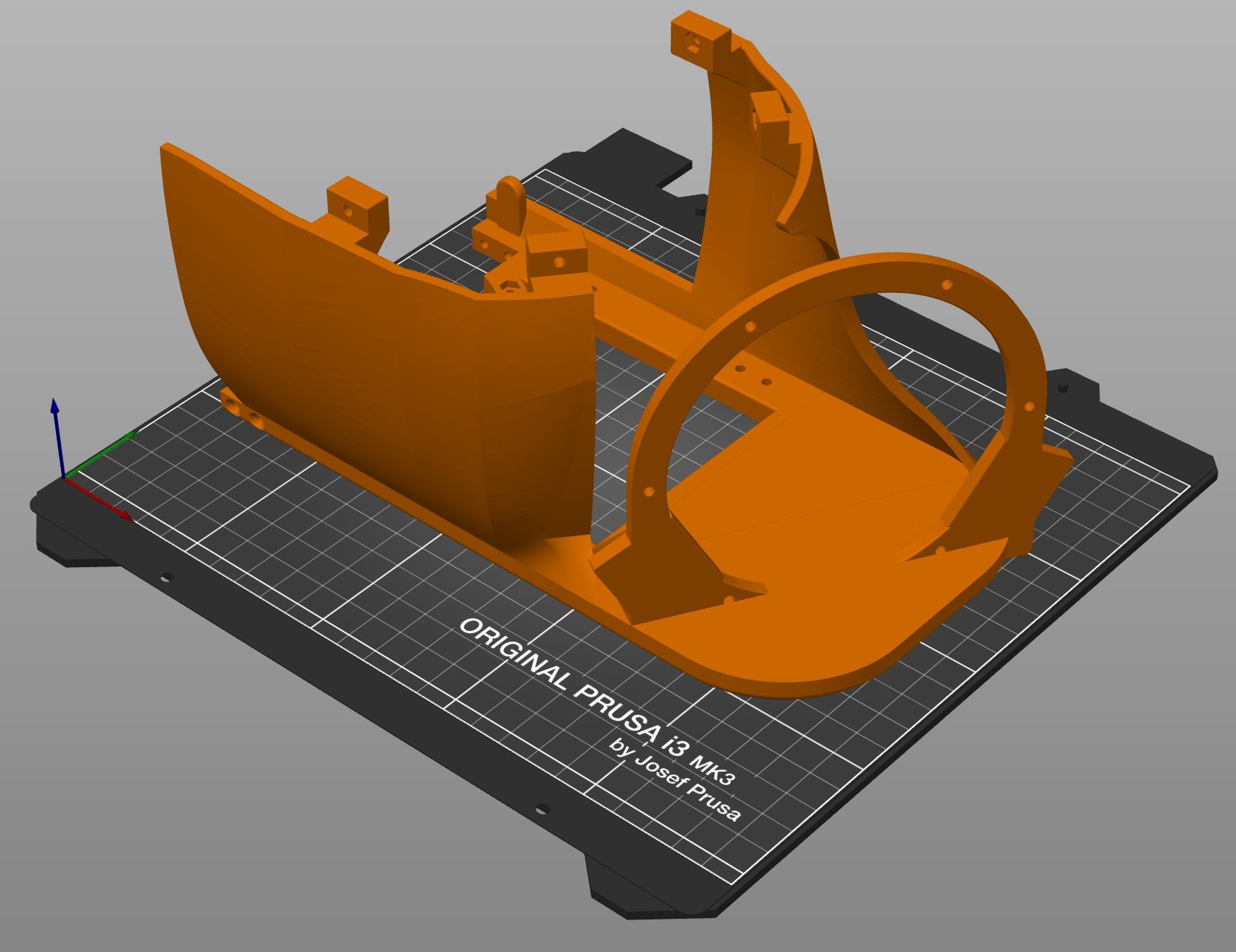

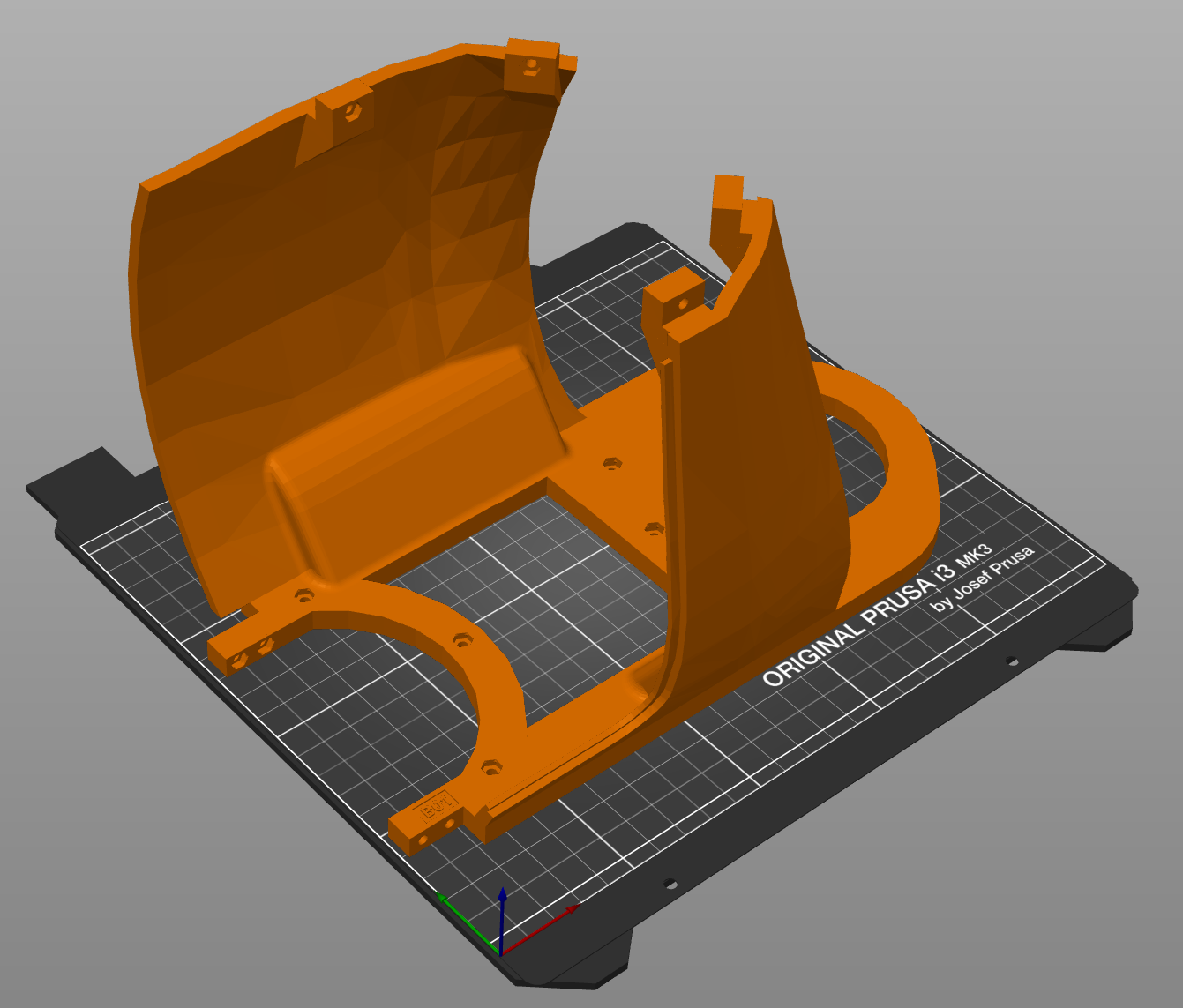

| B01-Clavicle_left | |
|---|---|
| Latest version download | pib-stls/B-Body/B01-Clavicle_left.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | pib-stls/B-Body/B01-Clavicle_left.stl at main · pib-rocks/pib-stls · GitHub |
| Suggested layer height | 0.3 mm |
| Suggested infill percentage | 30%-40% |
| Supports | Supports on build plate only |
| Number of this part for one arm Pib | 1 |
| Number of this part for two arm Pib | 1 |
| Mass – (Mass with supports) | 247.7g |
| Suggested orientation |   |

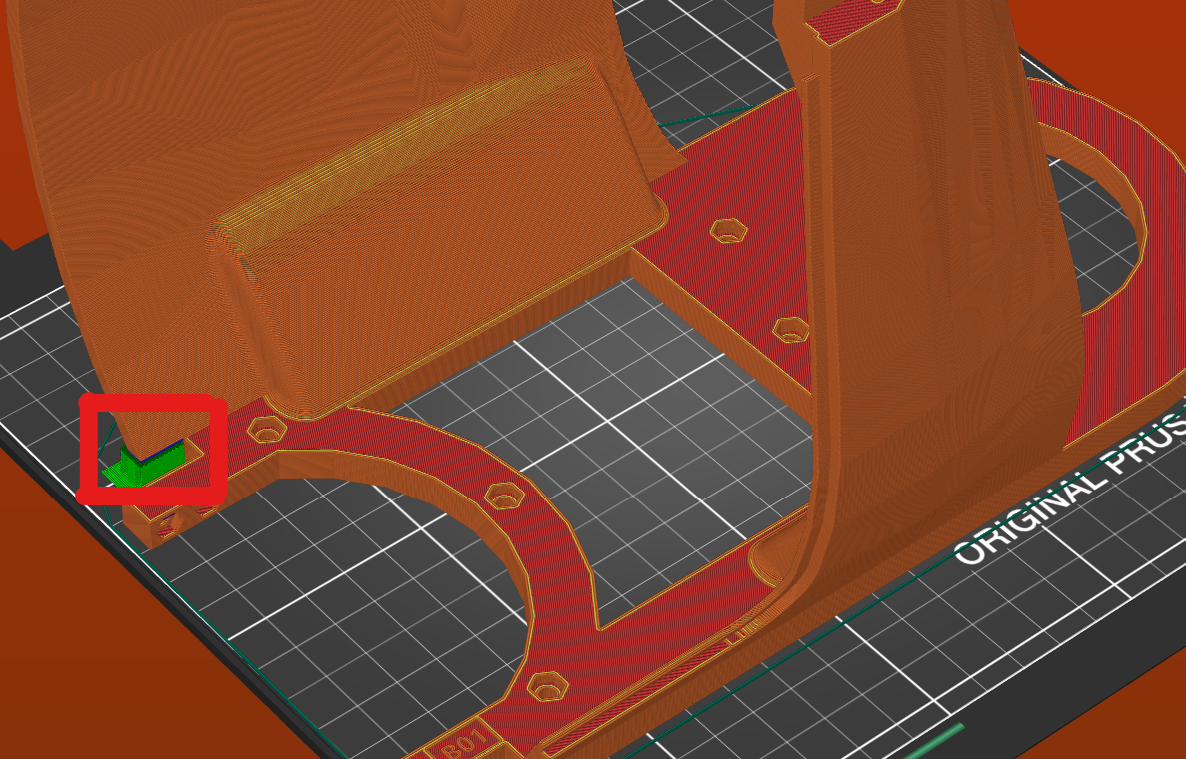

| After printing processing | Clean supports |

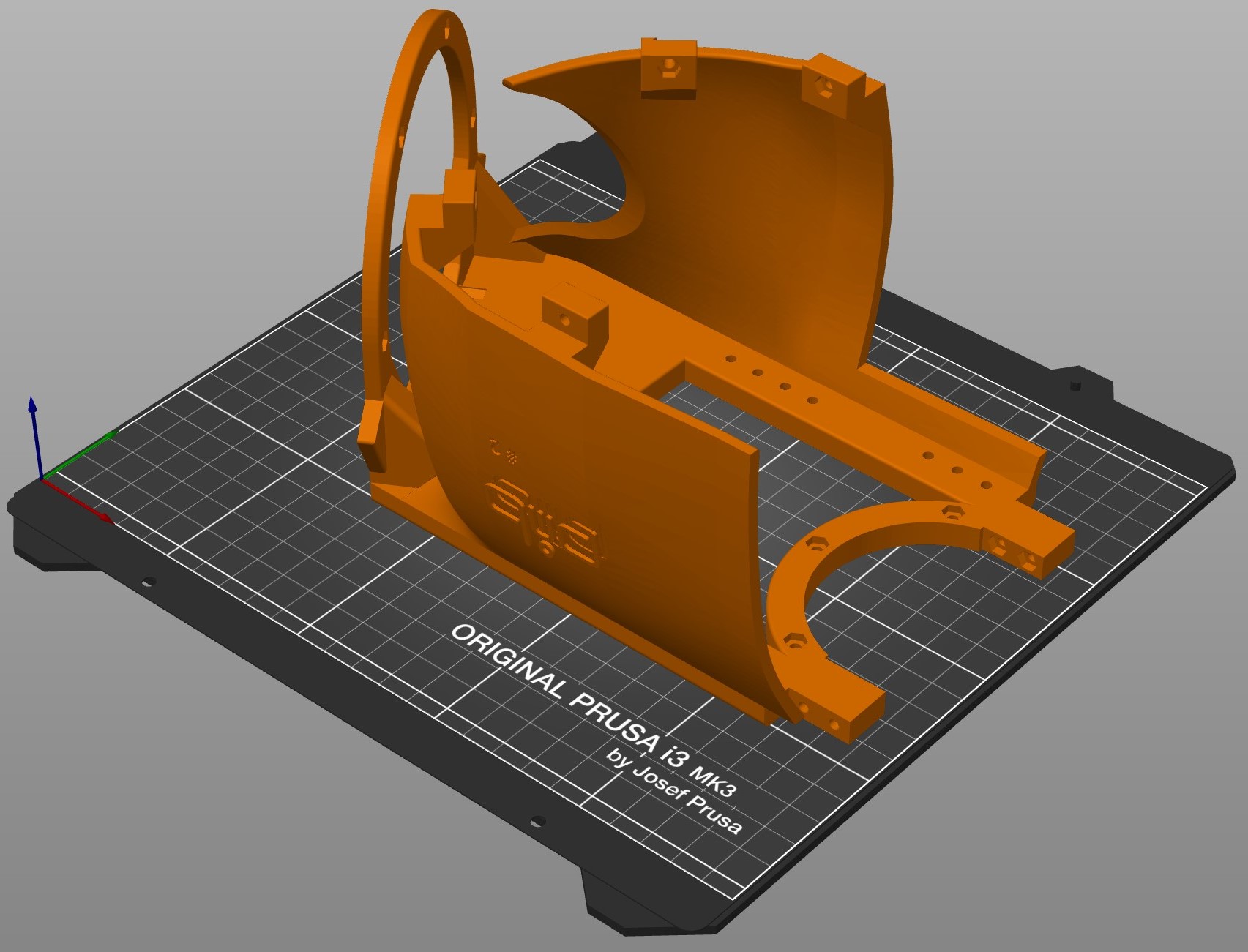

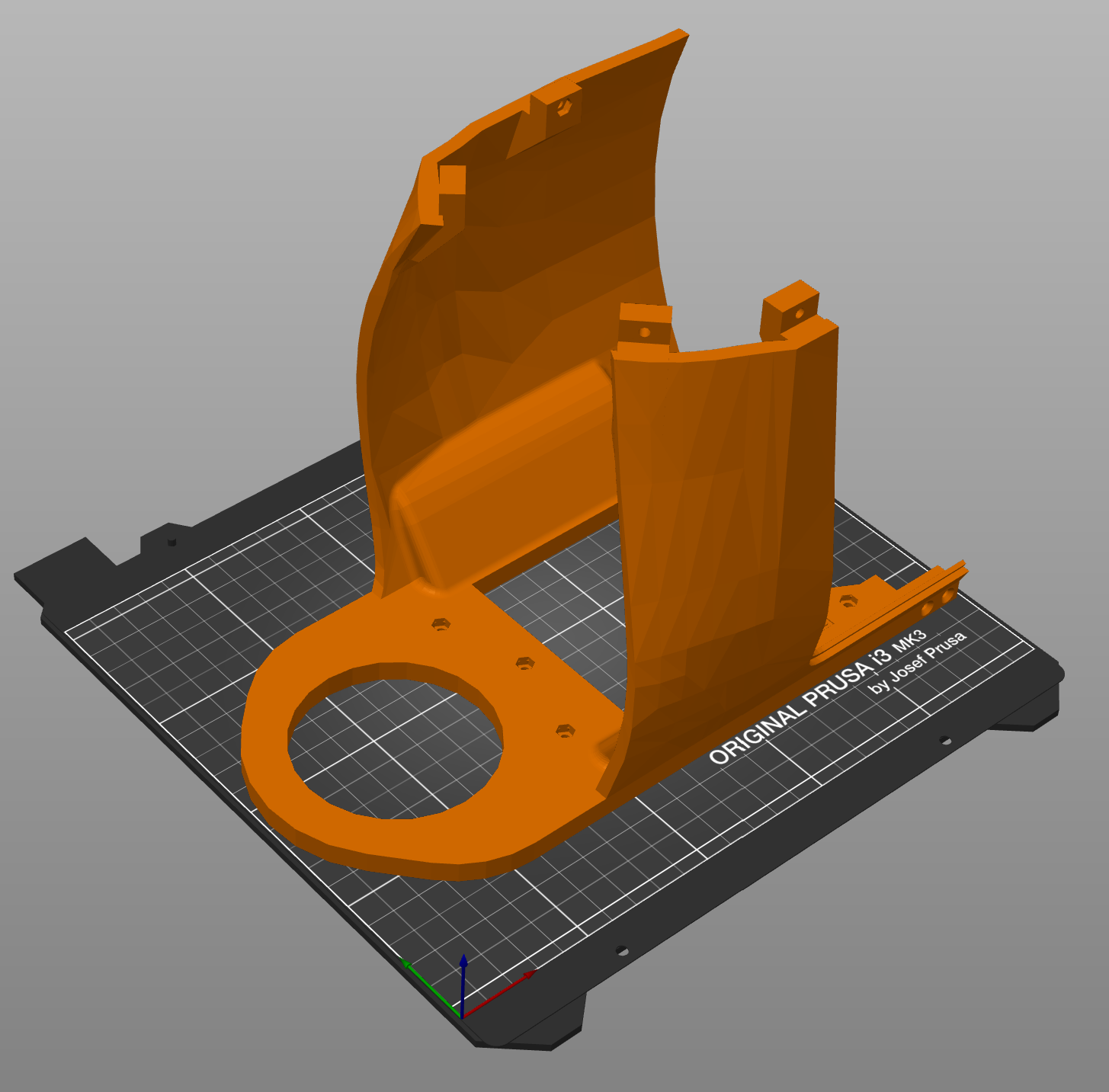

| B02-Clavicle_right | |
|---|---|
| Latest version download | pib-stls/B-Body/B02-Clavicle_right.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | pib-stls/B-Body/B02-Clavicle_right.stl at main · pib-rocks/pib-stls · GitHub |
| Suggested layer height | 0.3 mm |
| Suggested infill percentage | 30%-40% |
| Supports | None |
| Number of this part for one arm Pib | 1 |
| Number of this part for two arm Pib | 1 |
| Mass – (Mass with supports) | 243g |
| Suggested orientation |  |
| After printing processing | None |
Clavicles in 3 parts:

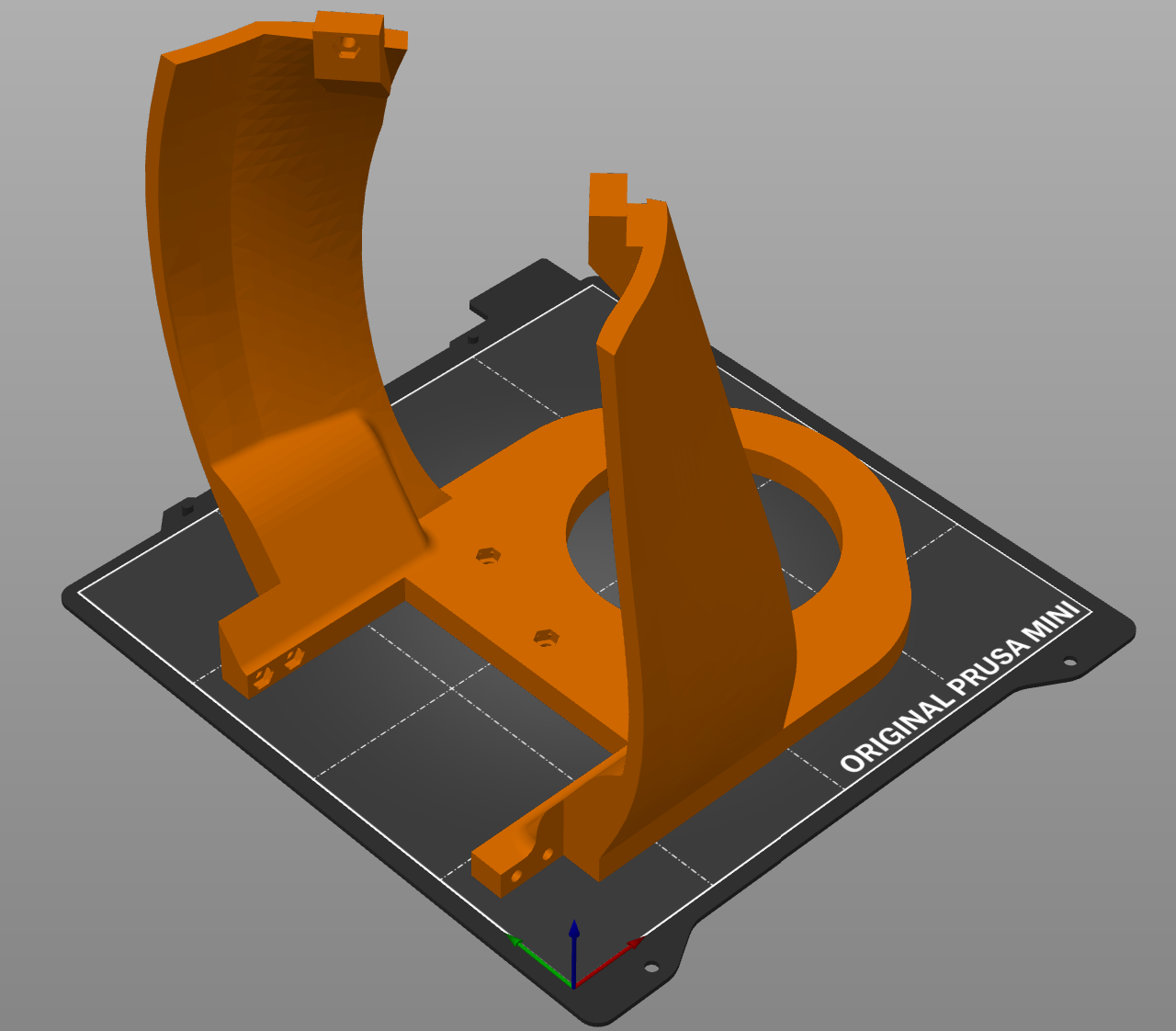

| B21-Clavicle_right | |
|---|---|
| Latest version download | pib-stls/B-Body/B21-Clavicle_right.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | pib-stls/B-Body/B21-Clavicle_right.stl at main · pib-rocks/pib-stls · GitHub |
| Suggested layer height | 0.25mm |
| Suggested infill percentage | 30%-40% |
| Supports | None |
| Number of this part for one arm Pib | 1 |
| Number of this part for two arm Pib | 1 |
| Mass – (Mass with supports) | 134g |
| Suggested orientation |  |
| After printing processing | None |

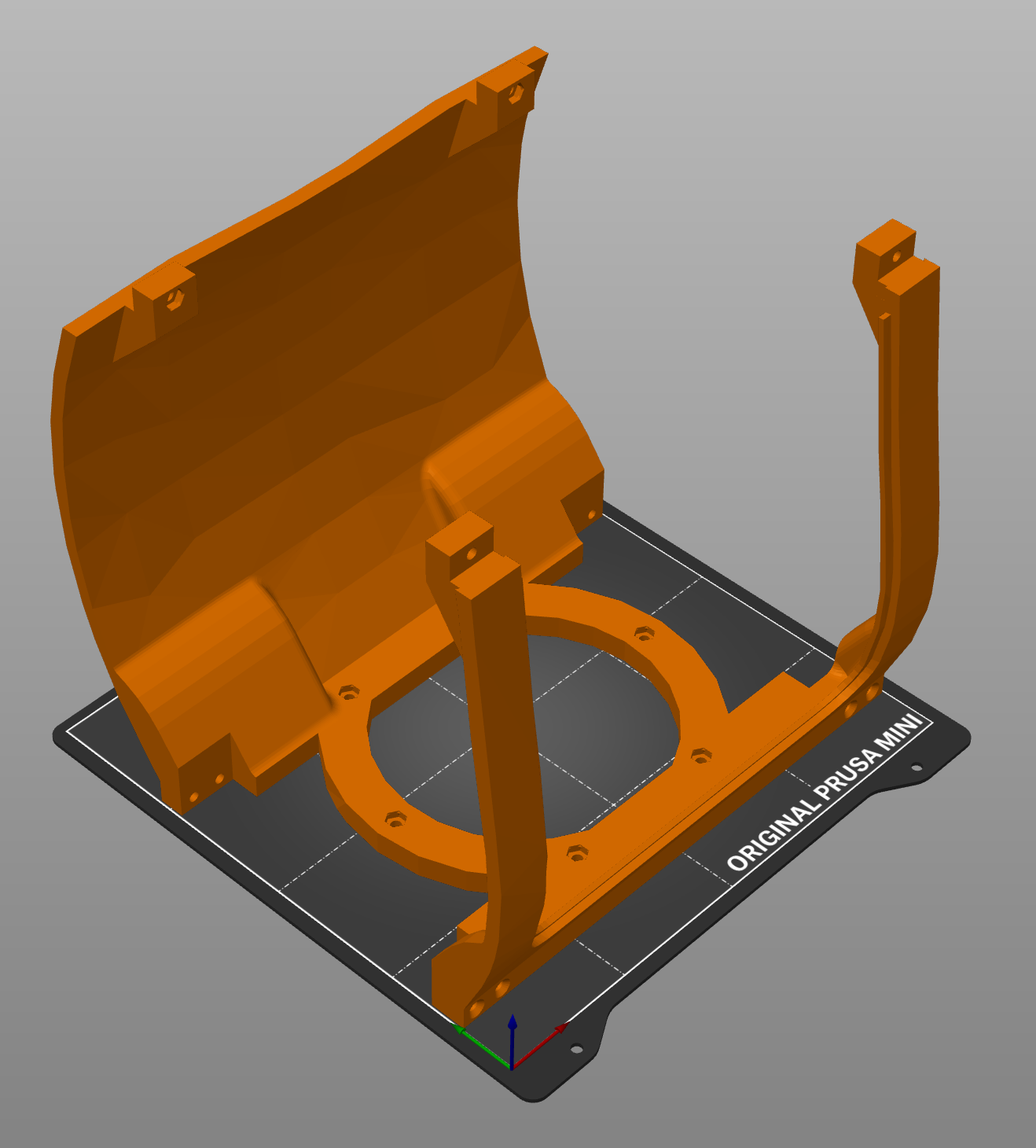

| B22-Clavicle_middle | |
|---|---|
| Latest version download | pib-stls/B-Body/B22-Clavicle_middle.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | pib-stls/B-Body/B22-Clavicle_middle.stl at main · pib-rocks/pib-stls · GitHub |
| Suggested layer height | 0.25mm |
| Suggested infill percentage | 30%-40% |
| Supports | None |
| Number of this part for one arm Pib | 1 |
| Number of this part for two arm Pib | 1 |
| Mass – (Mass with supports) | 200g |
| Suggested orientation |  |
| After printing processing | None |
| B23-Clavicle_left | |
|---|---|
| Latest version download | pib-stls/B-Body/B23-Clavicle_left.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | pib-stls/B-Body/B23-Clavicle_left.stl at main · pib-rocks/pib-stls · GitHub |
| Suggested layer height | 0.25mm |
| Suggested infill percentage | 30%-40% |
| Supports | None |
| Number of this part for one arm Pib | 1 |
| Number of this part for two arm Pib | 1 |
| Mass – (Mass with supports) | 134g |
| Suggested orientation |  |
| After printing processing | None |
