Neck
Default pro neck

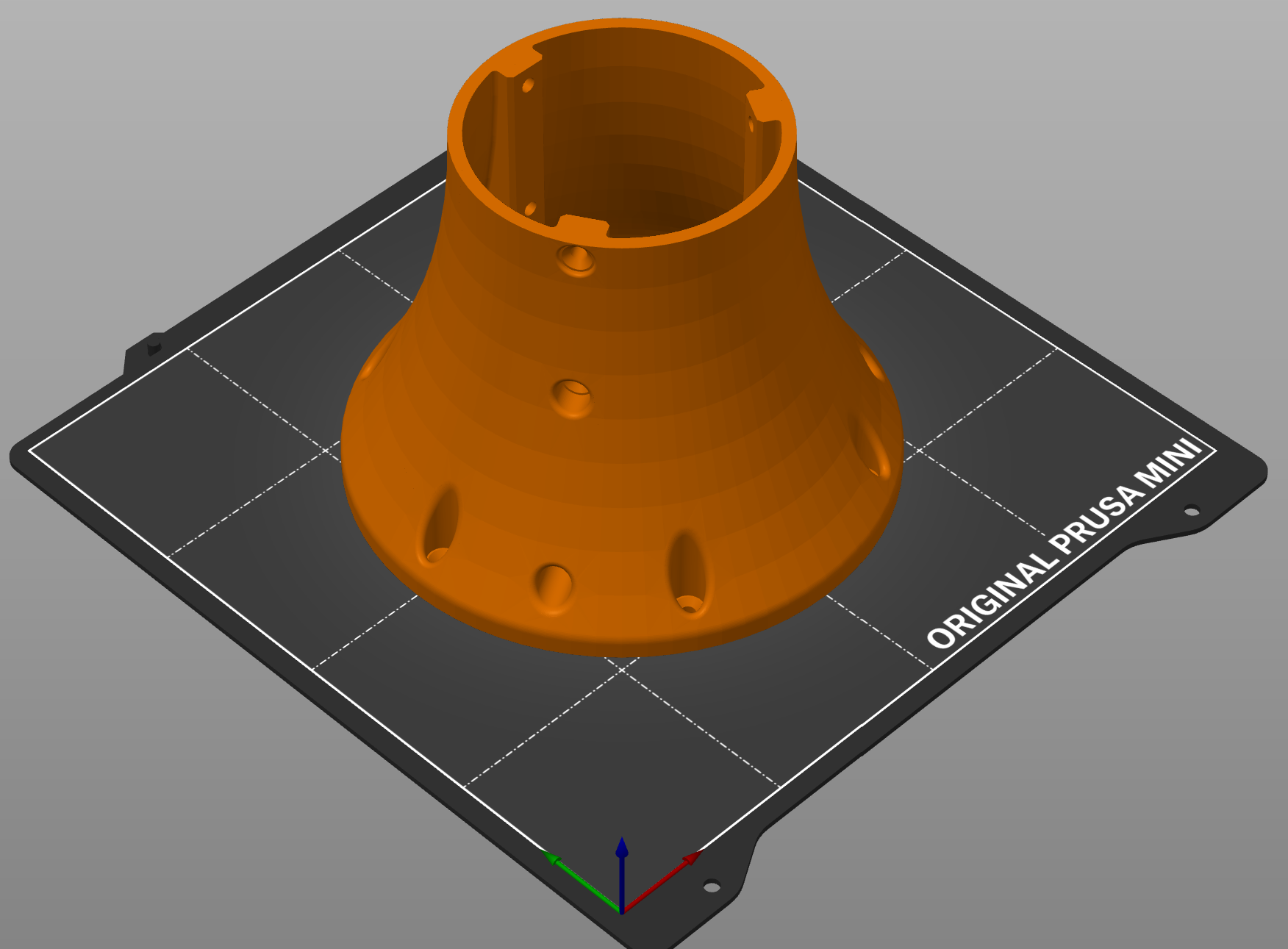

| A50-Neck_housing | |
|---|---|
| Latest version download | pib-stls/A-Head/A50-Neck_housing.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | pib-stls/A-Head/A50-Neck_housing.stl at main · pib-rocks/pib-stls · GitHub |
| Suggested layer height | 0.25mm |
| Suggested infill percentage | 20%-30% |
| Supports | None |
| Number of this part for one arm Pib | 1 |
| Number of this part for two arm Pib | 1 |
| Mass – (Mass with supports) | 100g |
| Suggested orientation |   |
| After printing processing | None |
| A51-Bearing_holder_Neck | |
|---|---|
| Latest version download | pib-stls/A-Head/A51-Bearing_holder_Neck.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | pib-stls/A-Head/A51-Bearing_holder_Neck.stl at main · pib-rocks/pib-stls · GitHub |
| Suggested layer height | 0.25mm |
| Suggested infill percentage | 20%-30% |
| Supports | None |
| Number of this part for one arm Pib | 1 |
| Number of this part for two arm Pib | 1 |
| Mass – (Mass with supports) | 9g |
| Suggested orientation |  |
| After printing processing | None |
| A52-Motor_bracket_neck | |
|---|---|
| Latest version download | pib-stls/A-Head/A52-Motor_bracket_neck.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | pib-stls/A-Head/A52-Motor_bracket_neck.stl at main · pib-rocks/pib-stls · GitHub |
| Suggested layer height | 0.25mm |
| Suggested infill percentage | 20%-30% |
| Supports | None |
| Number of this part for one arm Pib | 1 |
| Number of this part for two arm Pib | 1 |
| Mass – (Mass with supports) | 18g |
| Suggested orientation |  |
| After printing processing | None |
| A53-Vertical_shaft_neck | |
|---|---|
| Latest version download | pib-stls/A-Head/A53-Vertical_shaft_neck.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | pib-stls/A-Head/A53-Vertical_shaft_neck.stl at main · pib-rocks/pib-stls · GitHub |
| Suggested layer height | 0.25mm |
| Suggested infill percentage | 20%-30% |
| Supports | None |
| Number of this part for one arm Pib | 1 |
| Number of this part for two arm Pib | 1 |
| Mass – (Mass with supports) | 5.5g |
| Suggested orientation |  |
| After printing processing | None |
| A54-Vertical_Motor_Connector_neck | |
|---|---|
| Latest version download | pib-stls/A-Head/A54-Vertical_Motor_Connector_neck.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | pib-stls/A-Head/A54-Vertical_Motor_Connector_neck.stl at main · pib-rocks/pib-stls · GitHub |
| Suggested layer height | 0.25mm |
| Suggested infill percentage | 20%-30% |
| Supports | None |
| Number of this part for one arm Pib | 1 |
| Number of this part for two arm Pib | 1 |
| Mass – (Mass with supports) | 3.4g |
| Suggested orientation |  |
| After printing processing | None |
| A55-Cap_neck | |
|---|---|
| Latest version download | pib-stls/A-Head/A55-Cap_neck.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | pib-stls/A-Head/A55-Cap_neck.stl at main · pib-rocks/pib-stls · GitHub |
| Suggested layer height | 0.25mm |
| Suggested infill percentage | 20%-30% |
| Supports | None |
| Number of this part for one arm Pib | 1 |
| Number of this part for two arm Pib | 1 |
| Mass – (Mass with supports) | 15.8g |
| Suggested orientation |  |
| After printing processing | None |

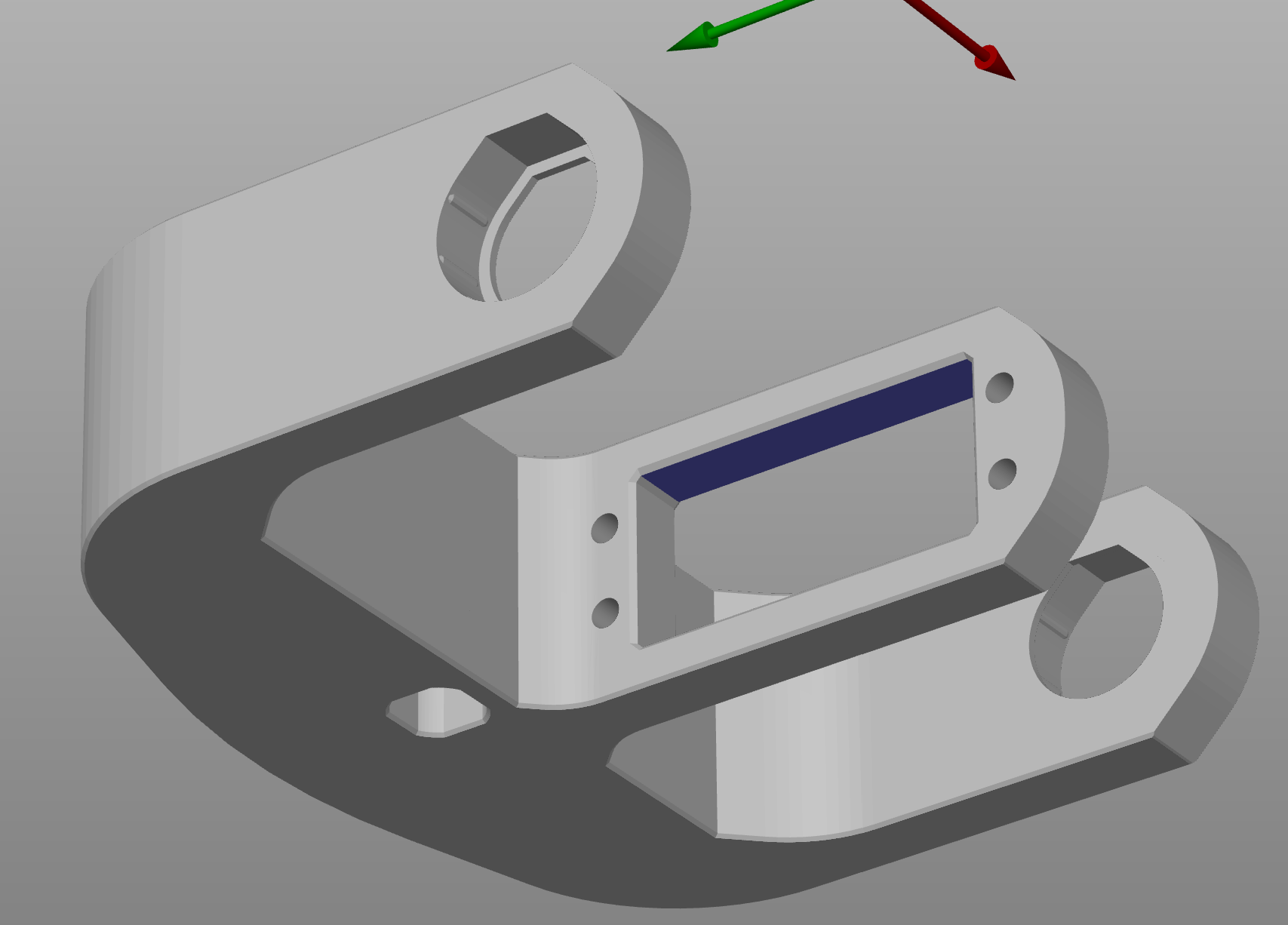

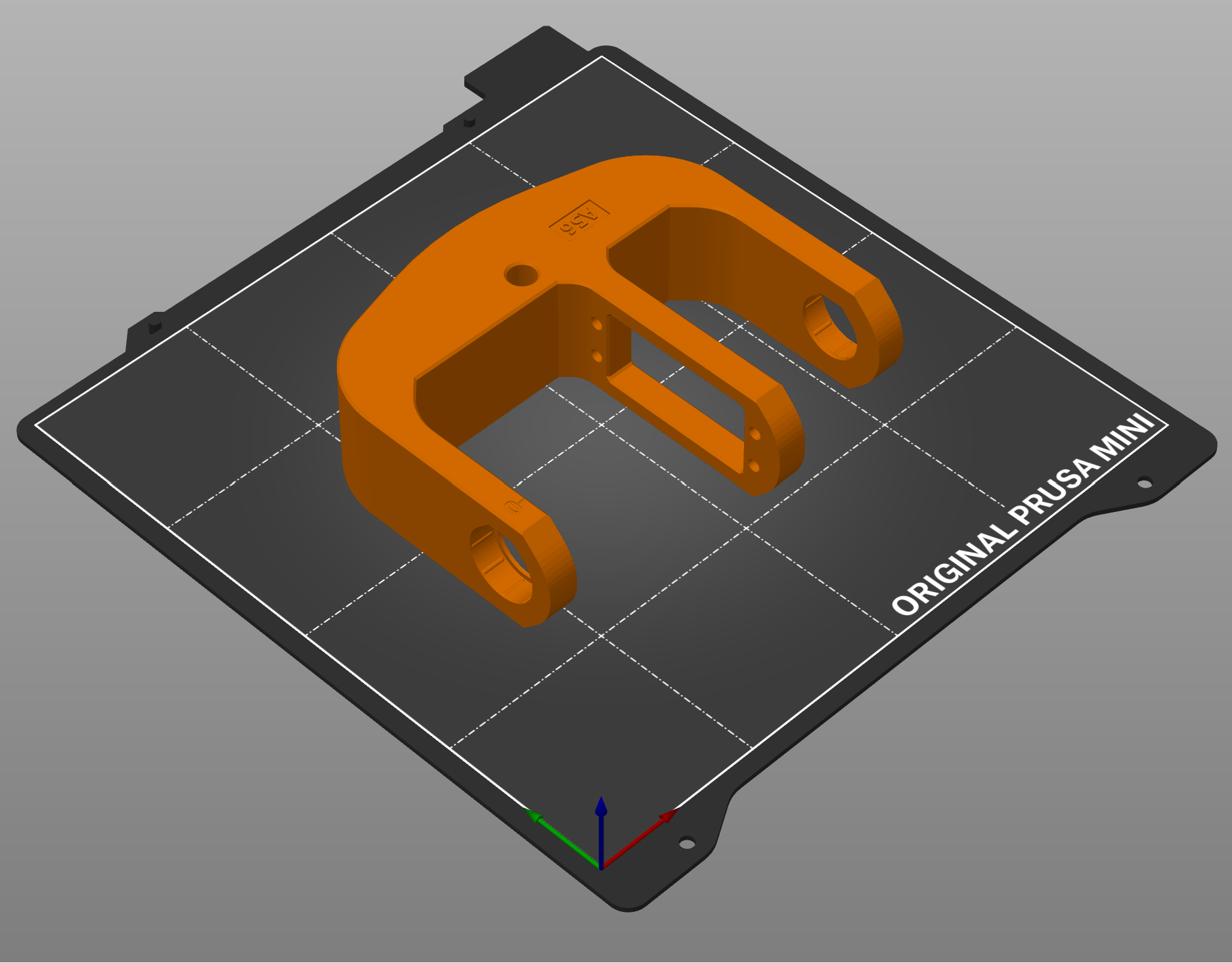

| A56-Top_part | |
|---|---|
| Latest version download | pib-stls/A-Head/A56-Top_part.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | pib-stls/A-Head/A56-Top_part.stl at main · pib-rocks/pib-stls · GitHub |
| Suggested layer height | 0.25mm |
| Suggested infill percentage | 20%-30% |
| Supports | For support enforcers only – paint on support  |
| Number of this part for one arm Pib | 1 |
| Number of this part for two arm Pib | 1 |
| Mass – (Mass with supports) | 53g |
| Suggested orientation |  |
| After printing processing | None |
| A57-Horizontal_motor_connector_neck | |
|---|---|
| Latest version download | pib-stls/A-Head/A57-Horizontal_motor_connector_neck.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | pib-stls/A-Head/A57-Horizontal_motor_connector_neck.stl at main · pib-rocks/pib-stls · GitHub |
| Suggested layer height | 0.25mm |
| Suggested infill percentage | 20%-30% |
| Supports | None |
| Number of this part for one arm Pib | 1 |
| Number of this part for two arm Pib | 1 |
| Mass – (Mass with supports) | 3.5g |
| Suggested orientation |  |
| After printing processing | None |
| A58-Horizontal_shaft_neck | |
|---|---|
| Latest version download | pib-stls/A-Head/A58-Horizontal_shaft_neck.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | pib-stls/A-Head/A58-Horizontal_shaft_neck.stl at main · pib-rocks/pib-stls · GitHub |
| Suggested layer height | 0.25mm |
| Suggested infill percentage | 20%-30% |
| Supports | None |
| Number of this part for one arm Pib | 1 |
| Number of this part for two arm Pib | 1 |
| Mass – (Mass with supports) | 4.5g |
| Suggested orientation |  |
| After printing processing | None |

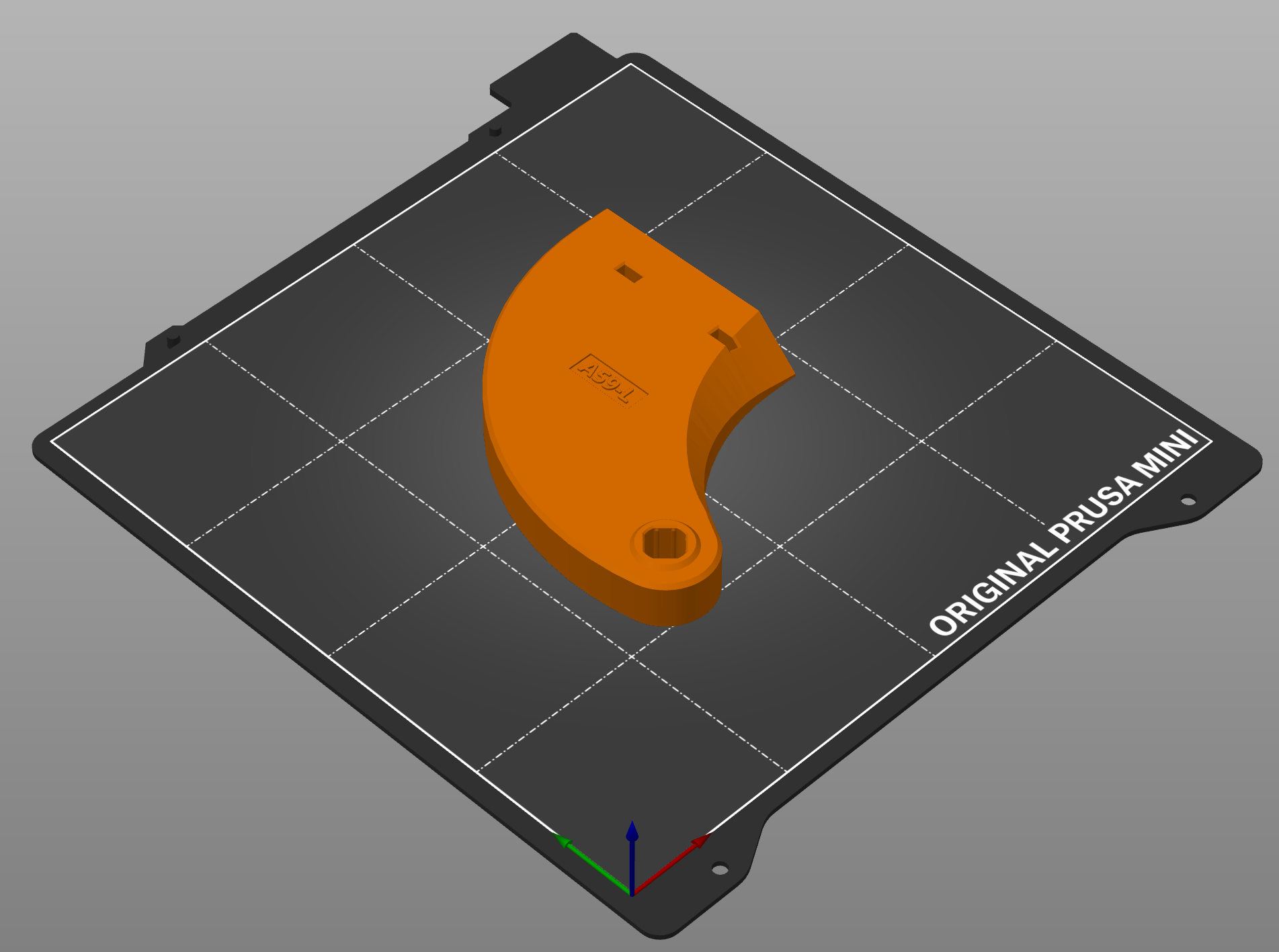

| A59-L-Side_arm_neck_left. | |
|---|---|
| Latest version download | pib-stls/A-Head/A59-L-Side_arm_neck_left.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | pib-stls/A-Head/A59-L-Side_arm_neck_left.stl at main · pib-rocks/pib-stls · GitHub |
| Suggested layer height | 0.25mm |
| Suggested infill percentage | 20%-30% |
| Supports | None |
| Number of this part for one arm Pib | 1 |
| Number of this part for two arm Pib | 1 |
| Mass – (Mass with supports) | 30g |
| Suggested orientation |  |
| After printing processing | None |

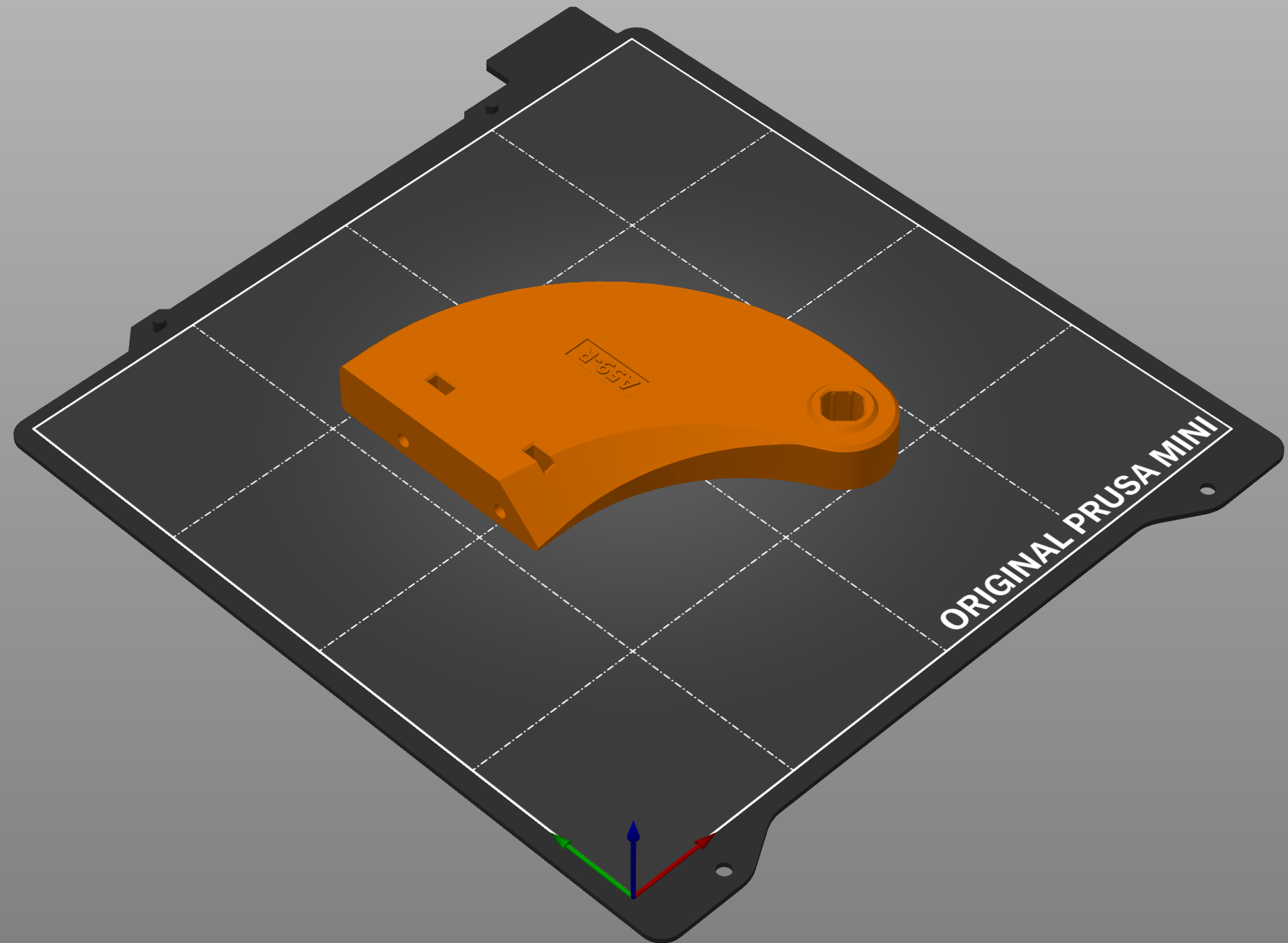

| A59-R-Side_arm_neck_right | |
|---|---|
| Latest version download | pib-stls/A-Head/A59-R-Side_arm_neck_right.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | pib-stls/A-Head/A59-R-Side_arm_neck_right.stl at main · pib-rocks/pib-stls · GitHub |
| Suggested layer height | 0.25mm |
| Suggested infill percentage | 20%-30% |
| Supports | None |
| Number of this part for one arm Pib | 1 |
| Number of this part for two arm Pib | 1 |
| Mass – (Mass with supports) | 30g |
| Suggested orientation |  |
| After printing processing | None |
| A60-Horizontal_shaft_short_neck | |
|---|---|
| Latest version download | pib-stls/A-Head/A60-Horizontal_shaft_short_neck.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | pib-stls/A-Head/A60-Horizontal_shaft_short_neck.stl at main · pib-rocks/pib-stls · GitHub |
| Suggested layer height | 0.25mm |
| Suggested infill percentage | 20%-30% |
| Supports | None |
| Number of this part for one arm Pib | 1 |
| Number of this part for two arm Pib | 1 |
| Mass – (Mass with supports) | 2.2g |
| Suggested orientation |  |
| After printing processing | None |
Advanced neck

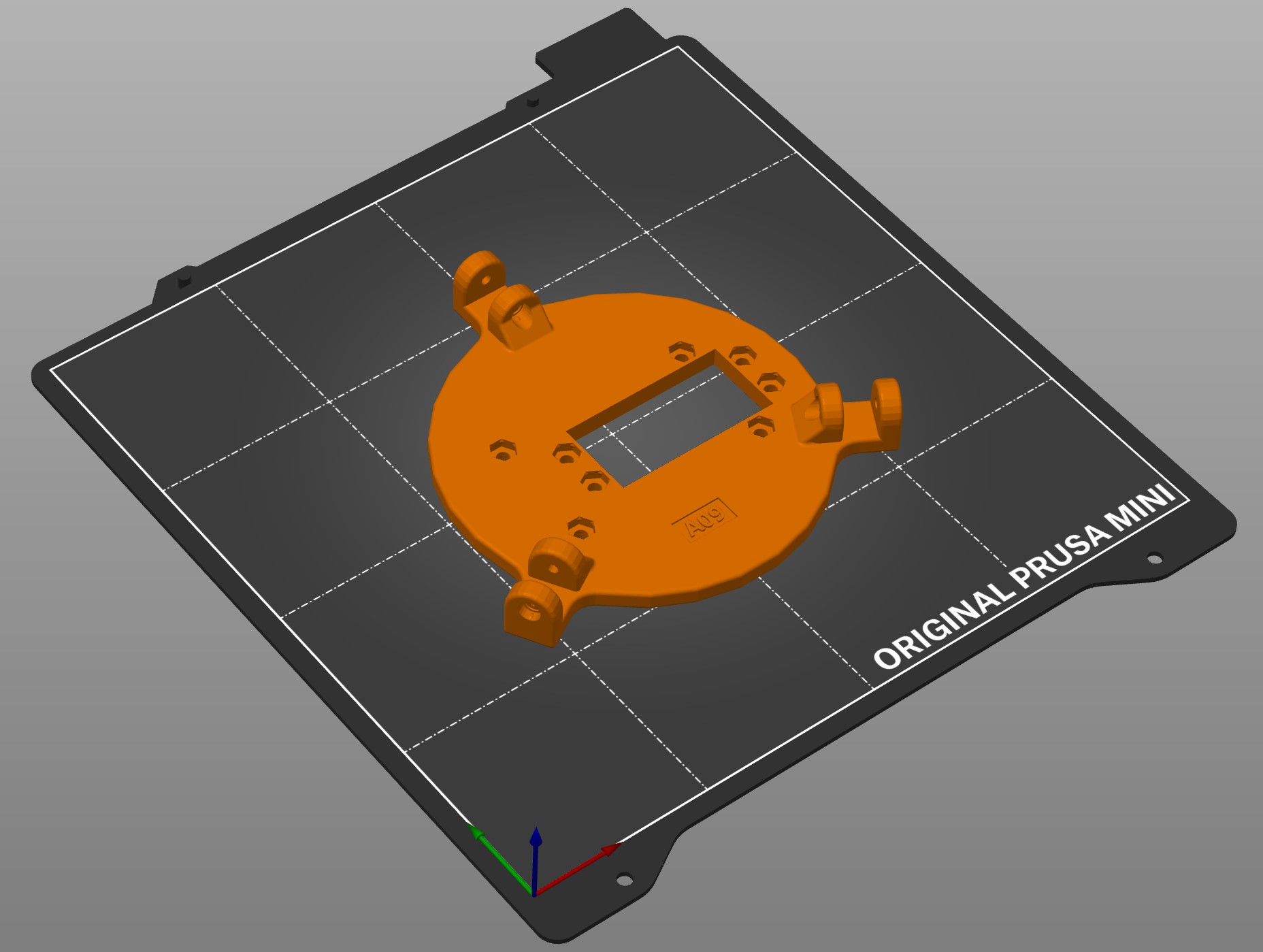

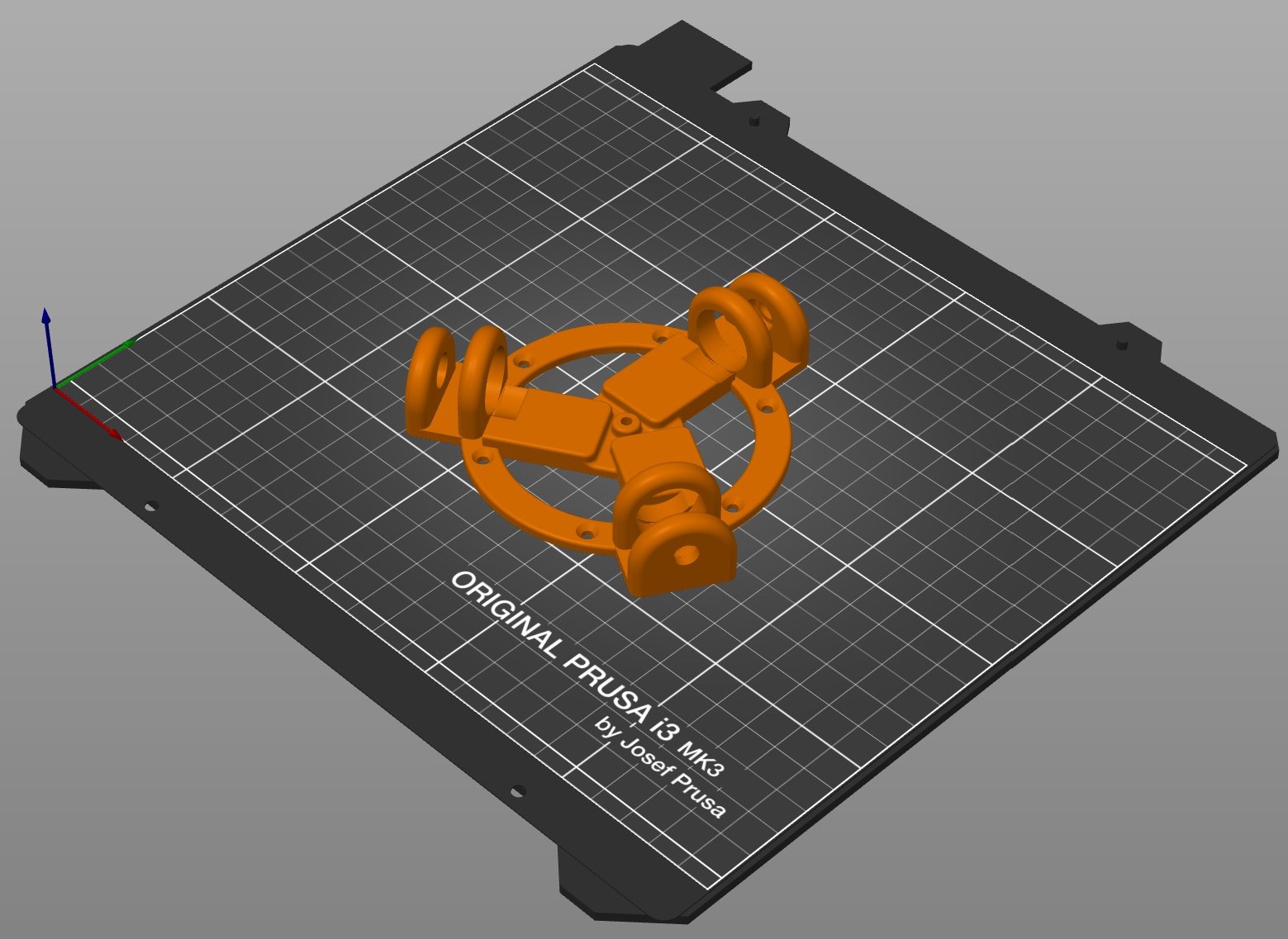

| A05-Neck_base | |
|---|---|
| Latest version download | pib-stls/A-Head/A05-Neck_base.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | |
| Suggested layer height | 0.3 mm |
| Suggested infill percentage | 20%-30% |
| Supports | None |
| Number of this part for one arm Pib | 1 |
| Number of this part for two arm Pib | 1 |
| Suggested orientation |  |
| After printing processing | None |

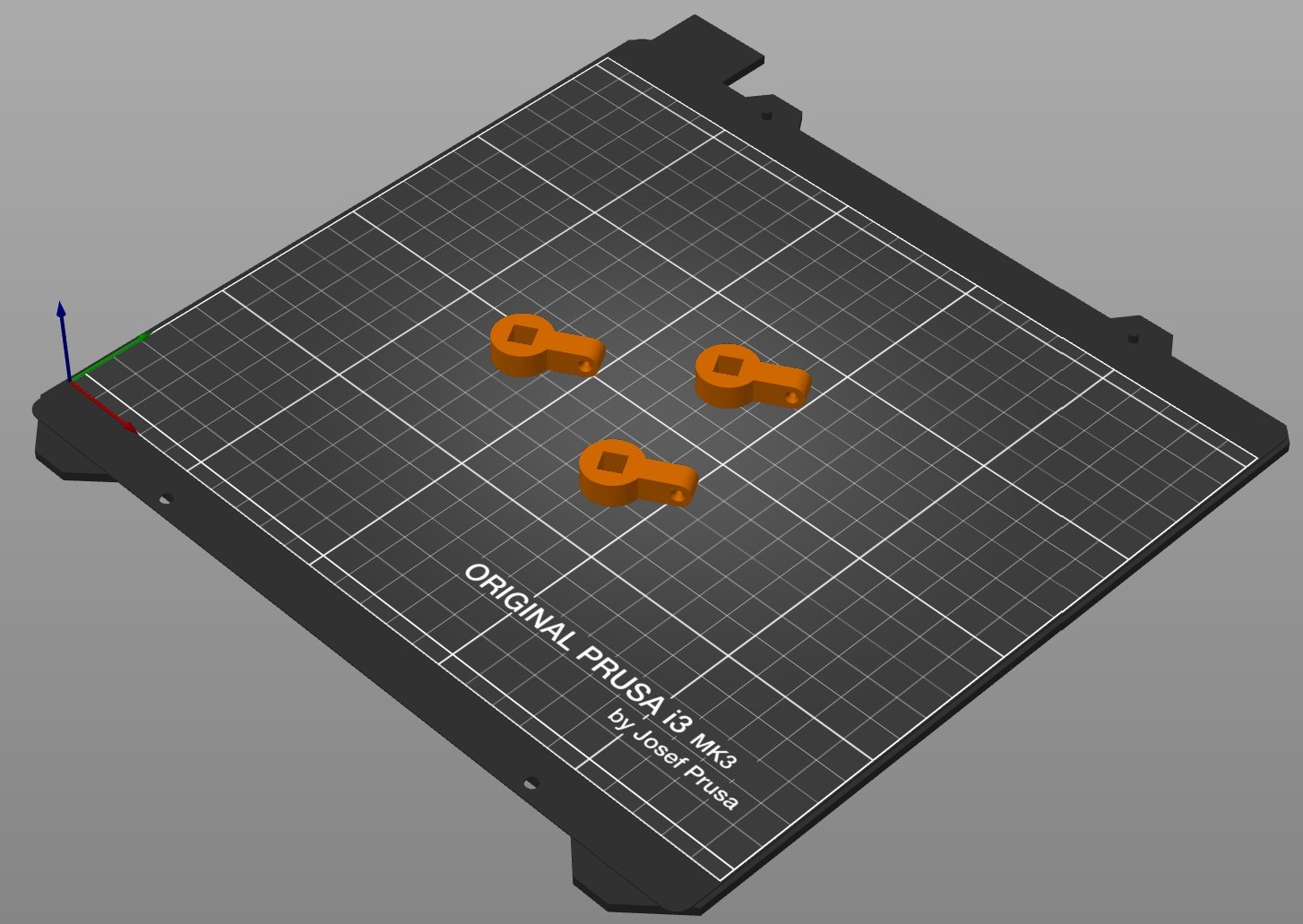

| A06-Neck_base_connector | |
|---|---|
| Latest version download | pib-stls/A-Head/A06-Neck_base_connector.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | |
| Suggested layer height | 0.2 mm |
| Suggested infill percentage | 20%-30% |
| Supports | None |
| Number of this part for one arm Pib | 3 |
| Number of this part for two arm Pib | 3 |
| Suggested orientation |  |
| After printing processing | None |

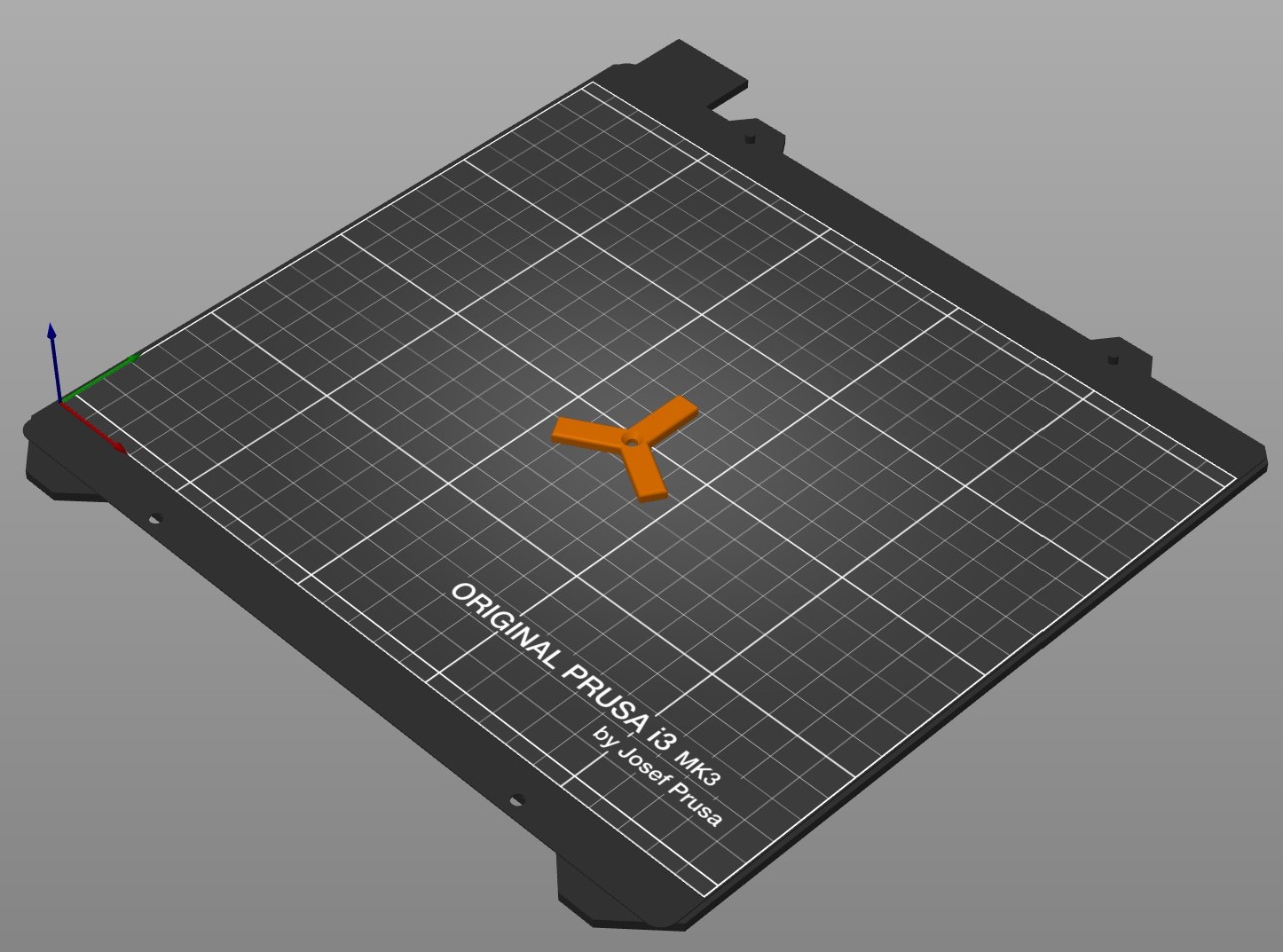

| A07-Neck_servo_connector | |
|---|---|
| Latest version download | pib-stls/A-Head/A07-Neck_servo_connector.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | |
| Suggested layer height | 0.2 mm |
| Suggested infill percentage | 30%-40% |
| Supports | None |
| Number of this part for one arm Pib | 3 |
| Number of this part for two arm Pib | 3 |
| Suggested orientation |  |
| After printing processing | None |

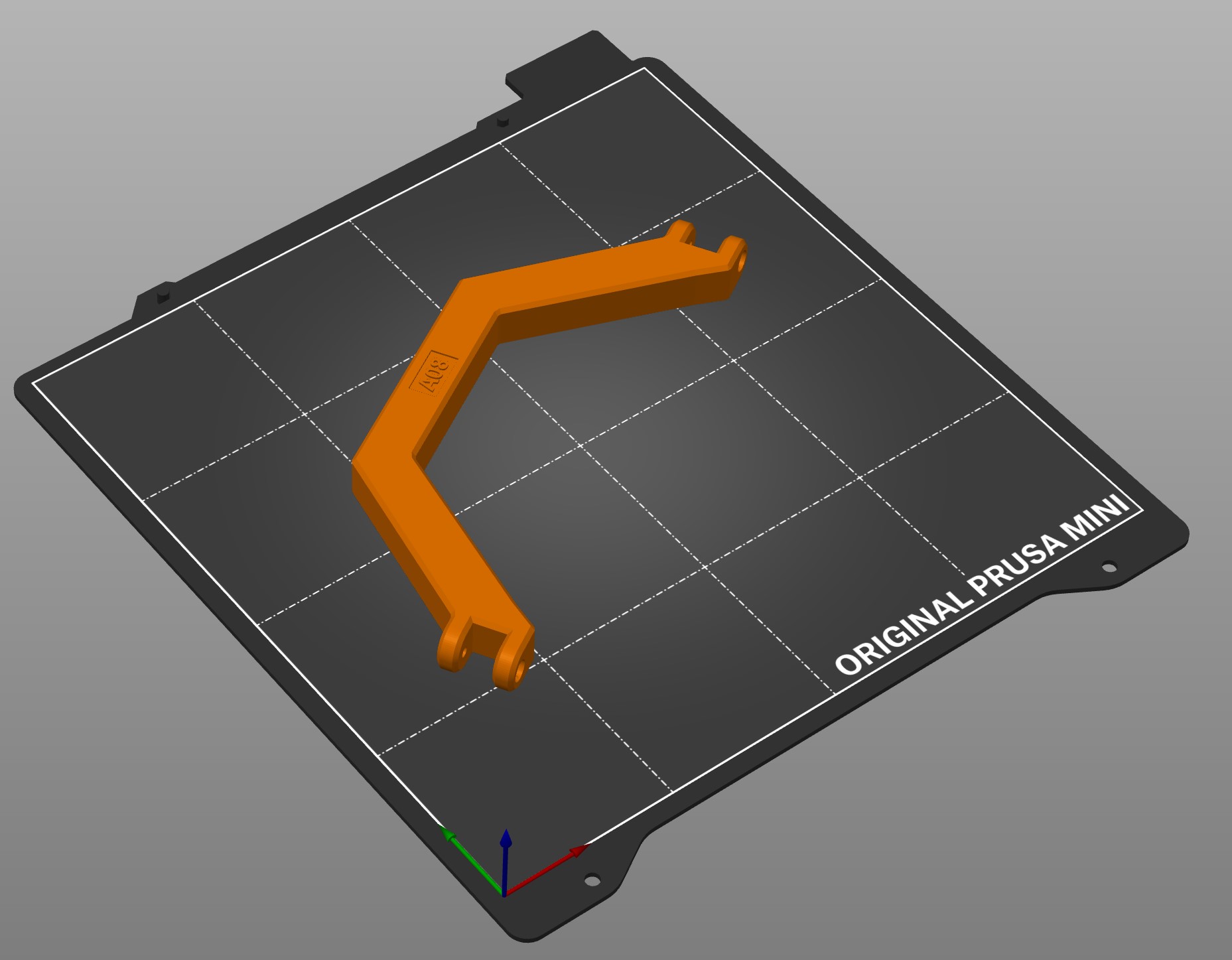

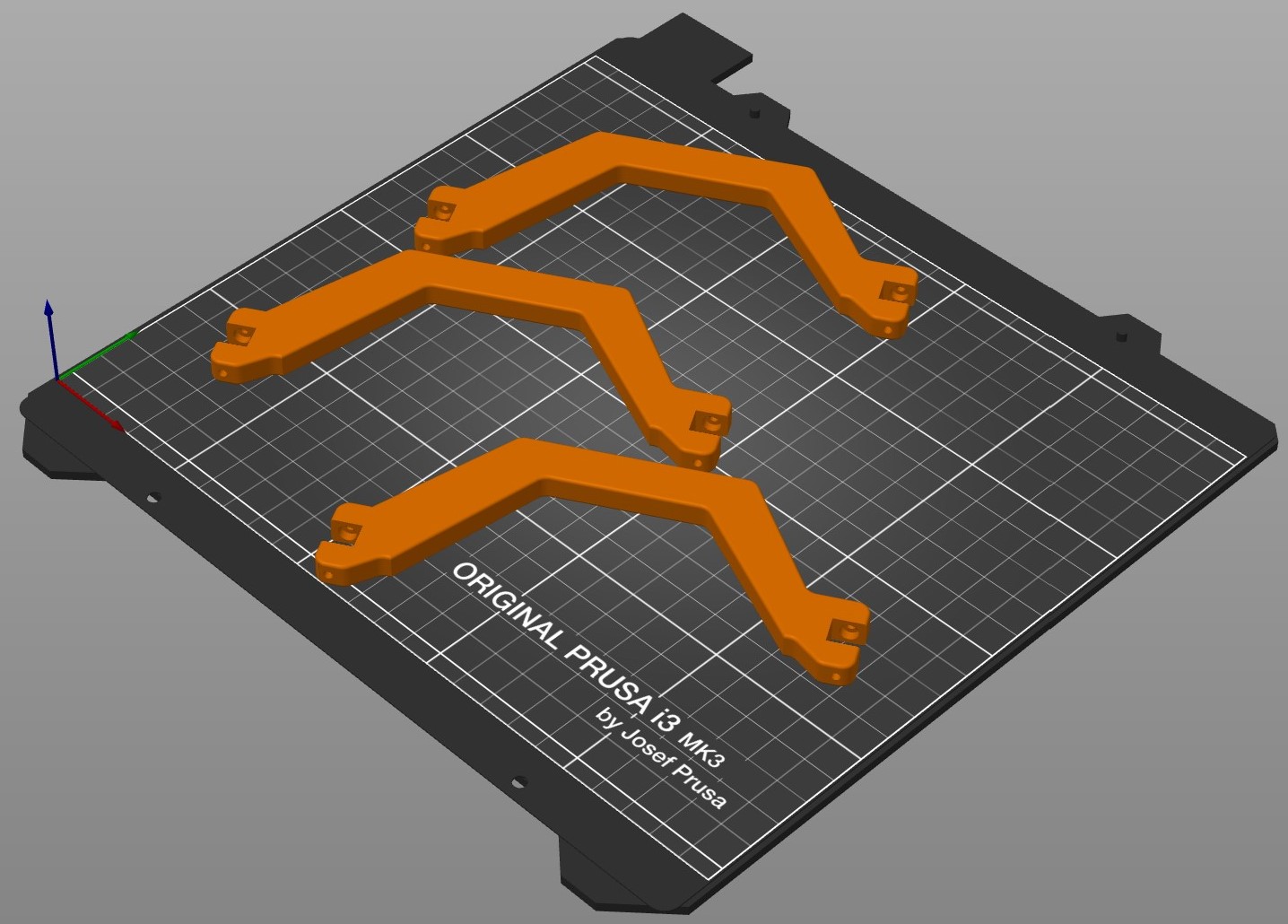

| A08-Neck_arm | |
|---|---|
| Latest version download | pib-stls/A-Head/A08-Neck_arm.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | |
| Suggested layer height | 0.3 mm |
| Suggested infill percentage | 20%-30% |
| Supports | None |
| Number of this part for one arm Pib | 3 |
| Number of this part for two arm Pib | 3 |
| Suggested orientation |  |
| After printing processing | None |

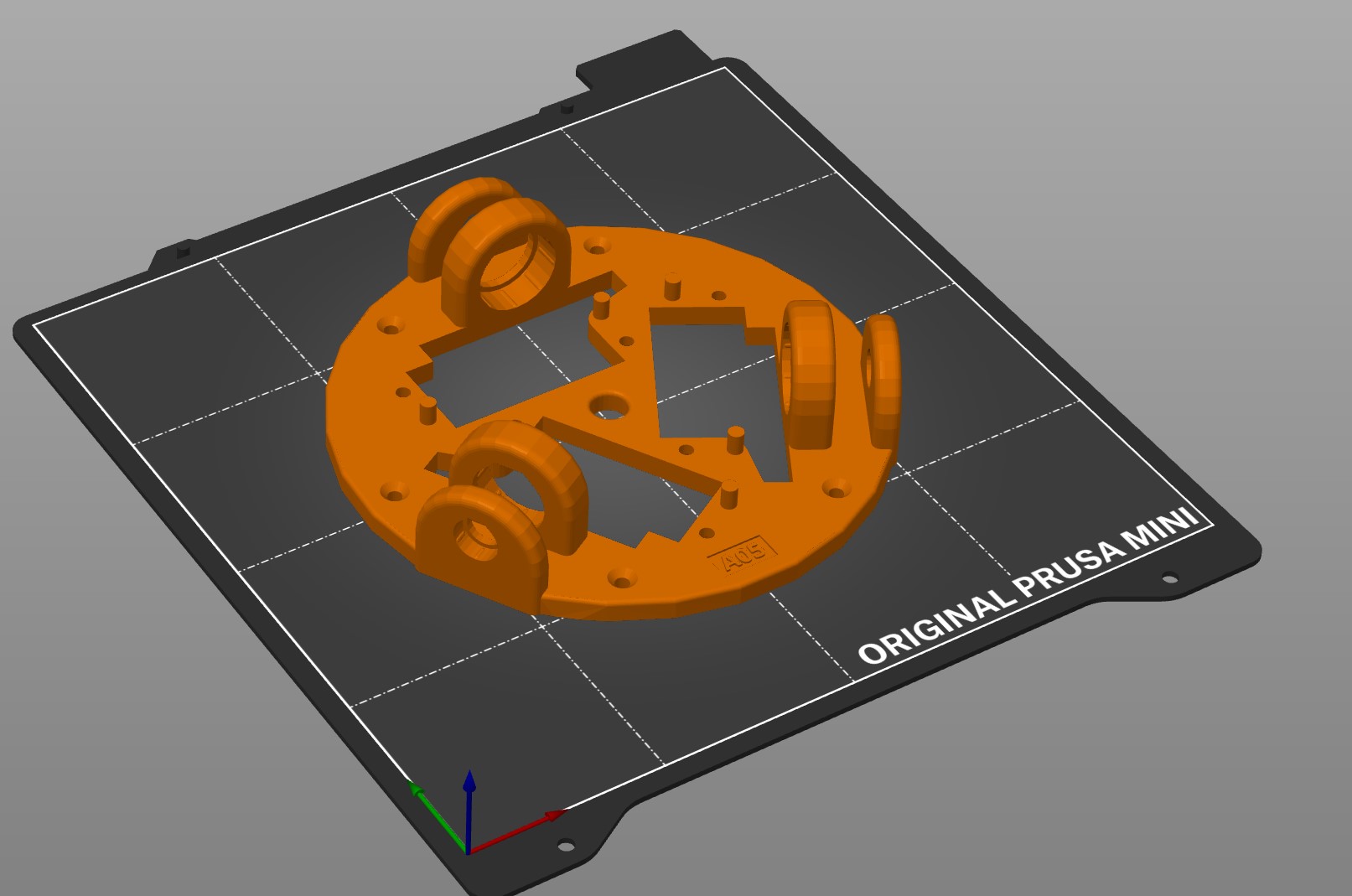

| A09-Neck_head | |
|---|---|
| Latest version download | pib-stls/A-Head/A09-Neck_head.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | |
| Suggested layer height | 0.3 mm |
| Suggested infill percentage | 20%-30% |
| Supports | None |
| Number of this part for one arm Pib | 1 |
| Number of this part for two arm Pib | 1 |
| Suggested orientation |  |
| After printing processing | None |

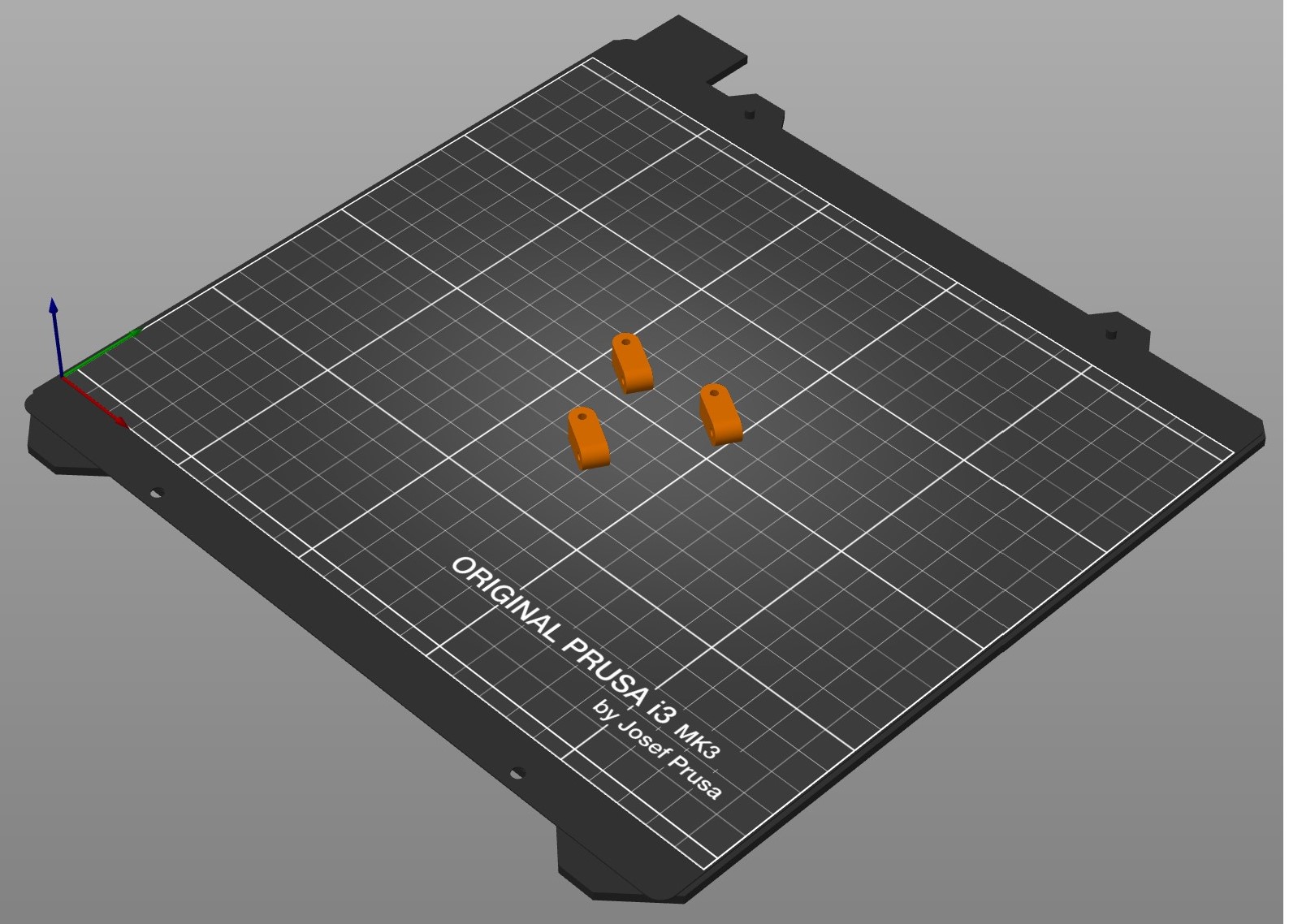

| A10-Neck_head_connector | |
|---|---|
| Latest version download | pib-stls/A-Head/A10-Neck_head_connector.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | |
| Suggested layer height | 0.2 mm |
| Suggested infill percentage | 20%-30% |
| Supports | None |
| Number of this part for one arm Pib | 3 |
| Number of this part for two arm Pib | 3 |
| Suggested orientation |  |
| After printing processing | None |

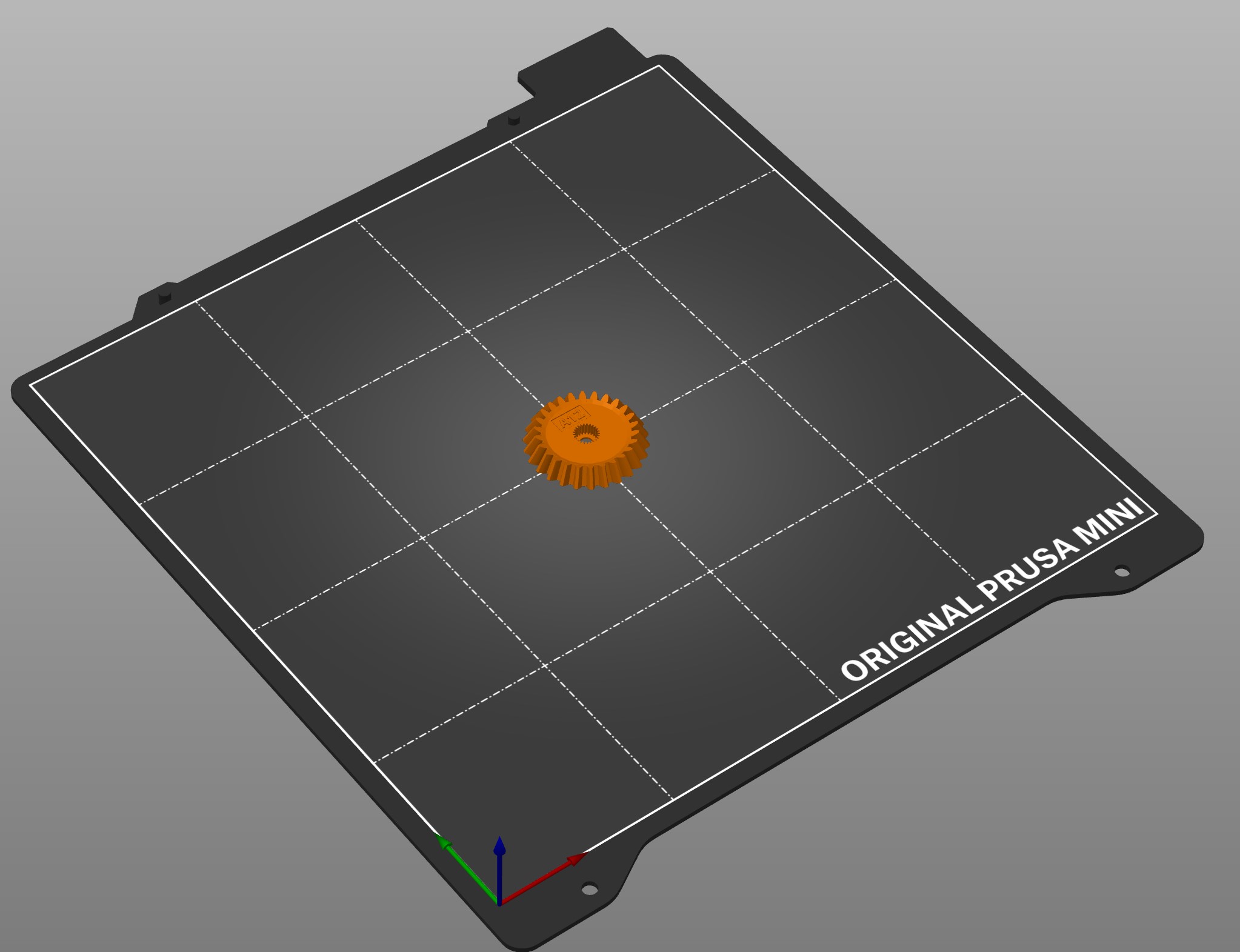

| A12-Neck_driving_bevel_gear | |
|---|---|
| Latest version download | pib-stls/A-Head/A12-Neck_driving_bevel_gear.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | |
| Suggested layer height | 0.2 mm |
| Suggested infill percentage | 20%-30% |
| Supports | None |
| Number of this part for one arm Pib | 3 |
| Number of this part for two arm Pib | 3 |
| Suggested orientation |  |
| After printing processing | None |
| A13-Neck_driven_bevel_gear | |
|---|---|
| Latest version download | pib-stls/A-Head/A13-Neck_driven_bevel_gear.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | |
| Suggested layer height | 0.2 mm |
| Suggested infill percentage | 30%-40% |
| Supports | Supports on build plate only |
| Number of this part for one arm Pib | 3 |
| Number of this part for two arm Pib | 3 |
| Suggested orientation |  |
| After printing processing | Clean supports |
| A14-Neck_ballbearing_holder | |
|---|---|
| Latest version download | pib-stls/A-Head/A14-Neck_ballbearing_holder.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | |
| Suggested layer height | 0.3 mm |
| Suggested infill percentage | 20%-30% |
| Supports | None |
| Number of this part for one arm Pib | 1 |
| Number of this part for two arm Pib | 1 |
| Suggested orientation |  |
| After printing processing | None |
| A15-Neck_ballbearing_holder_leg | |
|---|---|
| Latest version download | pib-stls/A-Head/A15-Neck_ballbearing_holder_leg.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | |
| Suggested layer height | 0.2 mm |
| Suggested infill percentage | 20%-30% |
| Supports | Supports on build plate only |
| Number of this part for one arm Pib | 4 |
| Number of this part for two arm Pib | 4 |
| Suggested orientation |  |
| After printing processing | None |
