Face and board mount
| A03-Face-Plate | |
|---|---|
| Latest version download | pib-stls/A-Head/A03-Face-Plate.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | pib-stls/A-Head/A03-Face-Plate.stl at main · pib-rocks/pib-stls · GitHub |
| Suggested layer height | 0.3 mm |
| Suggested infill percentage | 20%-30% |
| Supports | None |
| Number of this part for one arm Pib | 1 |
| Number of this part for two arm Pib | 1 |
| Mass – (Mass with supports) | 51g |
| Suggested orientation |   |
| After printing processing | None |
| A01-Head | |
|---|---|
| Latest version download | pib-stls/A-Head/A01-Face.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | pib-stls/A-Head/A01-Face.stl at main · pib-rocks/pib-stls · GitHub |
| Suggested layer height | 0.3 mm |
| Suggested infill percentage | 20%-30% |
| Supports | None |
| Number of this part for one arm Pib | 1 |
| Number of this part for two arm Pib | 1 |
| Mass – (Mass with supports) | 357g |

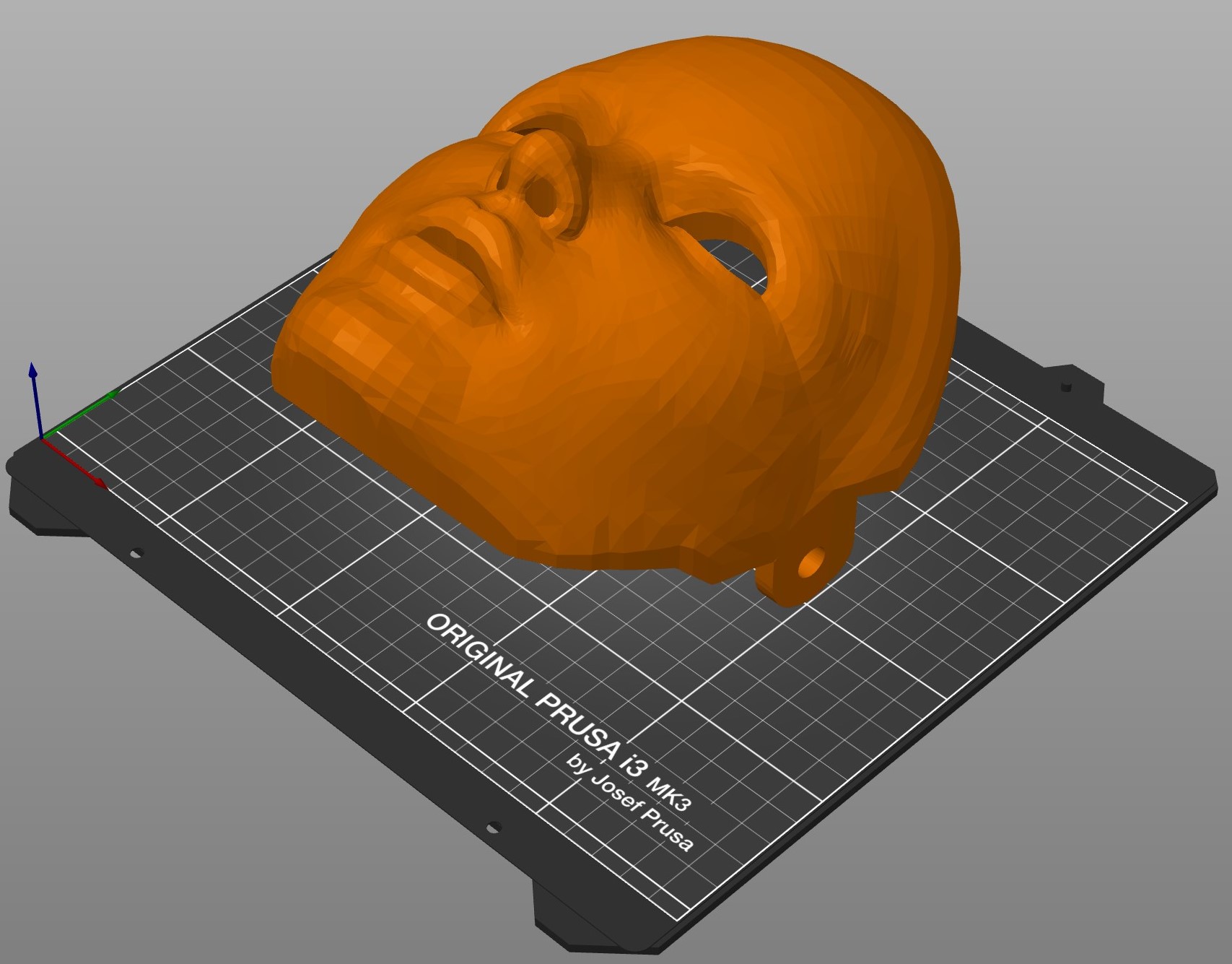

| Suggested orientation |  |
| After printing processing | Remove print helpers Gently move small plastic parts highlighted until breaking  |
| A02-Head_board_mount | |
|---|---|
| Latest version download | pib-stls/A-Head/A02-Head_board_mount.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | pib-stls/A-Head/A02-Head_board_mount.stl at main · pib-rocks/pib-stls · GitHub |
| Suggested layer height | 0.3 mm |
| Suggested infill percentage | 20%-30% |
| Supports | None |
| Number of this part for one arm Pib | 1 |
| Number of this part for two arm Pib | 1 |

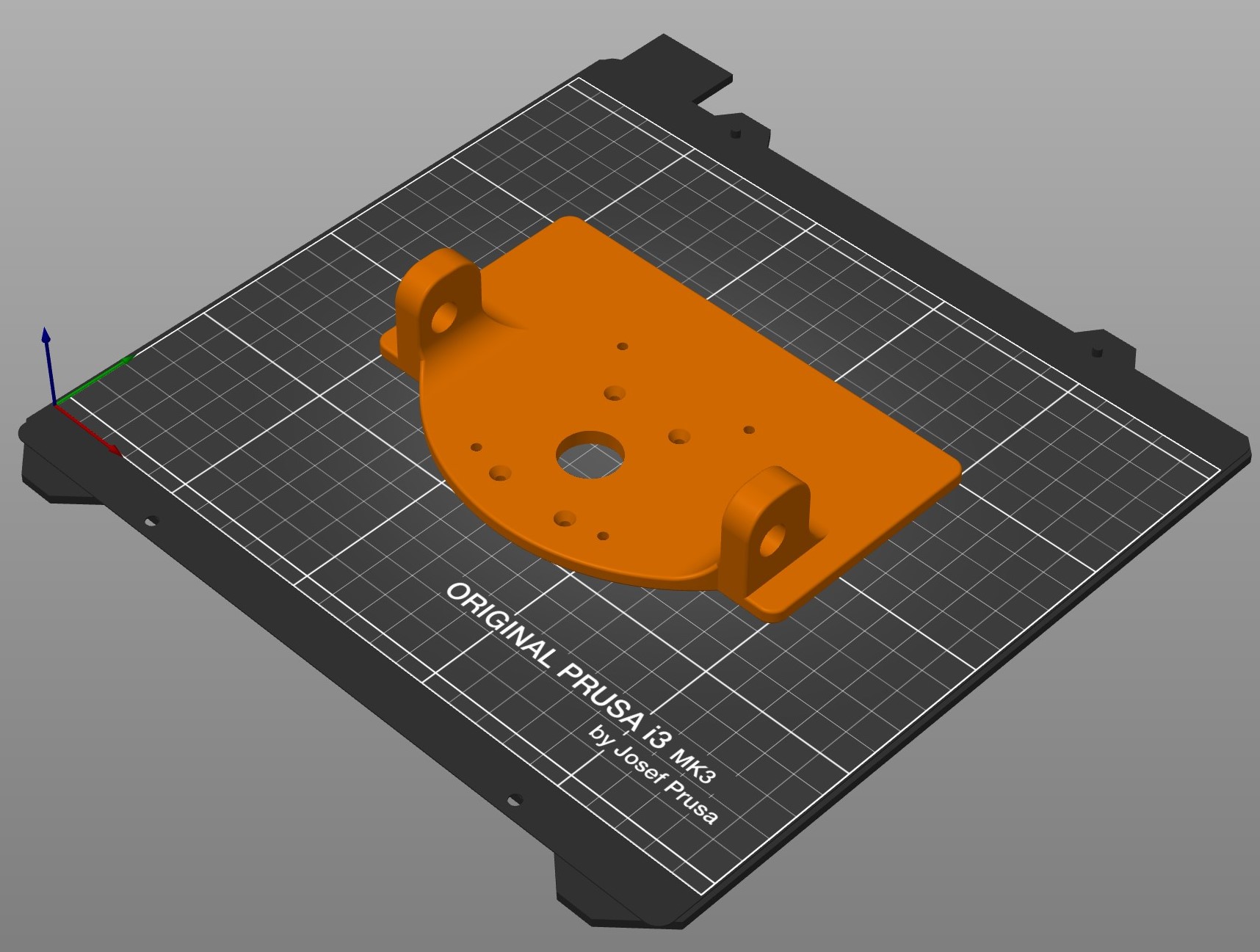

| Suggested orientation |  |
| After printing processing | None |
Only needed in advanced neck (virtual sphere)
