Ribcage

B03-Ribcage_middle_left
Latest version downloadpib-stls/B-Body/B03-Ribcage_middle_left.stl at main · pib-rocks/pib-stls · GitHub
Stable release downloadpib-stls/B-Body/B03-Ribcage_middle_left.stl at main · pib-rocks/pib-stls · GitHub
Suggested layer height0.25mm
Suggested infill percentage30%-40%
SupportsNone
Number of this part for one arm Pib1
Number of this part for two arm Pib1
Mass – (Mass with supports)241.7g

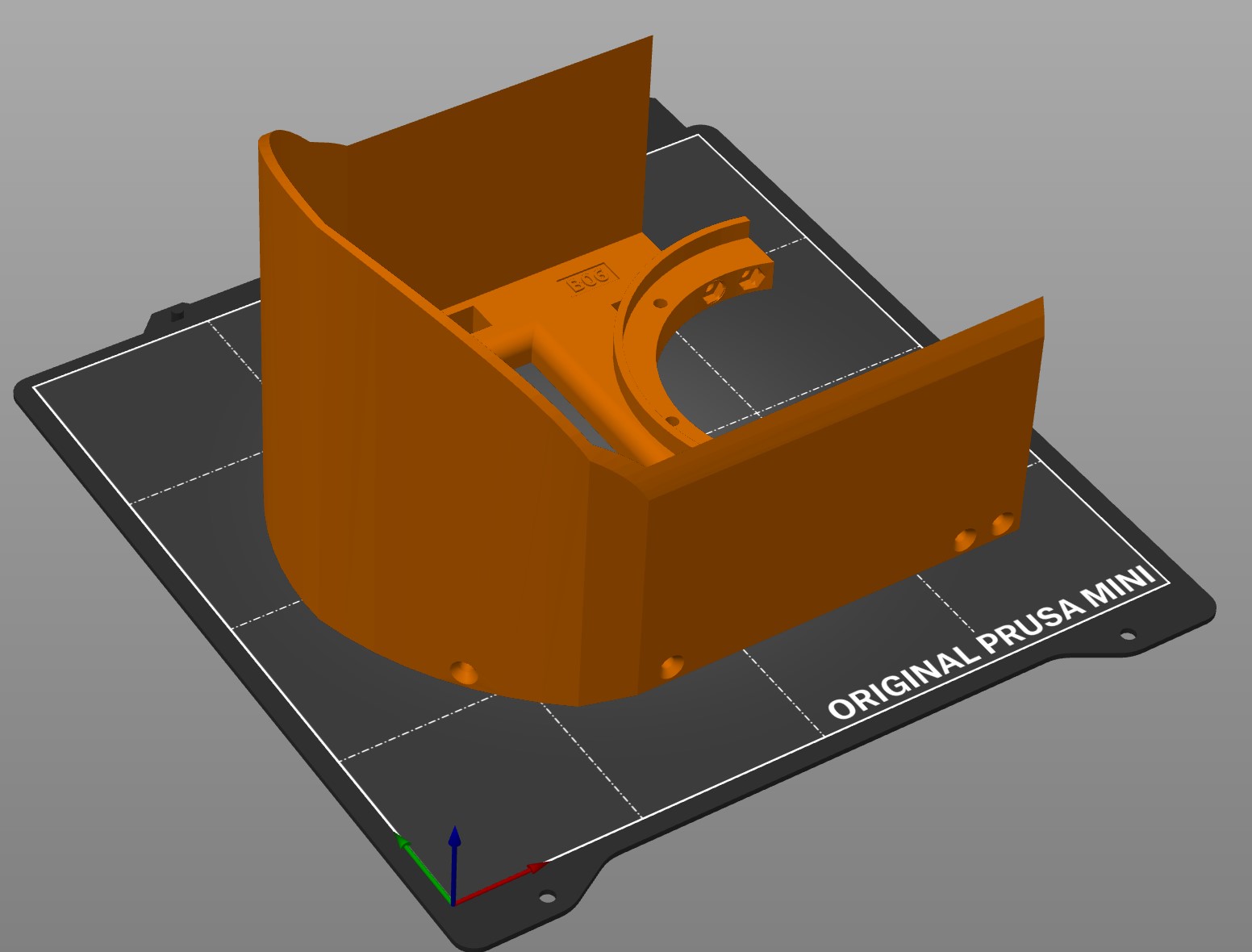

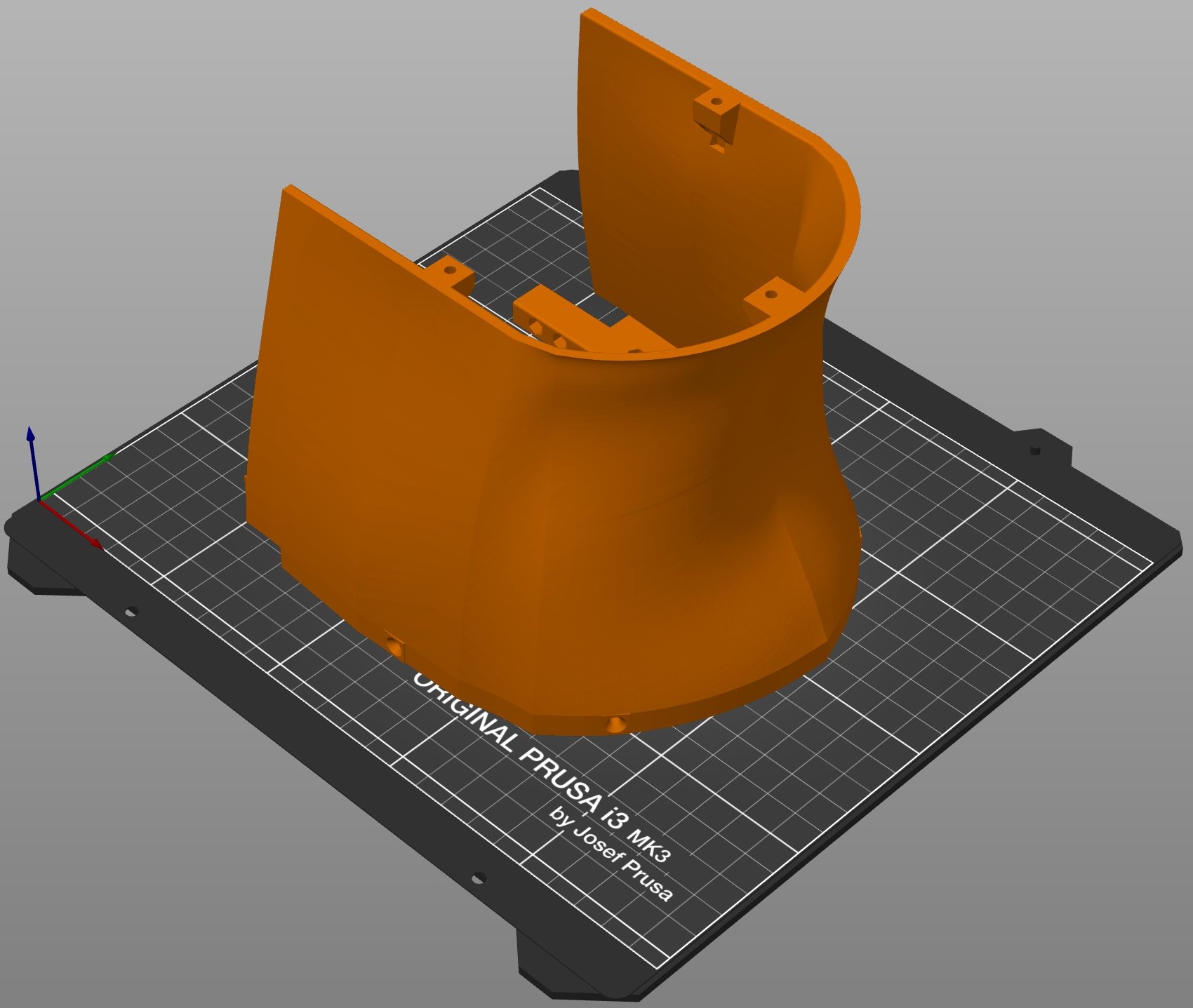

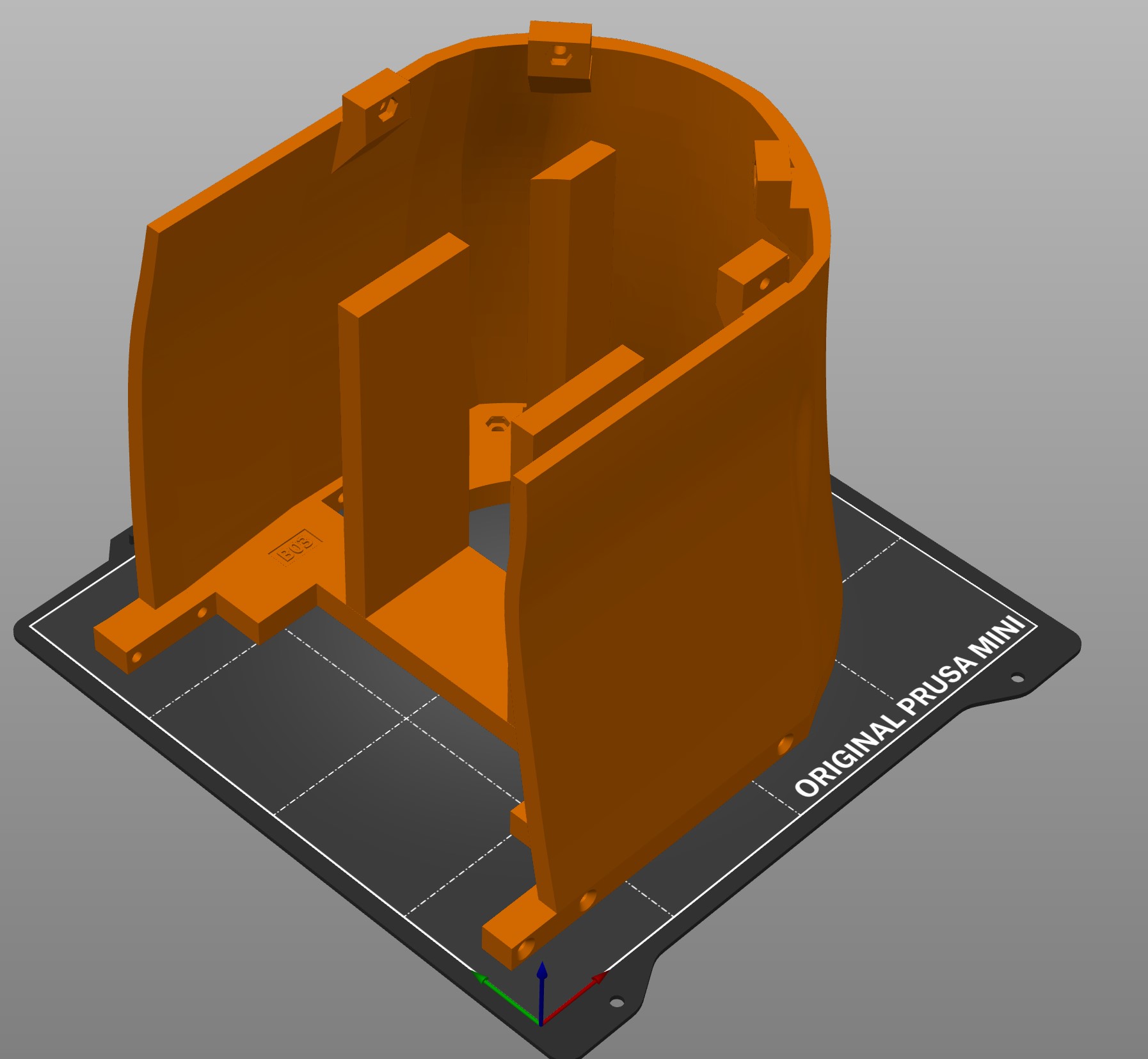

Suggested orientation
After printing processingNone

B04-Ribcage_middle_right
Latest version downloadpib-stls/B-Body/B04-Ribcage_middle_right.stl at main · pib-rocks/pib-stls · GitHub
Stable release downloadpib-stls/B-Body/B04-Ribcage_middle_right.stl at main · pib-rocks/pib-stls · GitHub
Suggested layer height0.25mm
Suggested infill percentage30%-40%

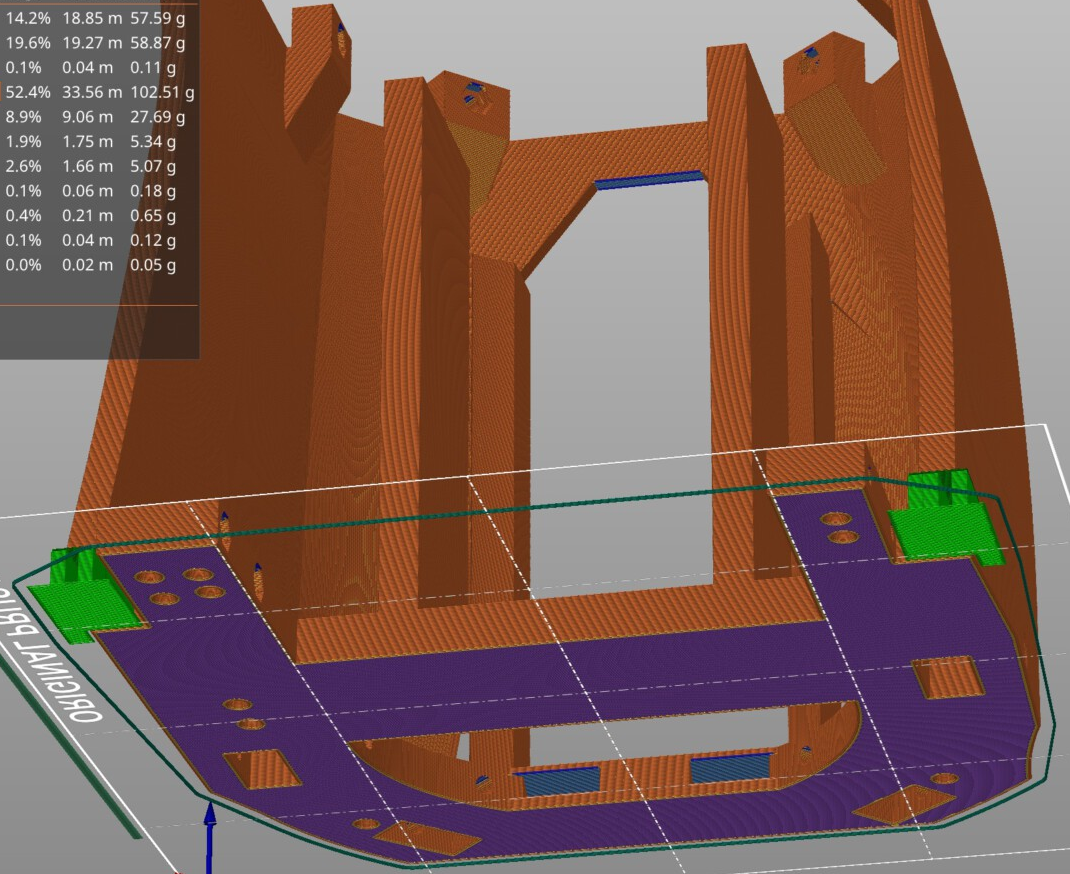

SupportsFor support enforcers only.

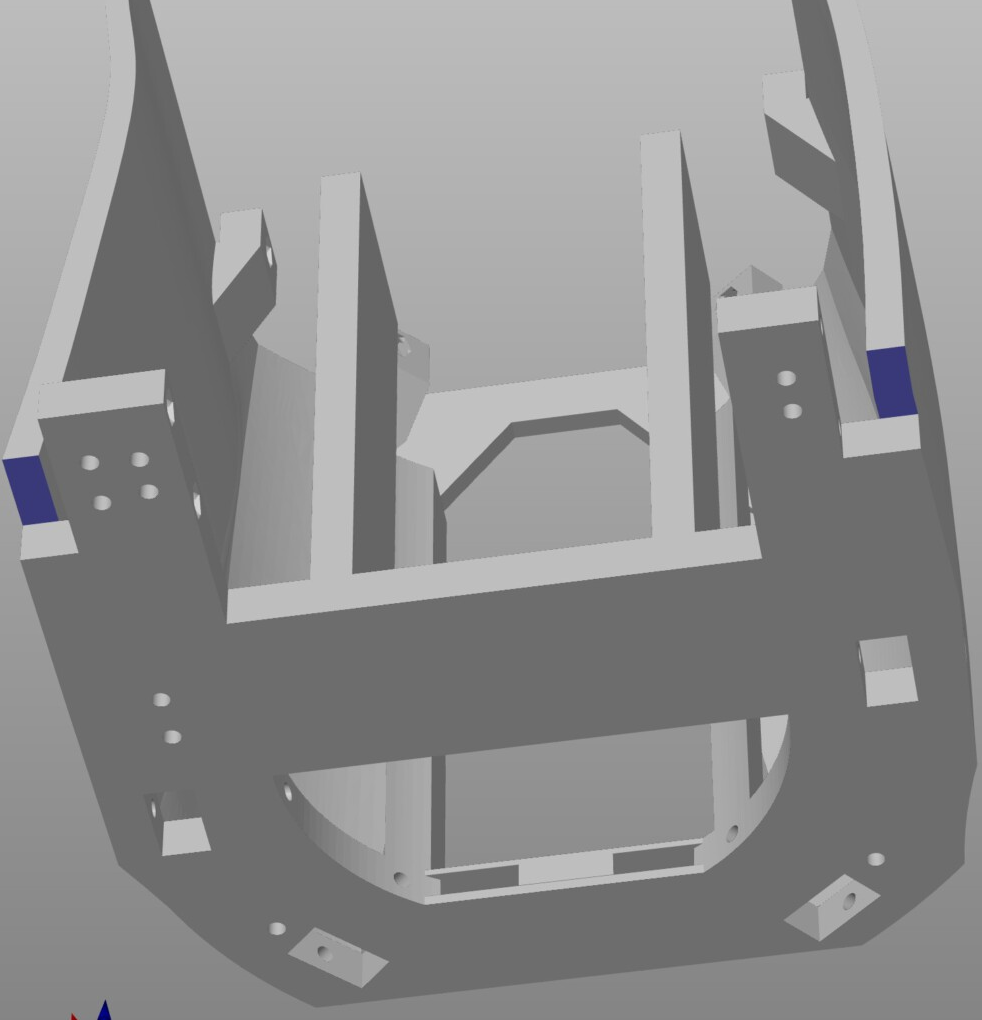

Select smart fill, choose the blue faces shown.

Number of this part for one arm Pib1
Number of this part for two arm Pib
1
Mass – (Mass with supports)240g

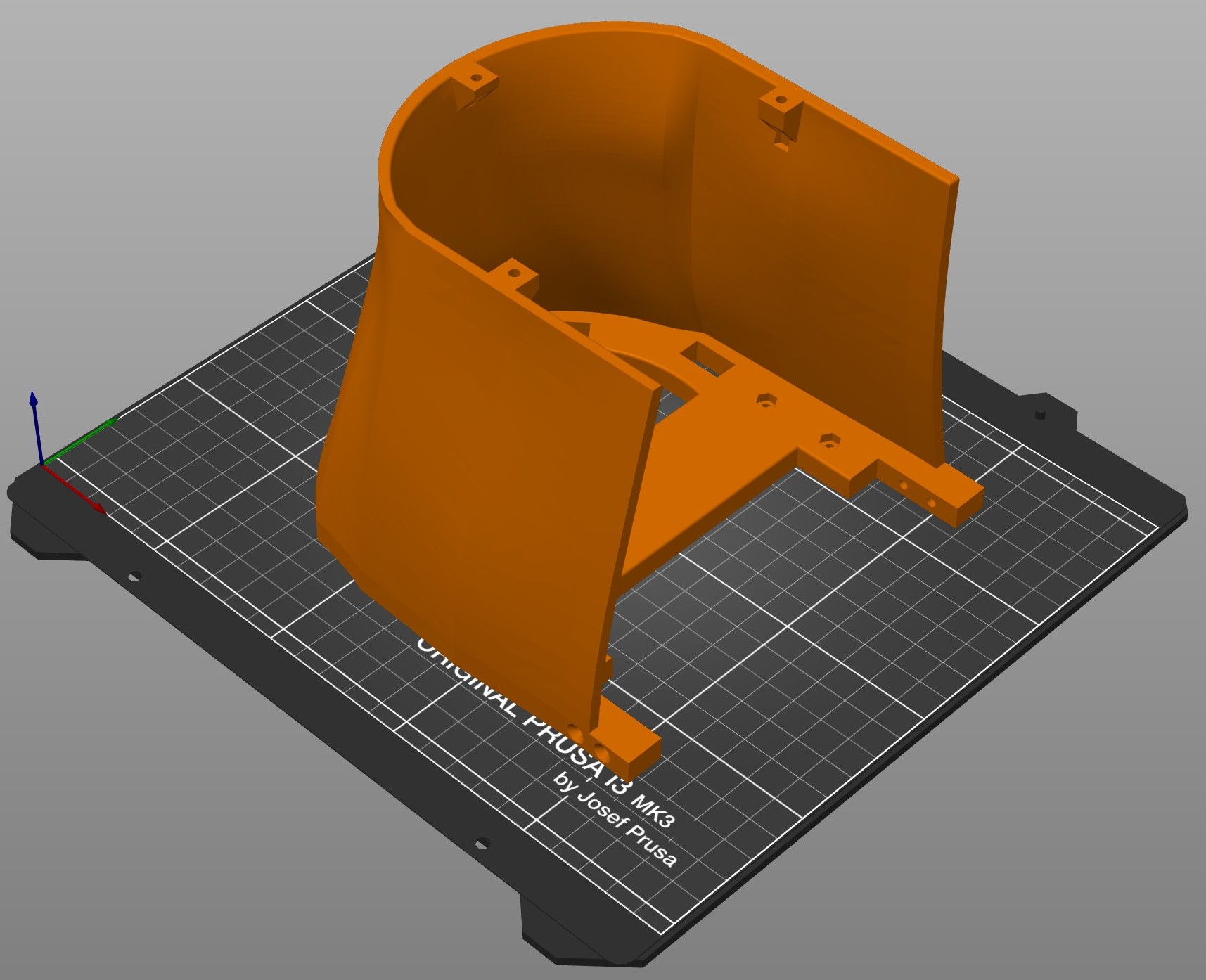

Suggested orientation
After printing processingClean supports

B17-Ribcage_middle_right_opening
Latest version downloadpib-stls/B-Body/B17-Ribcage_middle_right_opening.stl at main · pib-rocks/pib-stls · GitHub
Stable release downloadpib-stls/B-Body/B17-Ribcage_middle_right_opening.stl at main · pib-rocks/pib-stls · GitHub
Suggested layer height0.25mm
Suggested infill percentage20%-30%
SupportsOn build plate only
Number of this part for one arm Pib1
Number of this part for two arm Pib1
Mass – (Mass with supports)46g

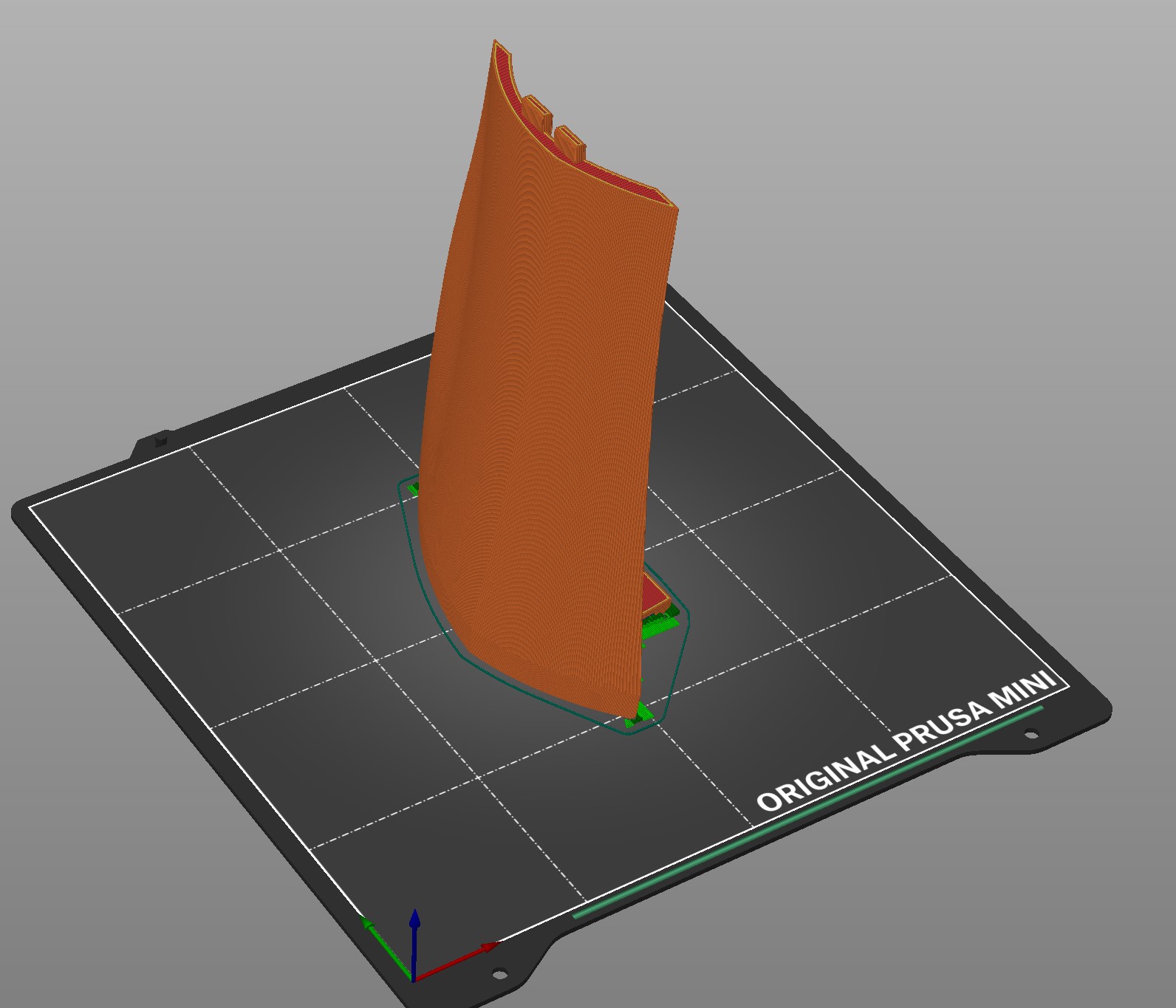

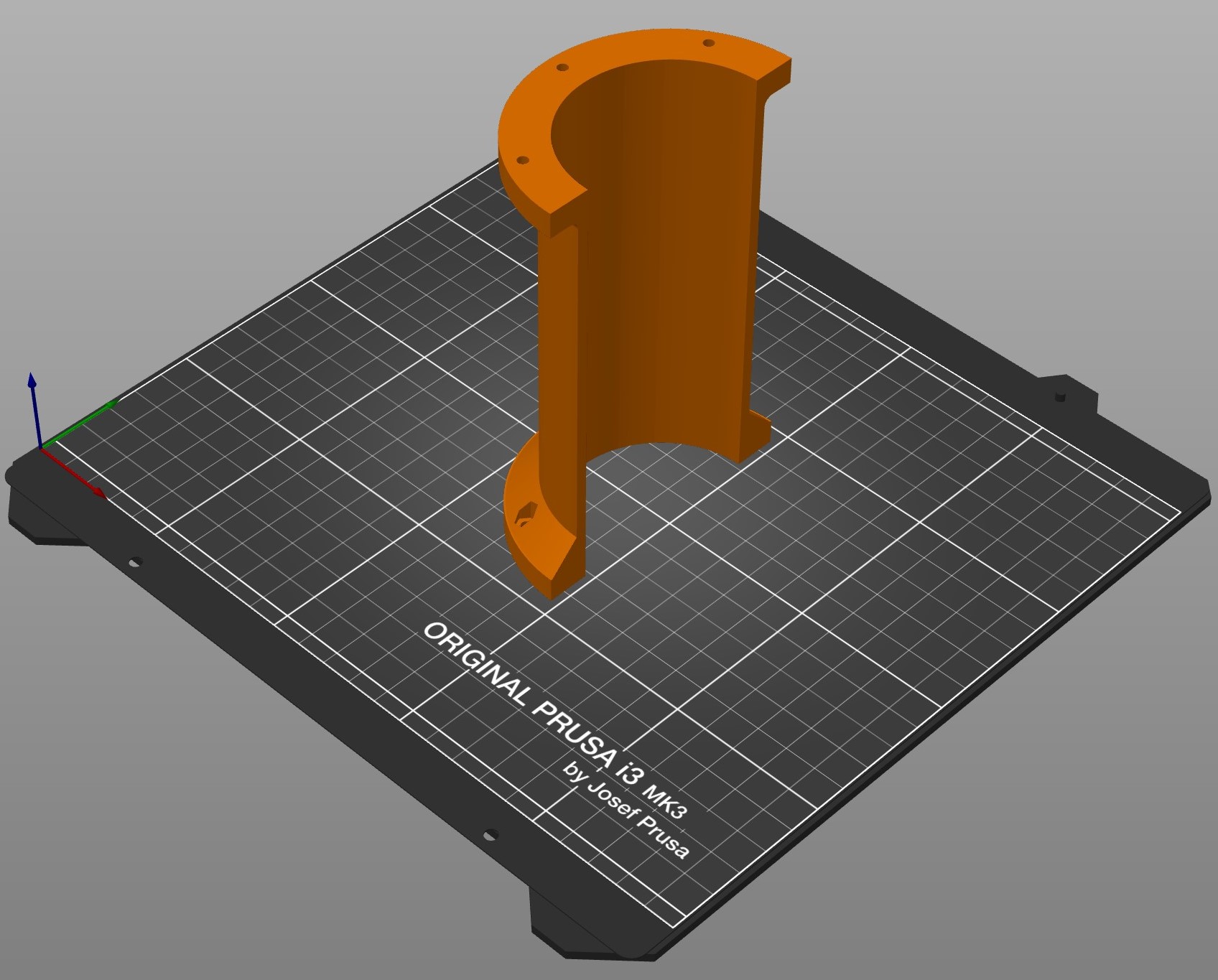

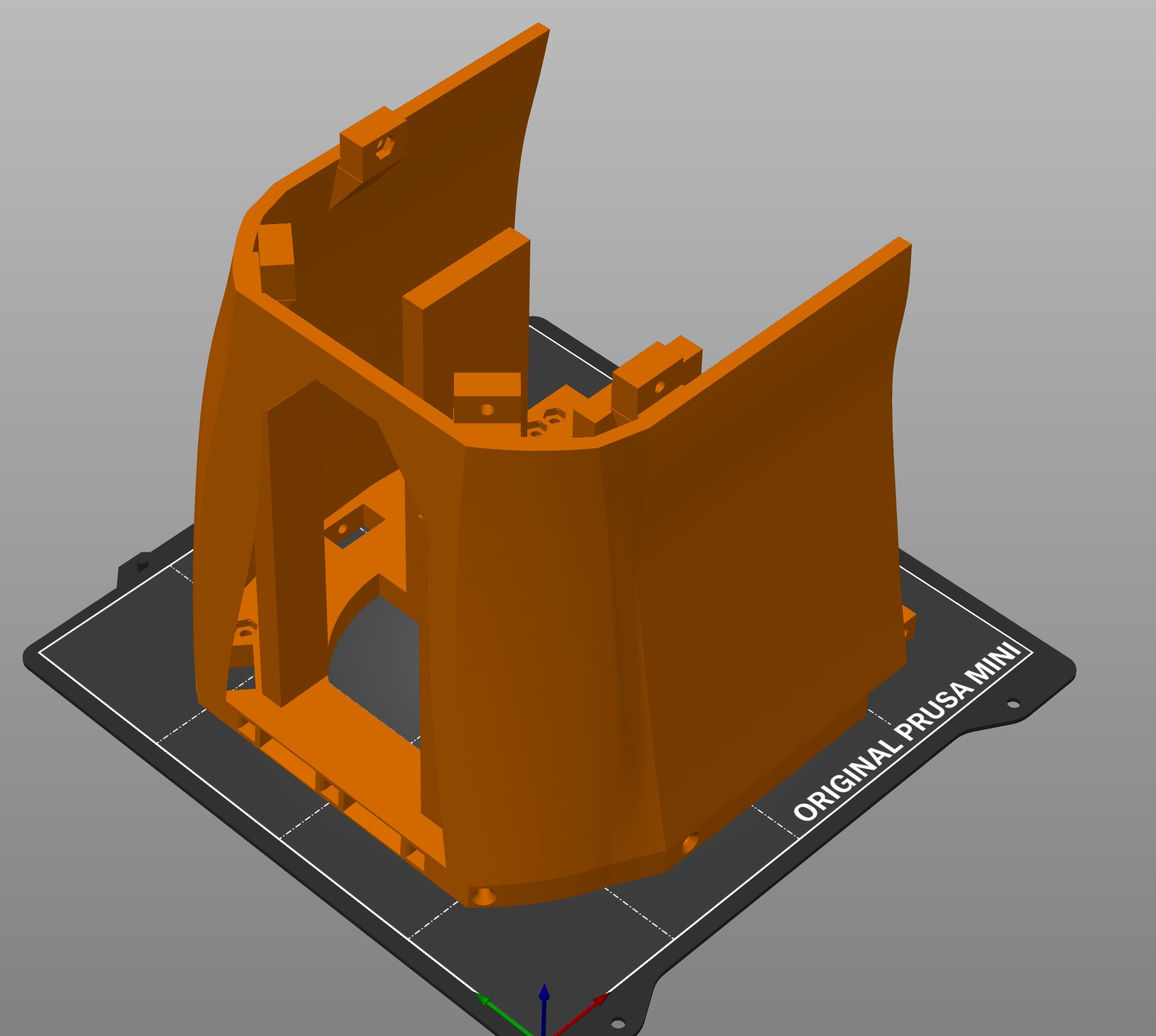

Suggested orientation
After printing processingClean supports

B05-Ribcage_helper_left
Latest version downloadpib-stls/B-Body/B05-Ribcage_helper_left.stl at main · pib-rocks/pib-stls · GitHub
Stable release downloadpib-stls/B-Body/B05-Ribcage_helper_left.stl at main · pib-rocks/pib-stls · GitHub
Suggested layer height0.25mm
Suggested infill percentage20%-30%
SupportsNone
Number of this part for one arm Pib1
Number of this part for two arm Pib1
Mass – (Mass with supports)118g

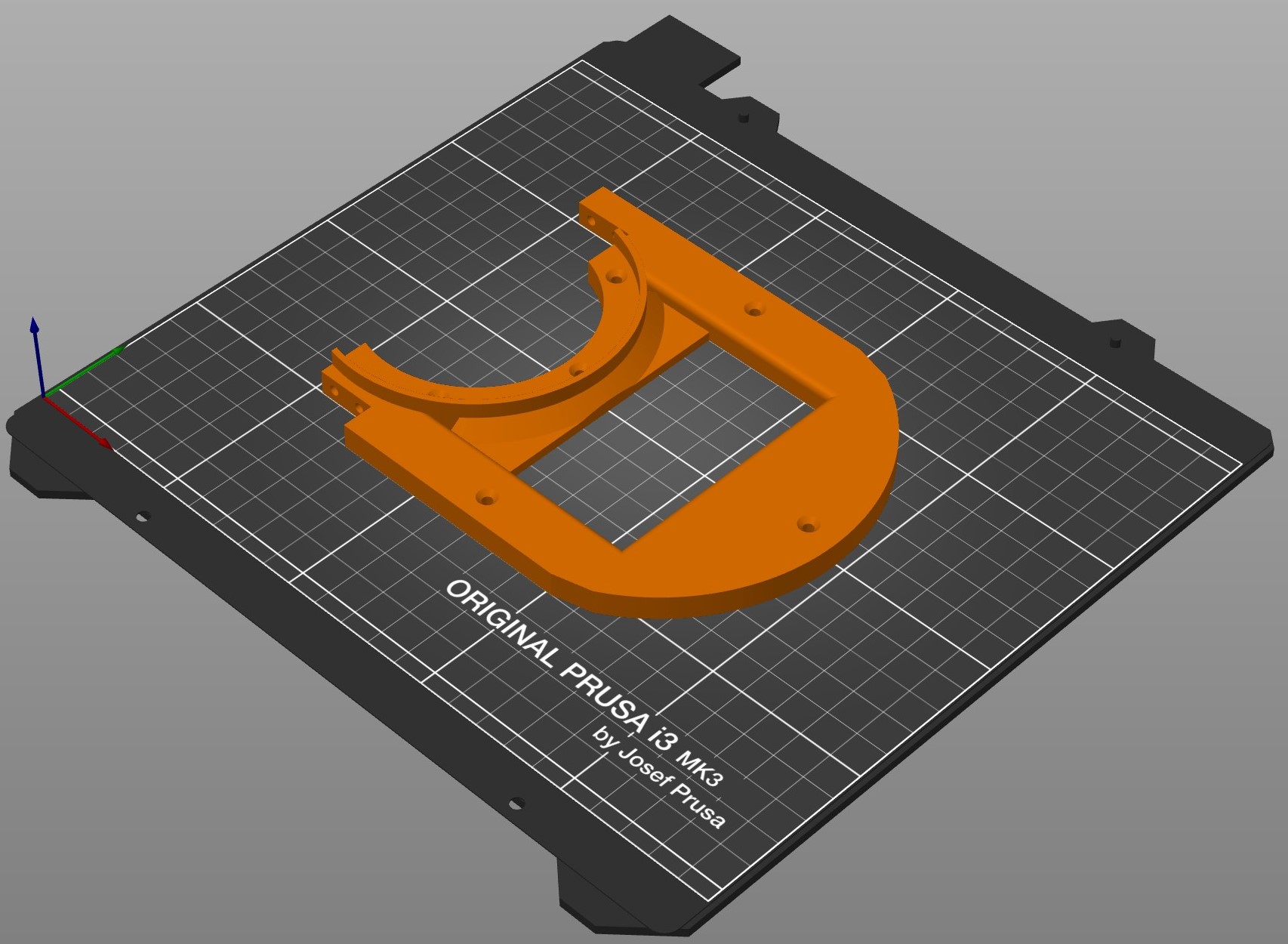

Suggested orientation
After printing processingNone
B06-Ribcage_helper_right
Latest version downloadpib-stls/B-Body/B06-Ribcage_helper_right.stl at main · pib-rocks/pib-stls · GitHub
Stable release downloadpib-stls/B-Body/B06-Ribcage_helper_right.stl at main · pib-rocks/pib-stls · GitHub
Suggested layer height0.25mm
Suggested infill percentage20%-30%
SupportsNone
Number of this part for one arm Pib1
Number of this part for two arm Pib1
Mass – (Mass with supports)125g

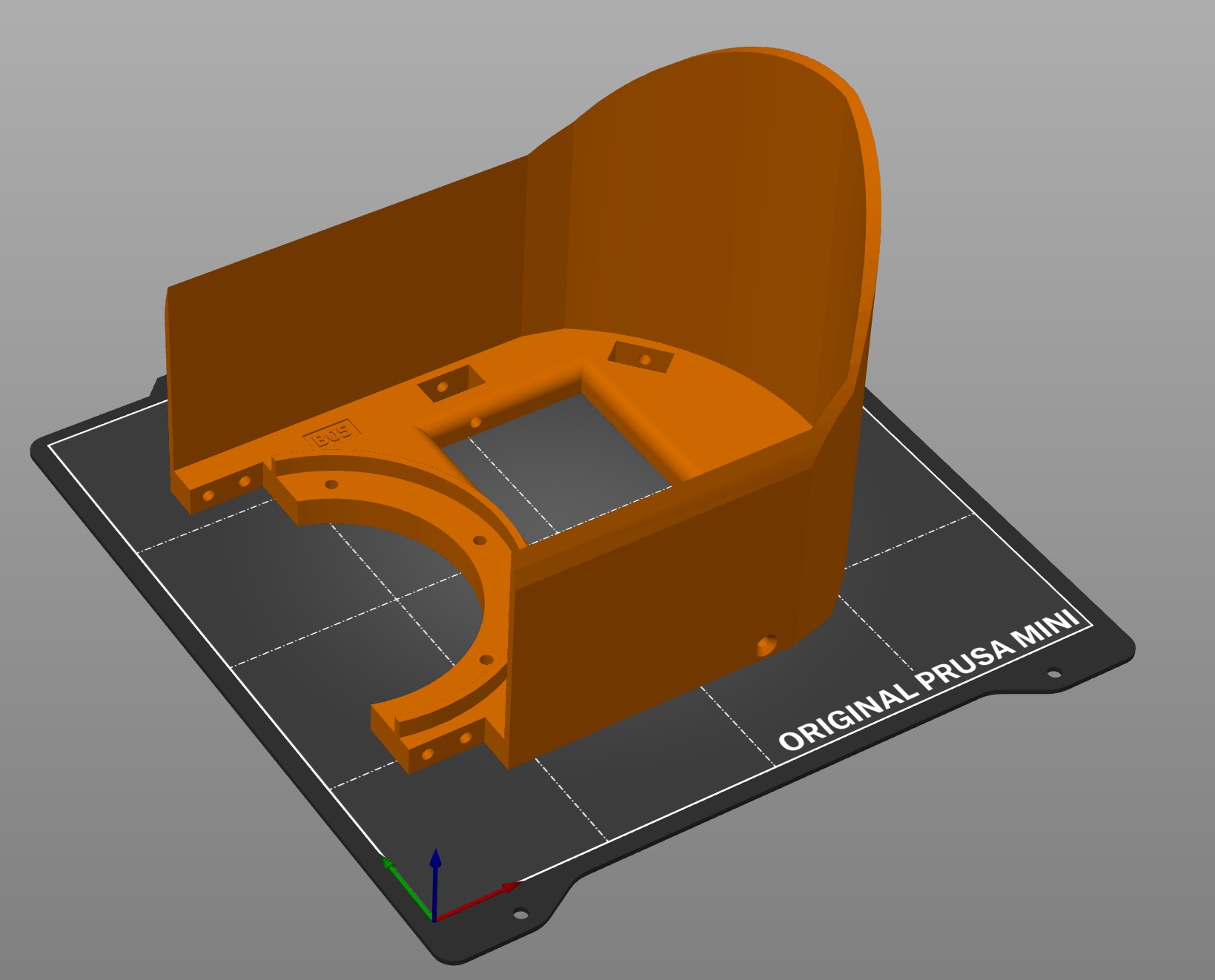

Suggested orientation
After printing processingNone
