Forearm

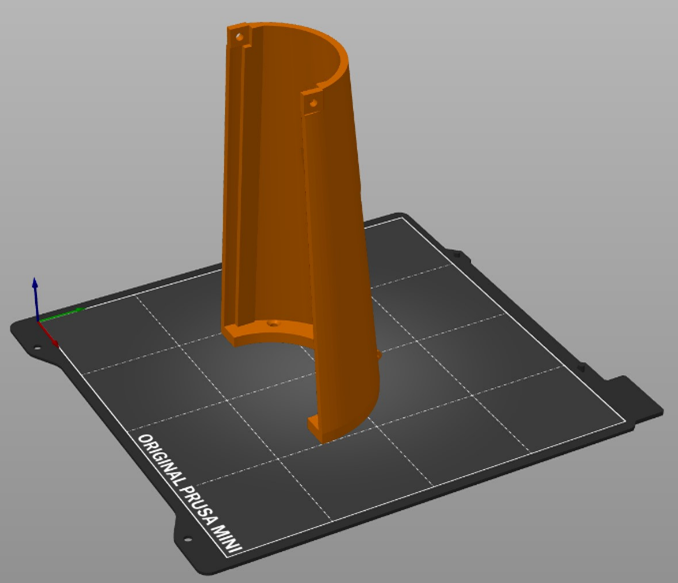

| C18-Forearm_distal_bottom | |
|---|---|
| Latest version download | pib-stls/C-Arm/C18-Forearm_distal_bottom.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | pib-stls/C-Arm/C18-Forearm_distal_bottom.stl at main · pib-rocks/pib-stls · GitHub |
| Suggested layer height | 0.25 mm |
| Suggested infill percentage | 20%-30% |
| Supports | On build plate only |
| Number of this part for one arm Pib | 1 |
| Number of this part for two arm Pib | 2 |
| Mass – (Mass with supports) | 57.5g |
| Suggested orientation |   |
| After printing processing | Clean supports |

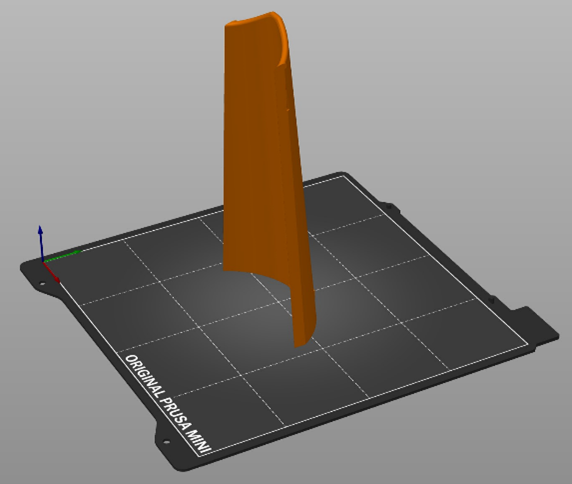

| C19-Forearm_distal_top | |
|---|---|
| Latest version download | pib-stls/C-Arm/C19-Forearm_distal_top.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | pib-stls/C-Arm/C19-Forearm_distal_top.stl at main · pib-rocks/pib-stls · GitHub |
| Suggested layer height | 0.25 mm |
| Suggested infill percentage | 20%-30% |
| Supports | None |
| Number of this part for one arm Pib | 1 |
| Number of this part for two arm Pib | 2 |
| Mass – (Mass with supports) | 52g |
| Suggested orientation |  |
| After printing processing | None |

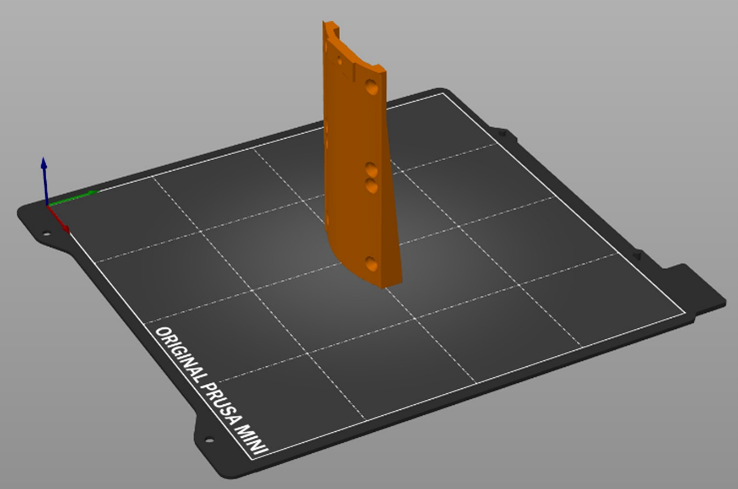

| C20-Forearm_cover | |
|---|---|
| Latest version download | pib-stls/C-Arm/C20-Forearm_cover.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | pib-stls/C-Arm/C20-Forearm_cover.stl at main · pib-rocks/pib-stls · GitHub |
| Suggested layer height | 0.25 mm |
| Suggested infill percentage | 20%-30% |
| Supports | None |
| Number of this part for one arm Pib | 1 |
| Number of this part for two arm Pib | 2 |
| Mass – (Mass with supports) | 23.25g |
| Suggested orientation |  |
| After printing processing | None |

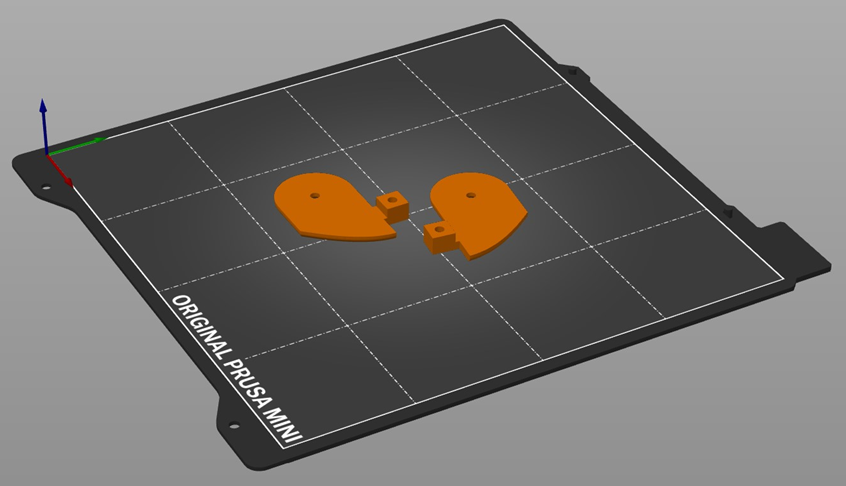

| C22-Forearm_connector_left | |
|---|---|
| Latest version download | pib-stls/C-Arm/C22-Forearm_connector_left.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | pib-stls/C-Arm/C22-Forearm_connector_left.stl at main · pib-rocks/pib-stls · GitHub |
| Suggested layer height | 0.25 mm |
| Suggested infill percentage | 20%-30% |
| Supports | None |
| Number of this part for one arm Pib | 1 |
| Number of this part for two arm Pib | 2 |
| Mass – (Mass with supports) | 3.76g |
| Suggested orientation |  |
| After printing processing | None |
| C23-Forearm_connector_right | |
|---|---|
| Latest version download | pib-stls/C-Arm/C23-Forearm_connector_right.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | pib-stls/C-Arm/C23-Forearm_connector_right.stl at main · pib-rocks/pib-stls · GitHub |
| Suggested layer height | 0.25 mm |
| Suggested infill percentage | 20%-30% |
| Supports | None |
| Number of this part for one arm Pib | 1 |
| Number of this part for two arm Pib | 2 |
| Mass – (Mass with supports) | 3.76g |
| Suggested orientation |  |
| After printing processing | None |

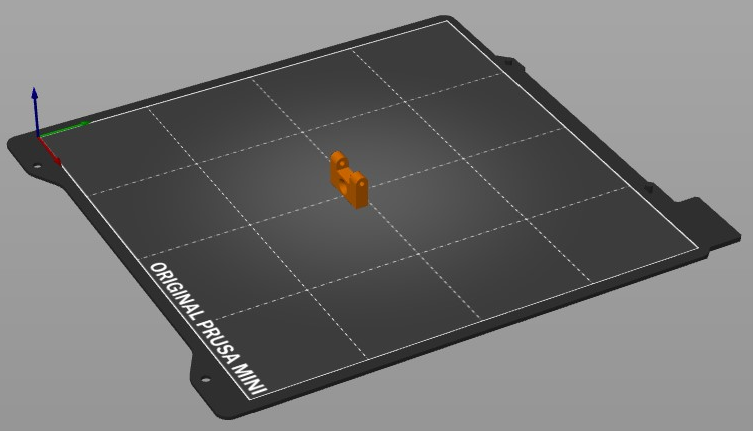

| C24-Forearm_tube_enclosure | |
|---|---|
| Latest version download | pib-stls/C-Arm/C24-Forearm_tube_enclosure.stl at main · pib-rocks/pib-stls · GitHub |
| Stable release download | pib-stls/C-Arm/C24-Forearm_tube_enclosure.stl at main · pib-rocks/pib-stls · GitHub |
| Suggested layer height | 0.25 mm |
| Suggested infill percentage | 20%-30% |
| Supports | None |
| Number of this part for one arm Pib | 1 |
| Number of this part for two arm Pib | 2 |
| Mass – (Mass with supports) | 1g |
| Suggested orientation |  |
| After printing processing | None |
