How To Print Your Robot

Hand

Pib’s hand is in the first partstudio “hand_and_finger” in hand&finger document.

D1-Palm_left
Latest version downloadpib-stls/D-Hand_Fingers/D01-Palm_left.stl at main · pib-rocks/pib-stls · GitHub
Stable release downloadpib-stls/D-Hand_Fingers/D01-Palm_left.stl at main · pib-rocks/pib-stls · GitHub
Suggested layer height0.25 mm
Suggested infill percentage20%-30%
SupportsNone
Number of this part for one arm Pib1
Number of this part for two arm Pib1
Mass – (Mass with supports)75.4g

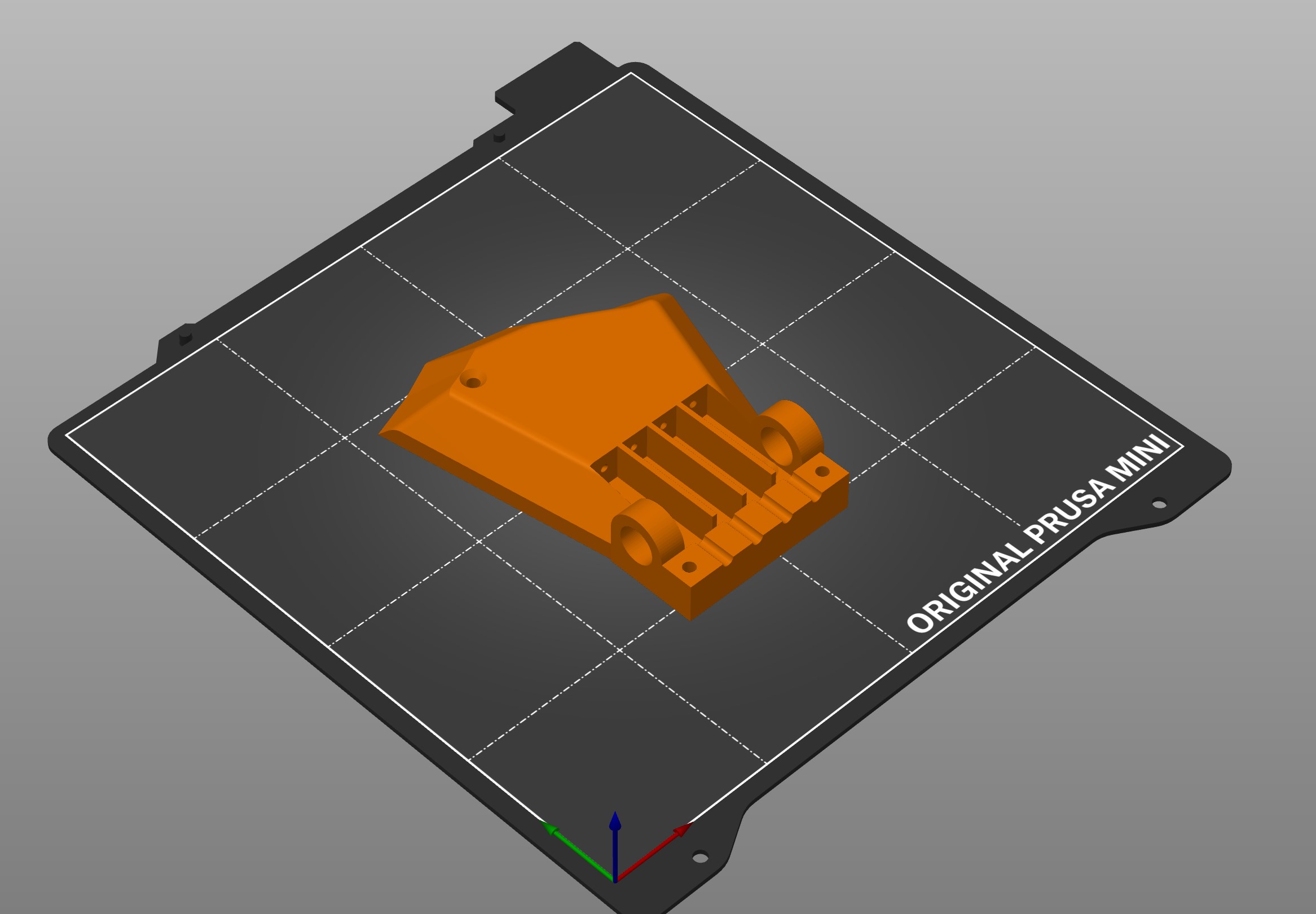

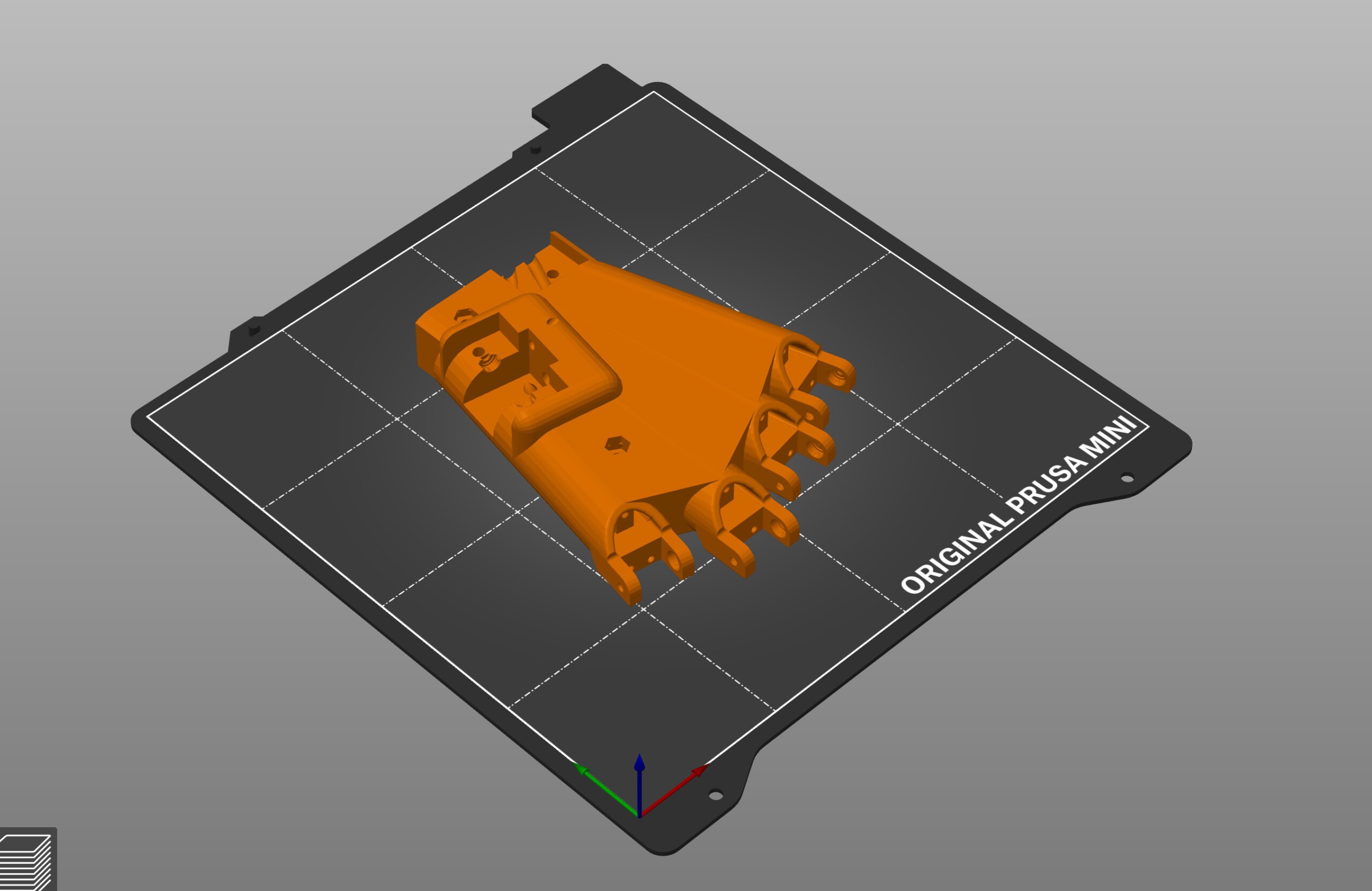

Suggested orientation
After printing processingNone
D2-Palm_right
Latest version downloadpib-stls/D-Hand_Fingers/D02-Palm_right.stl at main · pib-rocks/pib-stls · GitHub
Stable release downloadpib-stls/D-Hand_Fingers/D02-Palm_right.stl at main · pib-rocks/pib-stls · GitHub
Suggested layer height0.3 mm
Suggested infill percentage20%-30%
SupportsNone
Number of this part for one arm Pib1
Number of this part for two arm Pib1
Mass – (Mass with supports)75.4g
Suggested orientation
After printing processingNone

D10-Tube_cover
Latest version downloadpib-stls/D-Hand_Fingers/D10-Tube_cover.stl at main · pib-rocks/pib-stls · GitHub
Stable release downloadpib-stls/D-Hand_Fingers/D10-Tube_cover.stl at main · pib-rocks/pib-stls · GitHub
Suggested layer height0.25 mm
Suggested infill percentage20%-30%
SupportsNone
Number of this part for one arm Pib1
Number of this part for two arm Pib2
Mass – (Mass with supports)2.4g

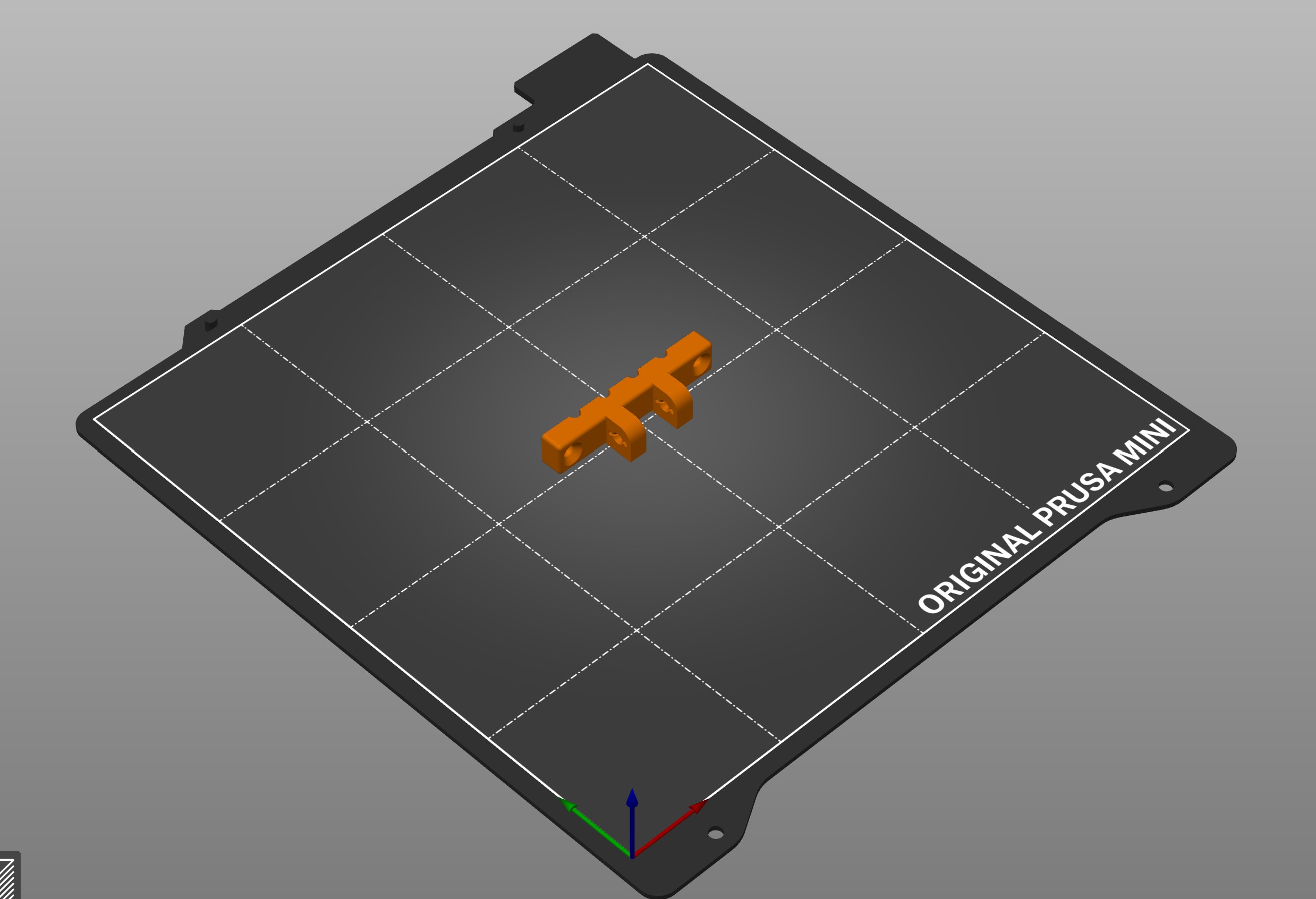

Suggested orientation
After printing processingNone

D11-Ballbearing_enclosure
Latest version downloadpib-stls/D-Hand_Fingers/D11-Ballbearing_enclosure.stl at main · pib-rocks/pib-stls · GitHub
Stable release downloadpib-stls/D-Hand_Fingers/D11-Ballbearing_enclosure.stl at main · pib-rocks/pib-stls · GitHub
Suggested layer height0.25 mm
Suggested infill percentage20%-30%
SupportsNone
Number of this part for one arm Pib1
Number of this part for two arm Pib2
Mass – (Mass with supports)0.5g

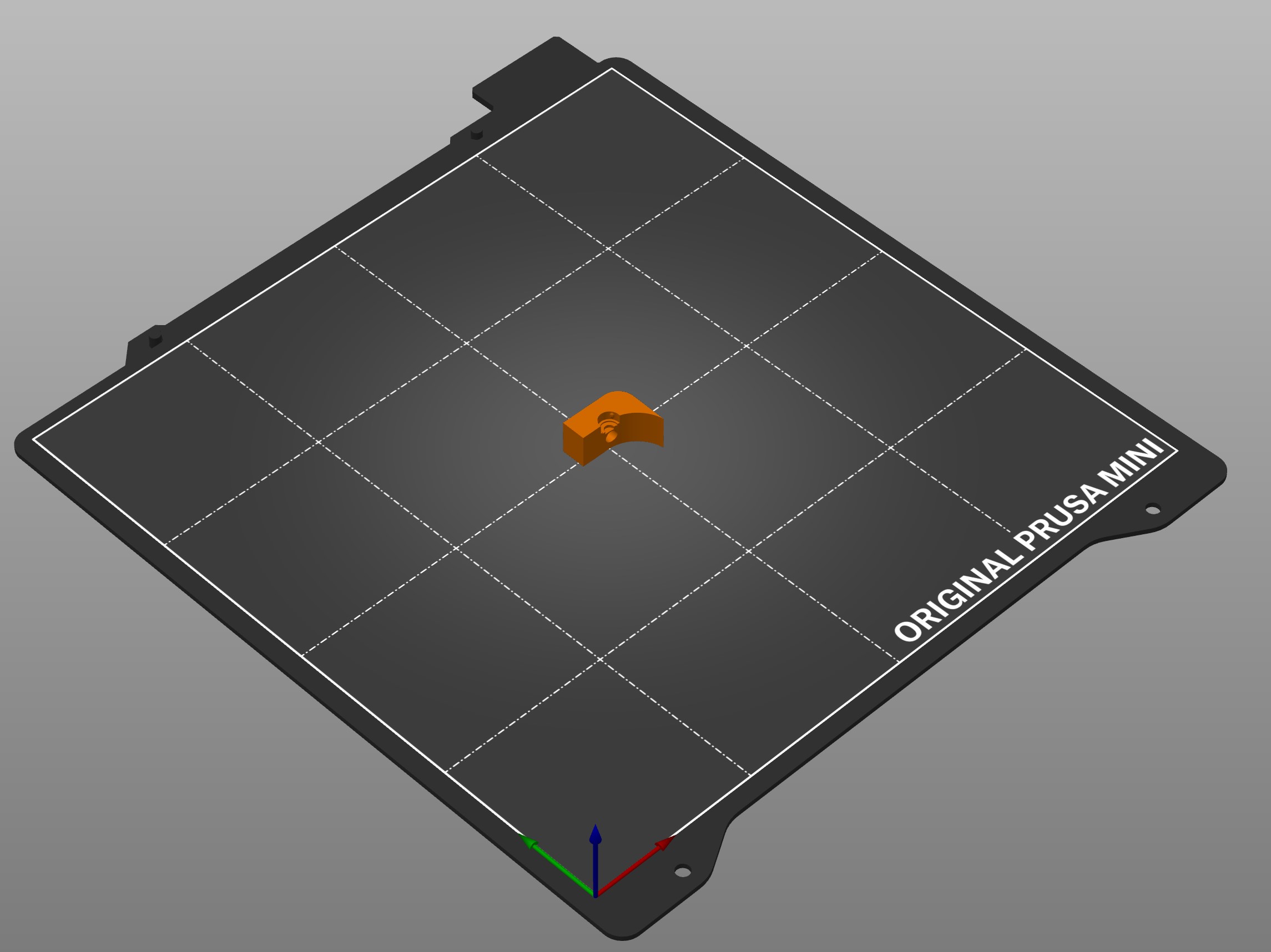

Suggested orientation
After printing processingNone

D11-R-Ballbearing_enclosure_right
Latest version downloadpib-stls/D-Hand_Fingers/D11-R-Ballbearing_enclosure_right.stl at main · pib-rocks/pib-stls · GitHub
Stable release downloadpib-stls/D-Hand_Fingers/D11-R-Ballbearing_enclosure_right.stl at main · pib-rocks/pib-stls · GitHub
Suggested layer height0.25 mm
Suggested infill percentage20%-30%
SupportsNone
Number of this part for one arm Pib1
Number of this part for two arm Pib2
Mass – (Mass with supports)0.5g

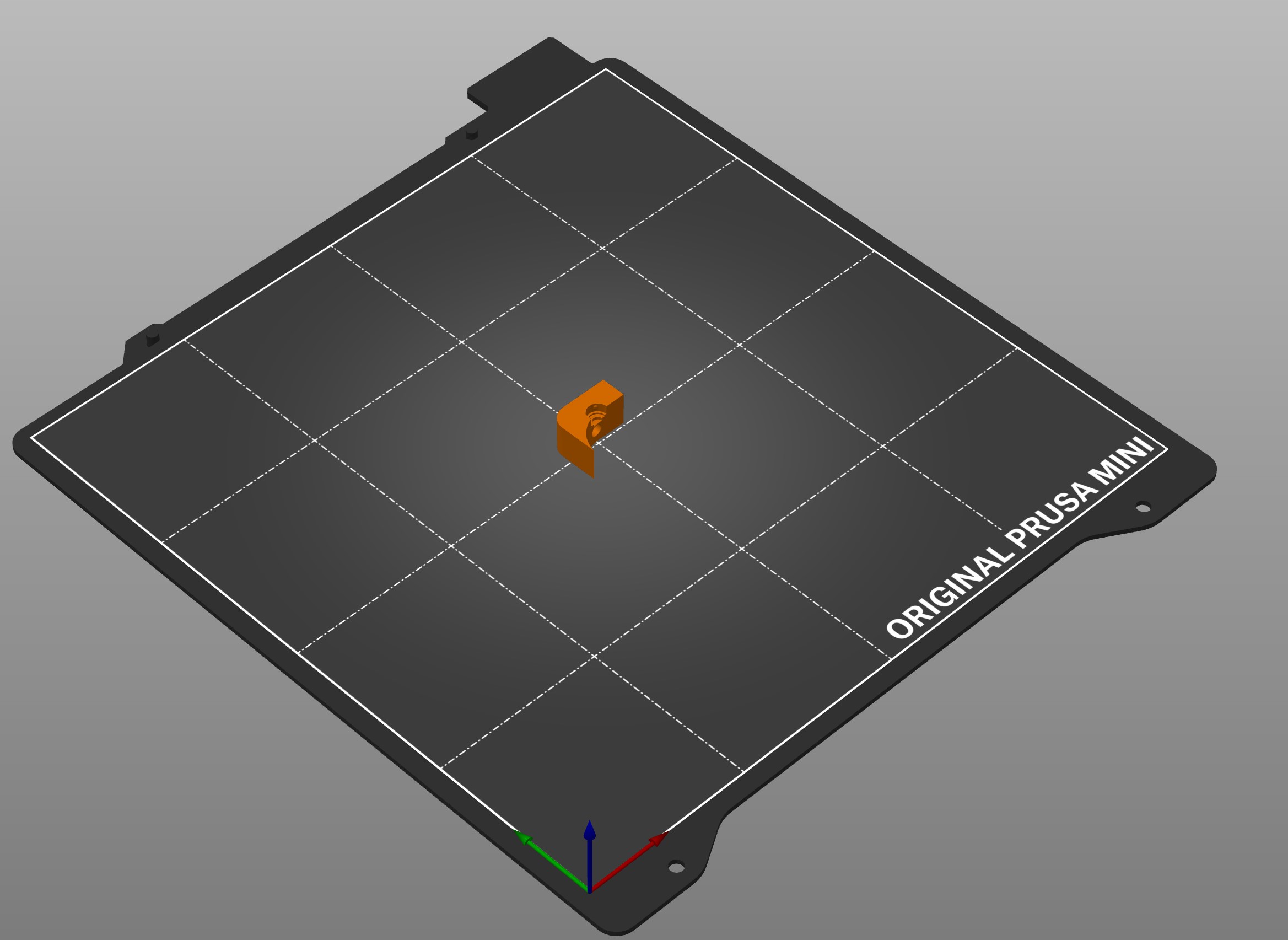

Suggested orientation
After printing processingNone
