How To Print Your Robot
< Alle Themen
Print

Shoulder – 1:5

Veröffentlicht
Aktualisiert

Shoulder_base-C1
LocationPib-Humanoid Robot/Arm/Shoulder
Suggested infill percentage100%
    Suggested infill patternRectilinear
Suggested filamentPETG Signal white
SupportsNon
Suggested orientation

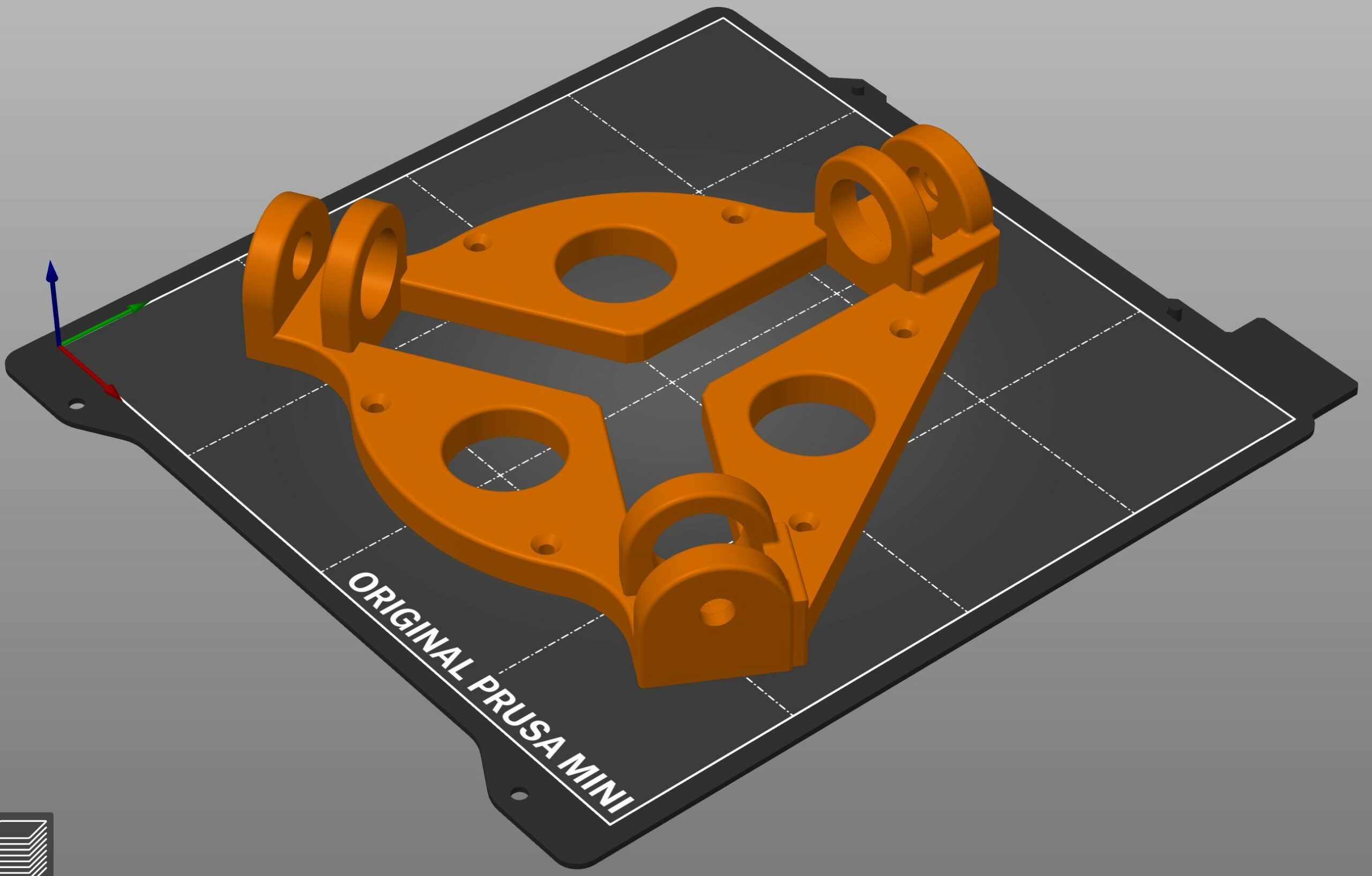

Shoulder base

Shoulder_base_connector-C2
LocationPib-Humanoid Robot/Arm/Shoulder
Suggested infill percentage100%
    Suggested infill patternRectilinear
Suggested filamentPETG Signal white
SupportsNon
Suggested orientation

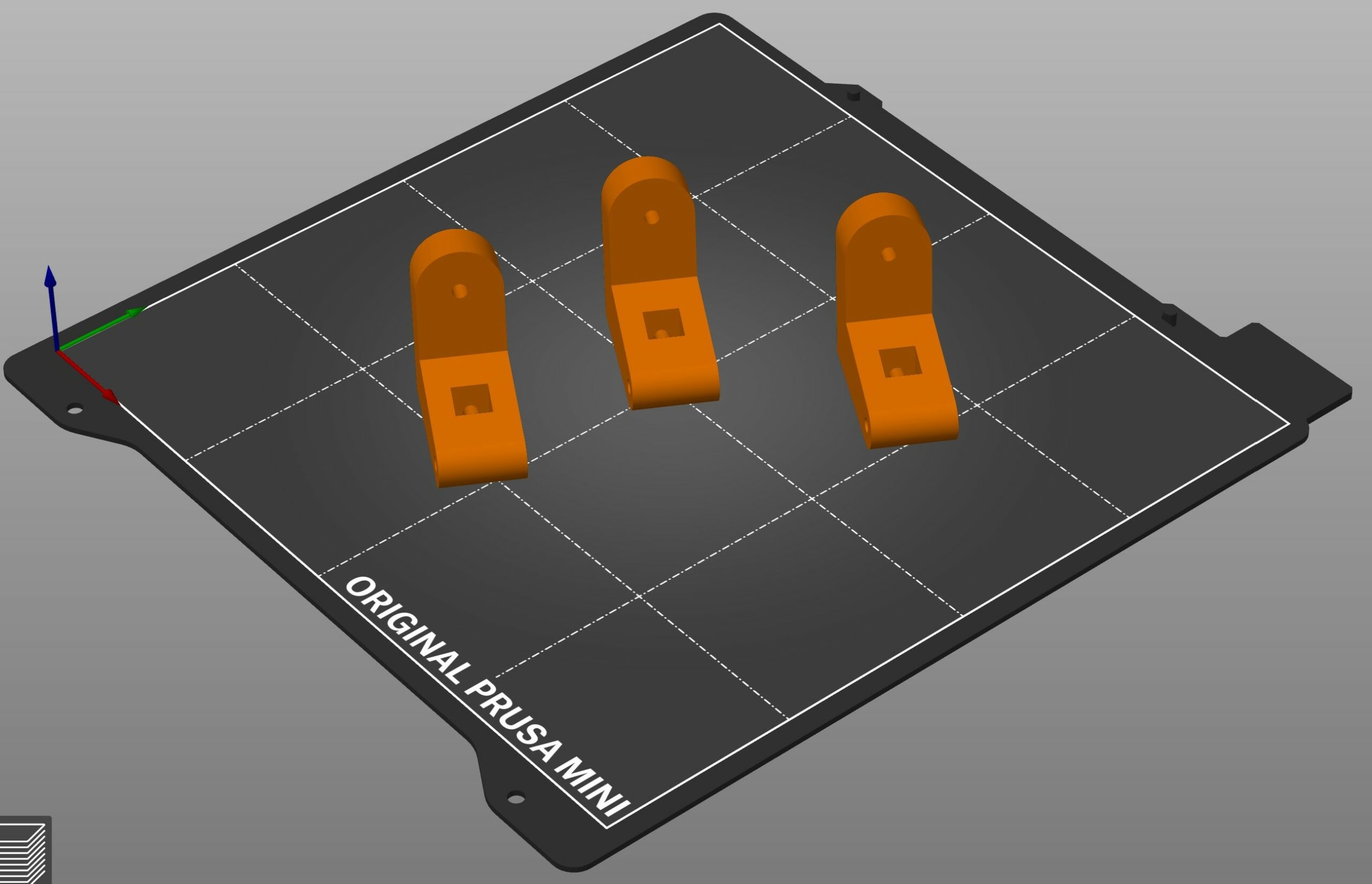

Shoulder connector

The shoulder arm part needs to be printed 3 times

Shoulder_arm-C3
LocationPib-Humanoid Robot/Arm/Shoulder
Suggested infill percentage100%
    Suggested infill patternRectilinear
Suggested filamentPETG Signal white
SupportsNon
Suggested orientation

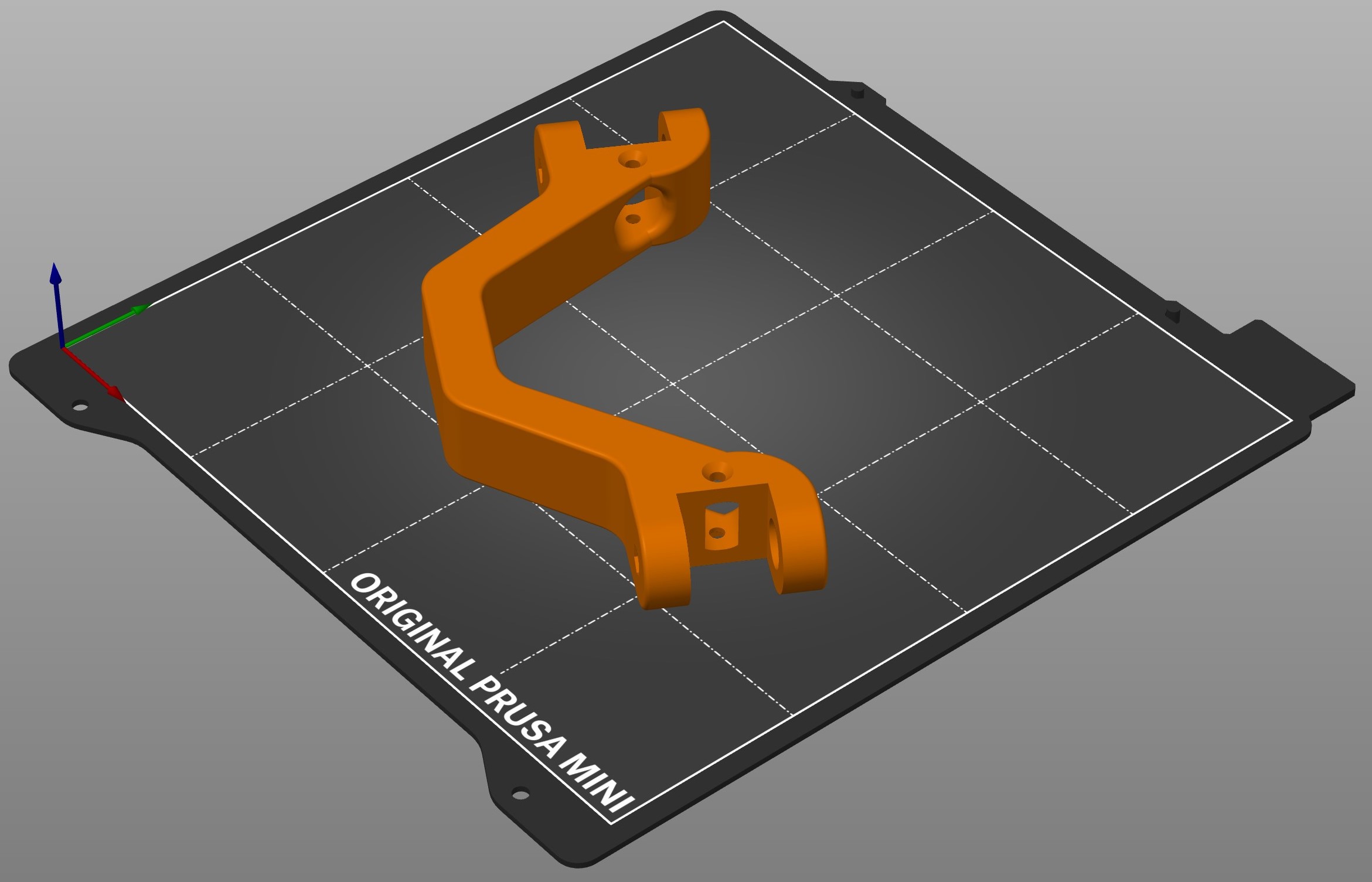

Shoulder arm

Shoulder_head-C4
LocationPib-Humanoid Robot/Arm/Shoulder
Suggested infill percentage100%
    Suggested infill patternRectilinear
Suggested filamentPETG Signal white
SupportsNon
Suggested orientation

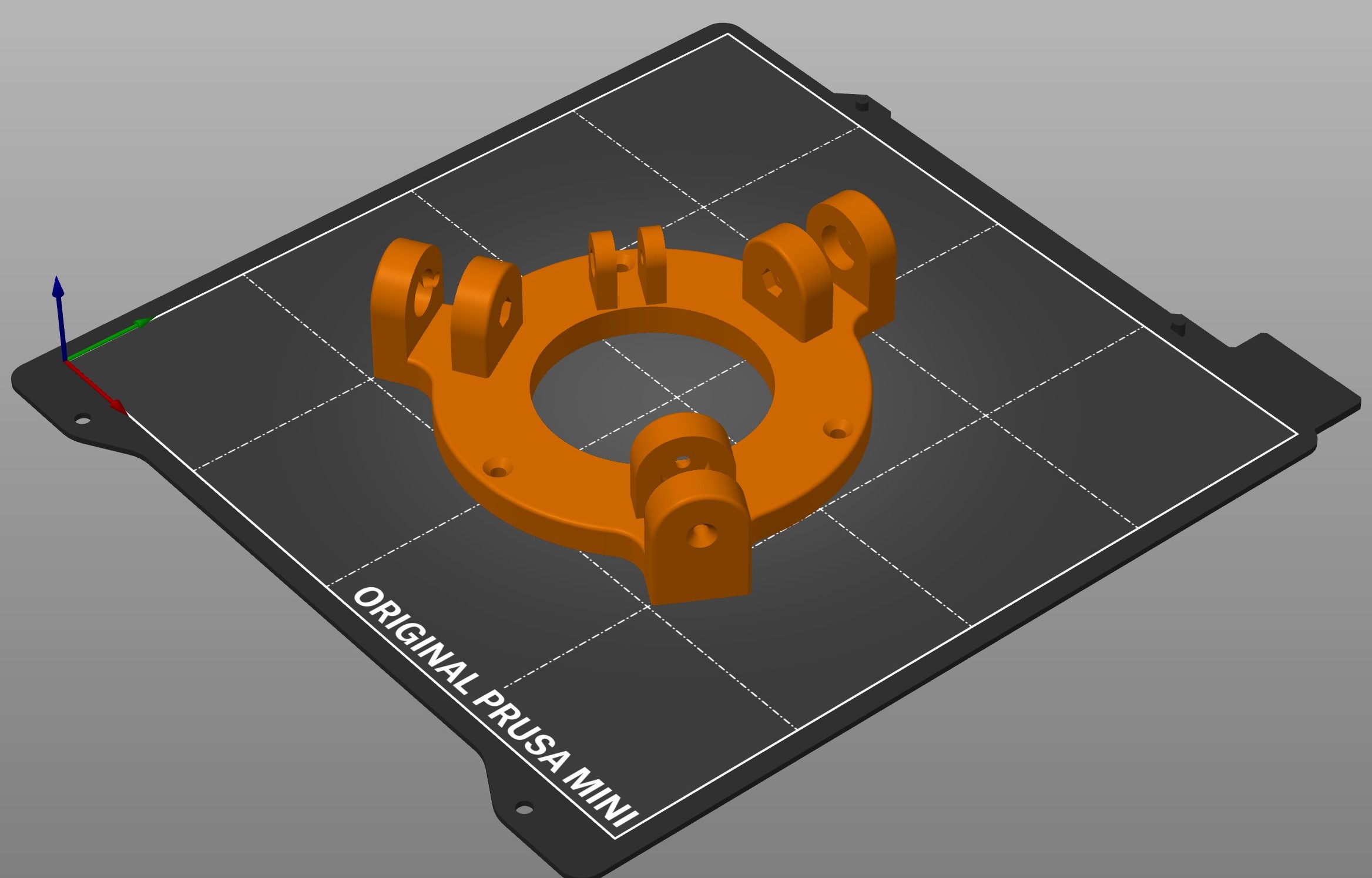

Shoulder head

Shoulder_head_connector-C5
LocationPib-Humanoid Robot/Arm/Shoulder
Suggested infill percentage100%
    Suggested infill patternRectilinear
Suggested filamentPETG Signal white
SupportsNon
Suggested orientation

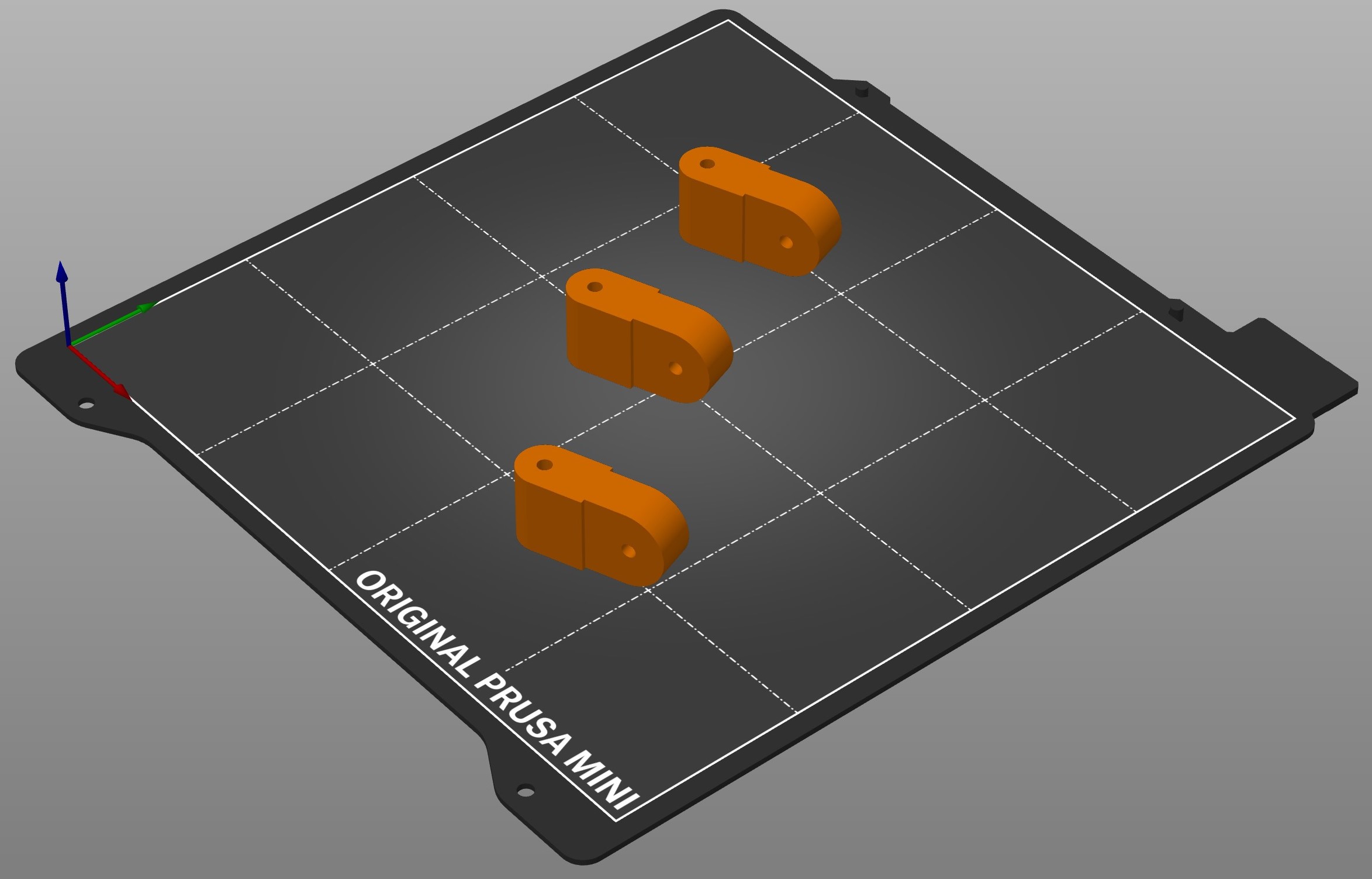

Shoulder head connector
