How To Print Your Robot
Hand – 1:4,10
Pib’s hand is in the first partstudio “hand_and_finger” in hand&finger document and consists of two halves printed separately.

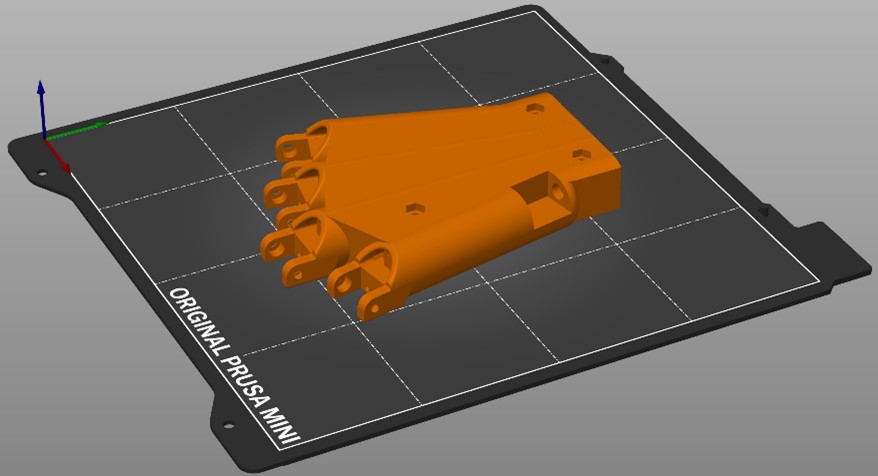

| Palm_left-D1. Palm_right-D2 | |
|---|---|
| Location | Pib-Humanoid Robot/Hand&Finger/Hand_and_Finger |
| Suggested infill percentage | 20%-30% |
| Suggested infill pattern | Gyroid |
| Suggested filament | PETG Signal white |
| Supports | Non |
| Suggested orientation |   |

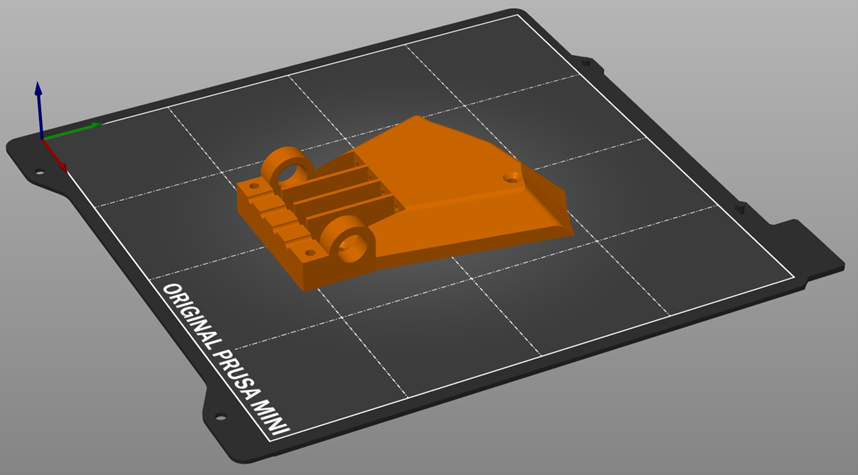

| Hand_back_left-D3. Hand_back_right-D4 | |
|---|---|
| Location | Pib-Humanoid Robot/Hand&Finger/Hand_and_Finger |
| Suggested infill percentage | 20%-30% |
| Suggested infill pattern | Gyroid |
| Suggested filament | PETG Signal white |
| Supports | Non |
| Suggested orientation |   |
| Tube_cover-D10 | |
|---|---|
| Location | Pib-Humanoid Robot/Hand&Finger/Hand_and_Finger |
| Suggested infill percentage | 20%-30% |
| Suggested infill pattern | Gyroid |
| Suggested filament | PETG Signal white |
| Supports | Non |
| Suggested orientation |  |
