Shoulder joint

pib’s shoulder joint follows a virtual sphere concept. In order to assemble the shoulder you have to print all parts in shoulder printing manual and require the following non-printable parts from our pib kit.

• 12 M3 35mm screws
• 10 M3 nuts
• 3 medium sized ball bearings
• 3 DS3225MG 25kg.cm servos
• 3 metal servo horns

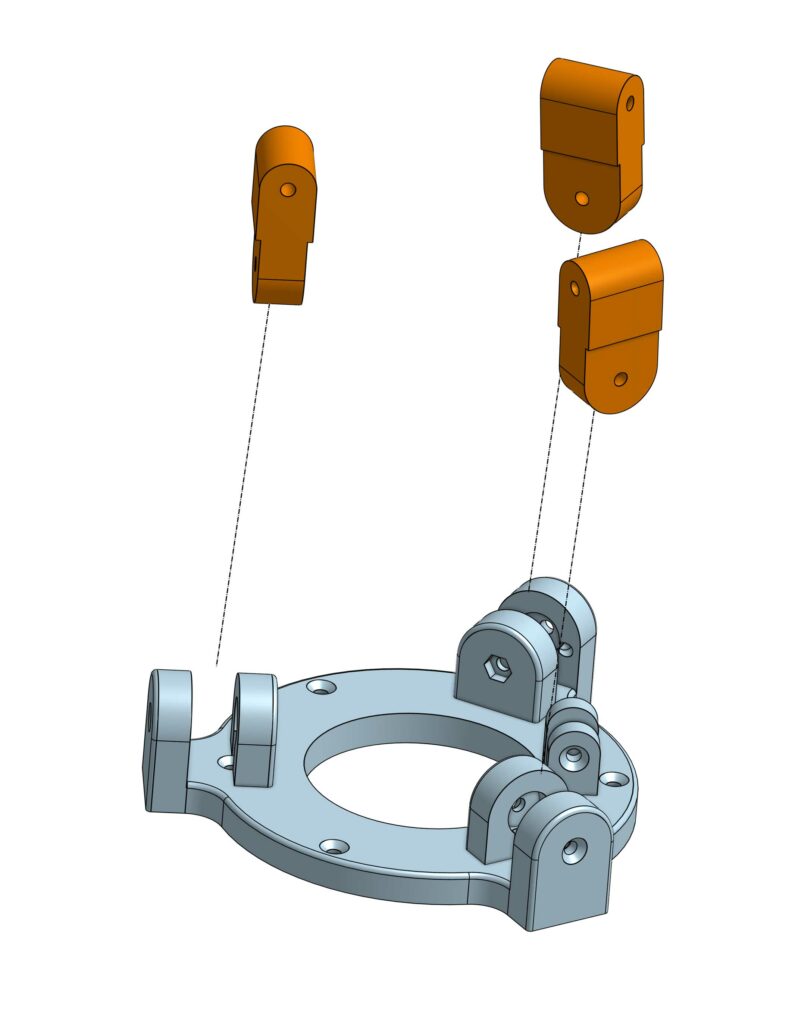

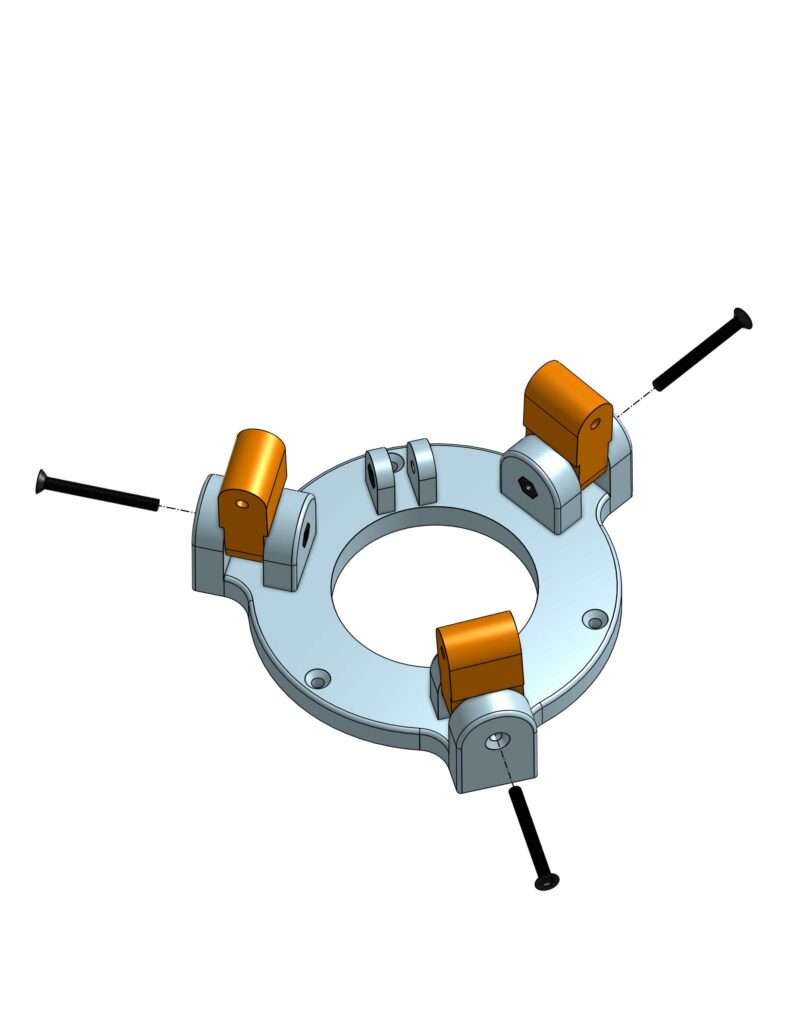

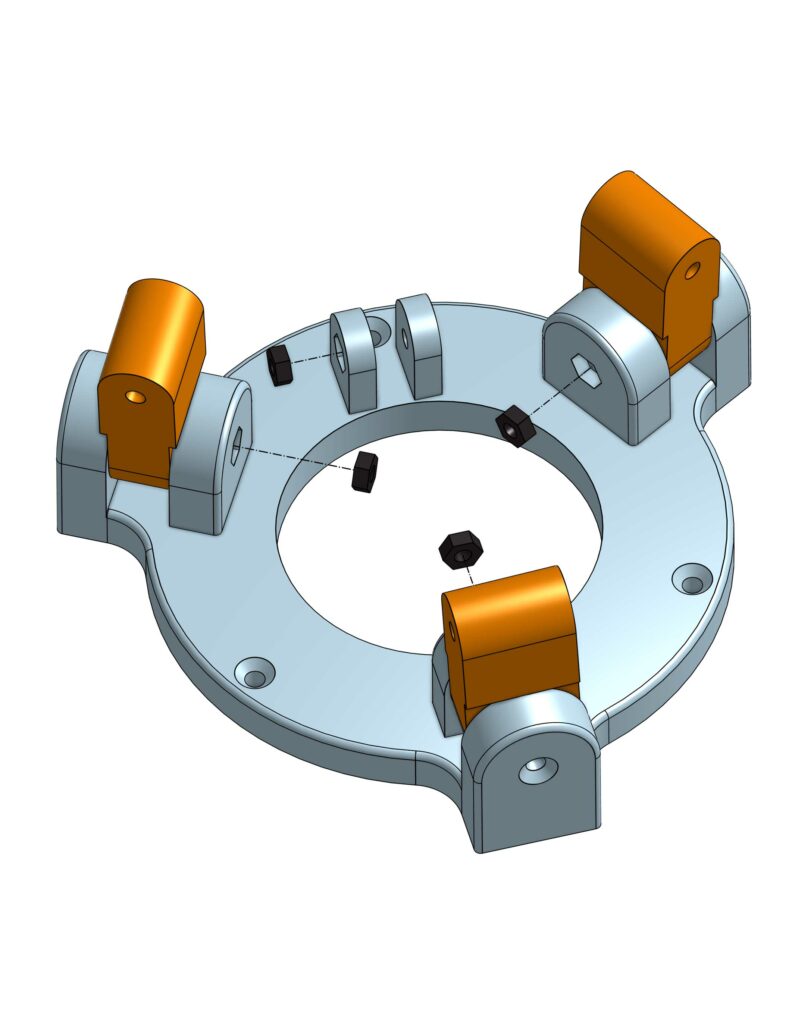

1. Place 3 Shoulder_head_connector-C5 parts in Shoulder_head-C4 and connect them with 3 M3 nuts and 3 M3 35mm screws.

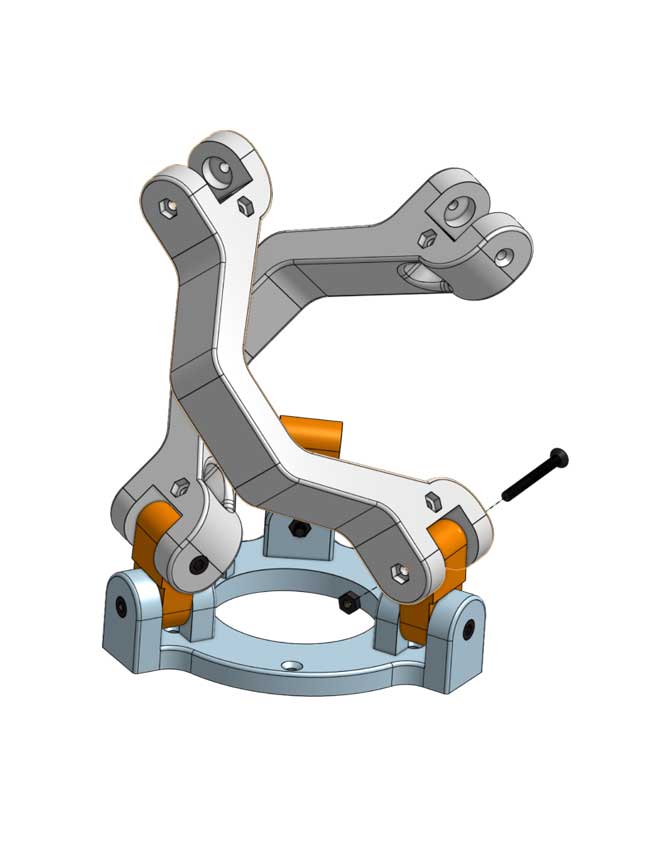

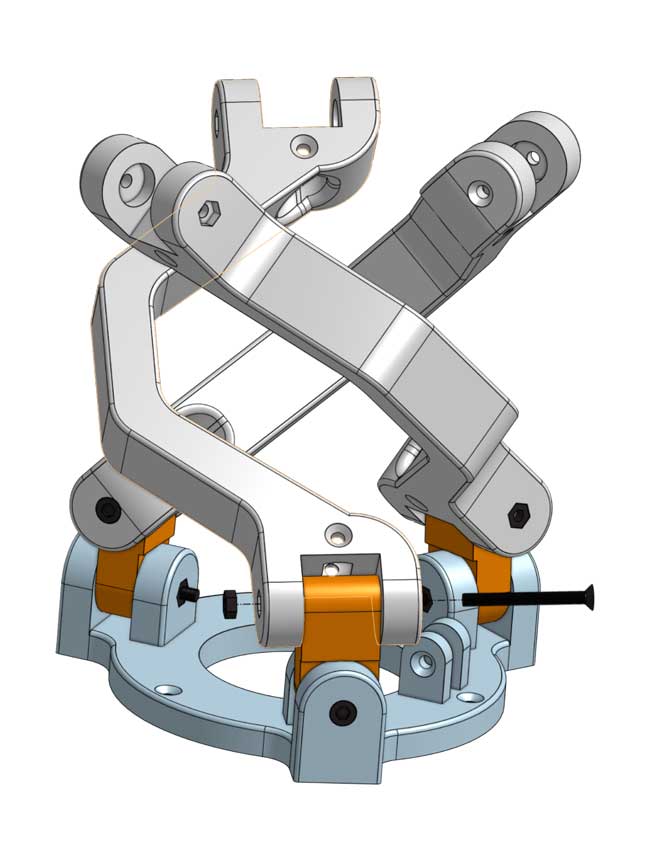

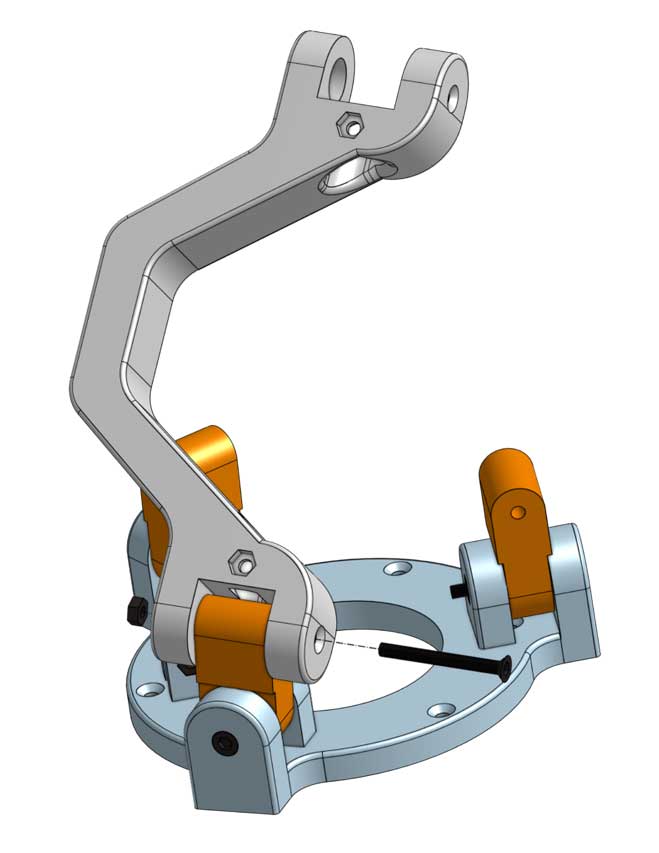

2. Connect 3 Shoulder_arm-C3 parts to Shoulder_head-C4 and connect them with 3 M3 nuts and 3 M3 35mm screws.

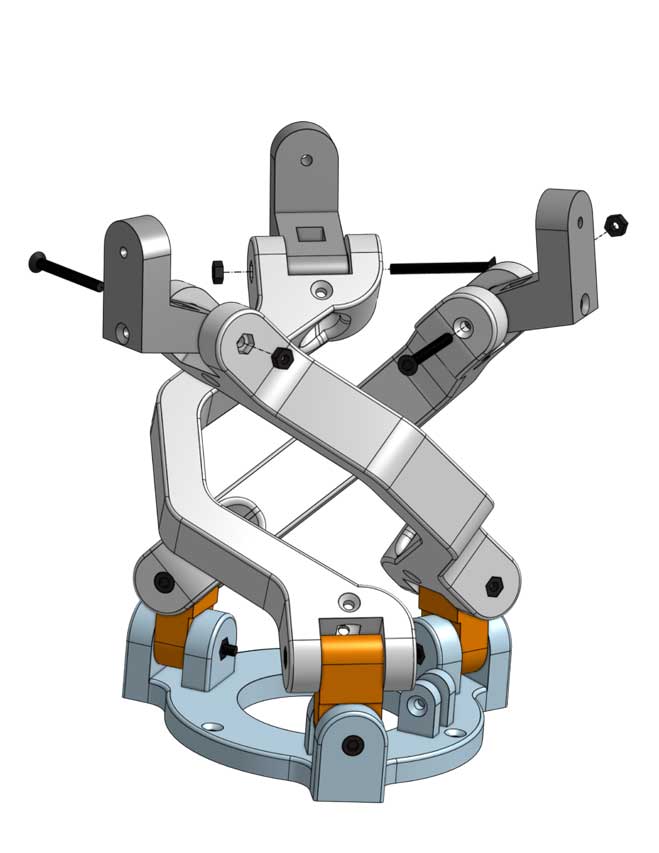

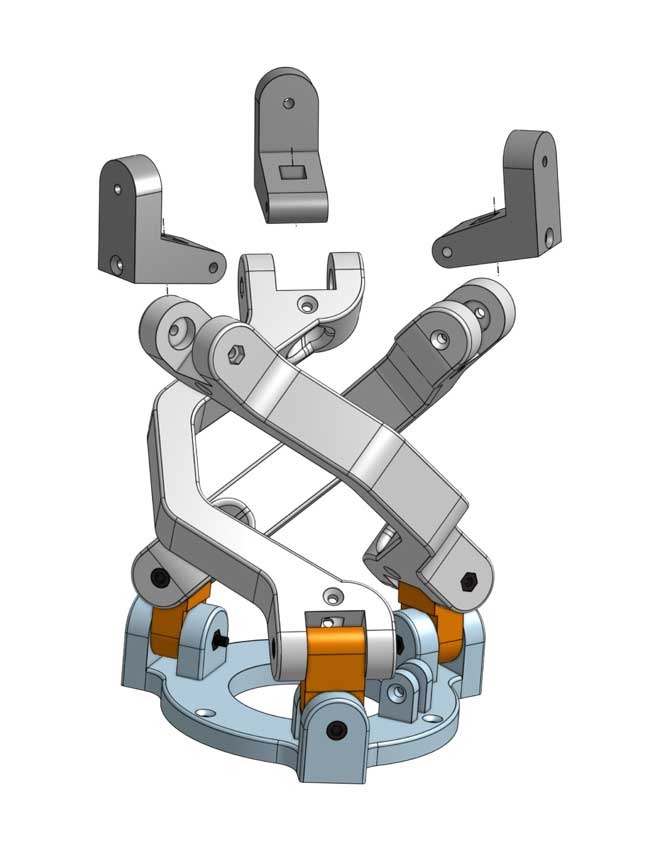

3. Place 3 Shoulder_base_connector-C2 parts in Shoulder_arm-C3 and connect them with 3 M3 nuts and 3 M3 35mm screws.

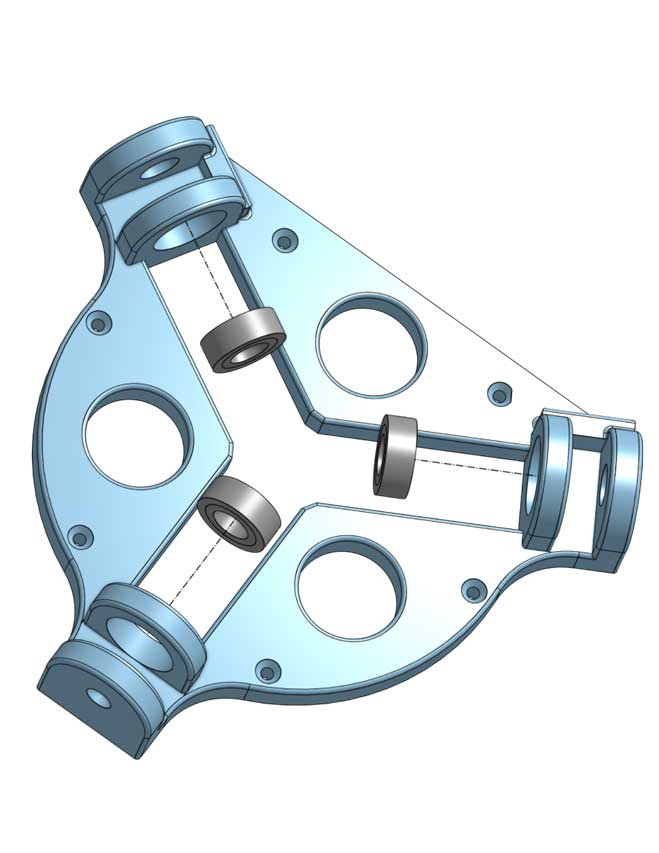

4. Place 3 medium size ball bearings in Shoulder_base-C1.

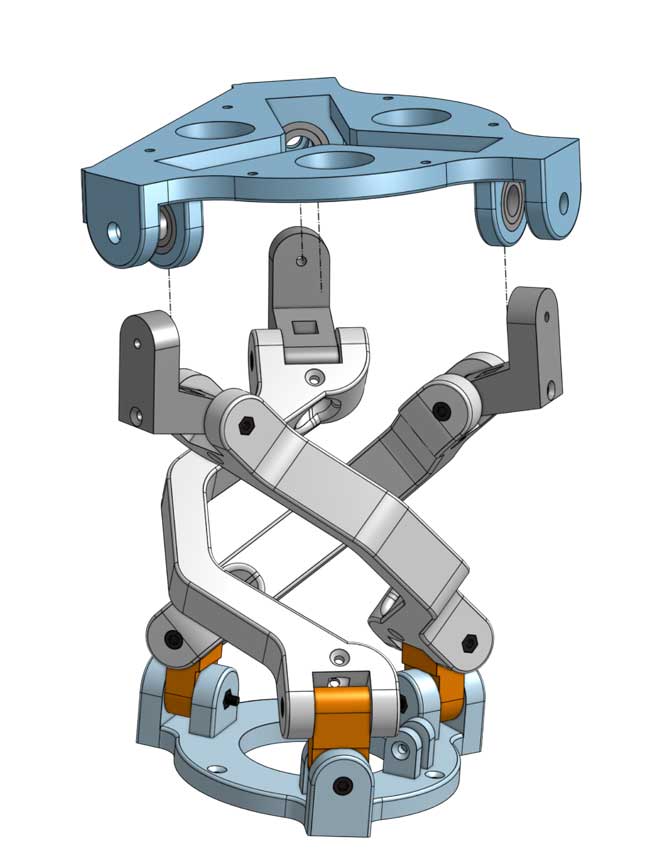

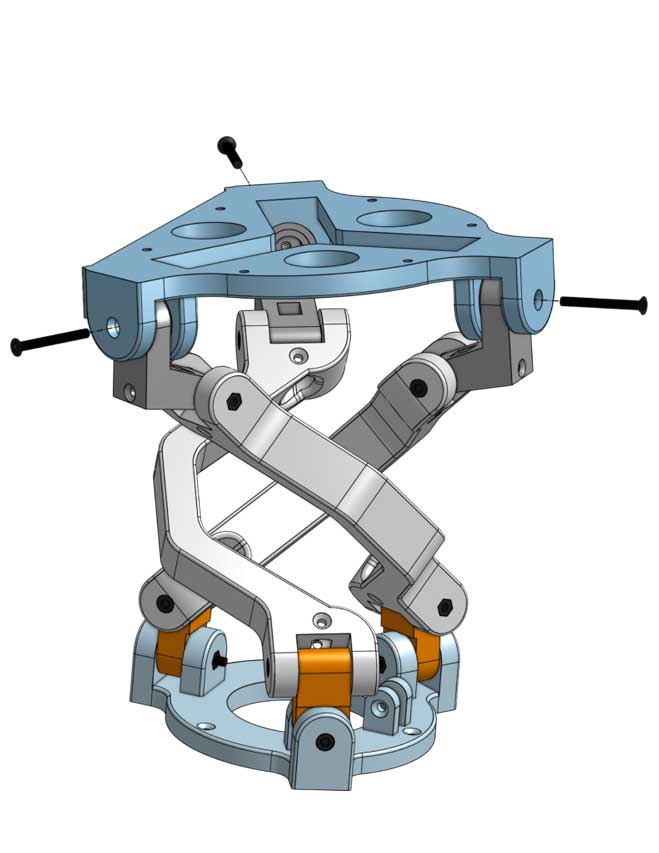

5. Connect Shoulder_base-C1 to the almost assembled shoulder from step 3 by placing the Shoulder_base_connector-C2 parts in the circular gaps of Shoulder_base-C1, then place 3 M3 35mm screws in the shown holes to connect to servos in step 6.

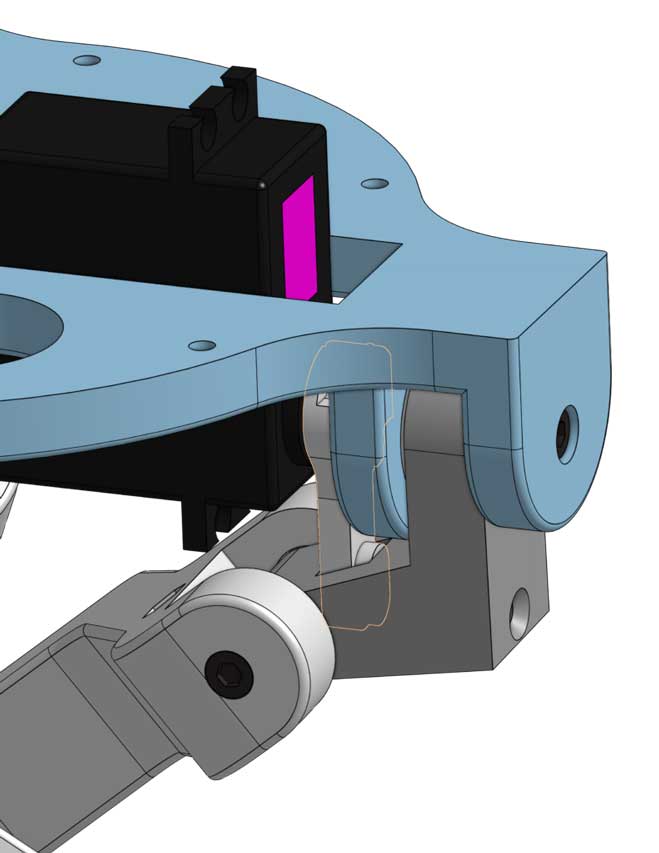

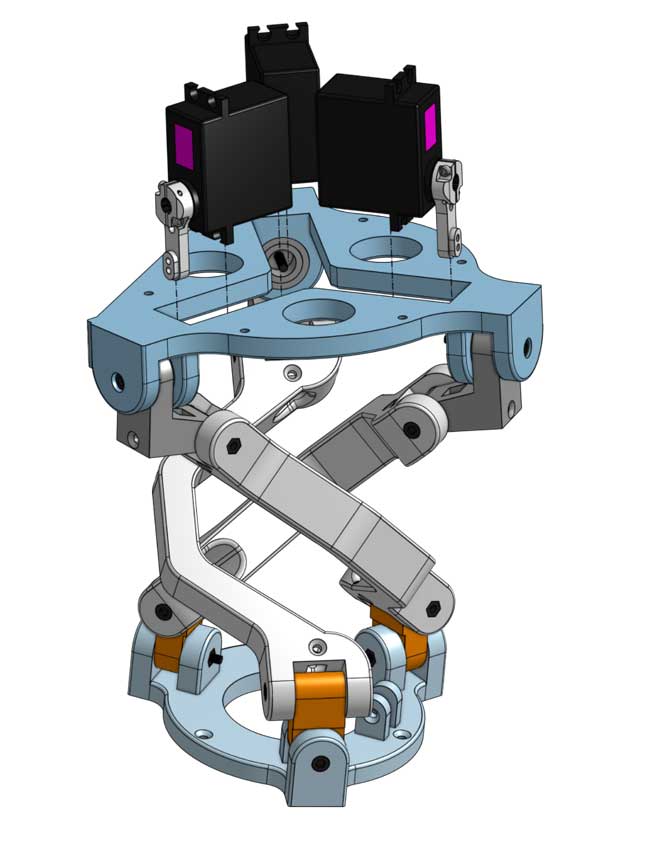

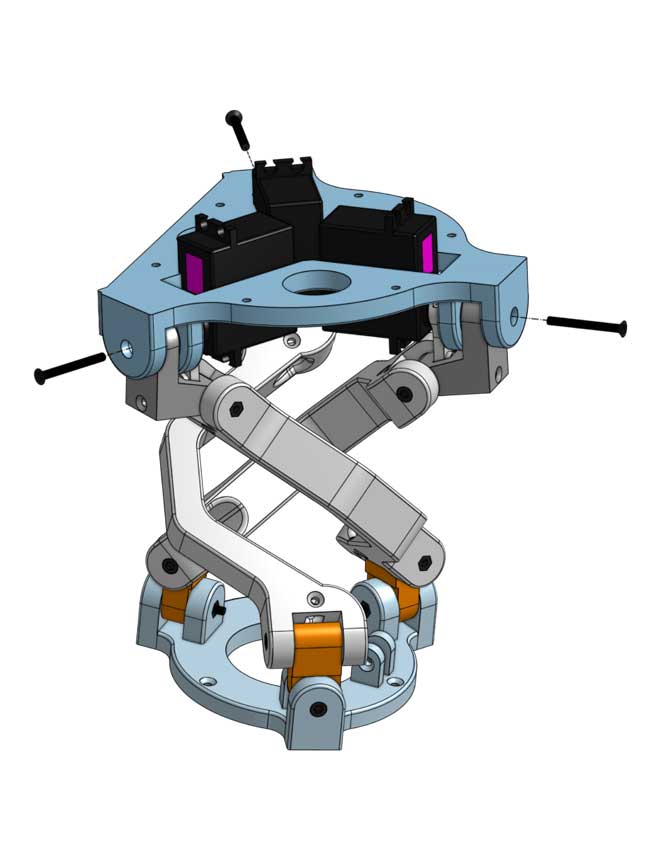

6. Place 3 DS3225MG 25kg.cm servos in the gaps in Shoulder_base-C1, place the servos’ metal horns into the square gaps in Shoulder_base_connector-C2, finally lock the horns to servos with the M3 35mm screws from step 5.
