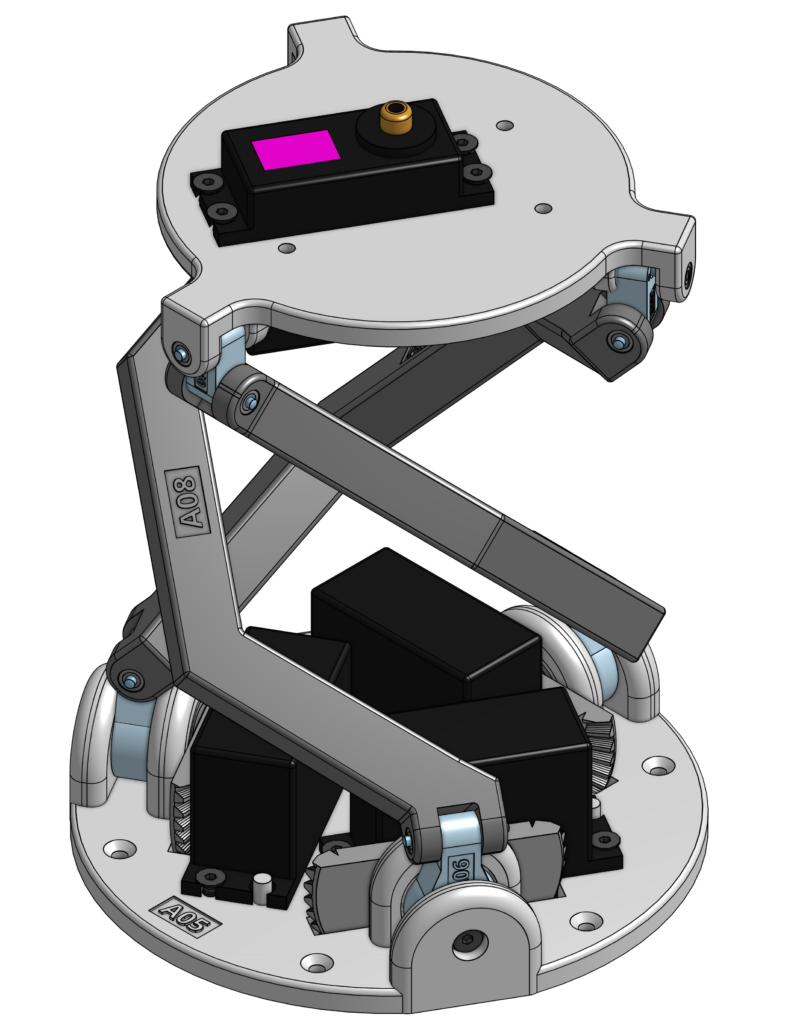

Neck

In order to construct the neck, you will need to print all neck parts and have the following non-printable parts from our Pib kit.

• 17 M3 nuts
• 6 M3 8 mm screws
• 4 M3 10 mm screw
• 3 M3 12 mm screws
• 3 M3 25 mm screw
• 9 20mm metal rods
• 18 2.5x5x2.3 ball bearings
• 3 3x10x4 ball bearings
• 3 10x19x7 ball bearings
• 4 MG996R servo motors

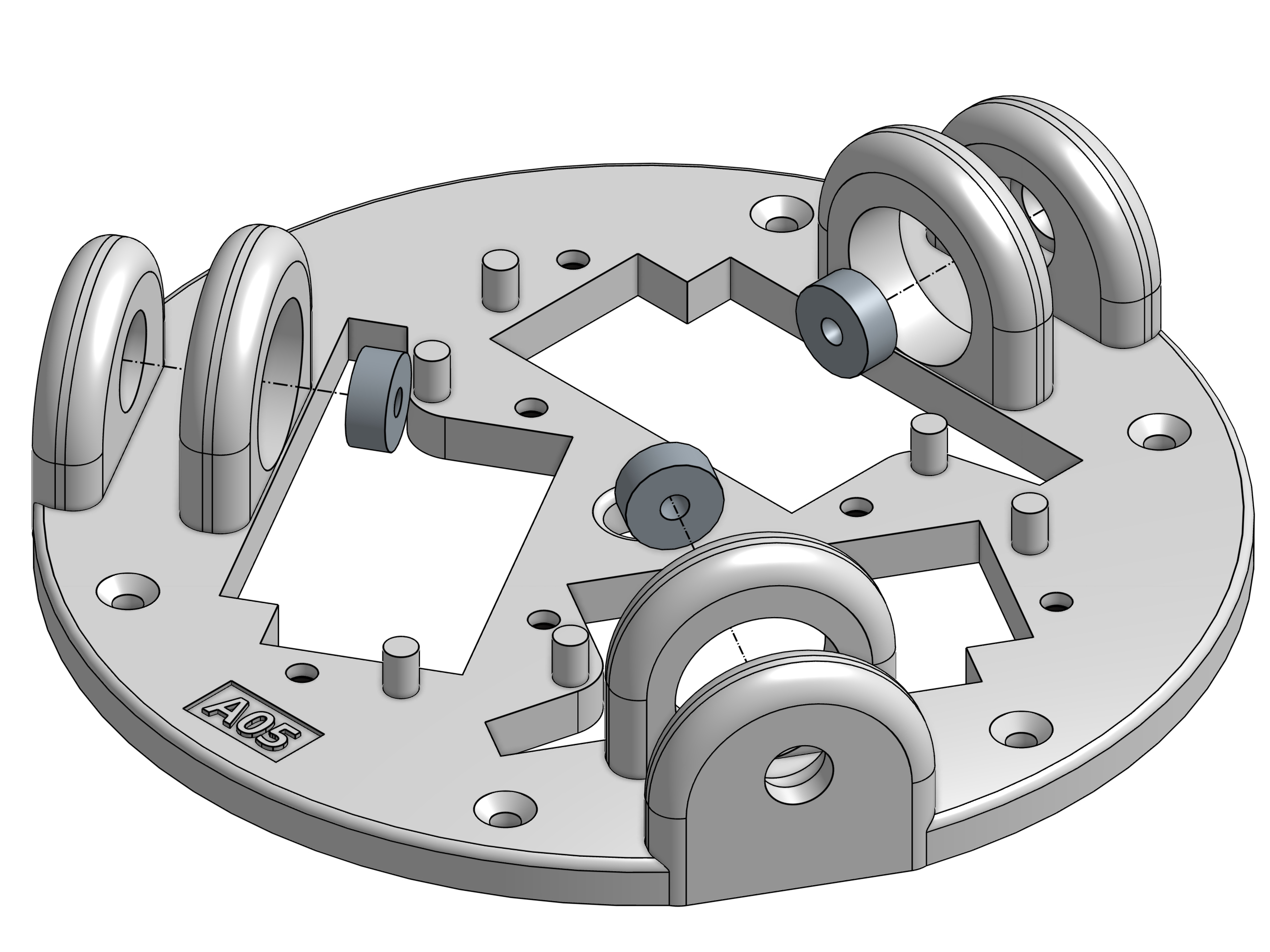

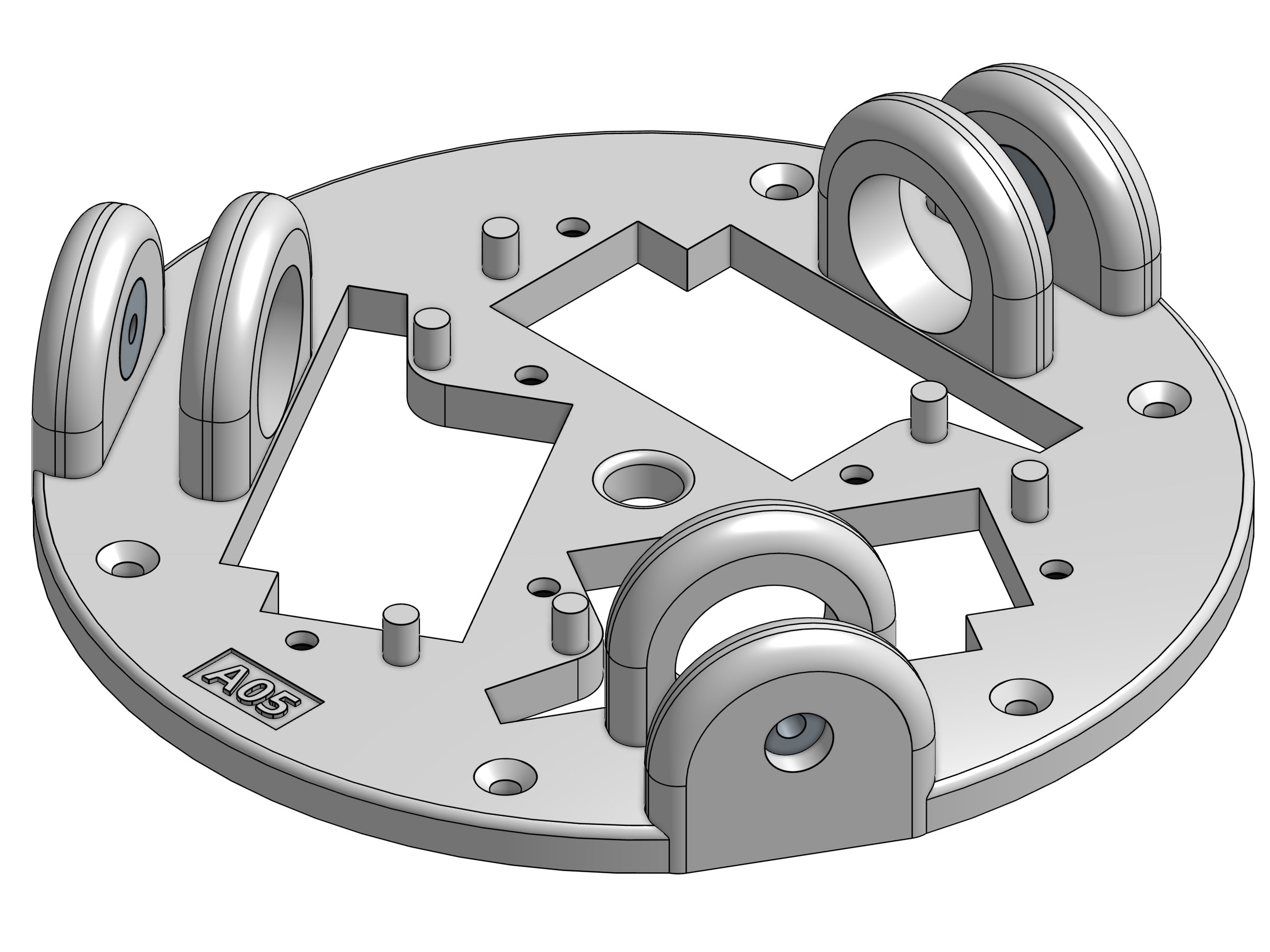

1. Insert 3 3x10x4 ball bearings in A05-Neck_base.

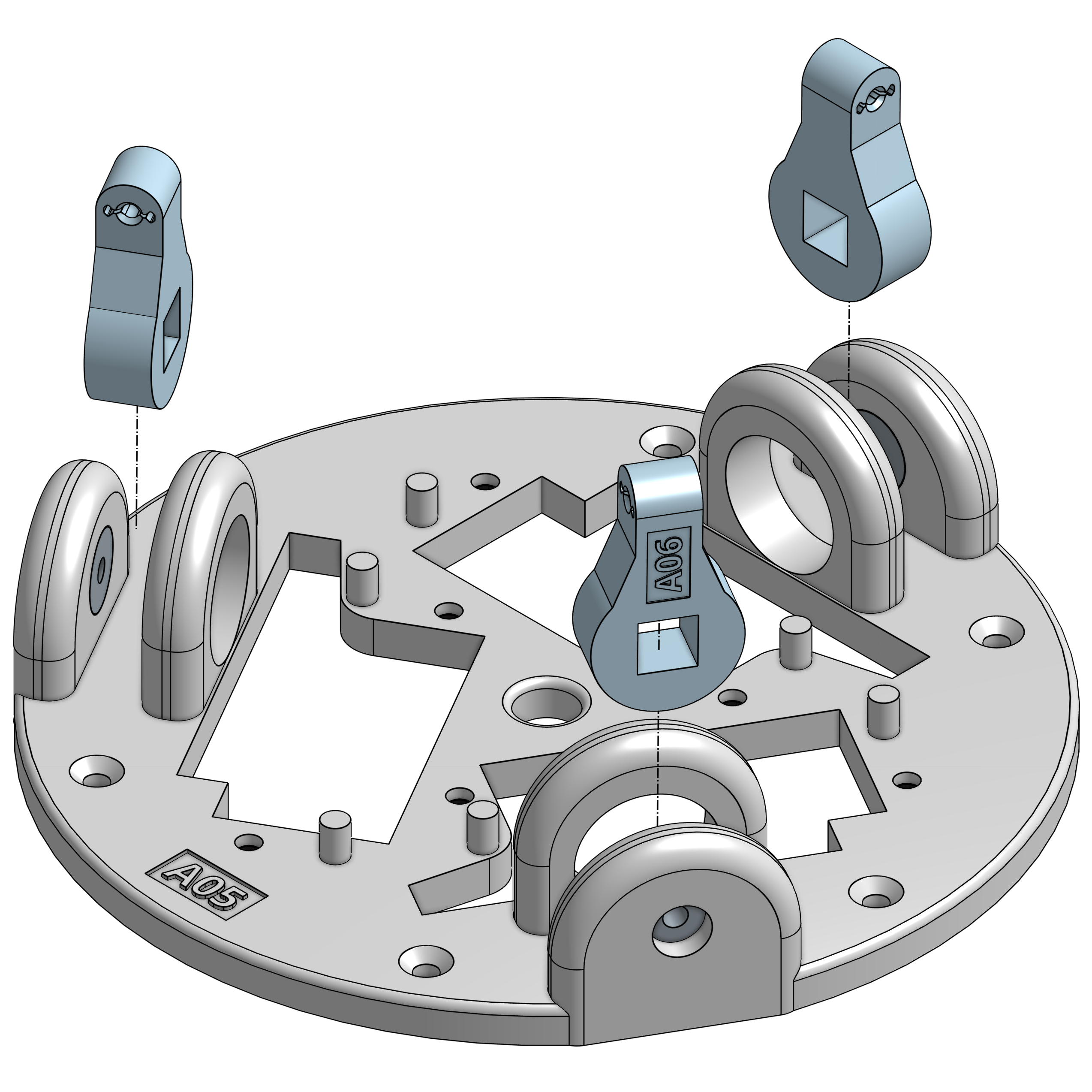

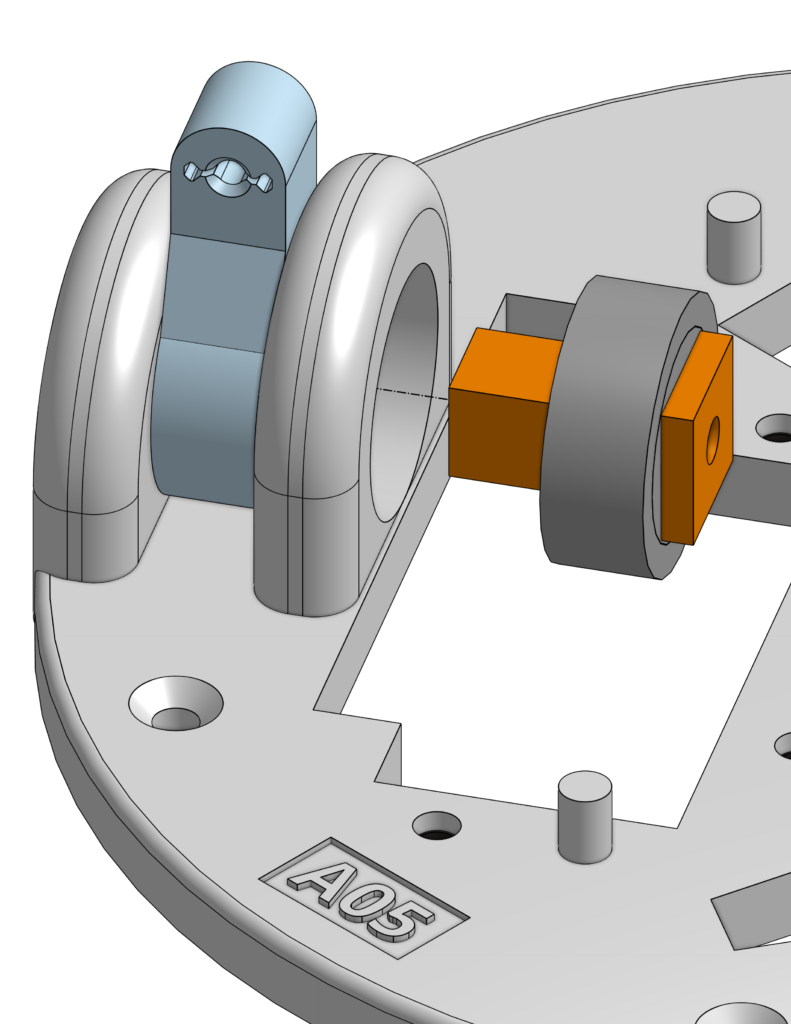

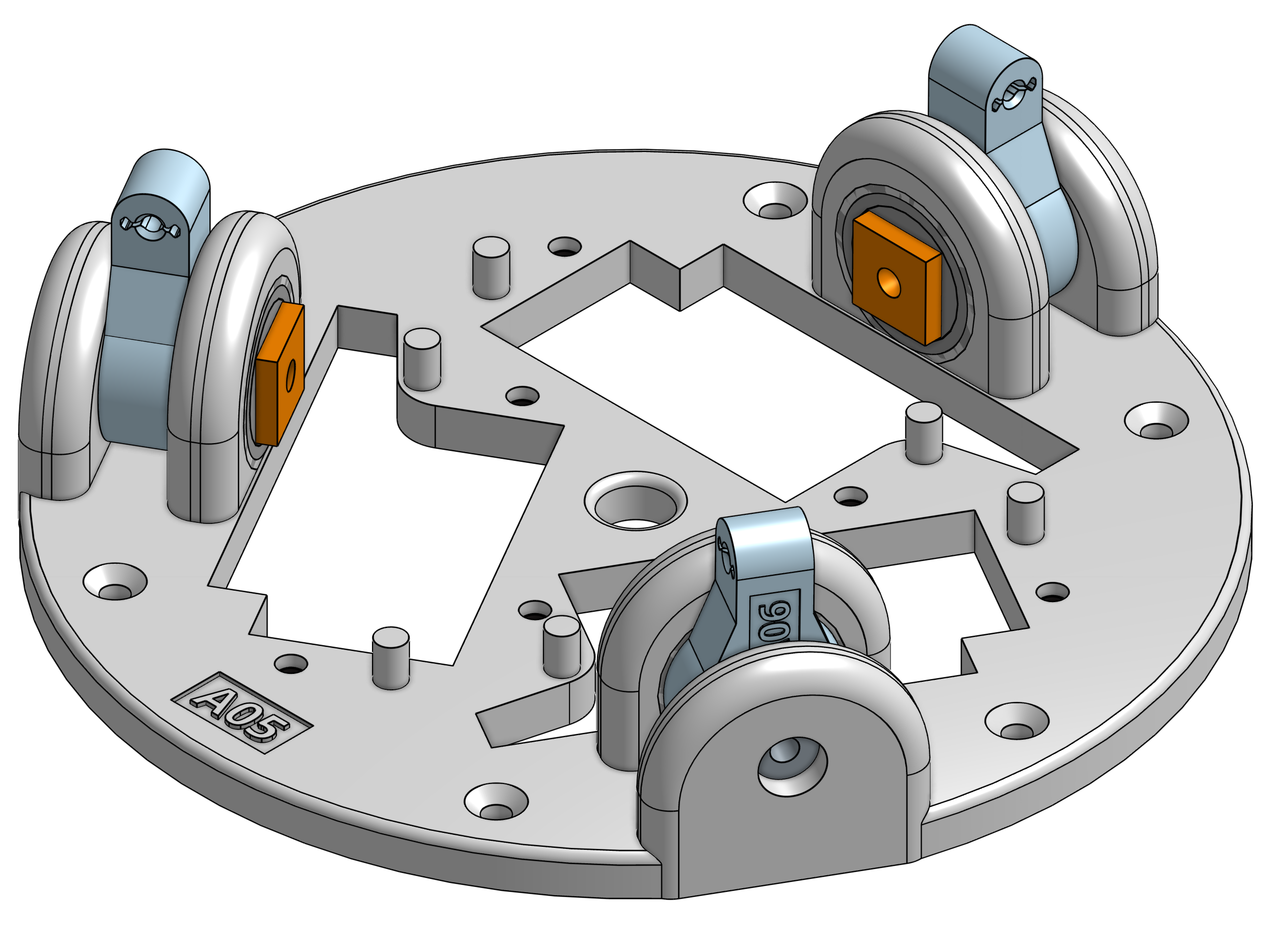

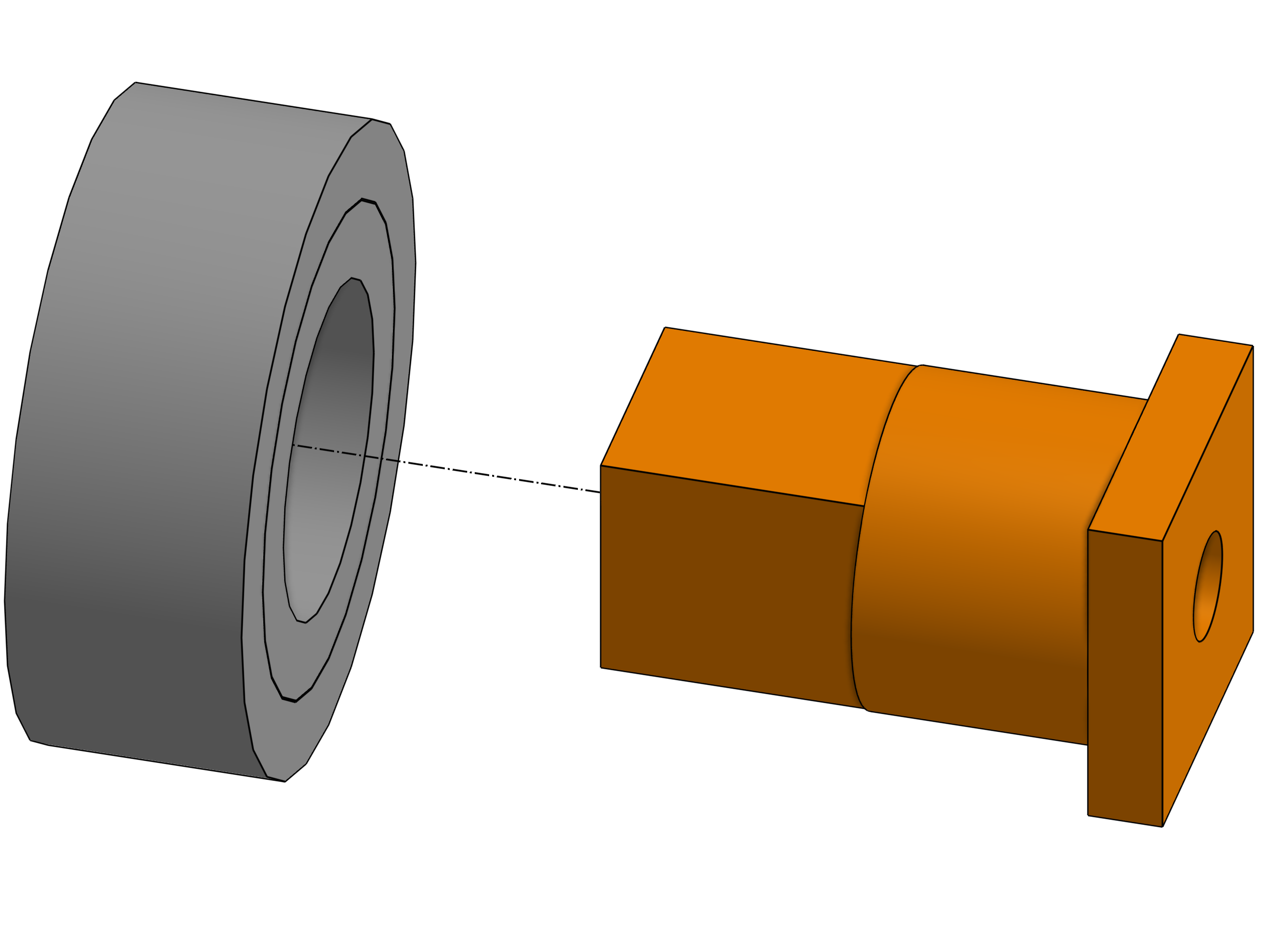

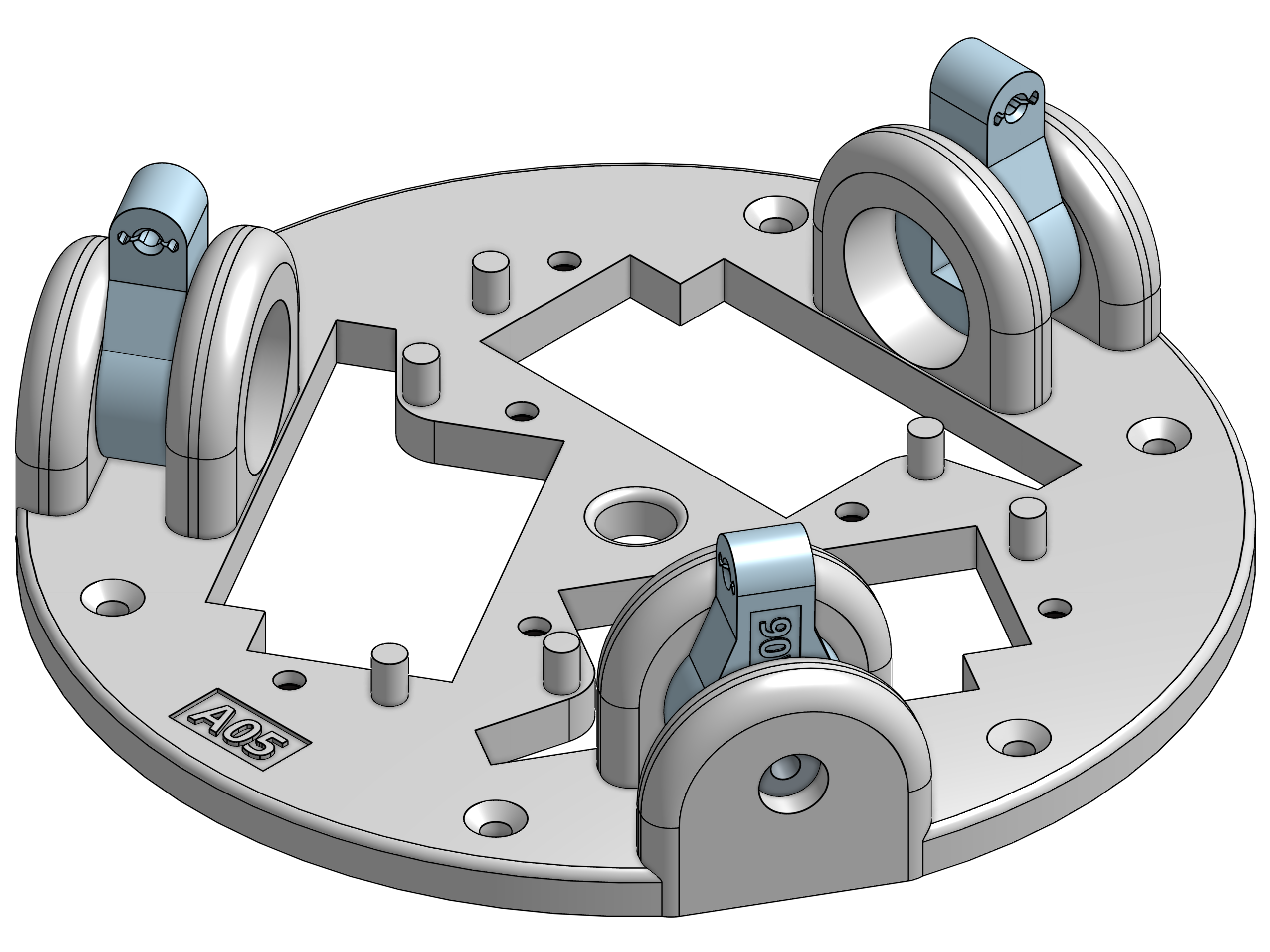

2. Place 3 A06_Neck_base_connector in the shown spot in A05_Neck_base. Place A07_Neck_servo_connectors inside 10x19x7 ball bearings and insert them in the shown spots to fix A06_Neck_base_connectors.

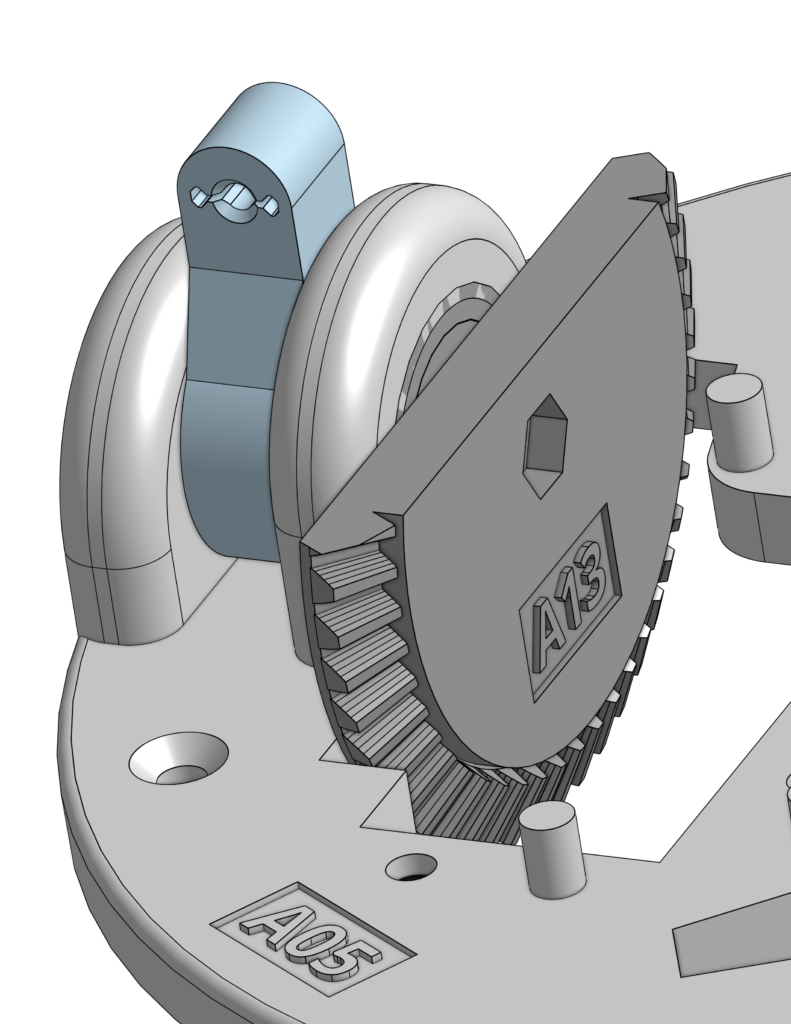

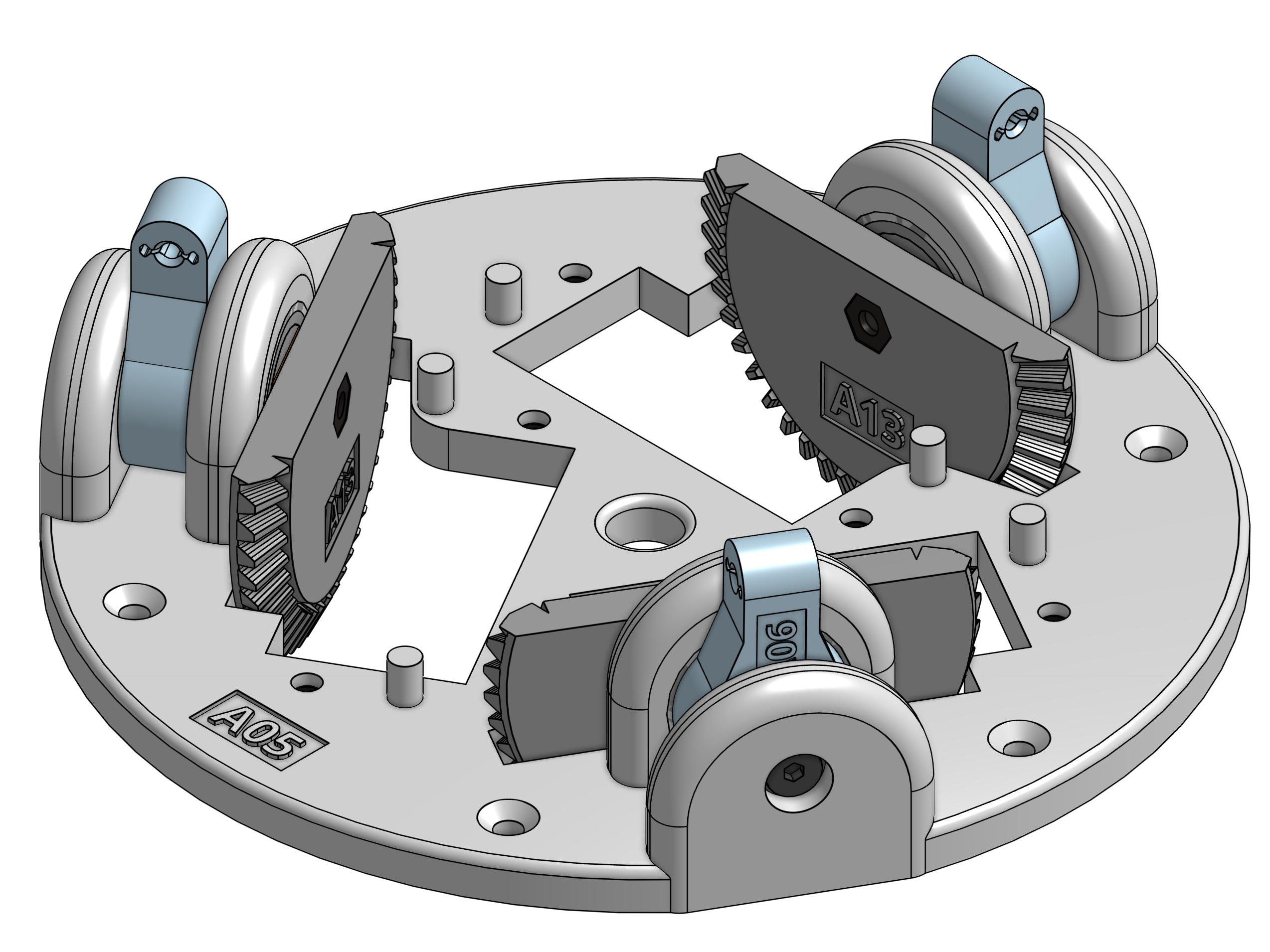

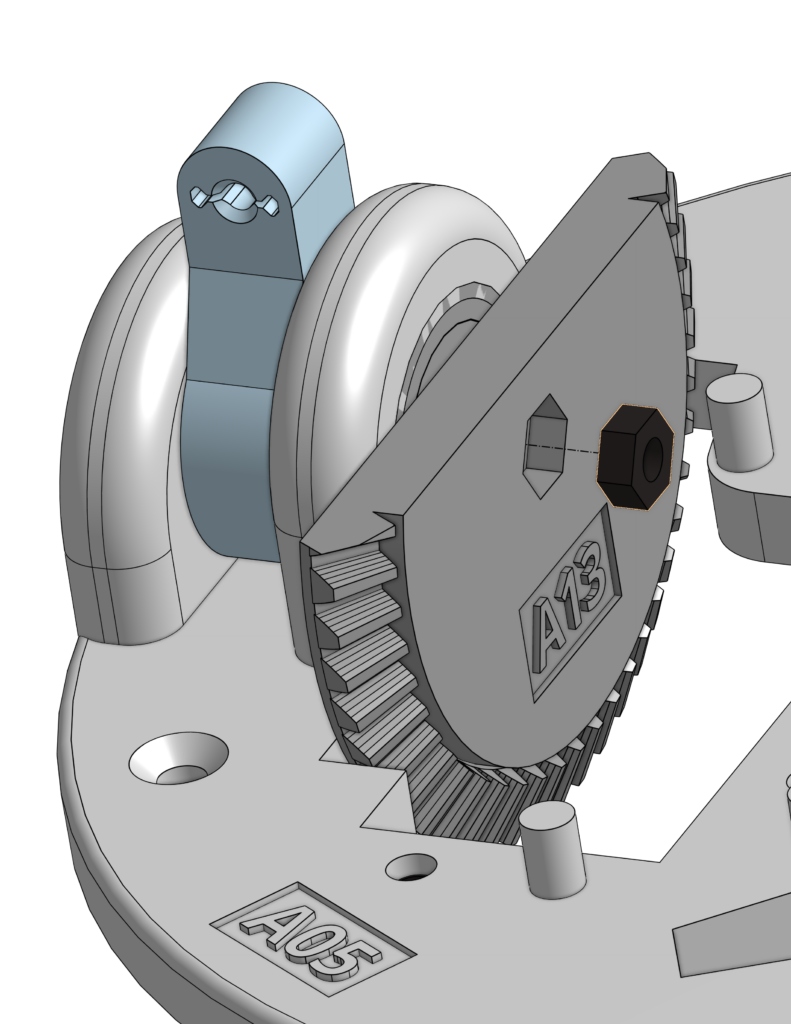

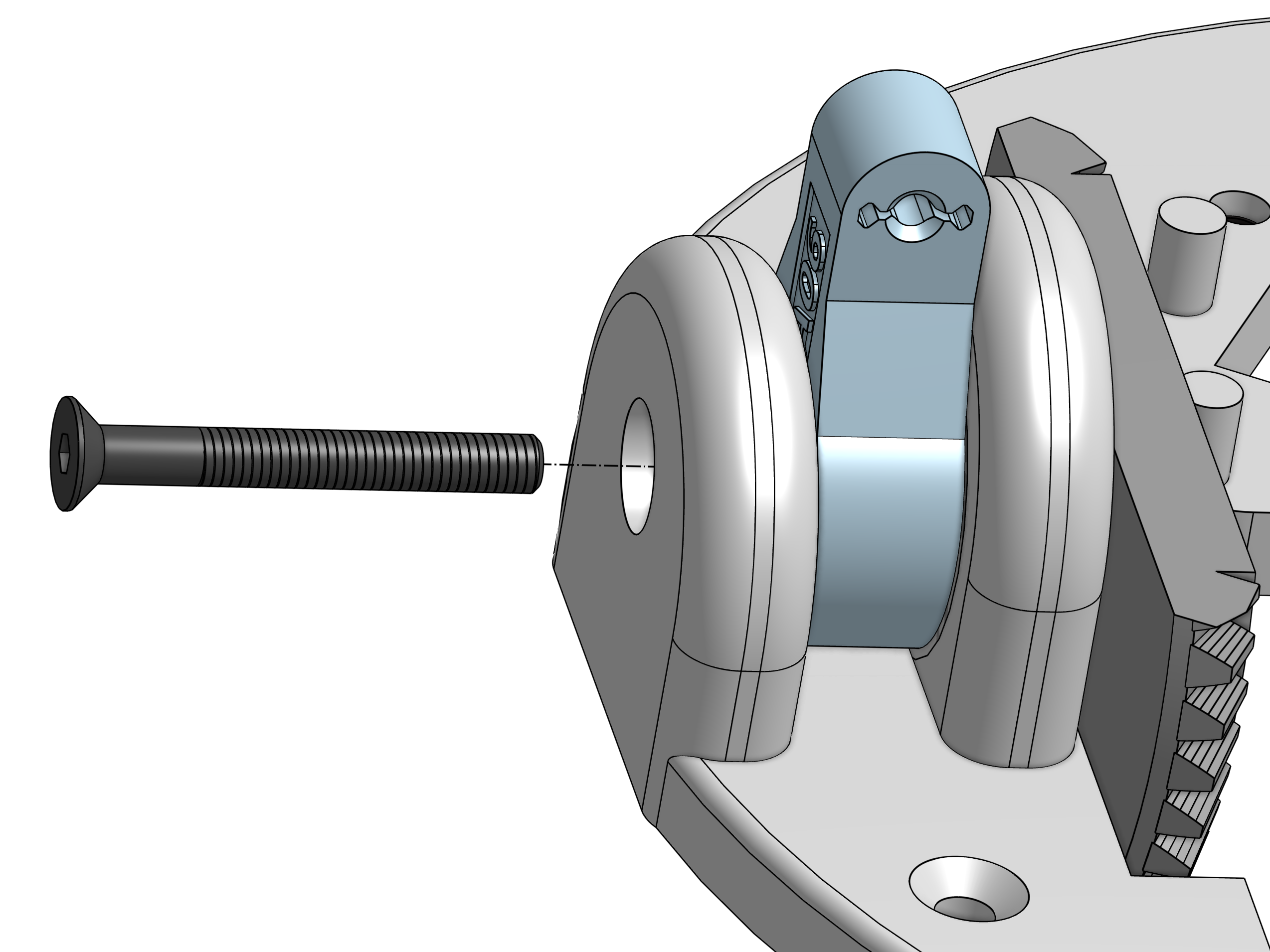

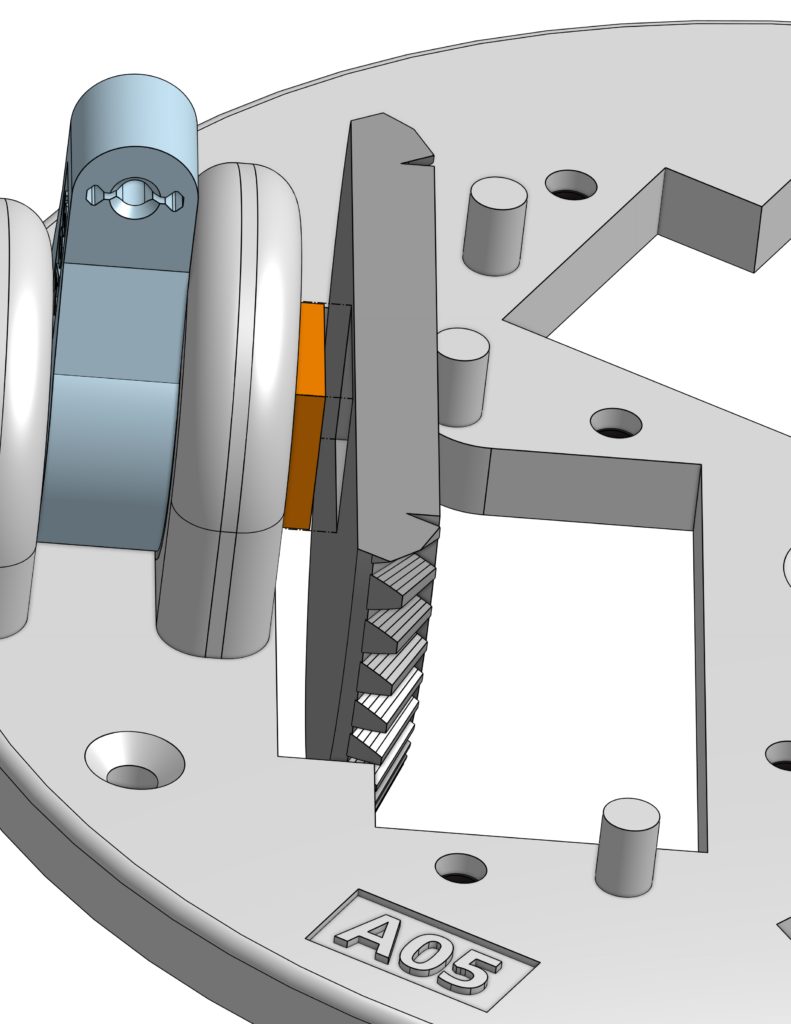

3. Connect A13_Neck_driven_bevel_gear to the A07_Neck_servo_connectors in this orientation using 1 M3 nut and 1 M3 25 mm screw, repeat this step 2 more times.

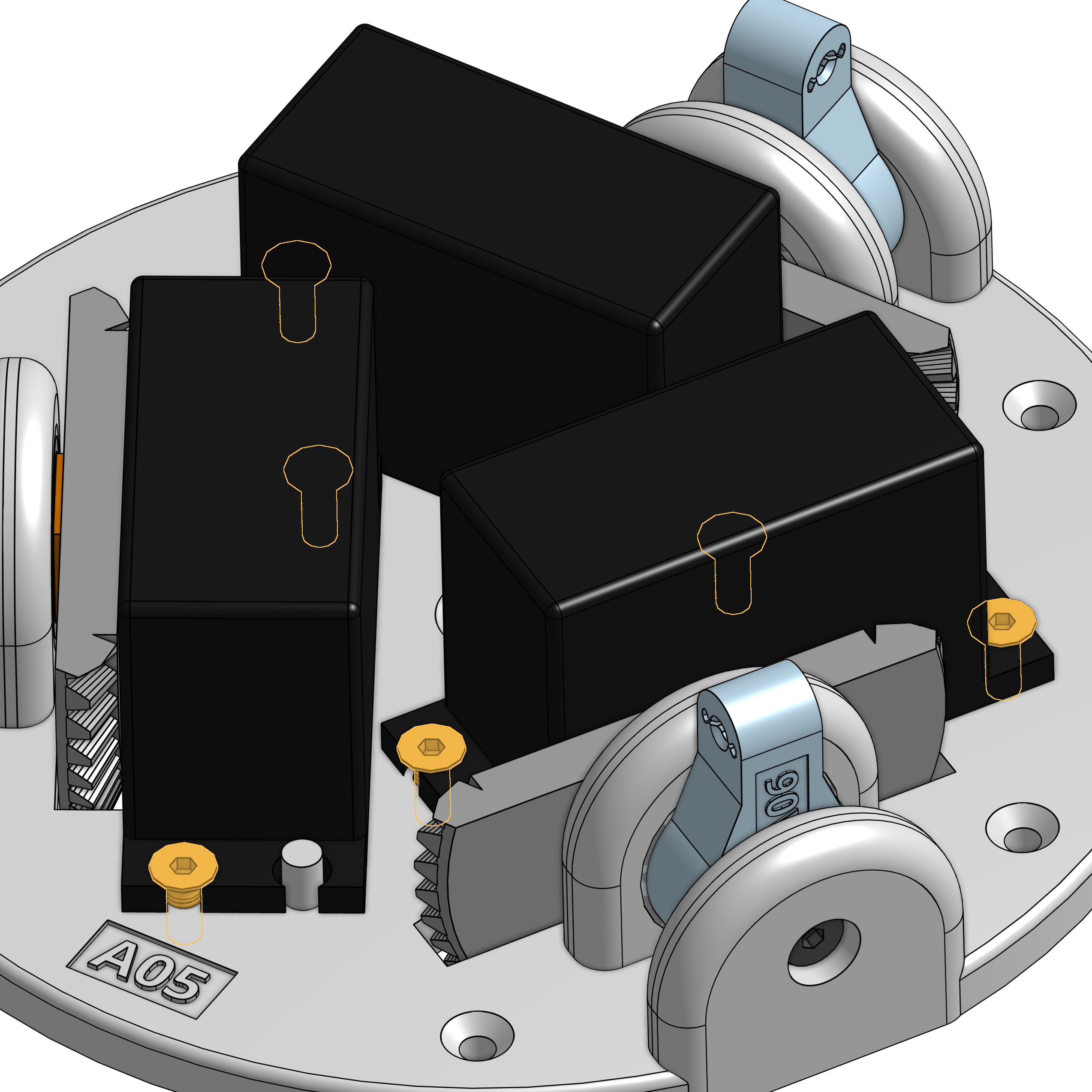

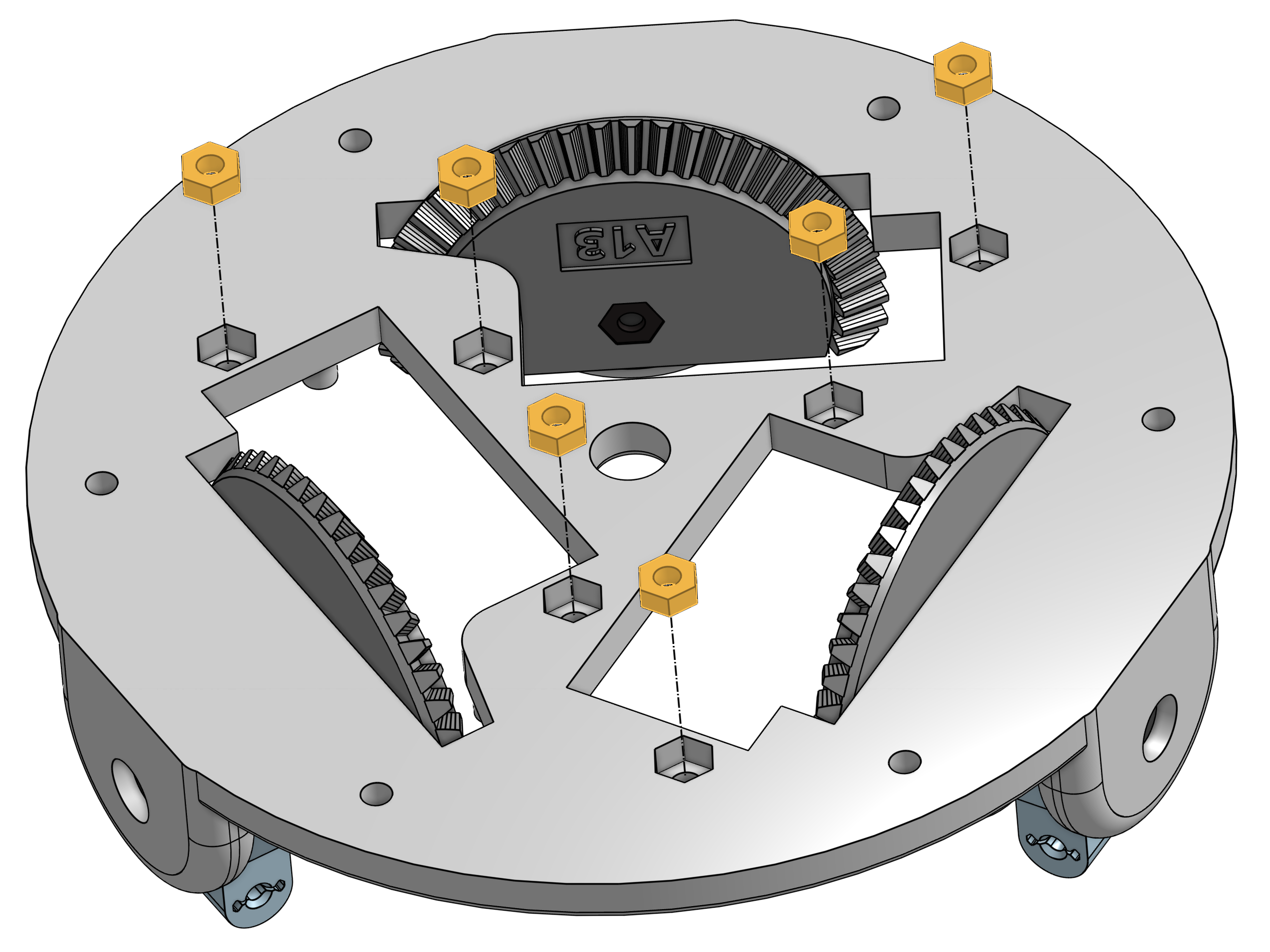

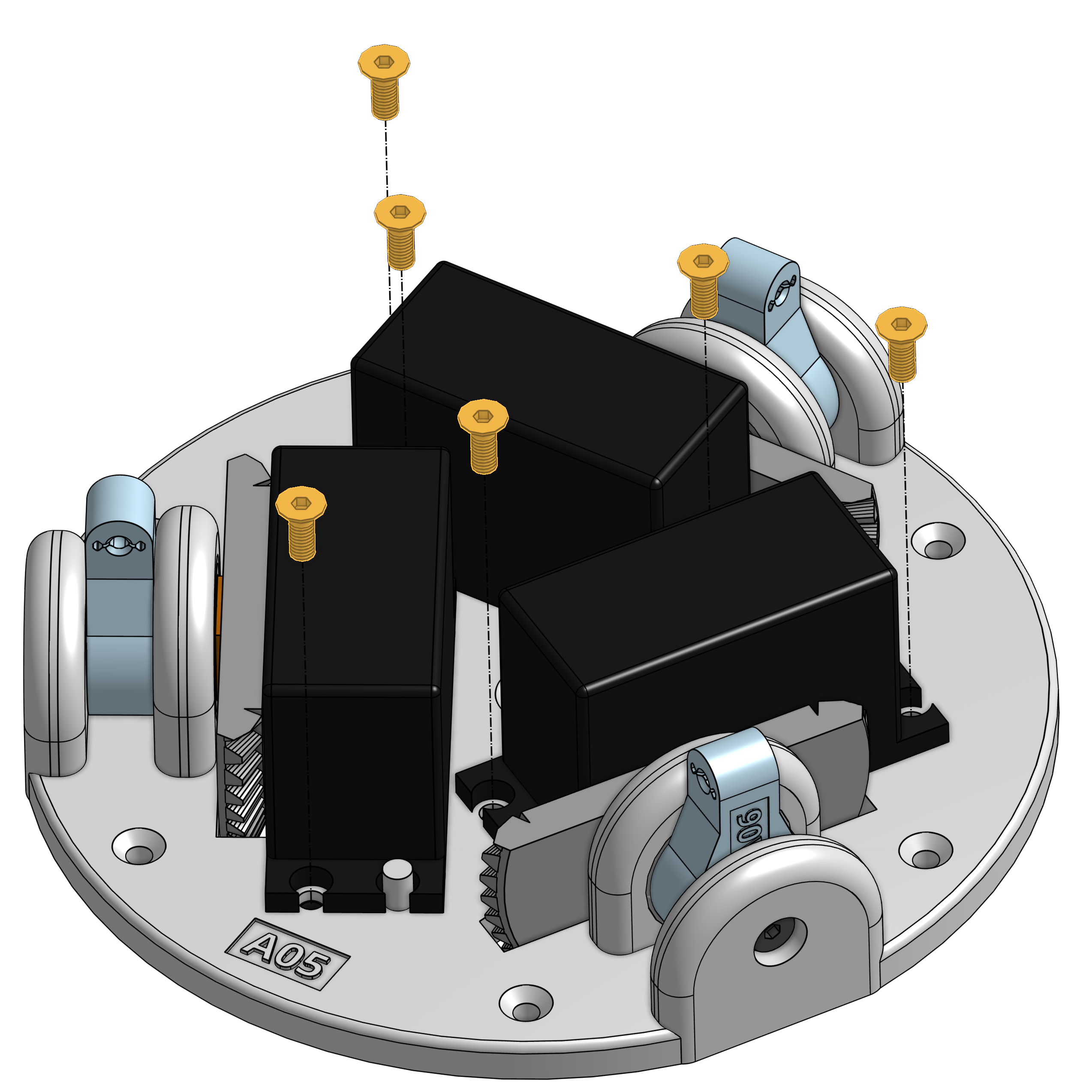

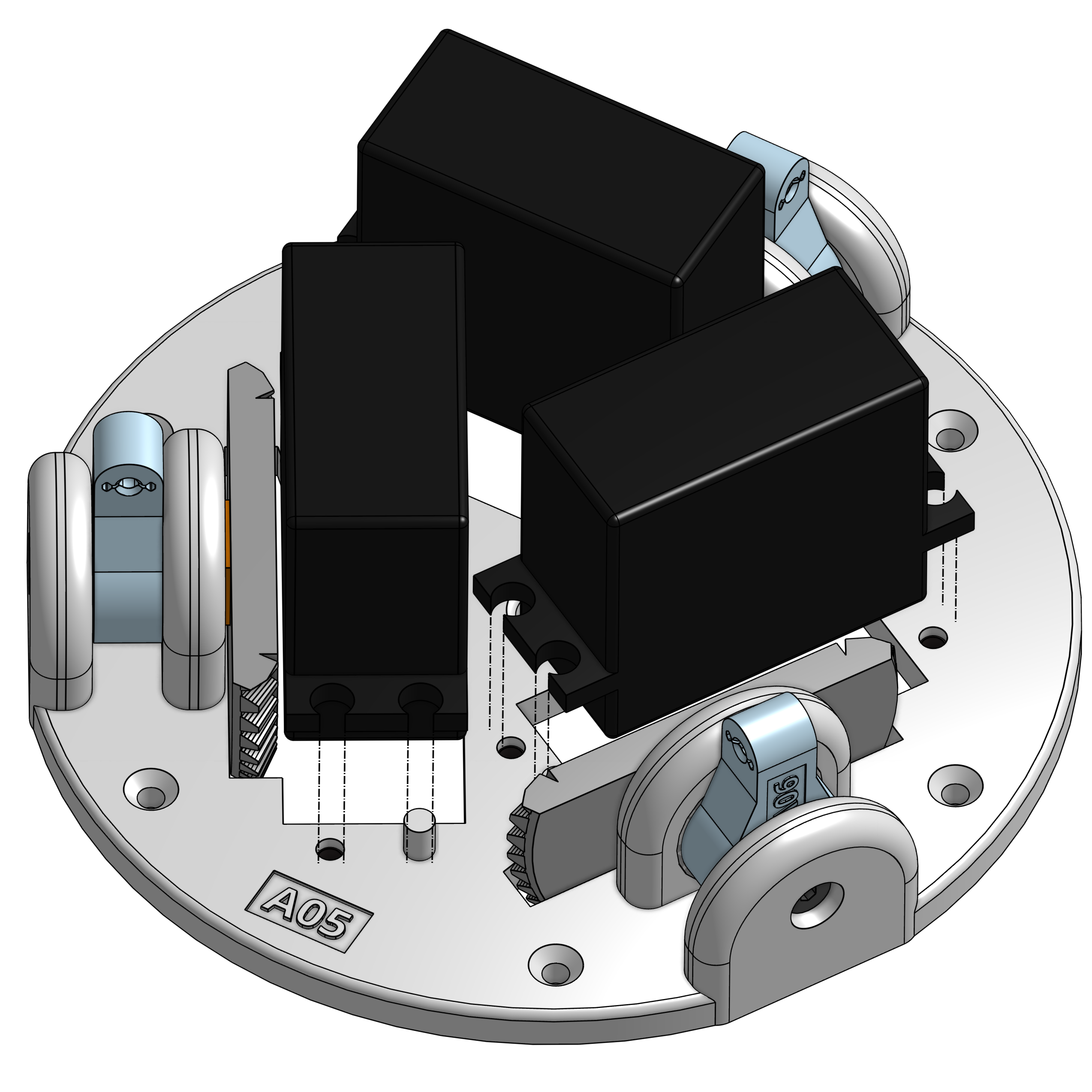

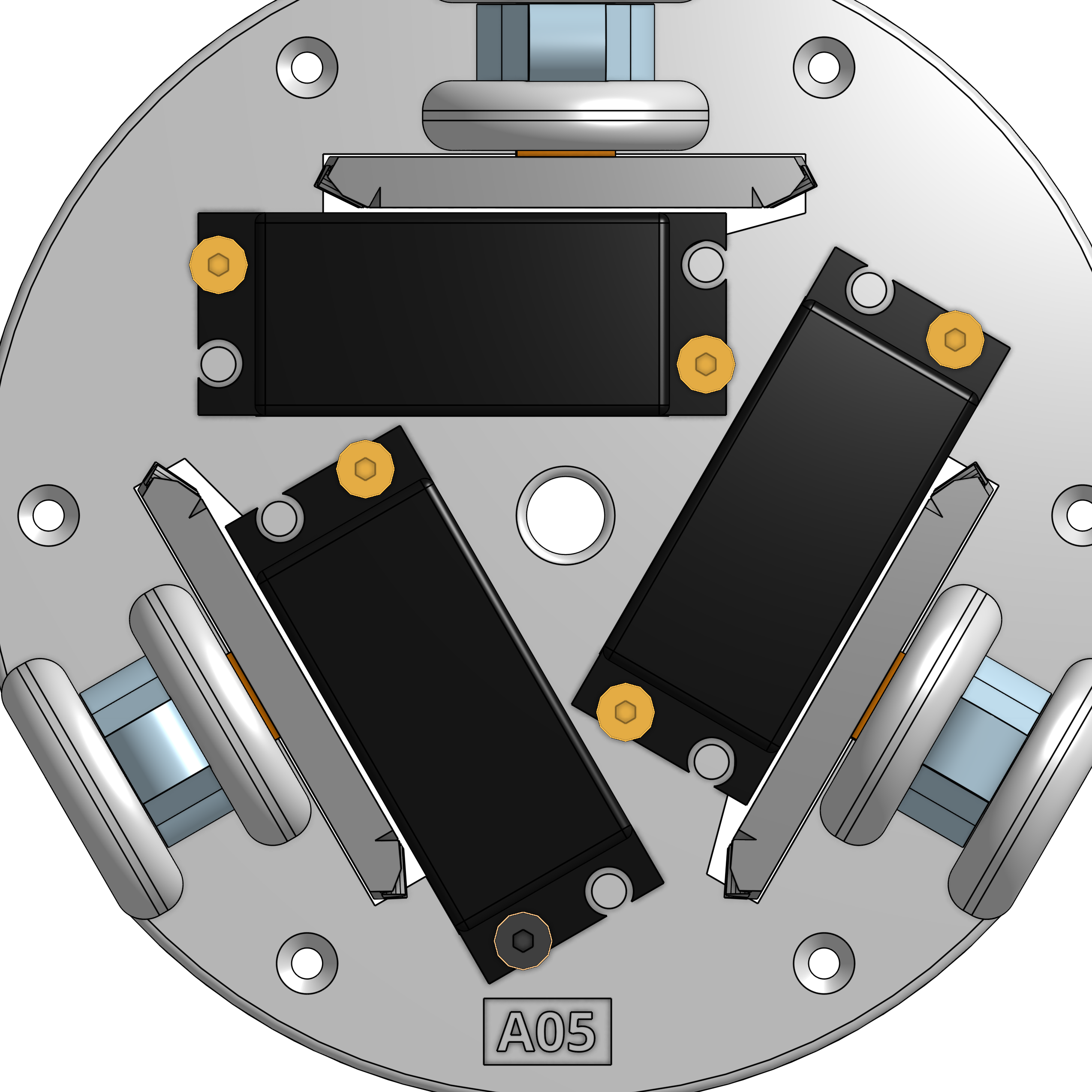

4. Place 6 M3 nuts, 3 MG996R servos in shown spots and fix them using 6 M3 8 mm screw.

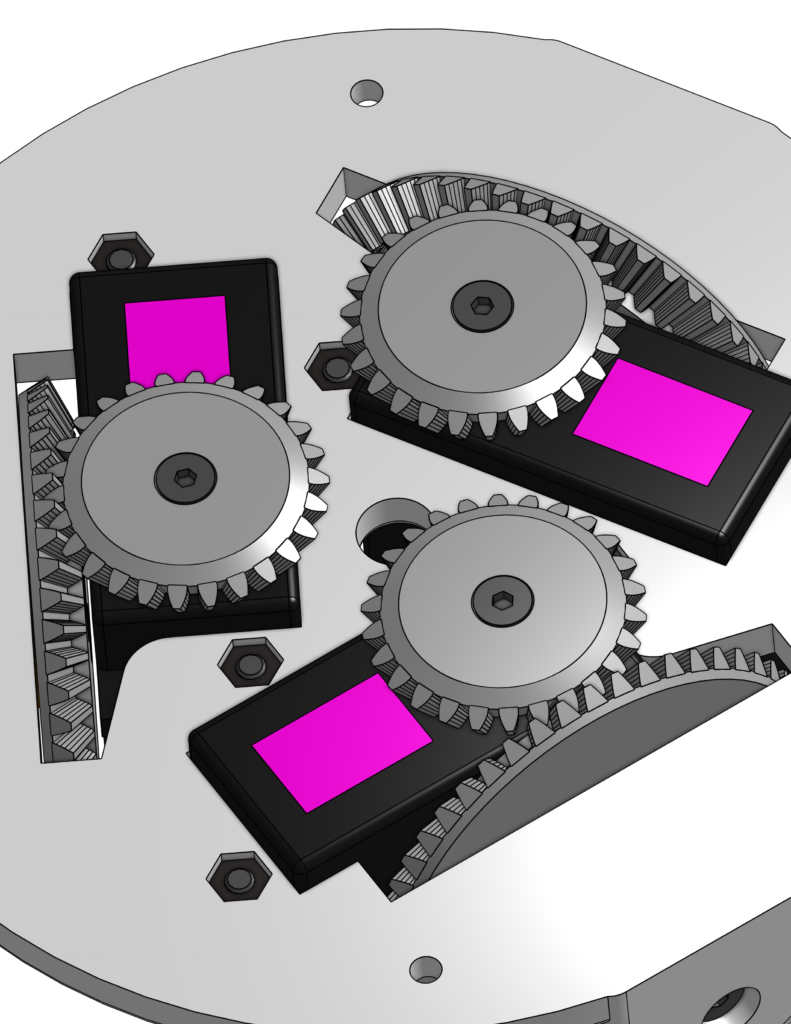

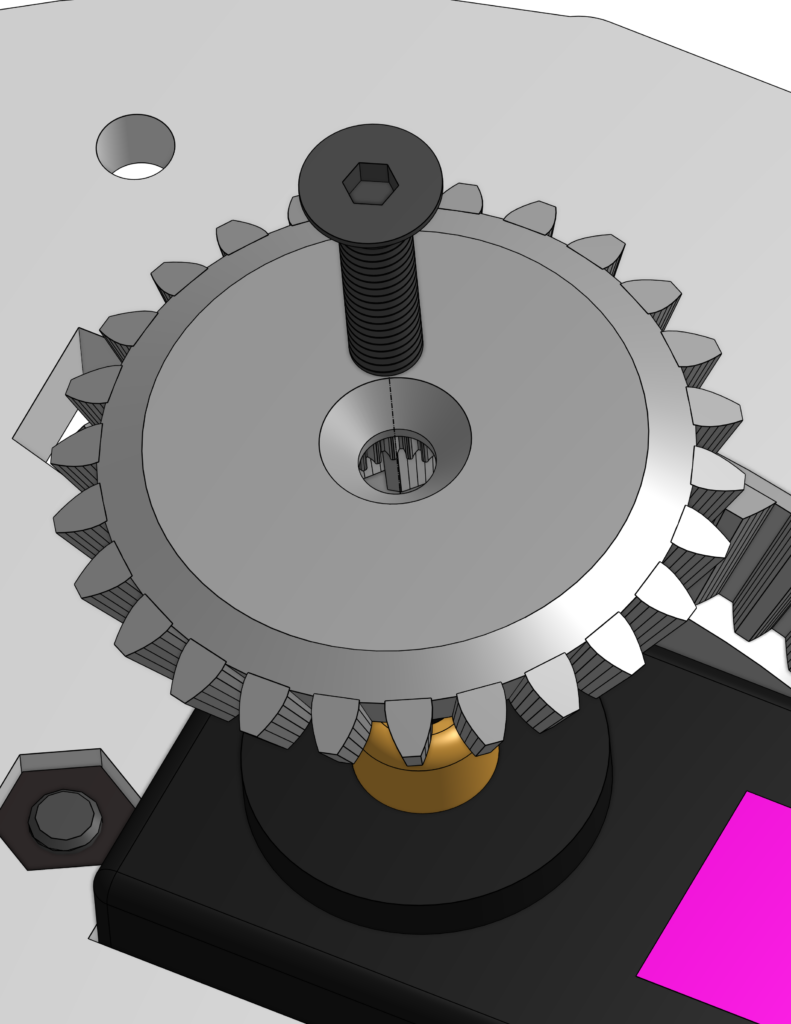

5. Connect A12_Neck_driving_bevel_gear to servo motor using 1 M3 12 mm screw while meshing the gears’ teeth together with a smooth interaction, repeat this step 2 more times.

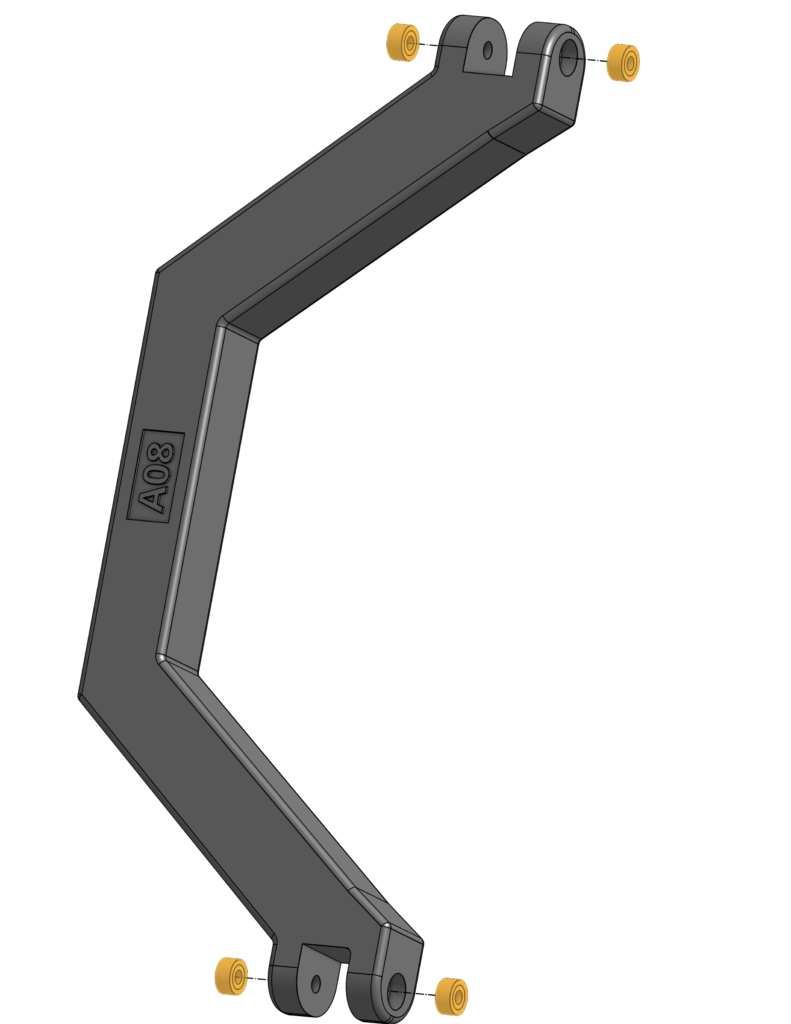

6. Place 2.5x5x2.3 ball bearings in the shown spots in A08_Neck_arm, repeat this step 2 more times for 2 other A08_Neck_arm.

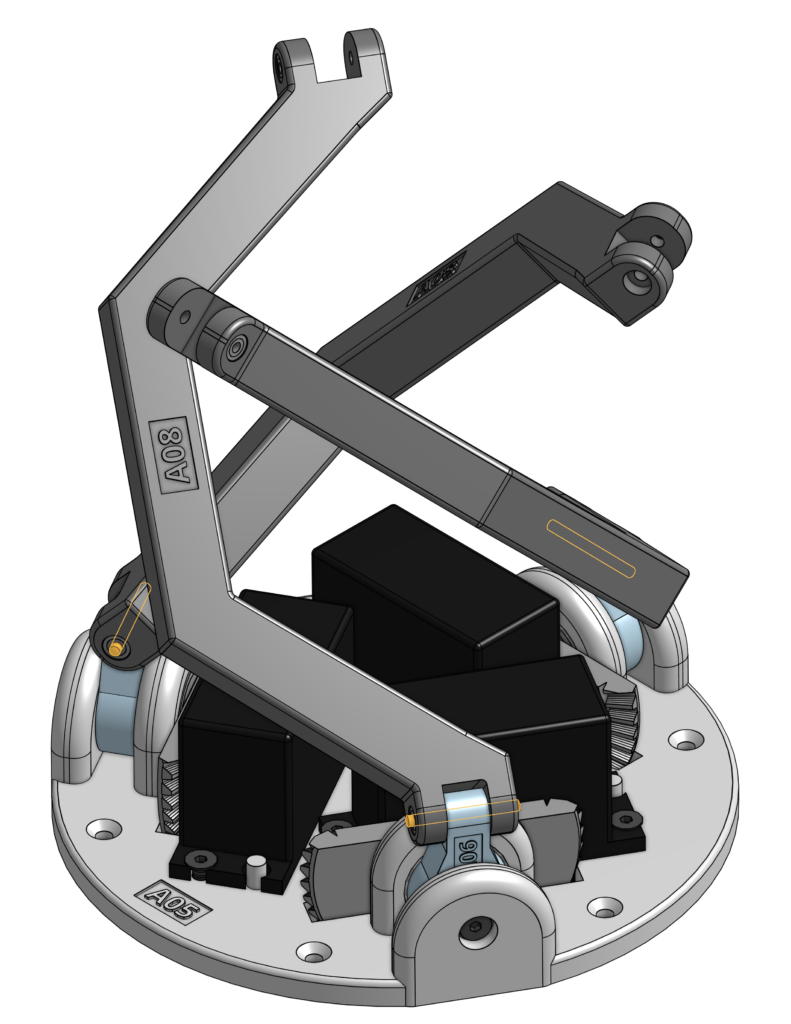

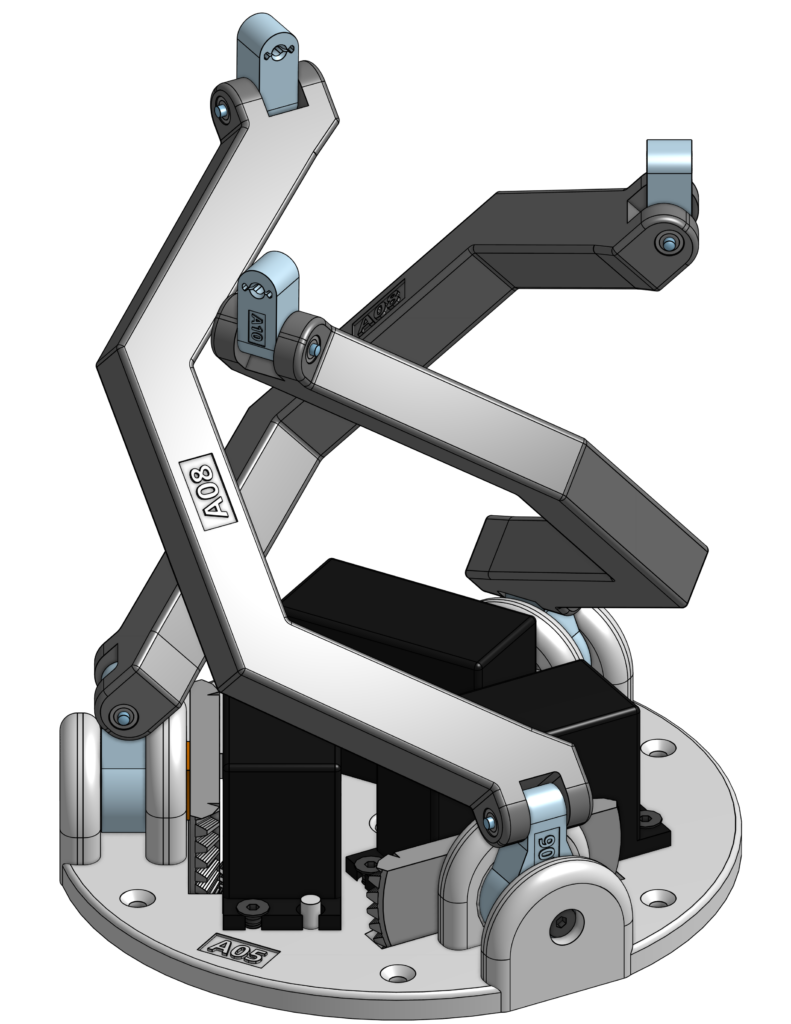

7. Connect the 3 A08_Neck_arm to the 3 A06_Neck_base_connector using 20mm metal rods while maintaining the shown orientation.

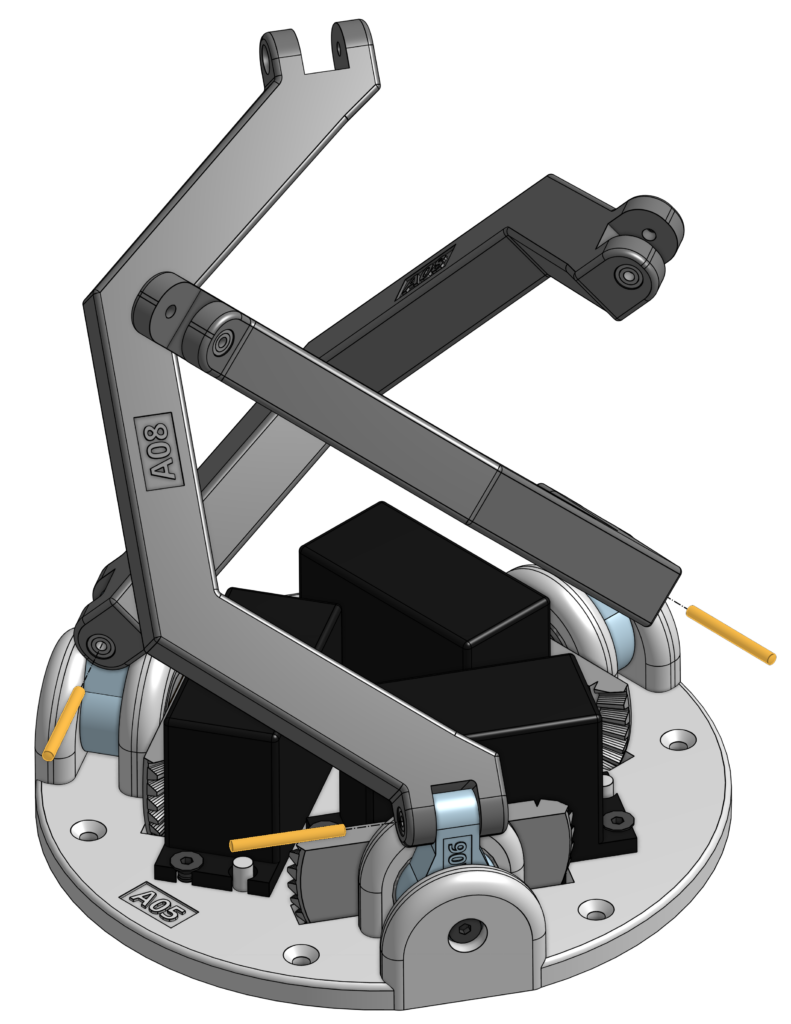

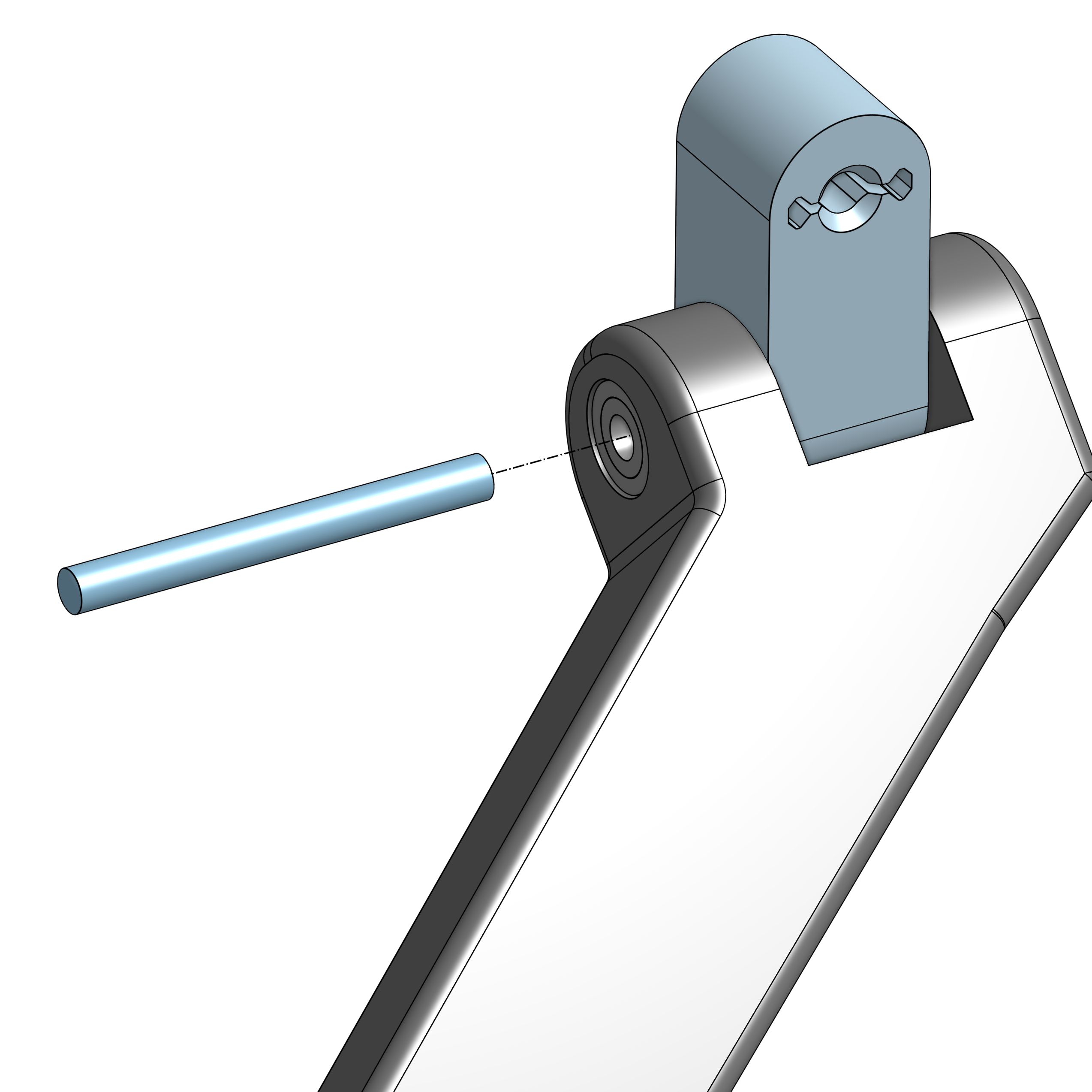

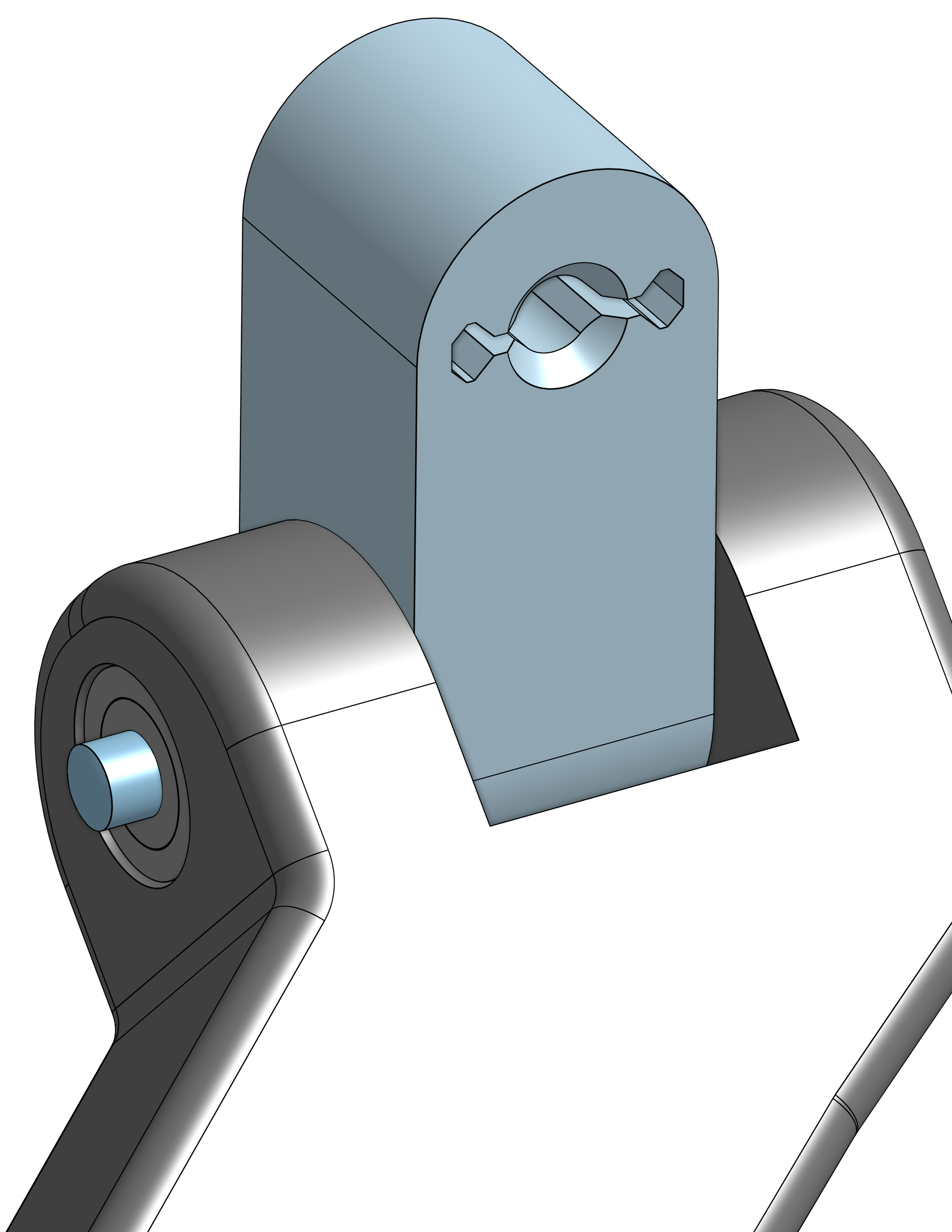

8. Connect the tops of the 3 A08_Neck_arm to 3 A10_Neck_head_connector using 20mm metal rods.

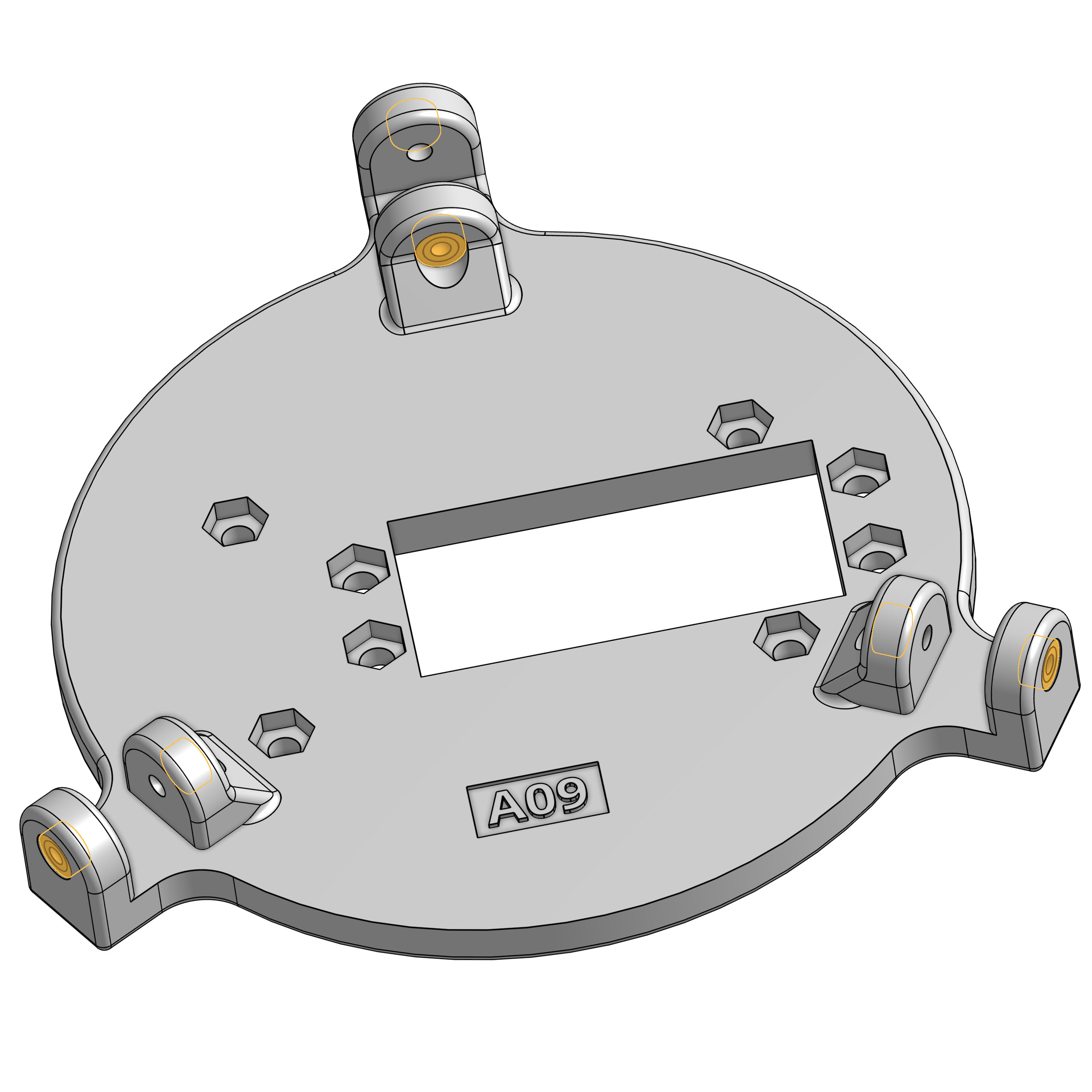

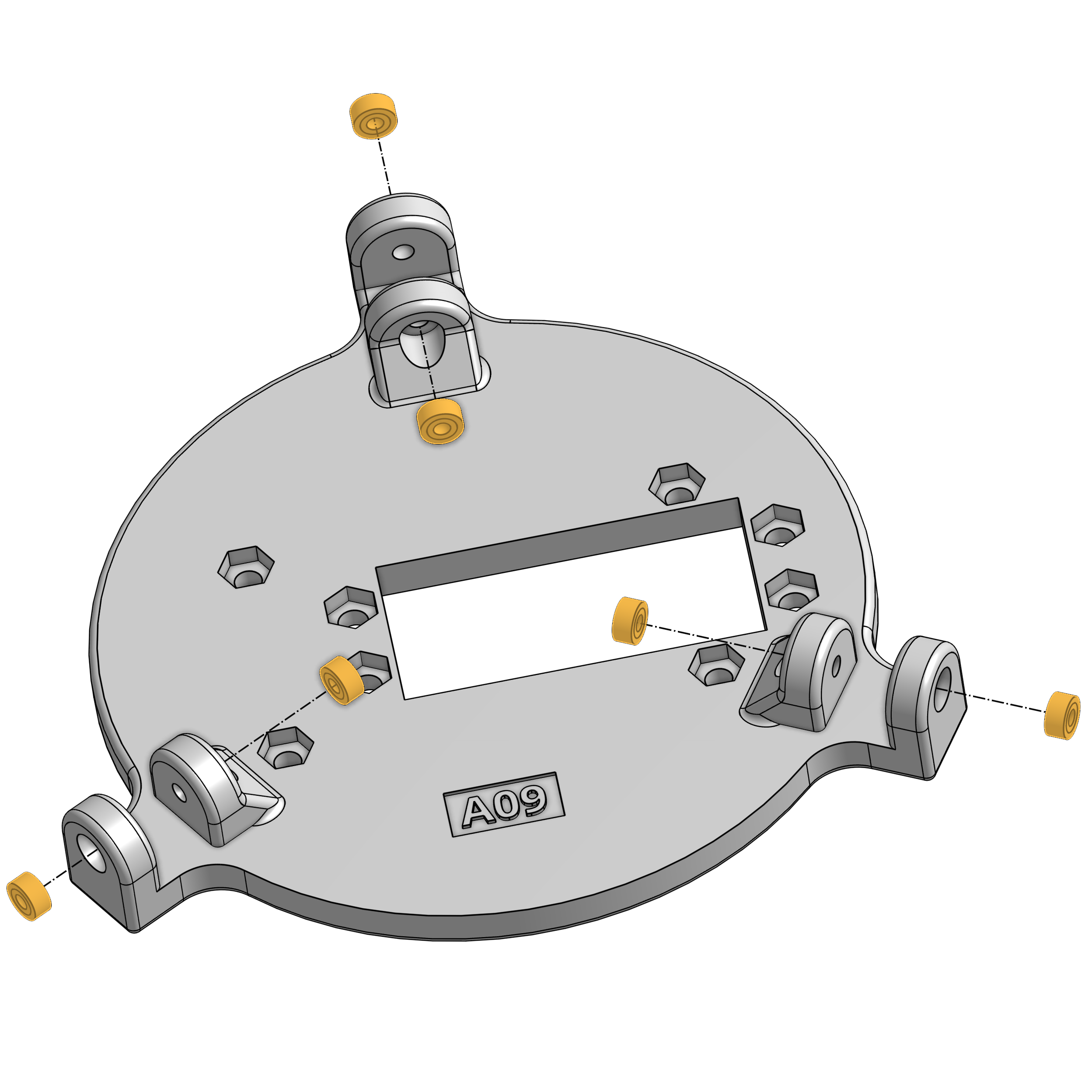

9. Place 6 2.5x5x2.3 ball bearings in the shown spots in A09_Neck_head.

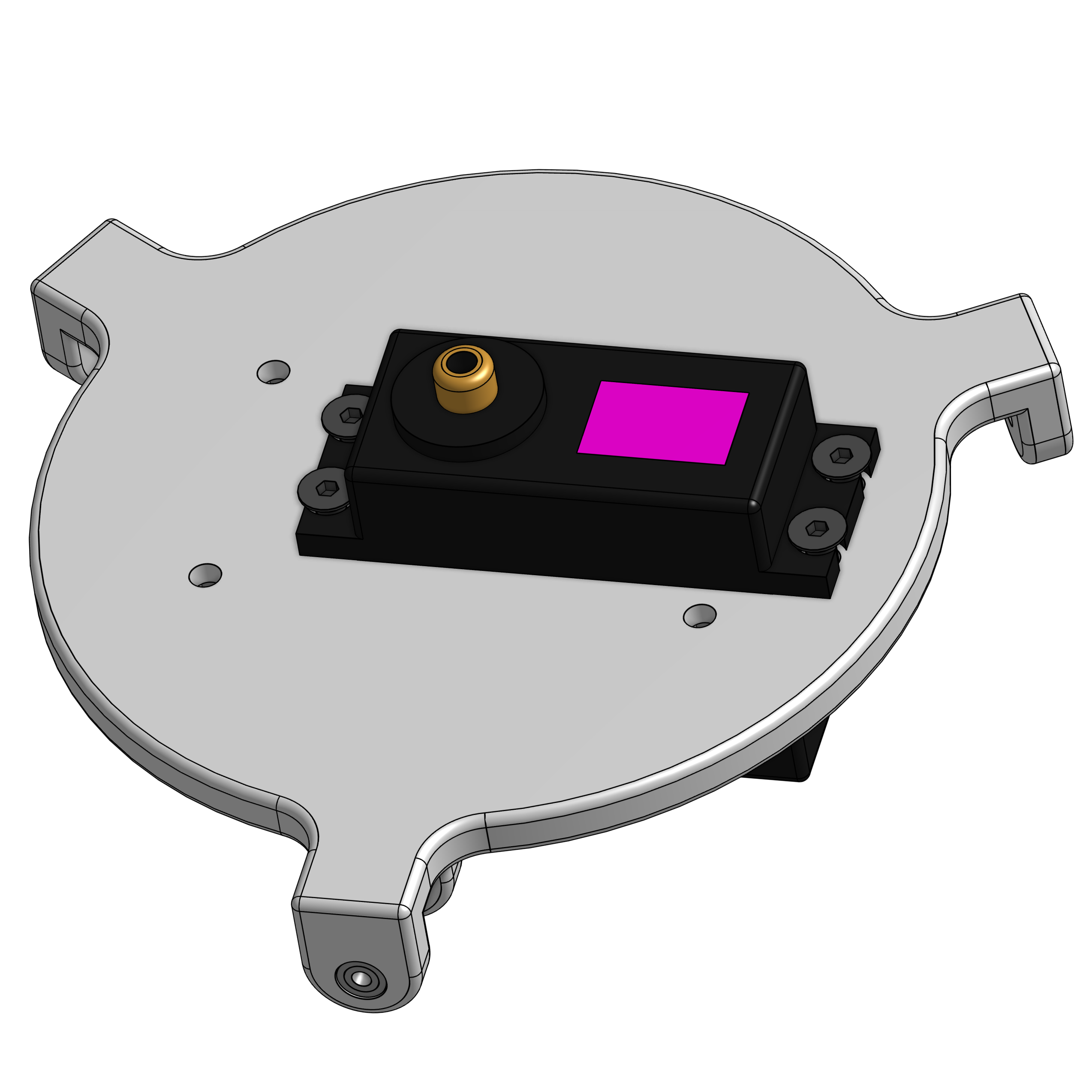

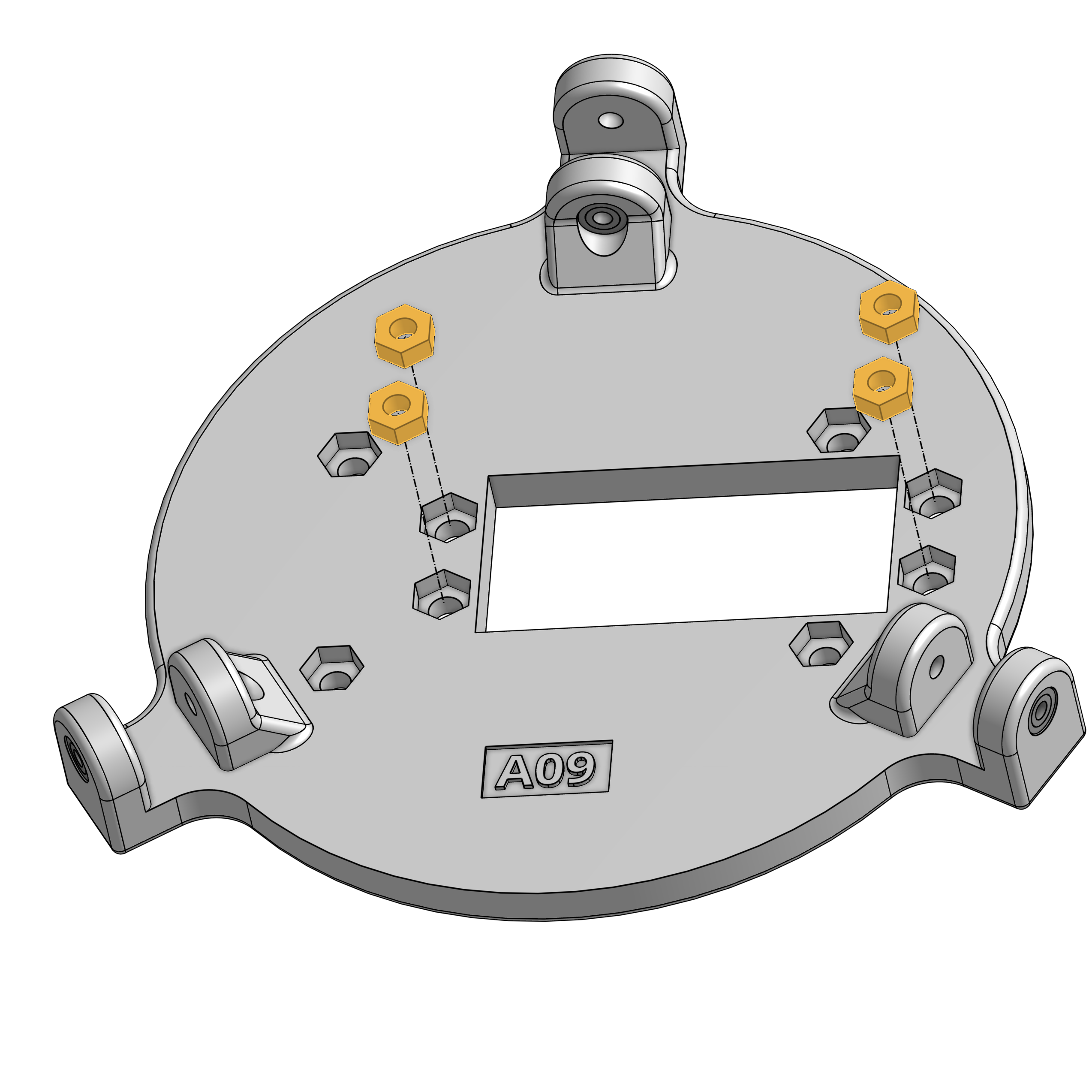

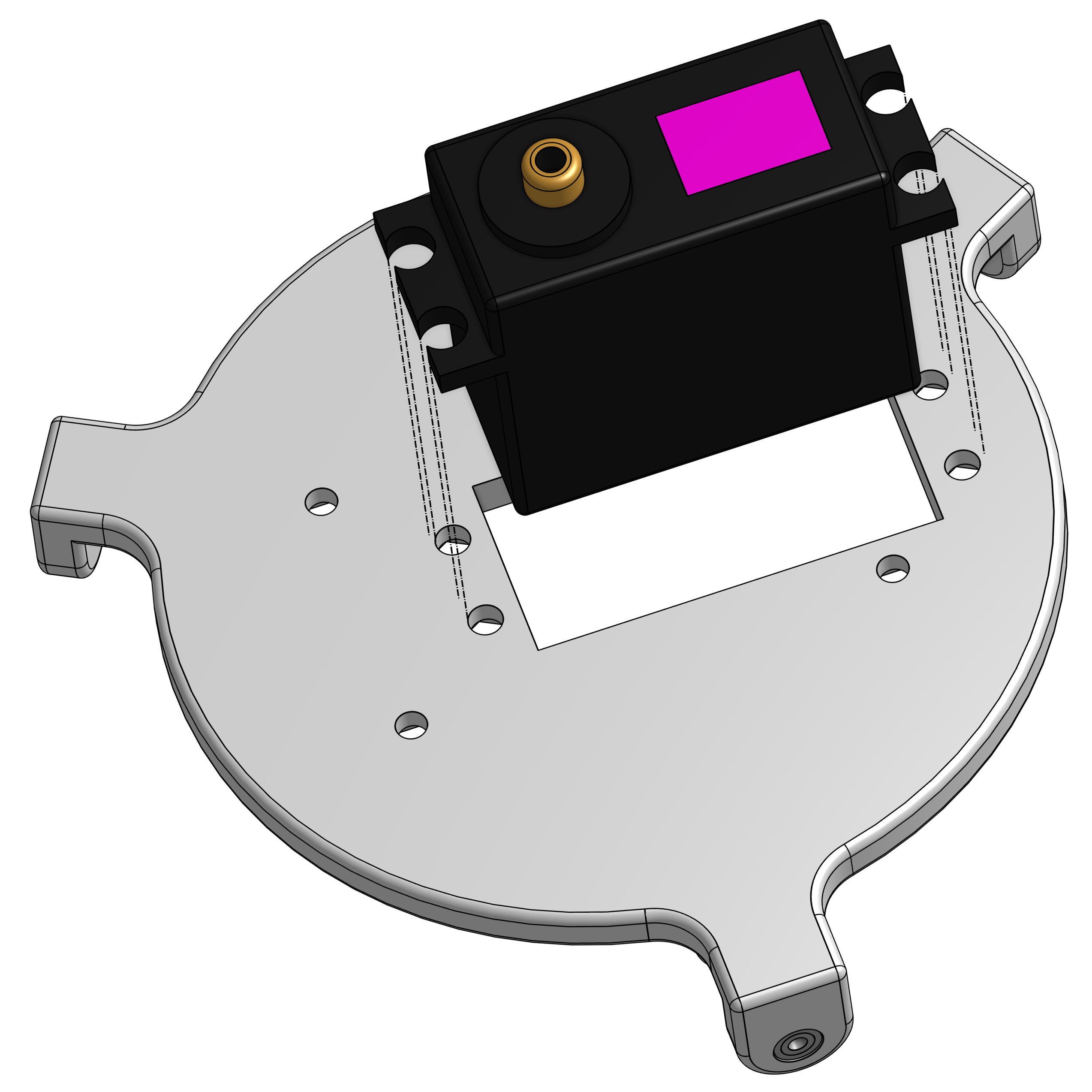

10. Place 4 M3 nuts in A09_Neck_head, an MG996R servo and fix it using 4 M3 12mm screws.

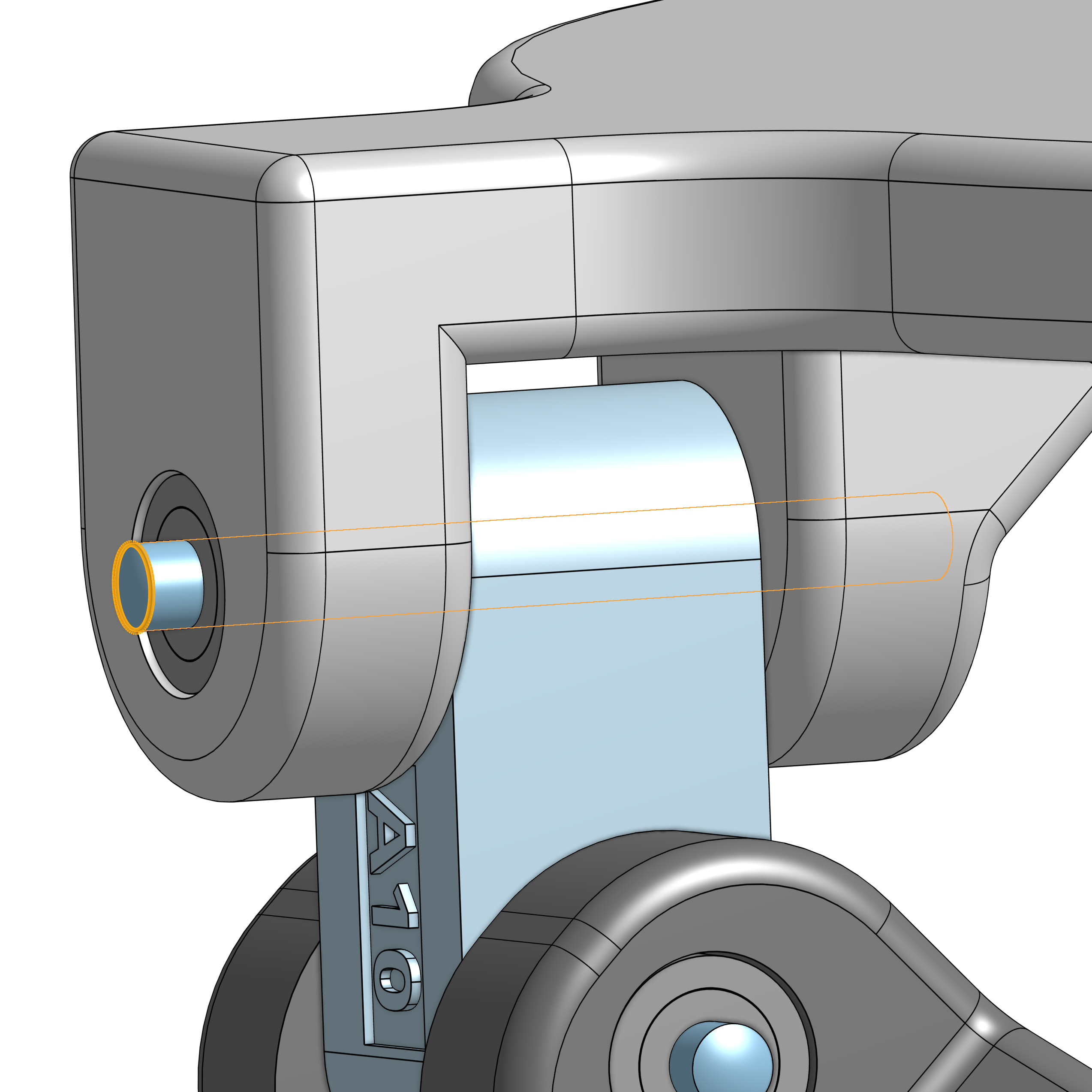

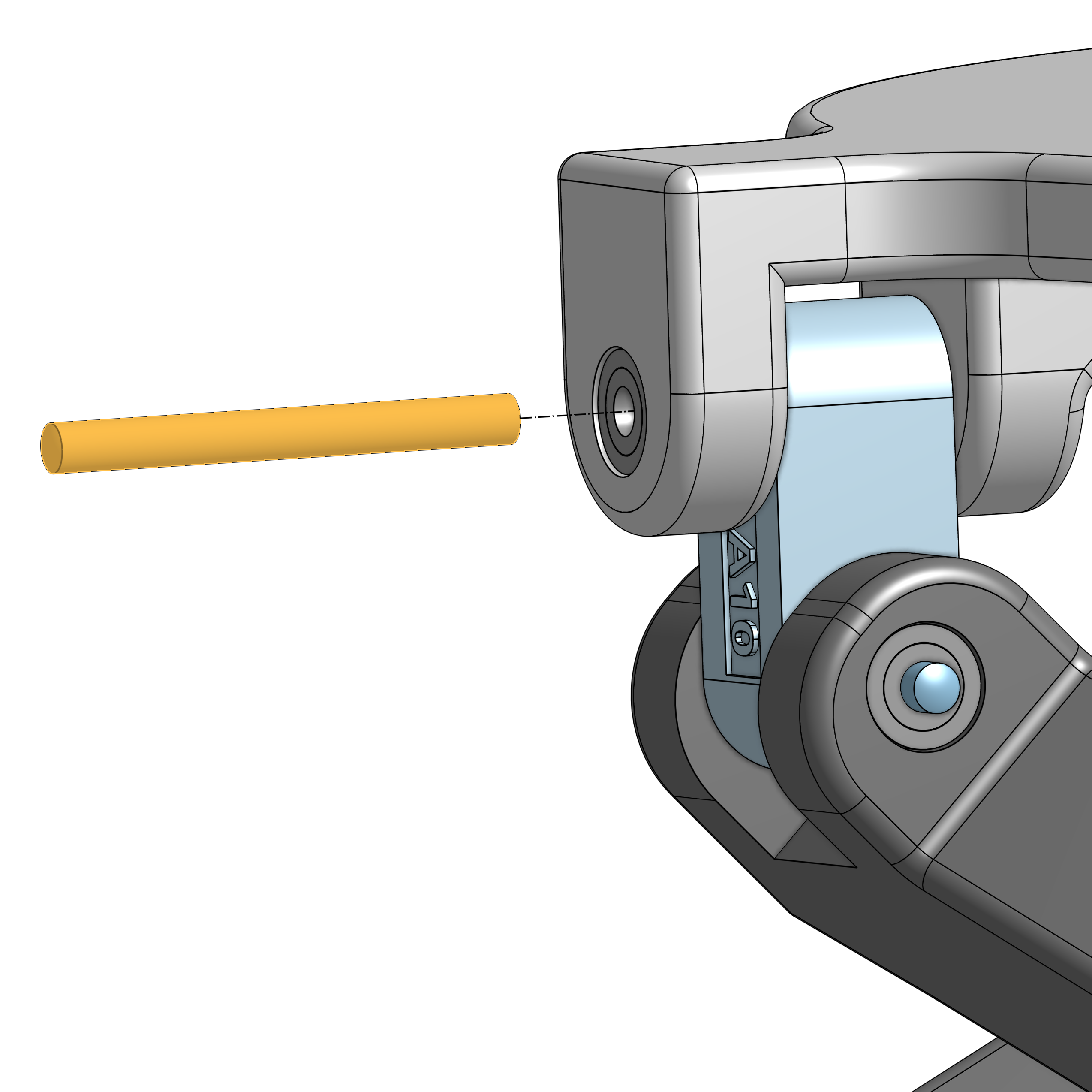

11. Connect the A10_Neck_head_connector to A09_Neck_head using 20mm metal rods.
